When technicians ask, “why does my limit switch fail to cut off power,” the answer is rarely the switch alone. In real control panels, a welded contact, incorrect terminal connection, or bypassed safety circuit can keep voltage present. A damaged actuator may also stop the switch from reaching its full travel. Sometimes, the switch operates correctly, but another circuit continues feeding the load.
Electrical safety author John Cadick offers a useful warning: “A limit switch should never be treated as the only means of controlling hazardous energy.” That principle matters in factories, packaging lines, hoists, and machine guards. A limit switch signals position. It does not automatically guarantee isolation. The control relay, contactor, PLC logic, emergency-stop circuit, and power-disconnection method must work together.
Look closely.

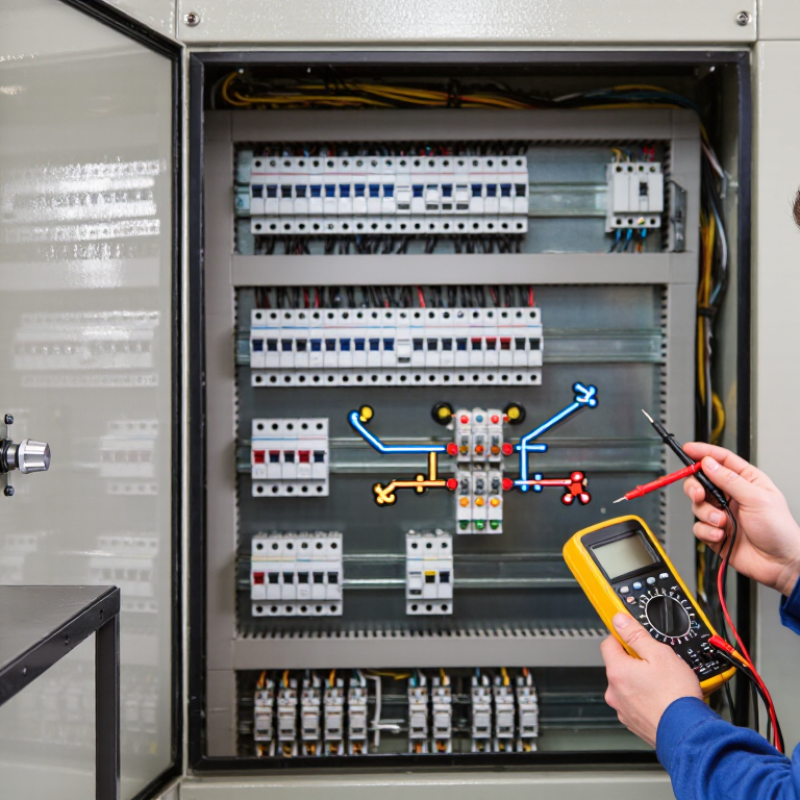

A practical inspection starts with the wiring diagram, not guesswork. Technicians should measure voltage on both sides of the switch, inspect contact movement, and check for backfeed from another supply. A multimeter can reveal unexpected voltage, but stored energy may remain after disconnection. This is where assumptions become dangerous. The indicator light may be off while the machine still receives power through a separate path. The switch may click normally, yet its internal contacts could be burned together.
This article examines China’s top ten limit-switch failure causes, including poor selection, vibration, contamination, misalignment, overload, and weak maintenance practices. Some explanations are straightforward. Others require a second look. Because a limit switch is only one link in the safety chain.
China’s top ten limit switches are usually built around a sealed housing, spring mechanism, actuator, and contact block. Common actuators include rollers, plungers, levers, and flexible rods. Each design transfers machine movement into contact movement.
Inside, a cam presses the actuator and changes the circuit state. A normally closed contact opens when the machine reaches its limit. A normally open contact closes instead. This simple cutoff principle depends on enough travel and correct alignment. A few millimeters matter.
Ratings require careful reading. Voltage, current, AC or DC load, switching frequency, and inductive load all affect performance. A switch rated for a small resistive load may fail when controlling a motor coil. Repeated arcing can weld contacts together. Power then remains active. That is a dangerous surprise.
In field inspections, I check the actuator position, cable entry, terminal tightness, and enclosure seal. Dust, oil, vibration, and excessive overtravel can prevent full contact movement. A damaged spring may also leave the circuit partly engaged. Test the switch under its real load, not only with a continuity meter. Continuity can look normal while the contacts fail during operation. I have found misalignment more often than complete internal breakage. Still, that observation is not universal.
Protection ratings must match the installation environment. A sealed enclosure helps, but it cannot correct an unsuitable electrical rating. Some specifications are easy to misread. That deserves a second review before installation.
Most units contain a sealed housing, spring mechanism, actuator, and contact block. Common actuators include rollers, plungers, levers, and flexible rods. Each part transfers machine movement into electrical contact movement.
A cam presses the actuator as the machine reaches its travel limit. A normally closed contact opens. A normally open contact closes. Correct alignment and enough actuator travel are essential.
Small alignment errors may prevent complete contact movement. The actuator can stop too early or receive excessive overtravel. The machine may appear correctly positioned, yet the circuit remains active.
No. That rating commonly describes a steady resistive load under specified test conditions. Motors, solenoids, transformers, and capacitive supplies may create much higher startup current. Read the voltage, current, load type, switching frequency, and utilization category.
When contacts open, an inductive load can create an electrical arc. The arc heats the contact faces and transfers metal. Repeated cycling may leave a dark welded spot. Power can remain continuous.
Check for discoloration, sticking, delayed release, or power remaining after actuation. Small pits may appear on the contact faces. A continuity meter can show a normal result while operating failure remains hidden.
Inspect the actuator position, cable entry, terminal tightness, and enclosure seal. Look for dust, oil, vibration, damaged springs, and excessive overtravel. Loose terminals can add heat. That detail is easy to miss.
Isolate the circuit before inspection and use a suitable meter. Test the switch under its real electrical load, not only with a continuity check. Measure startup current, not just the equipment label value. A lamp test may hide the actual fault.
This article explains why China’s top 10 limit switches may fail to cut off power, focusing on their construction, electrical ratings, and switching principles under IEC 60947-5-1 conditions. It examines ten common failure modes, including contact welding, worn or misaligned actuators, excessive switching current, insulation deterioration, and mechanical damage. Special attention is given to how 10 A/250 V AC loads can create arcing and maintain power continuity even after the actuator is released.
The article also discusses the importance of IP65 sealing, correct mechanical alignment, and protection from dust and moisture. Practical testing procedures are presented for continuity, insulation resistance, contact resistance, and B10d reliability data. By following these checks, users can better identify why does my limit switch fail to cut off power and determine whether the problem comes from electrical overload, environmental exposure, installation errors, or internal component wear.
