EBS5CHZ mini contactor has the function of remote switching and control of power.
Technical Parameter
Model type
EBS5CHZ
Standard
IEC60947
Poles
2P, 3P, 4P
Contactor
2NO, 4NO
Rated current
16A~100A
Control voltage
220V 230V 240V
Features
With manual operation contactor (Rated current: 25, 40, 63A)
Without manual operation contactor (Rated current: 16, 25, 40, 100A)
Applicable Working Conditions
Ambient temperature
-5℃ ~ +40℃, the average value cannot exceed to +35℃ within 24h
Altitude
≤ 2000 m
Relative humidity
≤ 95%
Pollution level
II
Installation location
Place free from erosion of rain and snow

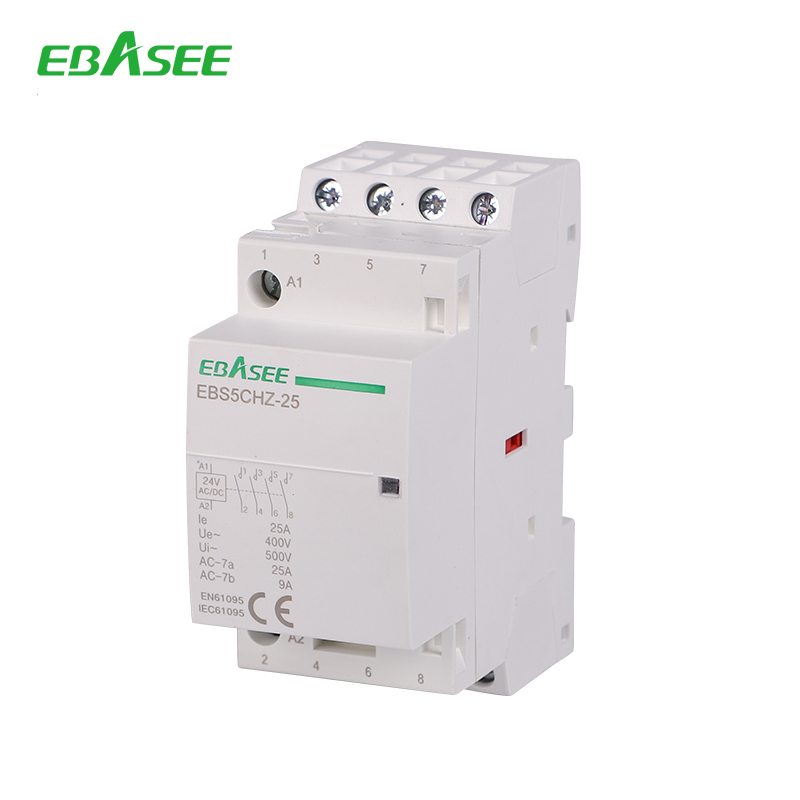

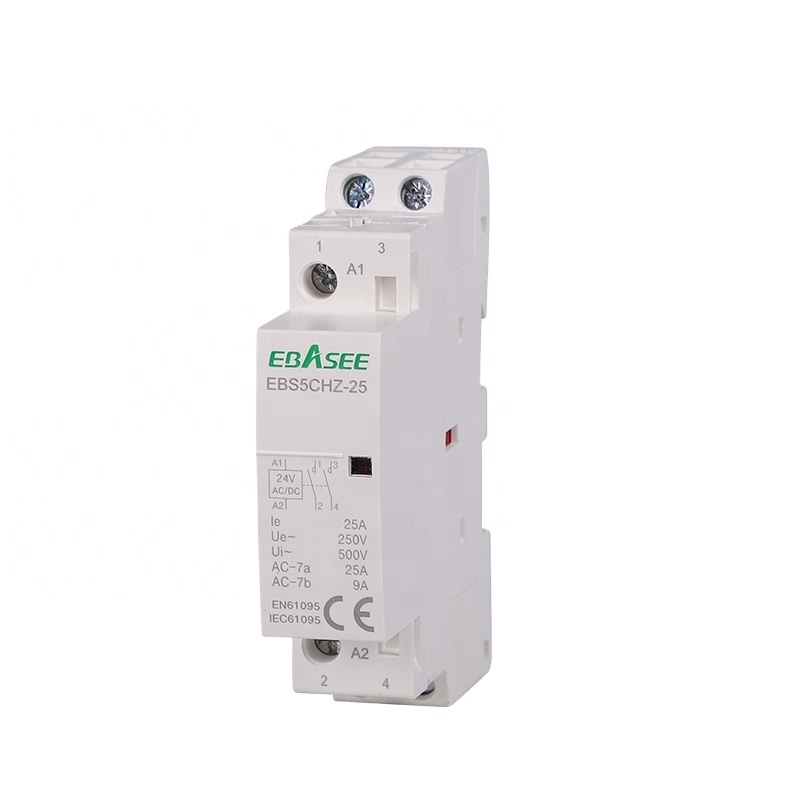

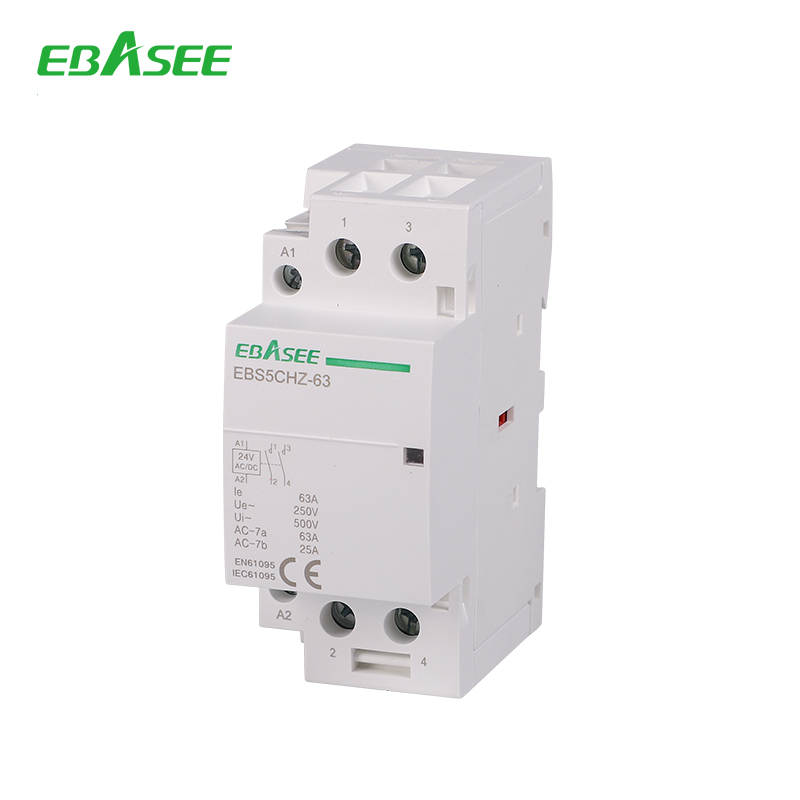

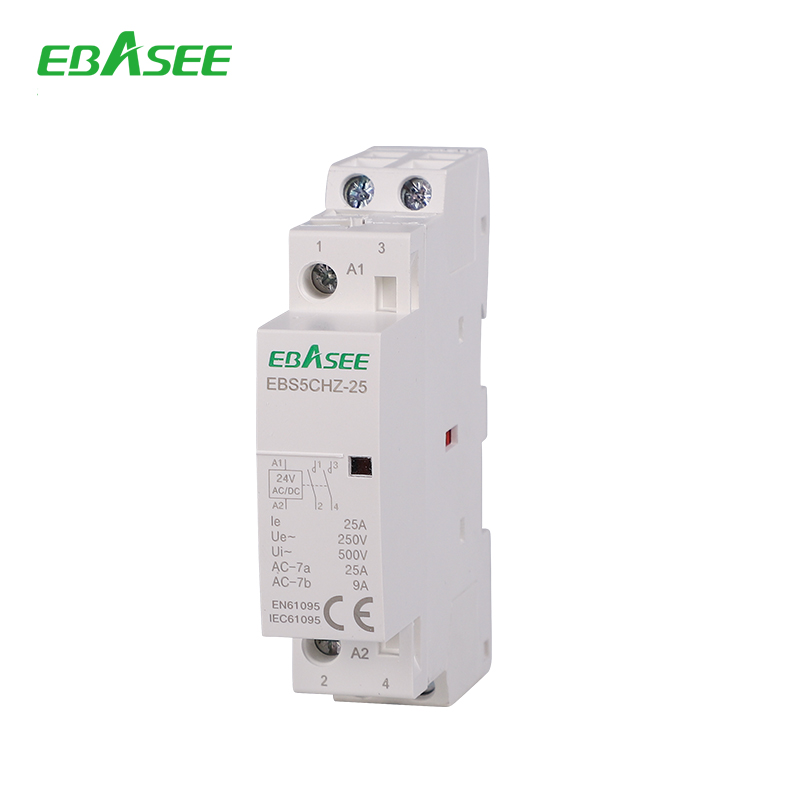

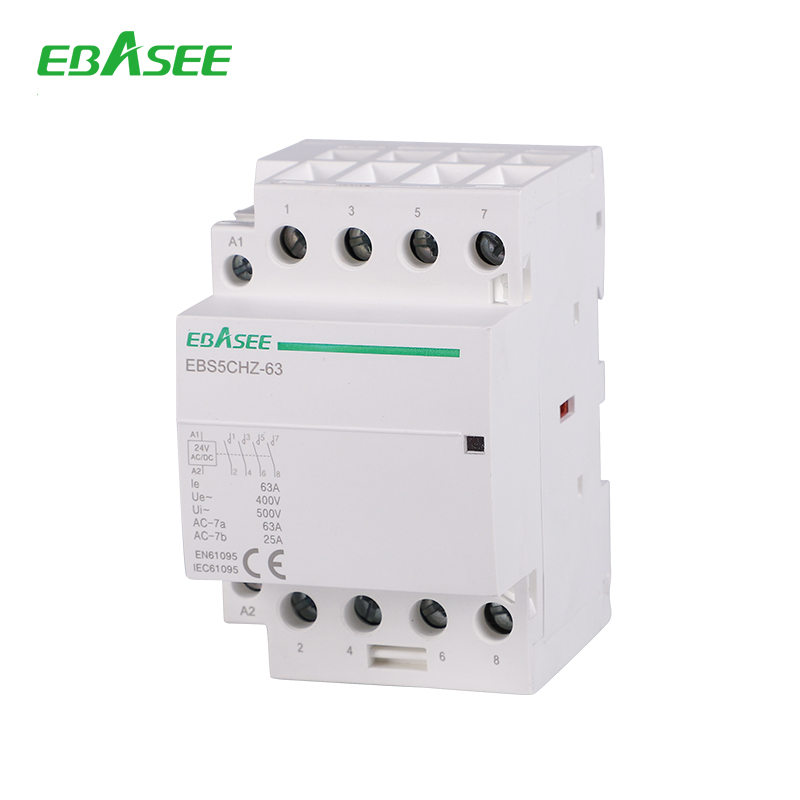

Detailed Images
Packaging & Shipping
Company Overview
About Us
We have been committed to designing, R&D, manufacturing, and marketing low voltage electrical products for decades. Our factory covers an area of 5000m² with 300 well-trained workers and more than 30 highly experienced production and R&D engineers. Our product portfolio comprises 4 lines and over 8000+ items across applications in power distribution, circuit protection, electricity control, and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications applying ISO9001 quality control systems and complying with relevant international standards and approvals, such as RoHS, CE, CB, SEMKO, TUV, and KEMA. A CNAS approved laboratory enables the development and testing of new products to meet the tailored demands of various global markets. Our branded and OEM/ODM products are widely utilized for residential, commercial, and industrial applications in over 60 countries and districts.
Why Choose Us
Certifications
Frequently Asked Questions
What is the primary function of the EBS5CHZ mini contactor?
The EBS5CHZ mini contactor is designed for the remote switching and control of electrical power systems in residential, commercial, and industrial applications.
What pole configurations are available for this series?
This series of mini contactors supports 2P, 3P, and 4P configurations to suit diverse circuit design needs.
Does the EBS5CHZ support manual operation?
Yes. We offer options both with manual operation (available for 25A, 40A, 63A rated currents) and without manual operation (available for 16A, 25A, 40A, 100A rated currents).
What are the ambient temperature parameters for operation?
The standard operating ambient temperature range is -5℃ to +40℃. The average operating temperature over a 24-hour period should not exceed +35℃.
What standards are these mini contactors compliant with?
Our contactors are built according to the IEC60947 standard and hold certifications such as CE, CB, RoHS, SEMKO, TUV, and KEMA.
