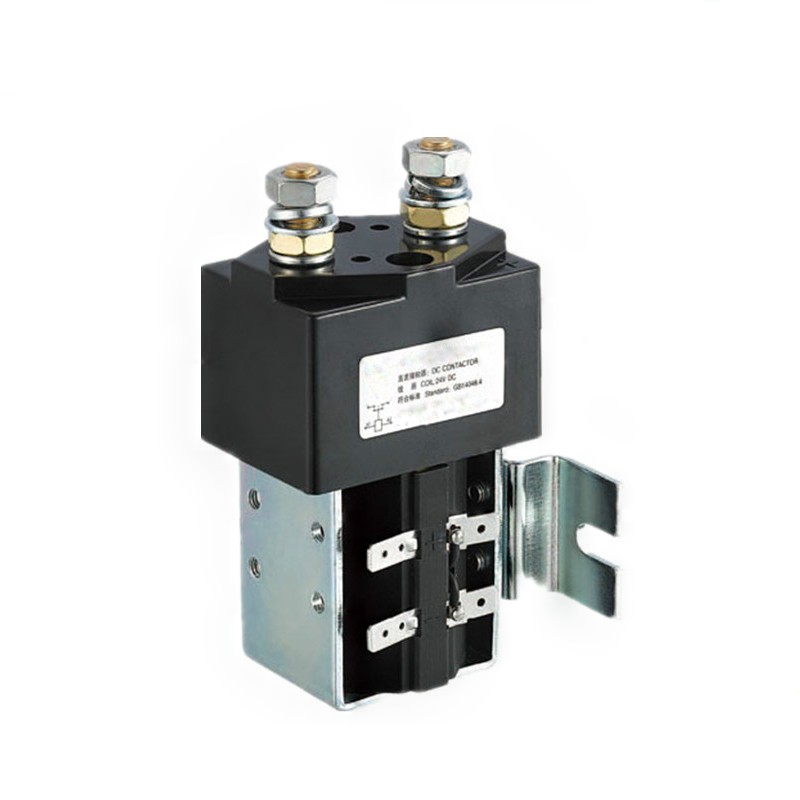

DC Motor Contactor 200A/300A Rated Current, 11-14W Coil Power, 6-220V Coil Voltage
1 / 1
DC Motor Contactor 200A/300A Rated Current, 11-14W Coil Power, 6-220V Coil Voltage

DC Motor Contactor 200A/300A Rated Current, 11-14W Coil Power, 6-220V Coil Voltage

Send Inquiry

Product Description

Application

DC Motor Contactor 200A/300A Rated Current, 11-14W Coil Power, 6-220V Coil Voltage
The product has one normally open and one normally closed contact. It is suitable for electric winches, telecommunication equipment, engineering machinery, storage batteries, electric forklift trucks, trains, ships, uninterruptible power supply systems, and other electric control systems.

Detailed Images

1) Rated Voltage: 24V

2) Current: 200A

3) Contact form: 1 NO or 1 NC

DC Motor Contactor

Technical Parameters

Rated Voltage12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, etc.
Contact circuit rated load current200A
Typical voltage drop across contacts per 100A≤80mV
The cooling pull-in voltage at (20+5)°C≤70%
The allowed range of coil voltage±20%
Insulation resistance≥50mΩ
Coil power≤12.0W
Electrics strength to resist50Hz/60Hz 1000VAC/1min
Contact form1NO or NC
Contact materialAgCdO/AgCuO
Work specificationcontinuous or intermittent
Mechanical life300 thousand times
Starting Current≤4A
Technical SpecificationGB14048.4-2010

Product Diagram

Application Diagram

Environment

Altitude≤2Km
Ambient temperature-25~+55°C
International protectionIP50
Way to installany

Packing & Delivery

Product: DC Contactor 24V 48V 72V 80V 200A
Packaging Details: Regular professional packing.
Delivery Detail: Shipped within 20 days after payment.
Packing

Our Service

Service

Frequently Asked Questions (FAQ)

1. What is the typical life expectancy of this DC contactor?
The mechanical life of this contactor is rated for 300,000 operations, ensuring durability for demanding applications.
2. Is this contactor suitable for continuous duty?
Yes, the contactor is designed for both continuous and intermittent work specifications, making it versatile for various electric control systems.
3. What does "1NO" or "1NC" contact form mean?
1NO means "Normally Open," which closes when energized. 1NC means "Normally Closed," which opens when energized. This model supports these configurations.
4. Can this contactor be installed in any orientation?
Yes, the contactor supports installation in any direction, providing flexibility for compact machinery designs.
5. What is the protection rating of this device?
The device has an IP50 international protection rating, suitable for standard industrial environments.
6. How long does the delivery take?
We ensure your order is shipped within 20 days after payment is confirmed.
