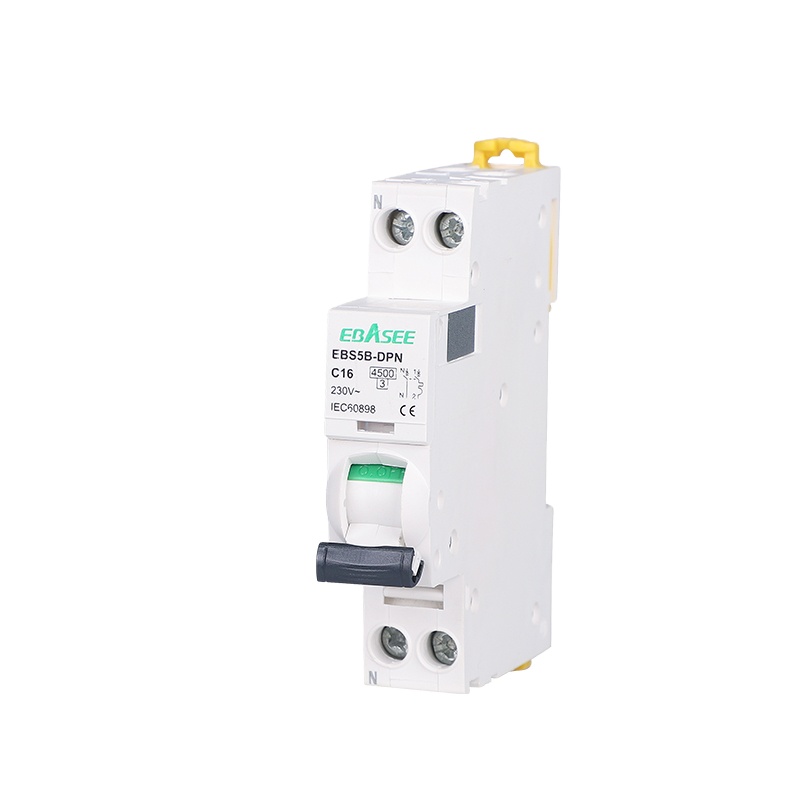

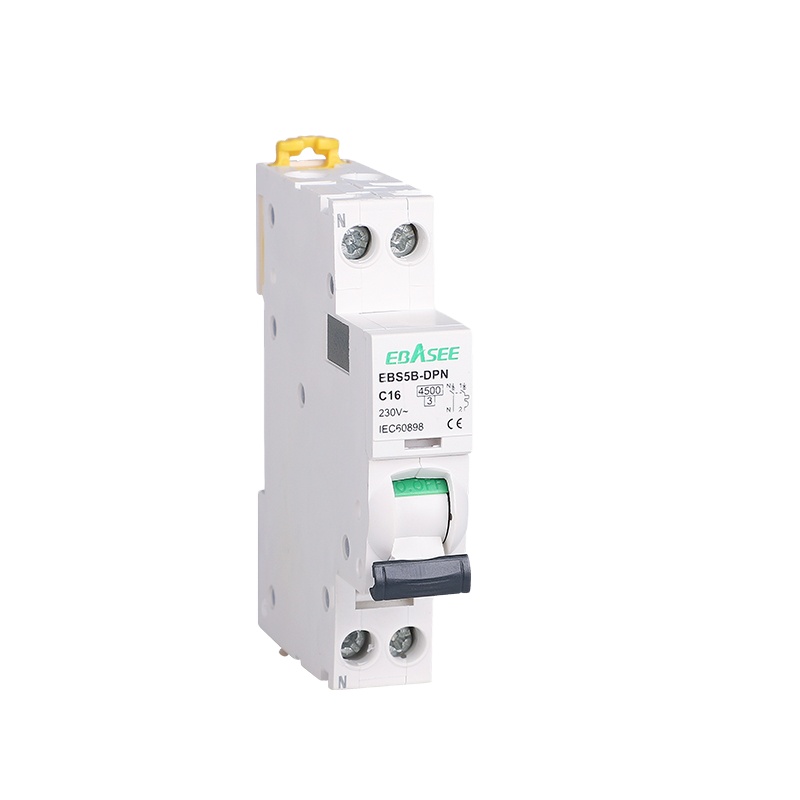

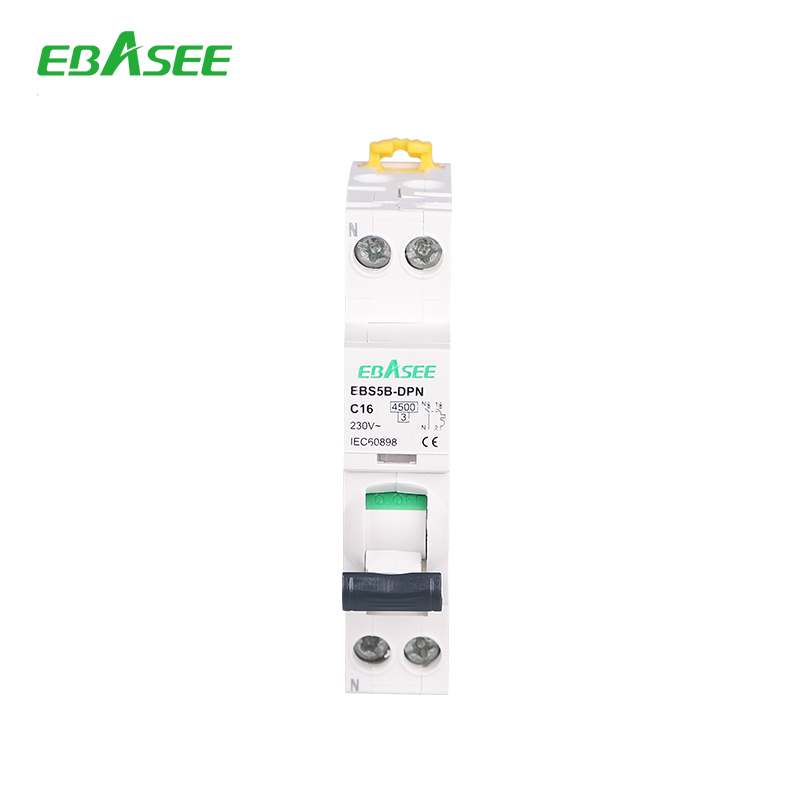

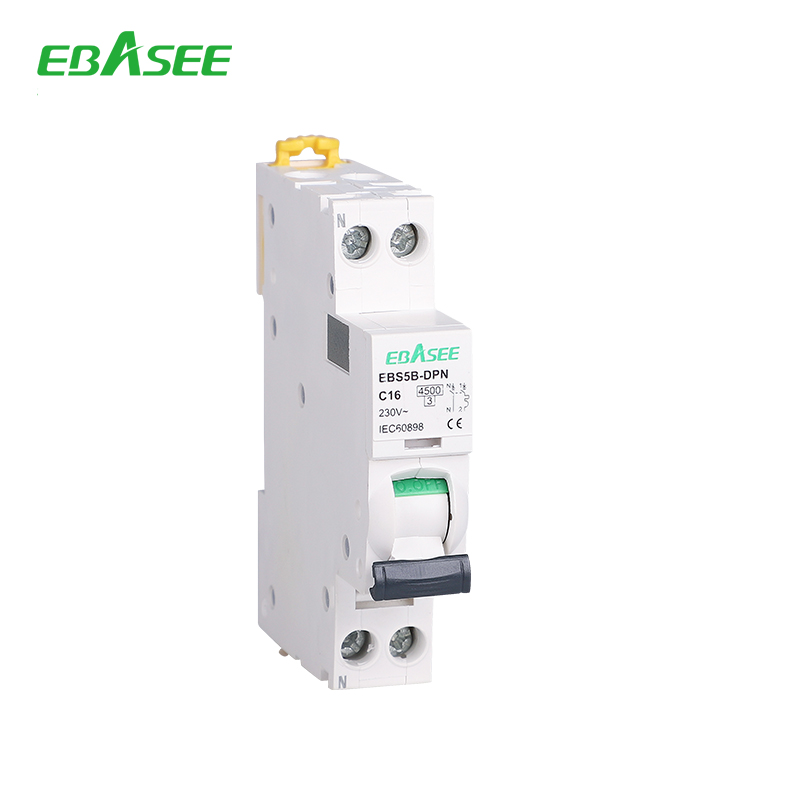

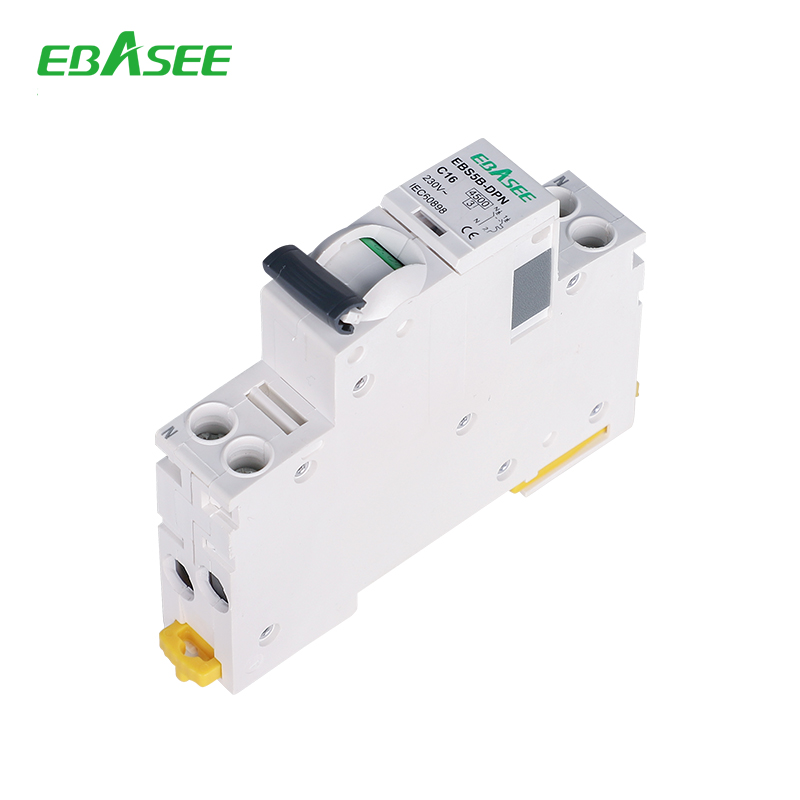

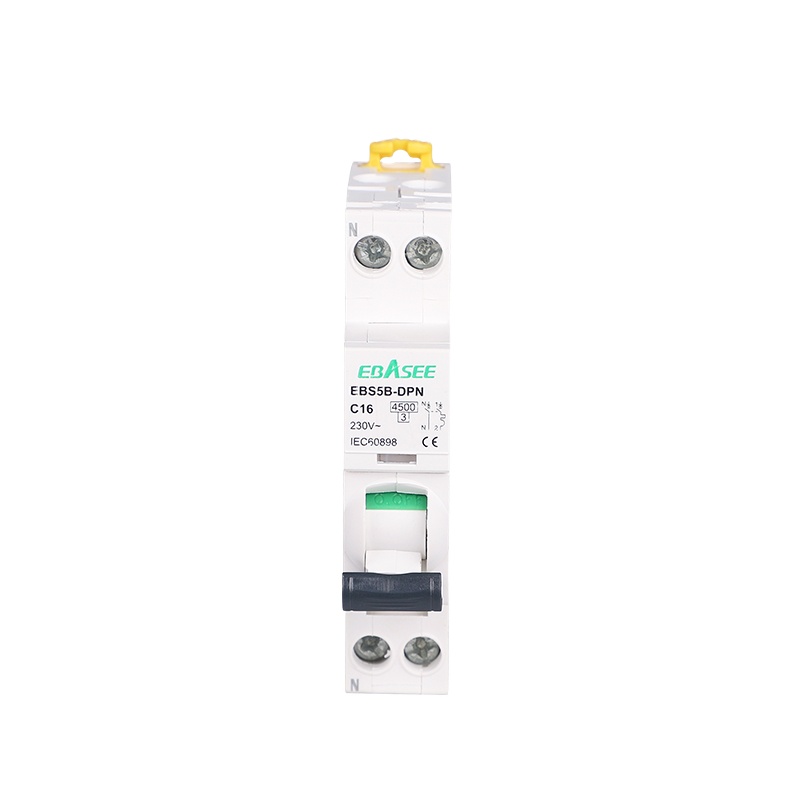

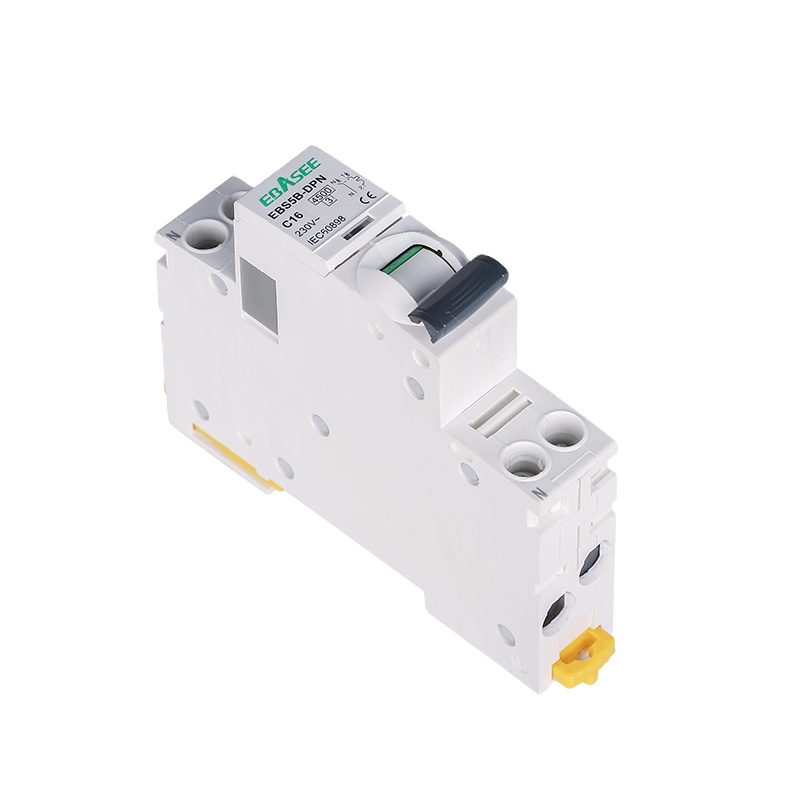

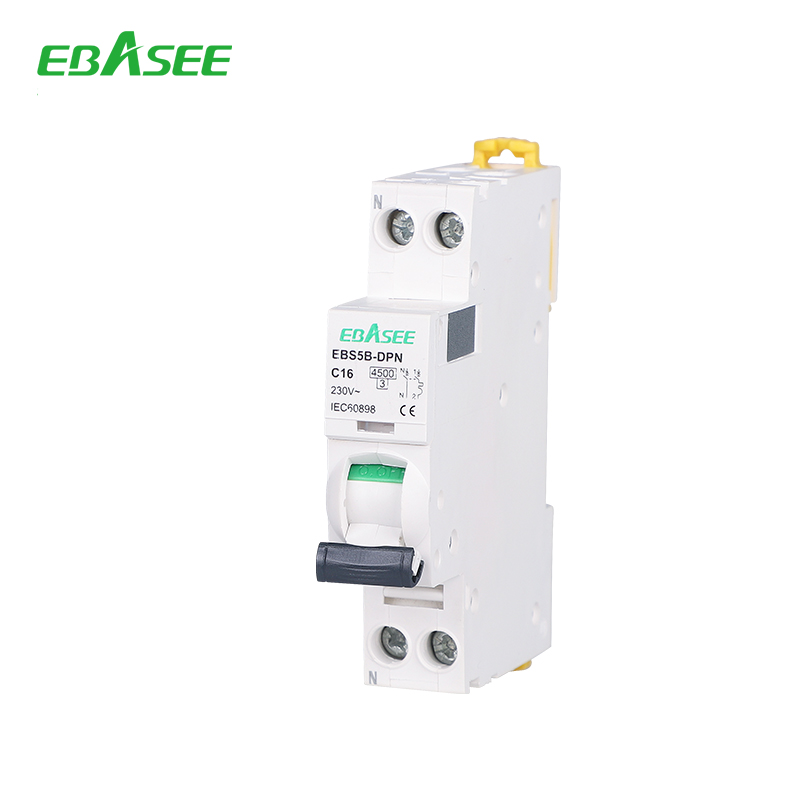

Miniature Circuit Breaker
Function: EBS5B "Phase + Neutral" circuit breaker is applied to low-voltage terminal power distribution system with 50/60Hz. The rated voltage is 230/400V AC. This DPN MCB is with short circuit, over-load, control and isolation functions.
| Model name | EBS5B DPN |
| Standard | IEC60898-1 |
| Poles | 1P+N |
| Rated current In(A) | 2, 6, 10, 16, 20, 25, 32, 40Amp |
| Rated voltage Un(V) | 230 AC 50/60Hz |
| Tripping characteristic | B, C, D |
| Electrical life (times) | 6,000 |
| Rated insulation voltage (Ui) | 400V |
| Breaking capacity | 4.5kA, 6kA |
| Connection capacity | ≤ 25mm² |
| Ambient temperature | -5~+40℃, the average value cannot exceed to +35℃ within 24h |
| Altitude | ≤ 2,000m |
| Relative humidity | ≤ 95% |
| Pollution level | II |
| Installation location | Mount on the place where has no obvious vibration or impact |
We have been committed to low voltage electric products' designing, R&D, manufacturing, and marketing for decades. Our factory covers an area of 5000m². There are 300 well-trained workers, and more than 30 rich experience production and R&D engineers. The product portfolio has 4 lines and 8000+ items in the application of power distribution, circuit protection, electricity control, and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. A CNAS approved laboratory enables the development and testing of new products to meet variable markets' tailored demands. Branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
