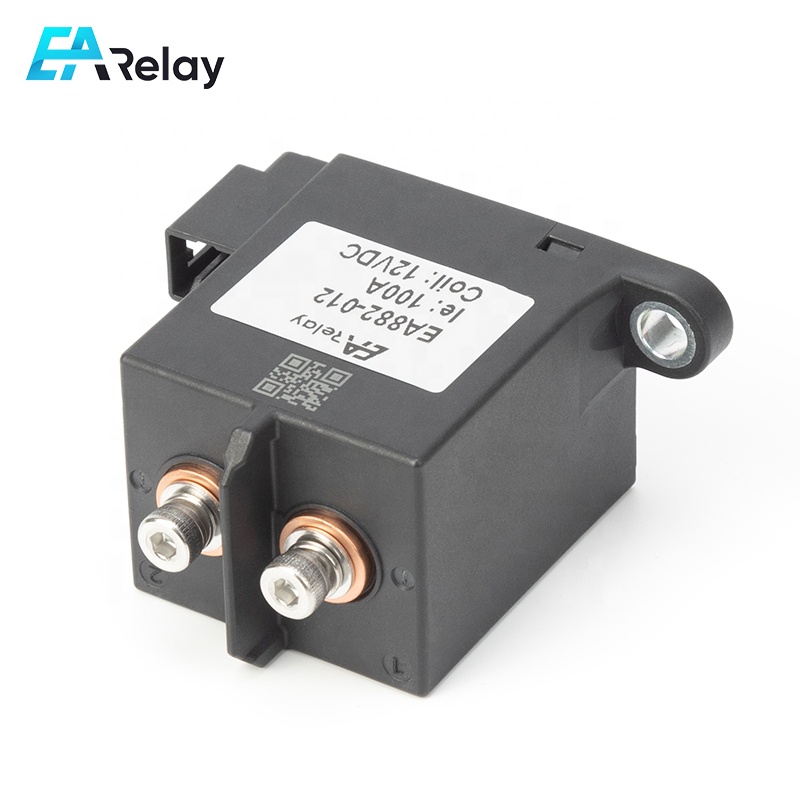

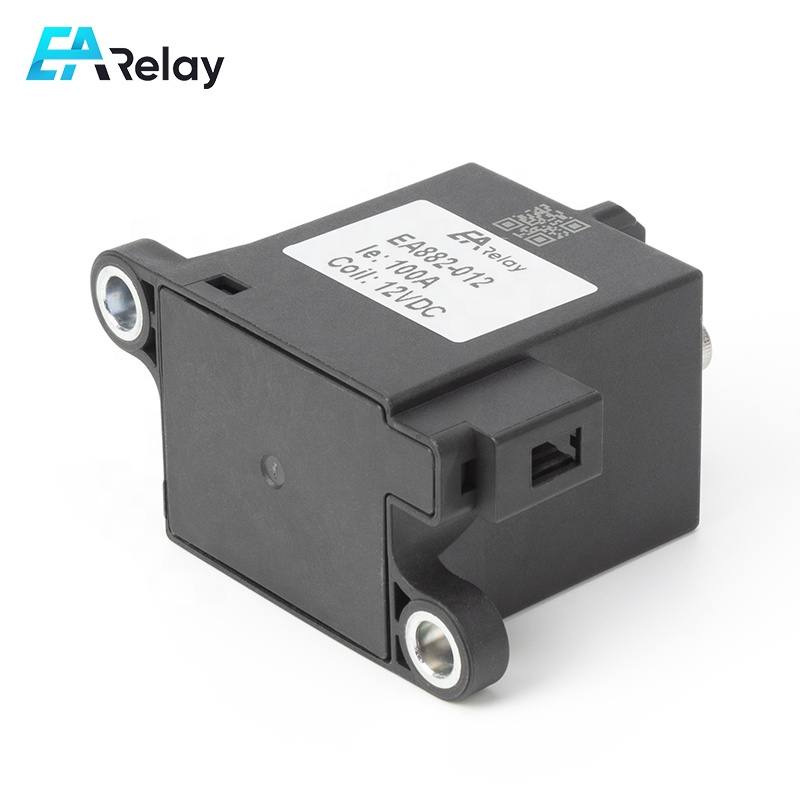

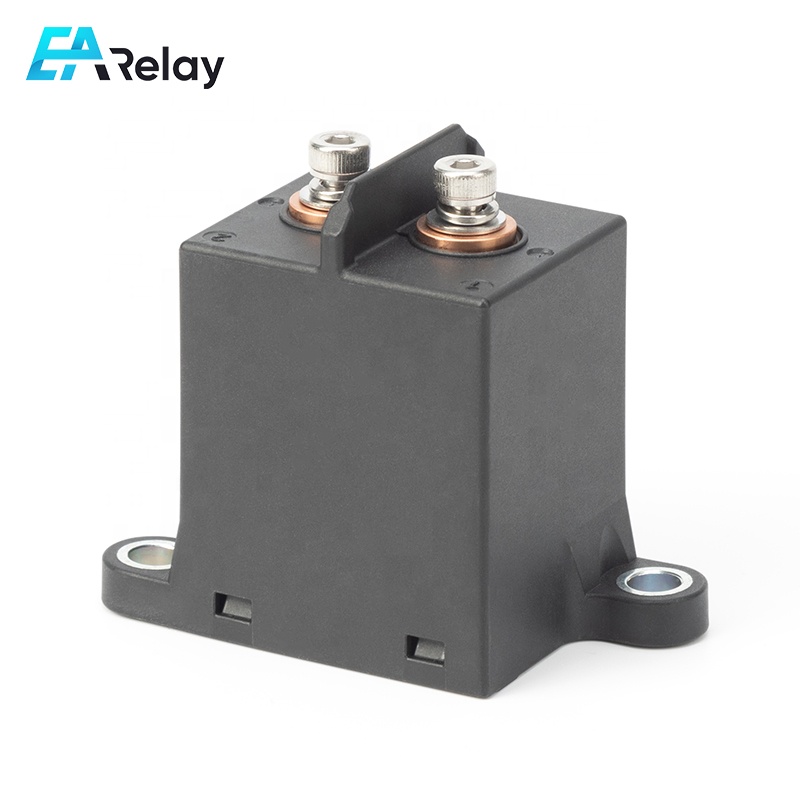

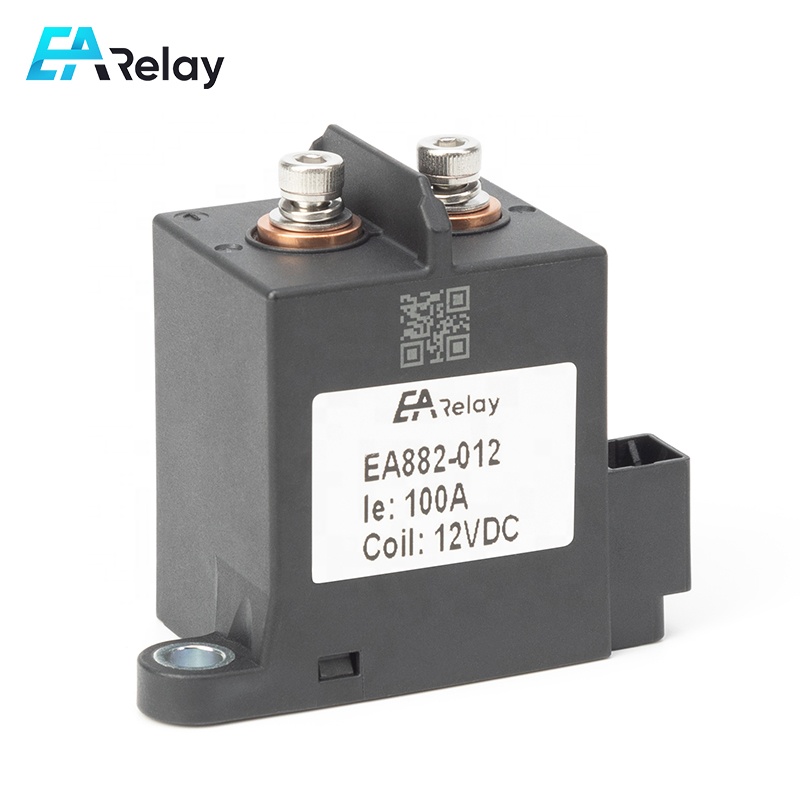

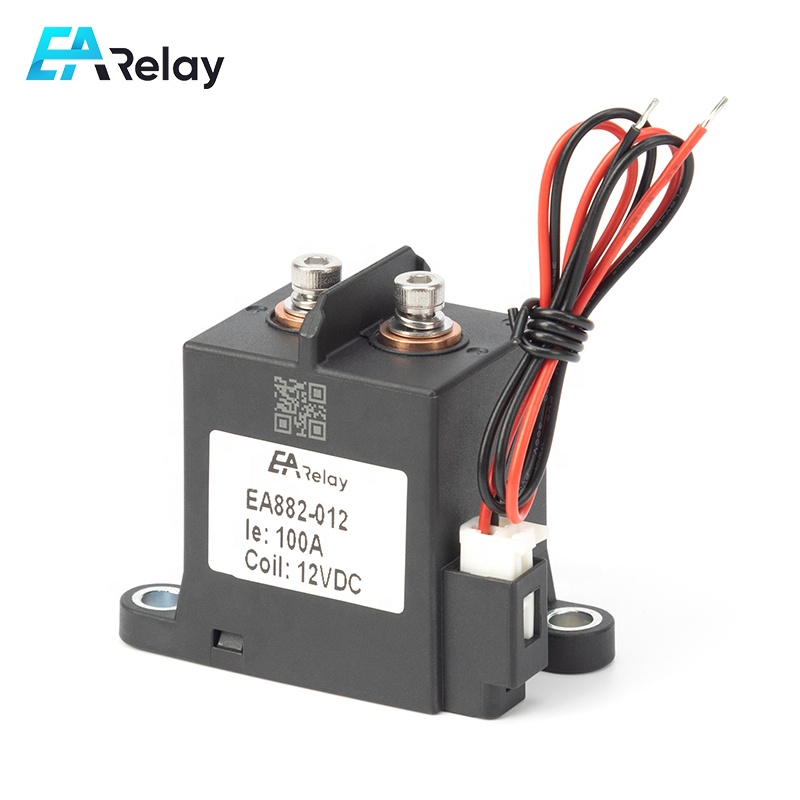

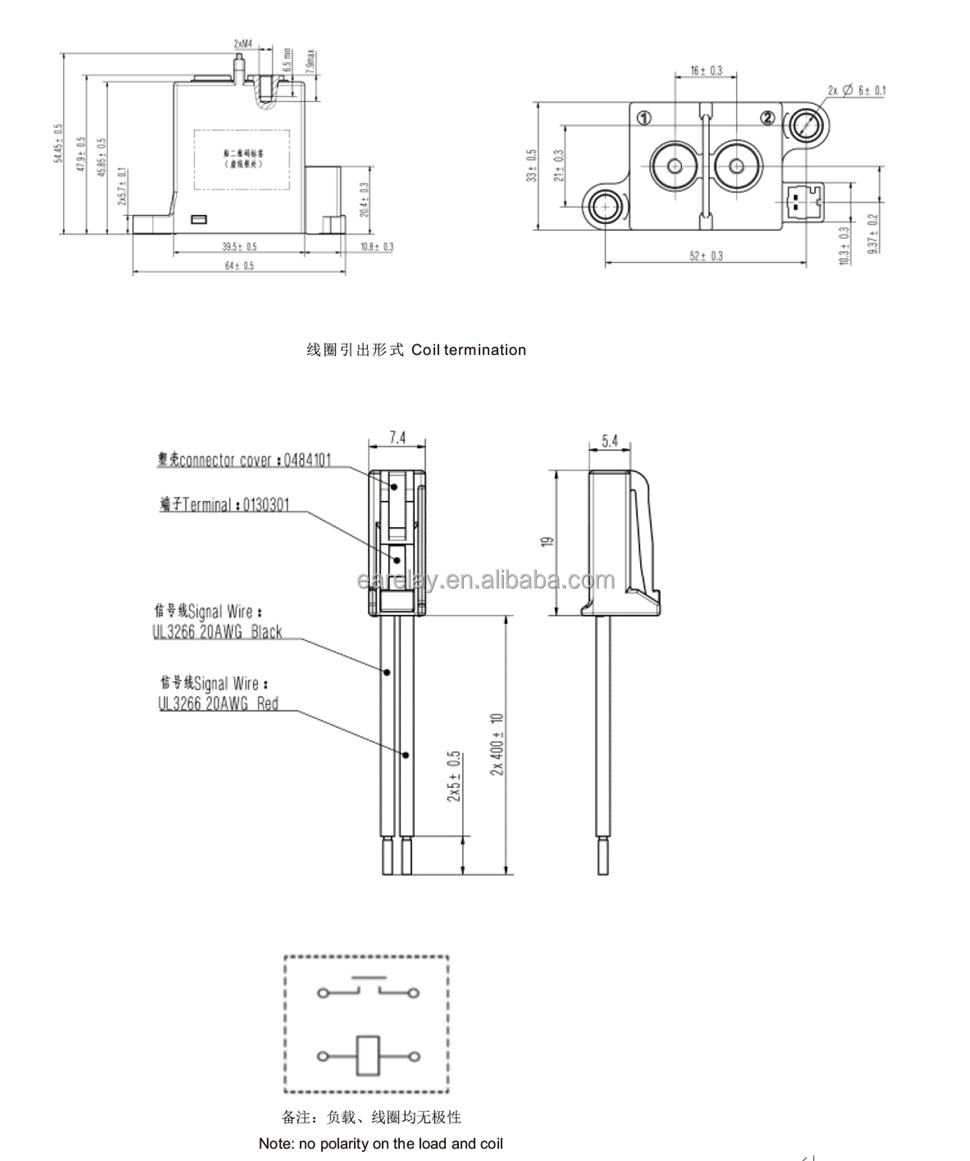

| Item | Specification | Reference |
|---|---|---|
| Insulation | 1000MΩ min (at 500VDC) | Item 7 of IEC 60255-5 |
| Dielectric strength (Between contacts) | 1500VAC | Item 6 of IEC 60255-5 |
| Dielectric strength (Between coil and contacts) | 1500VAC | Item 6 of IEC 60255-5 |
| Shock resistance | 11m/s² 50G | IEC 68-2-27 Test Ea |
| Vibration resistance | 5-50Hz 2.5G | IEC 68-2-6 Test Fc |
| Ambient temperature | -40℃–85℃ | - |
| Relative humidity | 85% (at 40℃) | IEC 68-2-3 Test Ca |
| Contact form | 1A(SPST-NO) |
| Contact material | Silver Alloy |
| Main contact rated current | 100A |
| Main contact rated voltage | 1500VDC |
| Contact resistance | ≤0.5mΩ (20A 6VDC) |
| Electrical life | 5 X10⁴ (750VDC 100A); 8 X10³ (1500VDC 100A) |
| Mechanical life | 2 X10⁵ |
| Standard | Rated Voltage | Max Voltage | Coil Resistance | Pickup Voltage | Release Voltage | Power |
|---|---|---|---|---|---|---|
| 12V | 12V | 12V | 24Ω | 7.8V | 1.2V | 6W |
| 24V | 24V | 48V | 96Ω | 15.6V | 2.4V | 6W |
