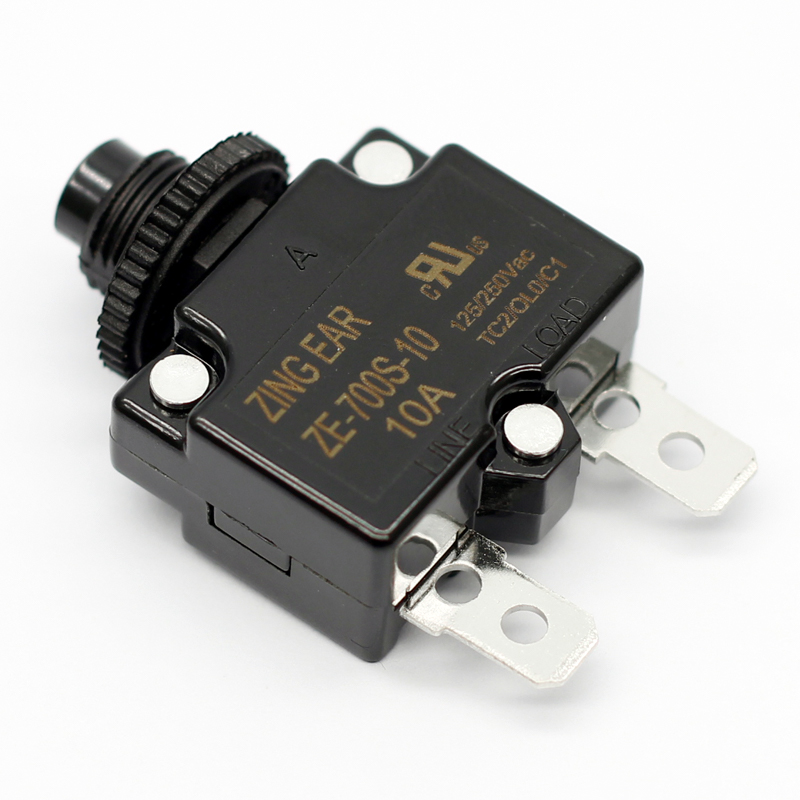

ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
1 / 5
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker
ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker

ZINGEAR ZE-700S Series Mini Miniature Overload Protector 3A to 15A Electrical Automatic Circuit Breaker

Send Inquiry

Product Description

Specification
Place of Origin Guang Dong
Model Number ZE-700S-MP
Type Mini
Poles Number Other
Rated Voltage 125V/250V/50VDC
Rated Frequency 50/60hz
Product name thermal overload protector switch
Rated current 3A-20A
Keywords Circuit Breaker
Product Description
Product Image 1

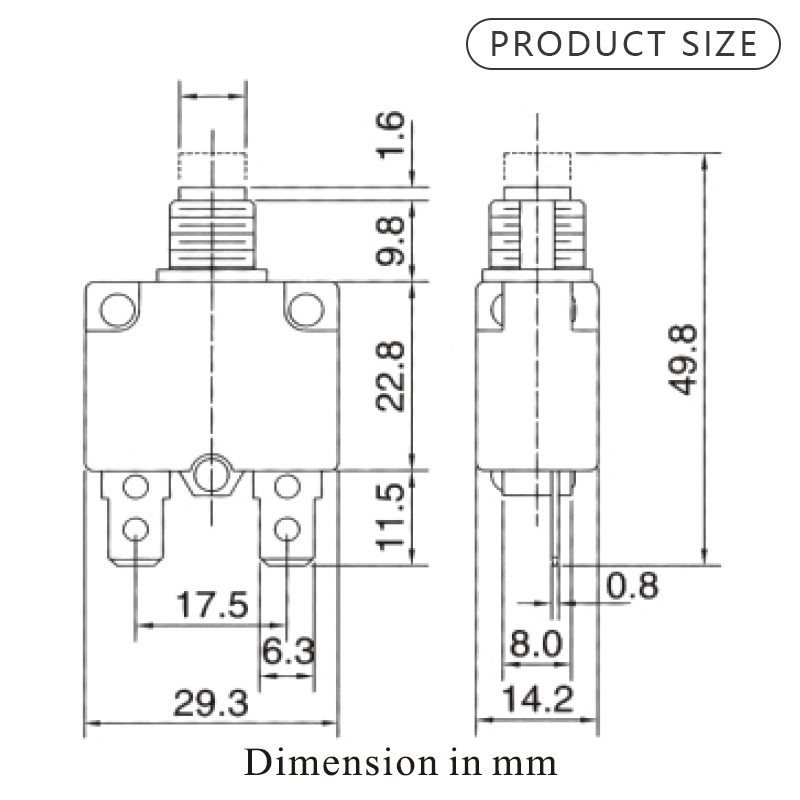

Product Image 2

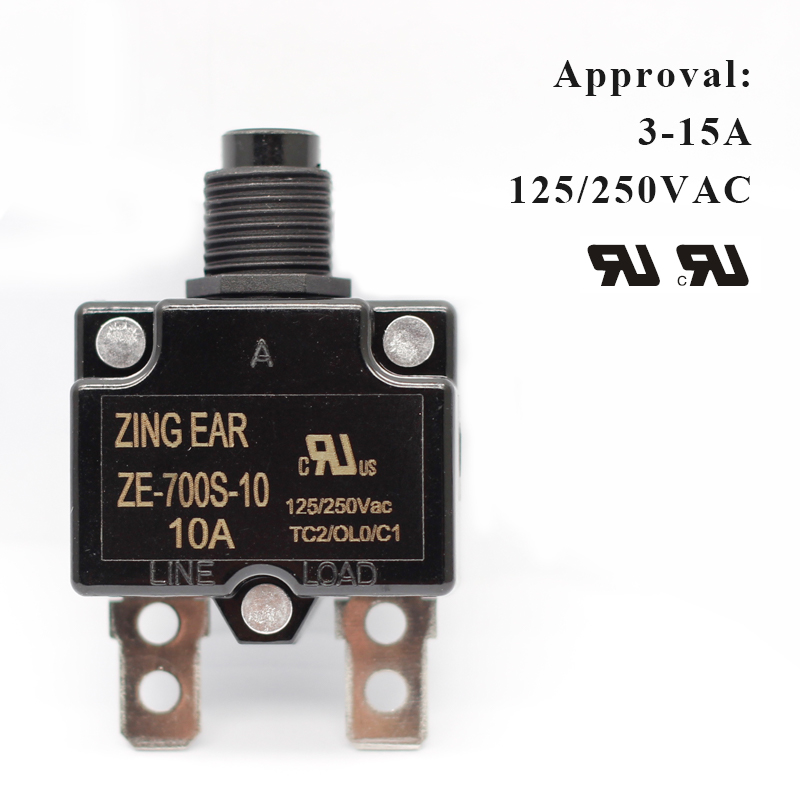

Product Image 3

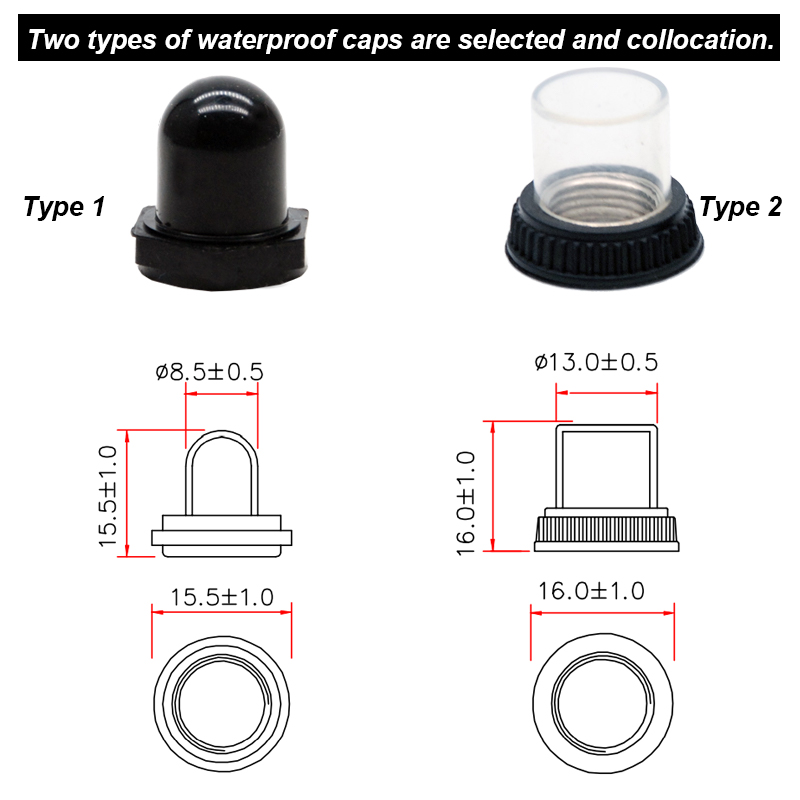

Product Image 4

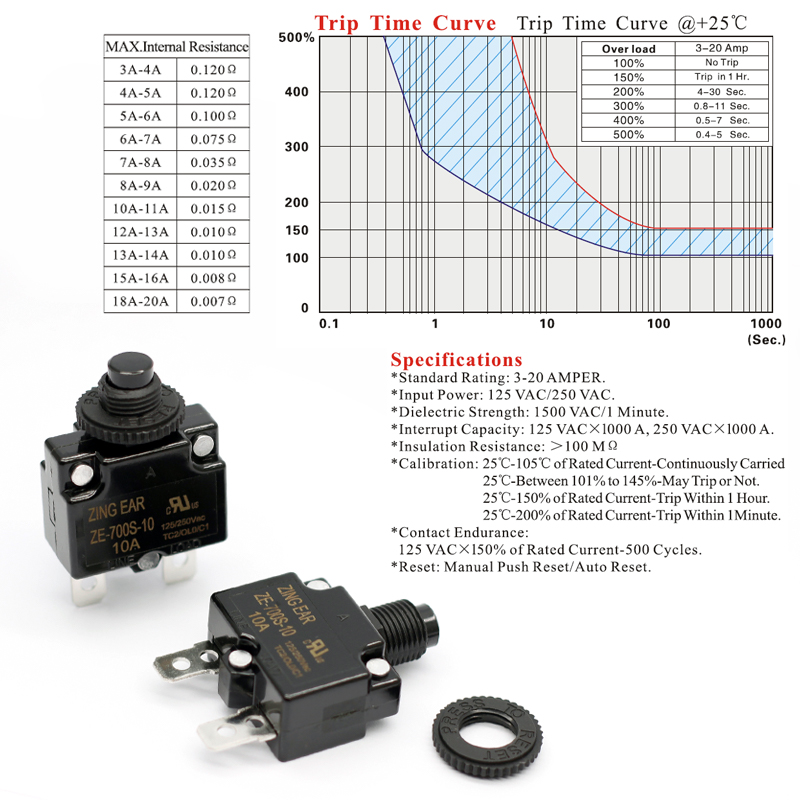

Product Image 5

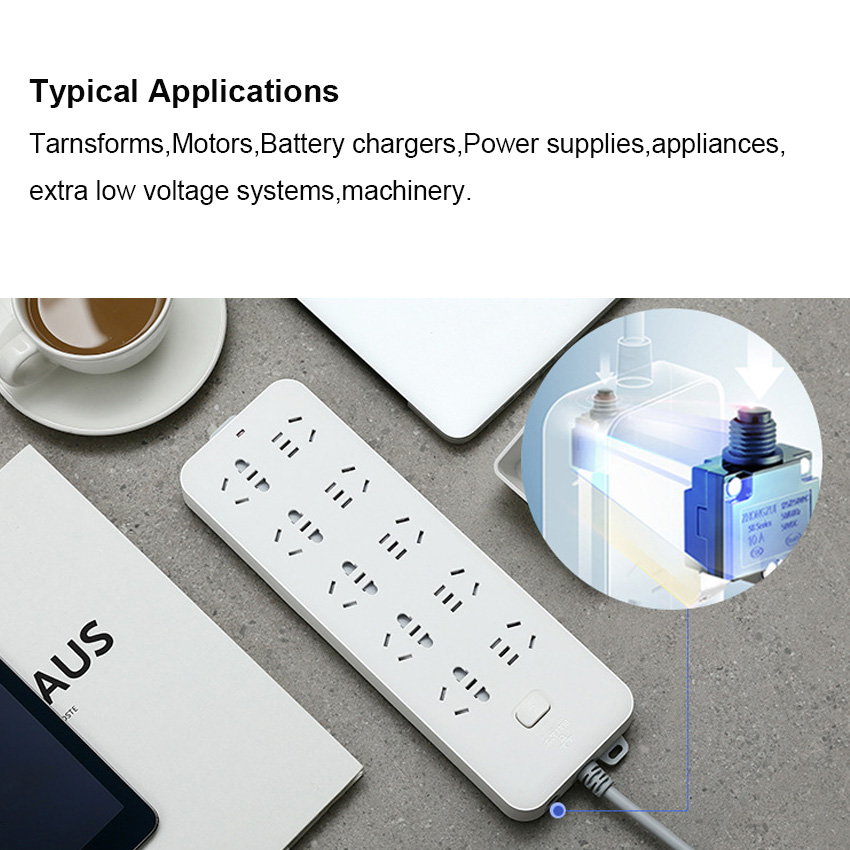

Product Image 6
Manufacturing Facility
Facility Image 1

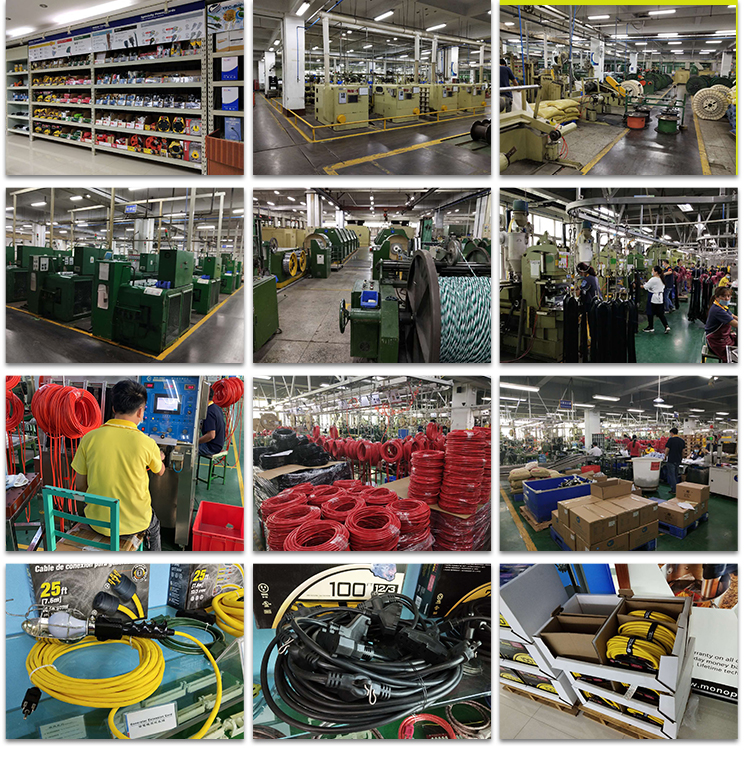

Facility Image 2
Our Certificate
Certificate Image
Shipping and Payment
Shipping and Payment Image
Frequently Asked Questions (FAQ)
What is the primary function of the ZE-700S-MP thermal overload protector switch?
The ZE-700S-MP thermal overload protector switch functions as a circuit breaker designed to safeguard electrical appliances and machinery from overheating or current overload damage.
What voltage ratings does this circuit breaker support?
It supports multiple rated voltages, including 125V AC, 250V AC, and up to 50V DC, making it highly versatile for different power setups.
What current range can the ZE-700S-MP handle?
The rated current limits for this thermal overload protector range from 3A up to 20A.
Does this overload protector work with both 50Hz and 60Hz frequencies?
Yes, the device is fully compatible and rated for operation at both 50Hz and 60Hz electrical frequencies.
What is the physical size configuration of the protector?
It features a compact, mini-type structure, designed to fit easily into smaller spaces inside electrical panels and devices.
