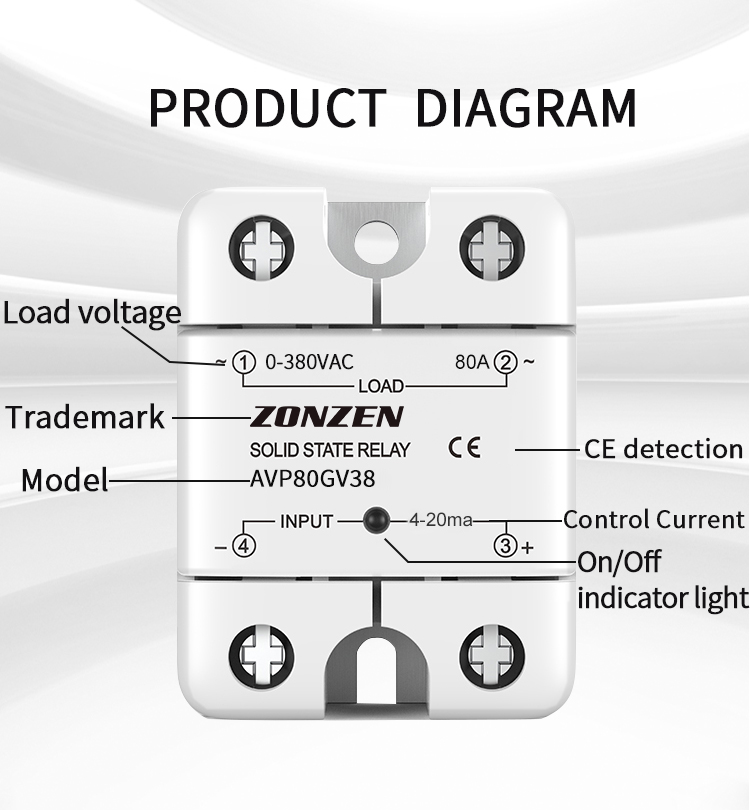

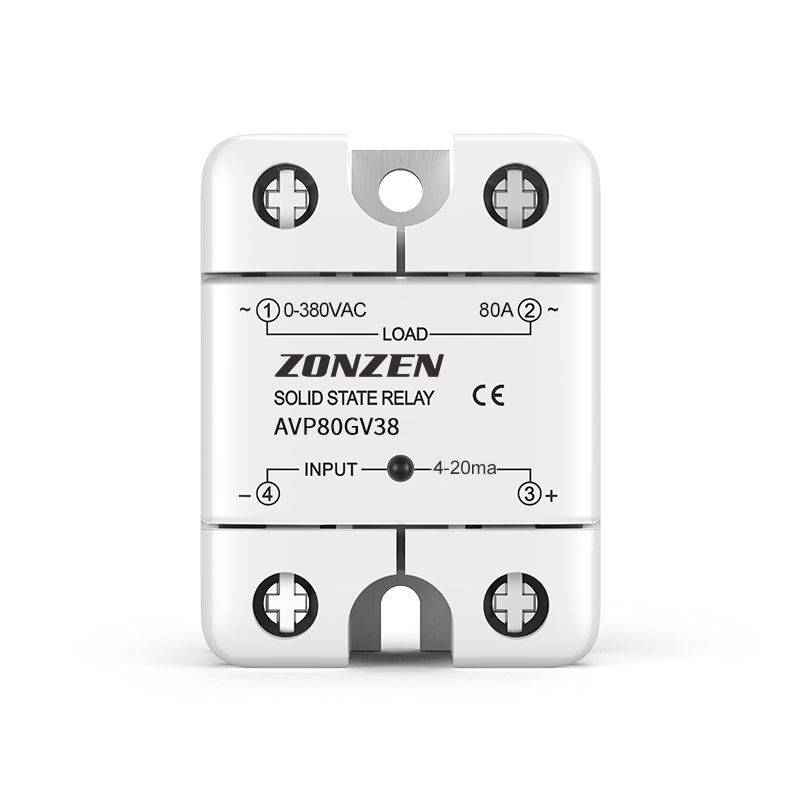

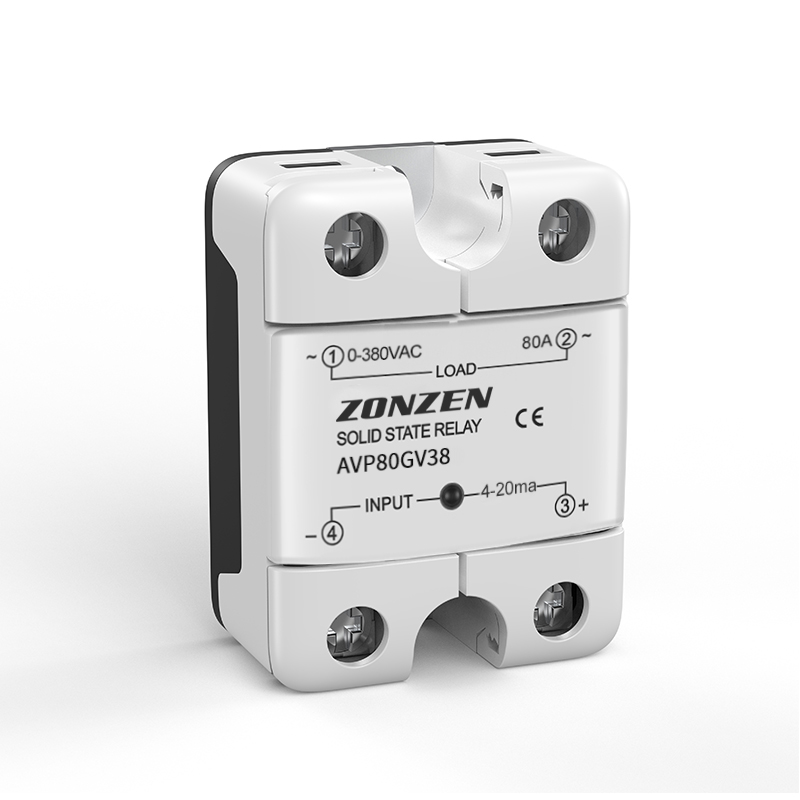

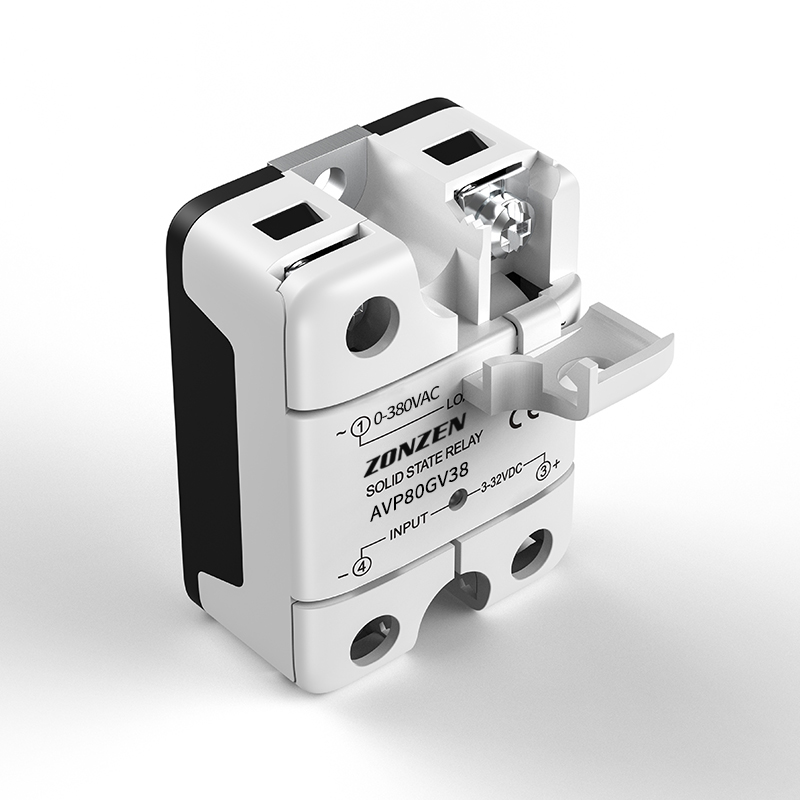

100A AVP Series Unidirectional Solid State Relays SSR

1 / 5

100A AVP Series Unidirectional Solid State Relays SSR

Send Inquiry

Product Description

Important Notice

1 Manufacturers have made great efforts on quality and reliability, but semiconductor power devices used in solid state relays, if selected or used improperly, can still lead to irreparable damage. In addition, due to power grid voltage fluctuations (usually 10%) and differences in inductive and tolerance resistance, a safety factor must be considered. For example: the long-term working current of electric heating should not exceed 60% of the rated nominal SSR current, and the working current of motors should not exceed 1/7 of the rated nominal SSR current.
2 For long-term working currents above 5A, a matching radiator must be installed, and the temperature of the radiator bottom plate must not exceed 80°C. If the ambient temperature is too high, forced air cooling must be adopted to accelerate air flow for better heat dissipation.
3 To ensure close contact between the solid state relay and the radiator surface for optimal heat dissipation, a special thermal conductive film or grease is recommended based on different current levels. During installation, place the thermal conductive film parallel between the bottom plate of the solid state relay and the contact surface of the radiator and tighten the installation screws; for thermal conductive grease, apply it evenly on the contact surfaces before fastening the screws.

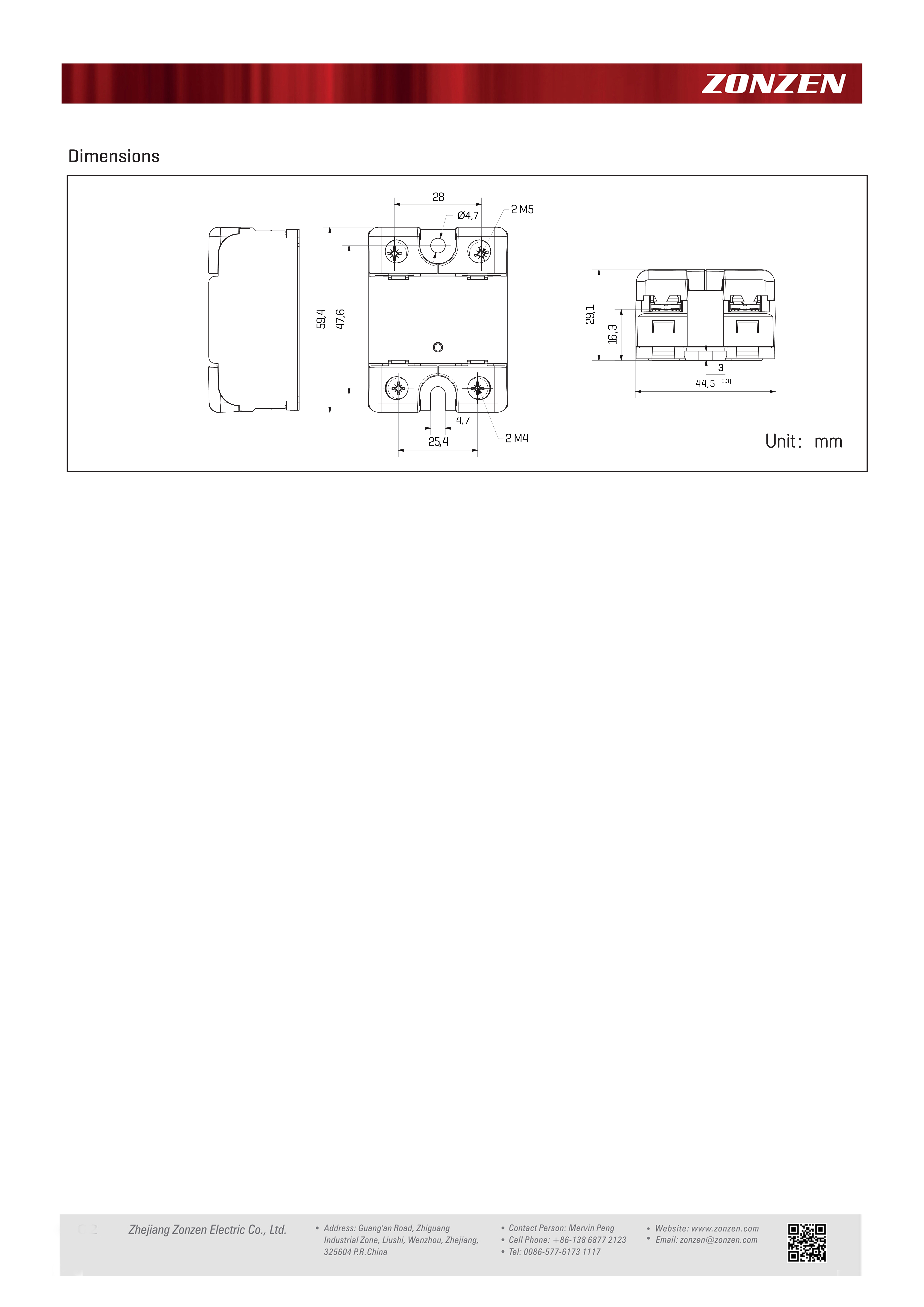

4 When fastening the module to the radiator surface, use M4 screws and spring washers, and tighten with 4-6 Nm torque. After 3 hours of operation, retighten once using the same torque.

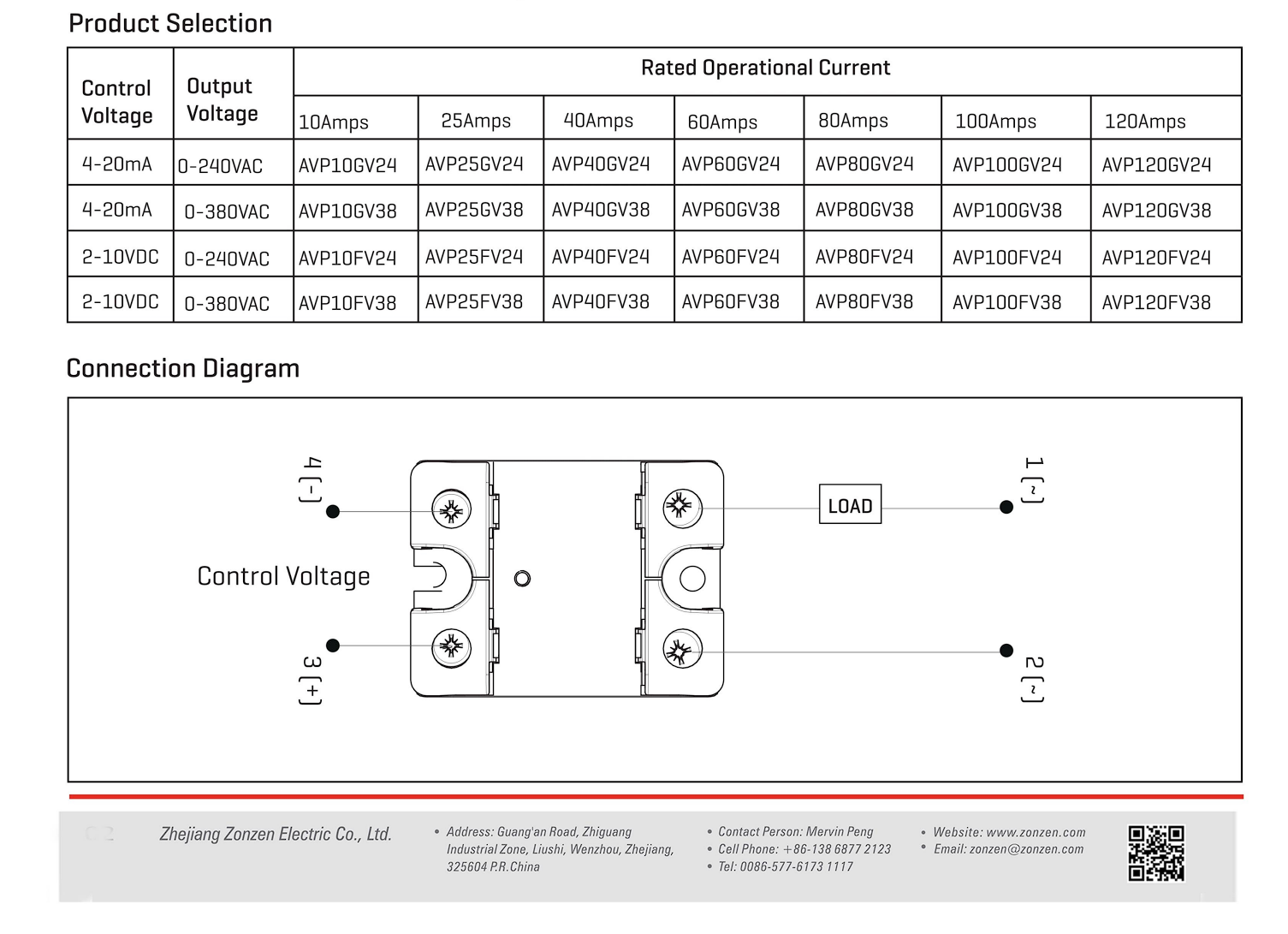

5 The recommended tightening torque of M4 screws at the control end is 0.8-1 Nm, and M5 screws at the load end is 1.9-2.1 Nm.
6 Storage of the solid state relay should be moisture-proof, avoid rain, dropping, and violent collision. It should be stored in a ventilated, dry, non-corrosive gas environment, with ambient humidity kept below 80%.

Frequently Asked Questions

Q1. How can I get a sample?

Please feel free to contact us, we are honored to offer any samples as you request.

Q2. How about the payment terms?

30% T/T in advance, and 70% balance against the copy of the B/L. Other payment terms are also negotiable upon request.

Q3. What is the MOQ requirement?

MOQ requirements are set, but small quantities are also acceptable.

Q4. What is the delivery time?

Normally, the lead time is 15~25 days, but please confirm with us as different products and quantities have different delivery times.

Q5. How to solve quality issues?

After confirmation, if the quality issue is caused by manufacturing, we will provide appropriate compensation for the items.

Q6. How do you establish a long-term and good business relationship?

We keep good quality and competitive prices to ensure customer benefit. Furthermore, we respect every customer as a friend and sincerely conduct business and build relationships, regardless of origin.
