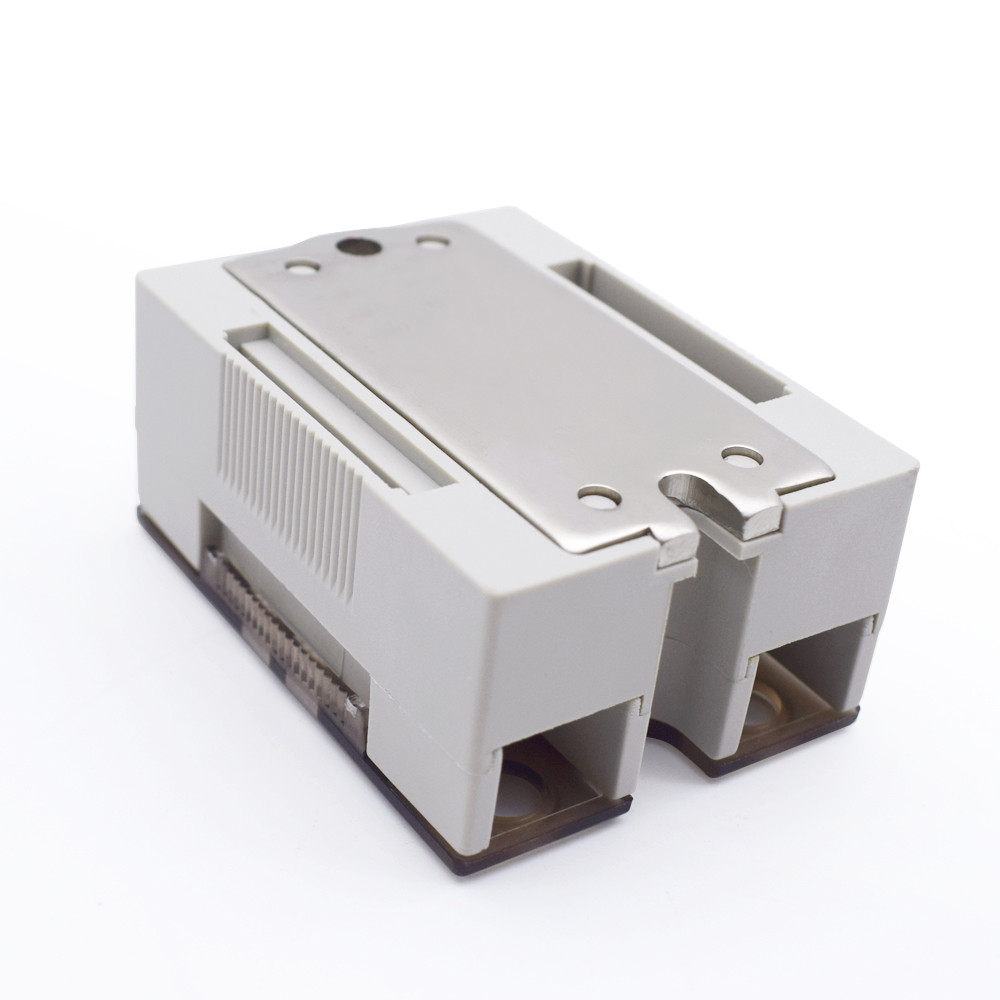

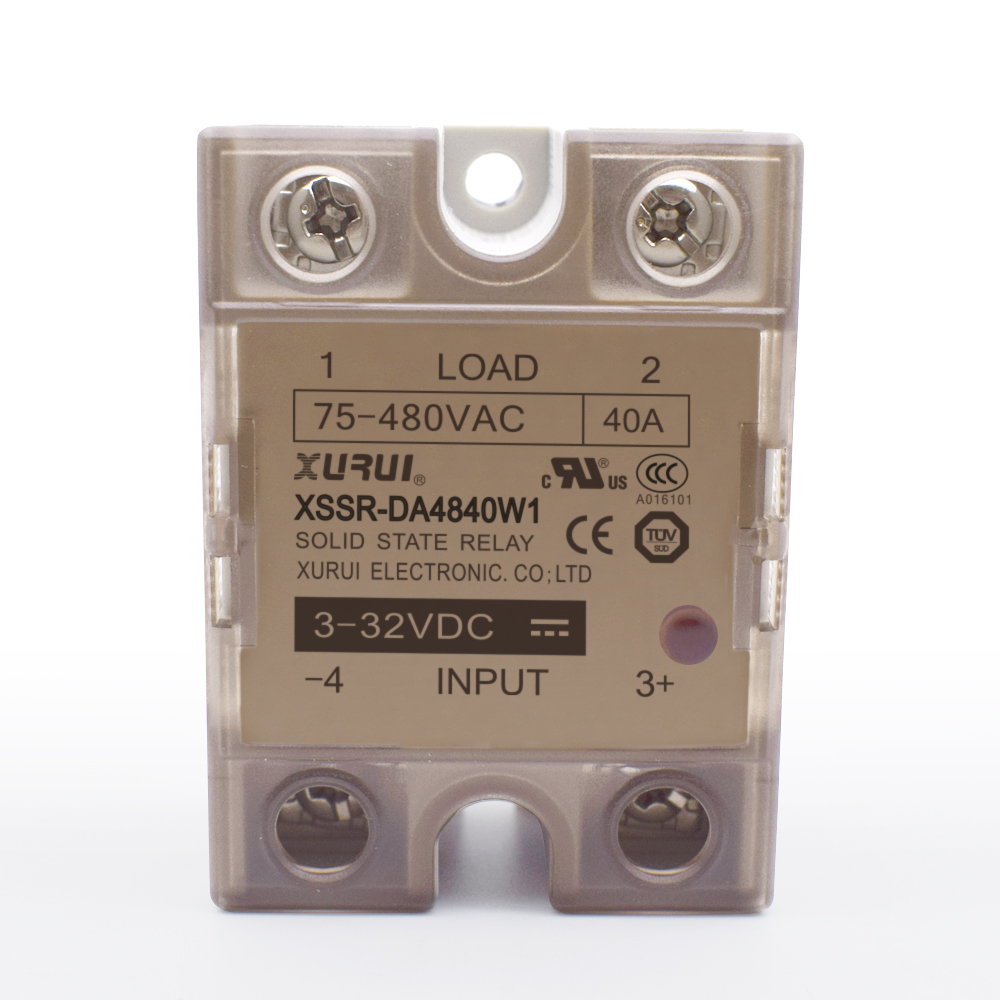

| Product model | XSSR-DA4840W1 |
| Control voltage | 3-32VDC |
| Control current | 6-25mA |
| Reverse voltage | 32VDC |
| Load max current | 40A |
| Load voltage | 75-480VAC |
| Frequency range | 50-60Hz |
| Operating temperature | -20~70℃ |
Established in 2002, the factory is mainly engaged in the research, production and marketing of micro switch, limit switch, solid state relay, foot switch, toggle switch, proximity switch etc.
The high-quality products have made their way to various countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Belgium and Egypt. Sales agents as well as customer service centers have also been established in key regions globally.
The operations are approved by ISO9001, and a number of products are certified by international authorities such as CCC (China), CE (European Union), TUV (Germany), UL (US), KC (South Korea), and RoHS etc. Currently, the developer boasts over fifty national patents, four patented products, and fifteen provincial-level new products.
Q What are the core technical specifications of this solid state relay?

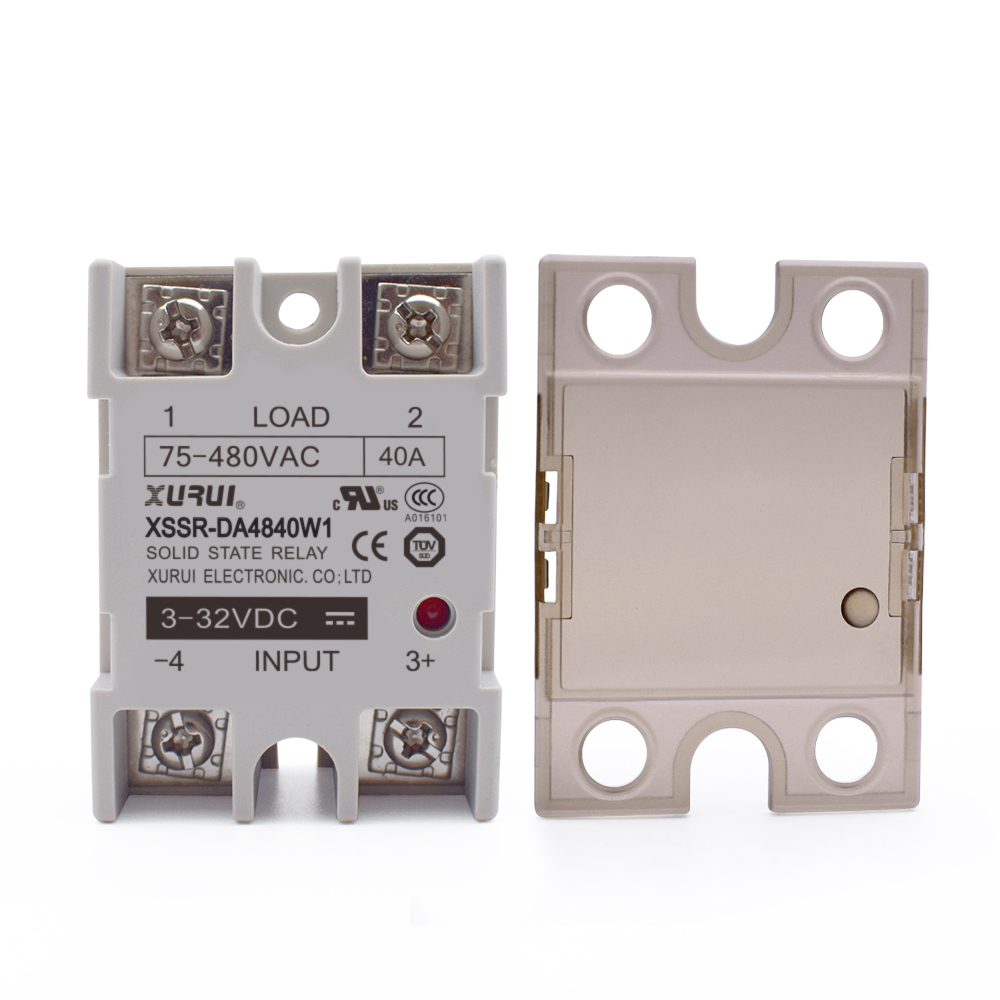

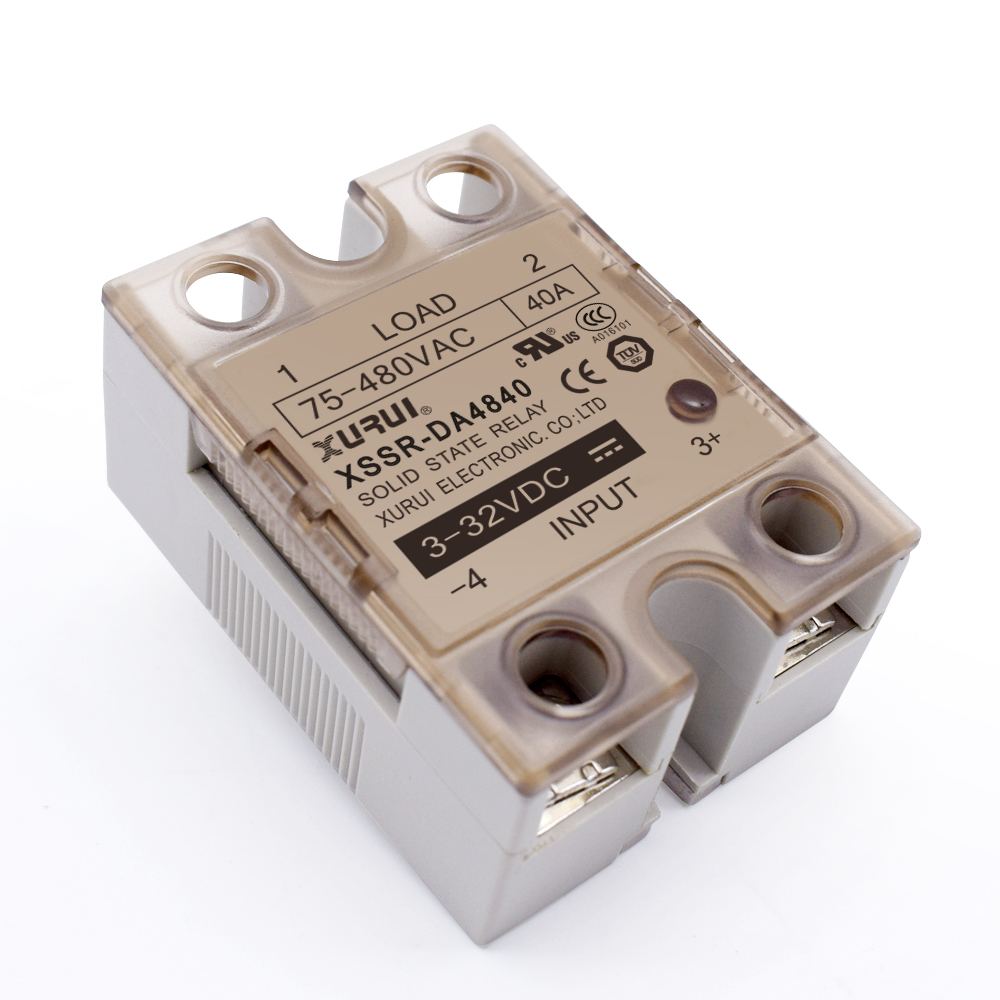

This single-phase solid state relay (model XSSR-DA4840W1) operates with a control voltage range of 3-32VDC and a control current of 6-25mA. It handles a load voltage of 75-480VAC with a maximum load current of 40A, functioning within a 50-60Hz frequency range.
Q Does the relay require an external heatsink during operation?

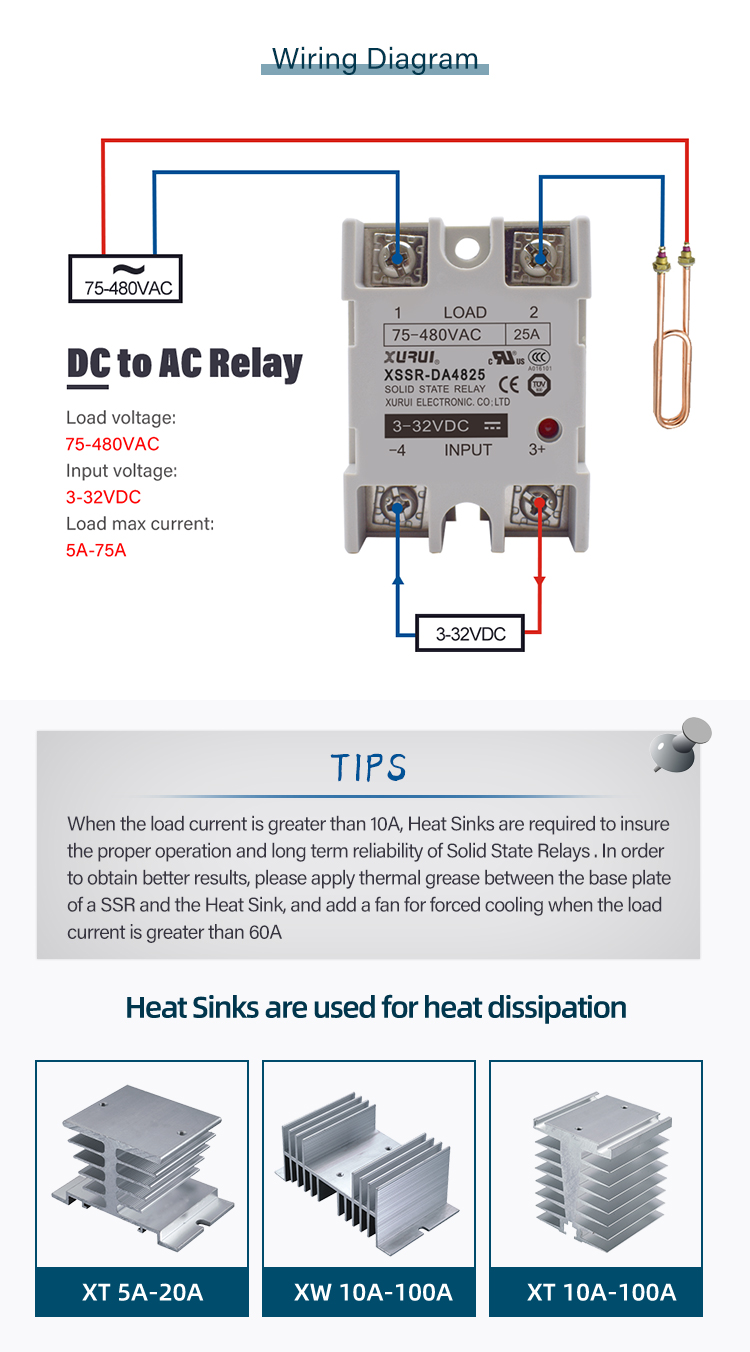

Yes. For applications operating close to the maximum 40A load current, mounting the solid state relay on a compatible heatsink is highly recommended to dissipate heat effectively and ensure long-term operational stability.
Q What is the operational temperature range for this unit?
The product is rated to operate reliably in ambient temperatures ranging from -20°C to 70°C, making it highly versatile for demanding industrial environments.
Q Which safety and compliance certifications does this relay carry?
The manufacturing system is ISO9001 approved. The products conform to multiple rigorous global standards, holding certifications such as CE (EU), UL (US), TUV (Germany), CCC (China), KC (South Korea), and RoHS directive compliance.
Q Can I use this solid state relay on both 50Hz and 60Hz networks?
Absolutely. The relay is rated for a frequency range of 50-60Hz, allowing it to seamlessly run on both standard electrical frequency configurations worldwide.
