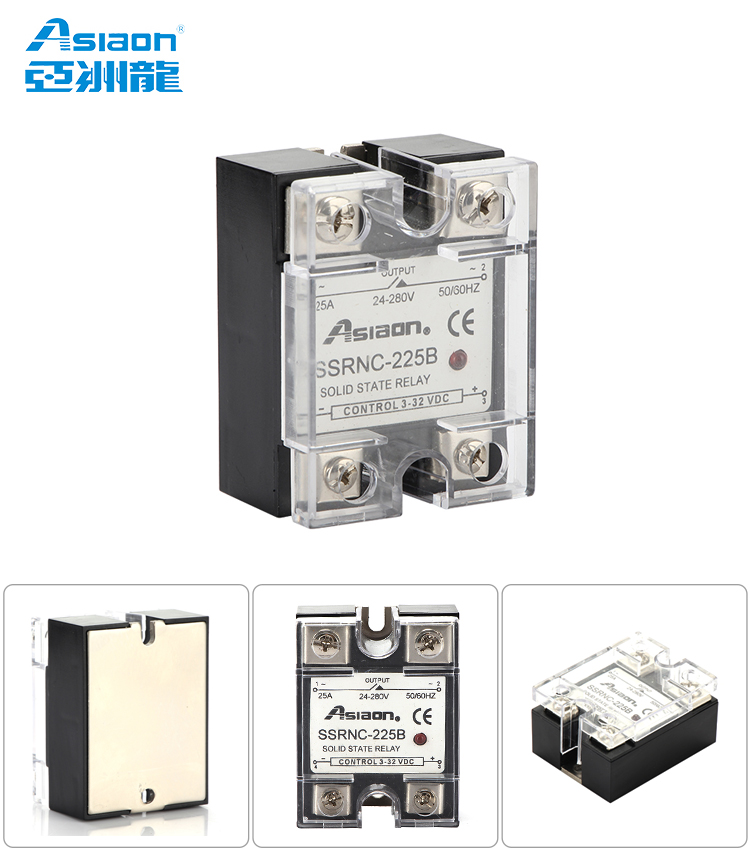

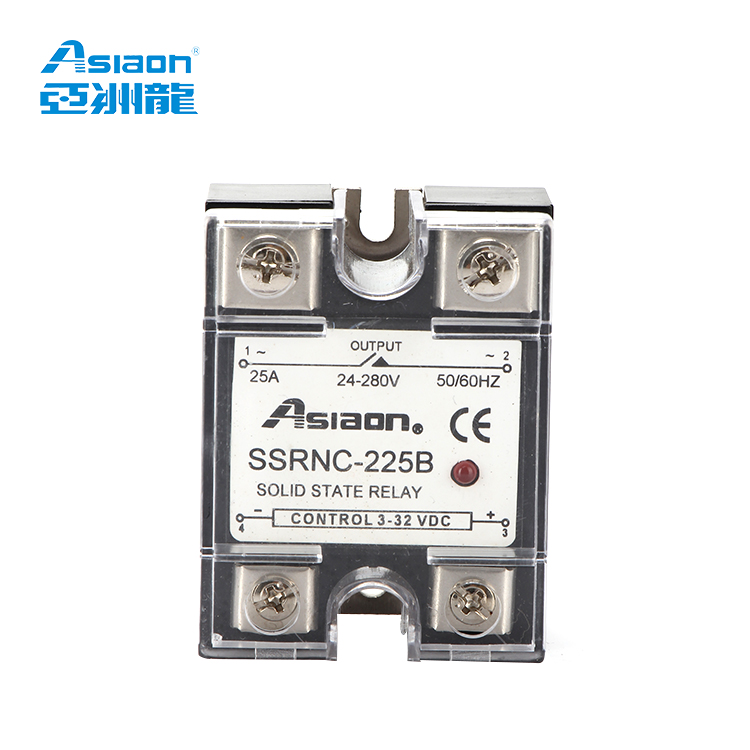

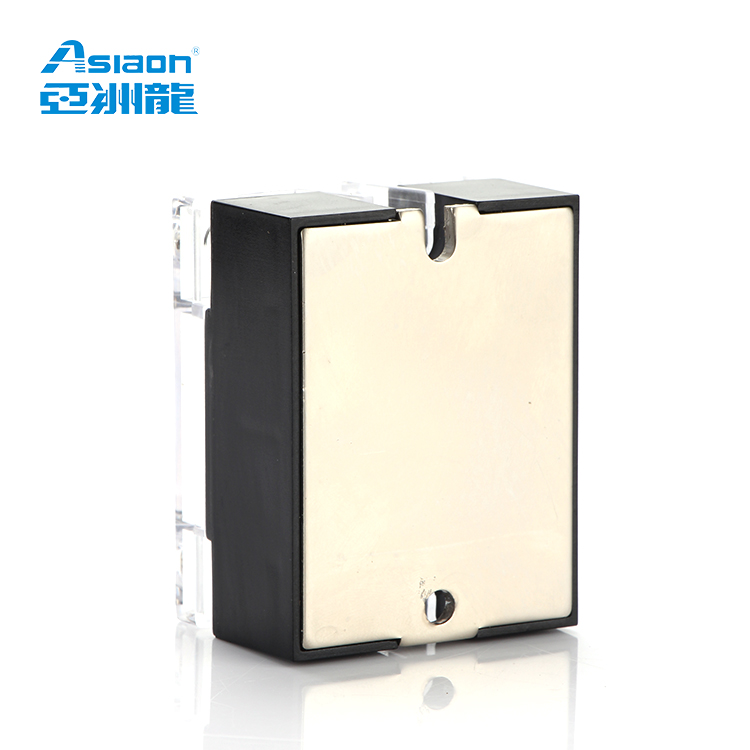

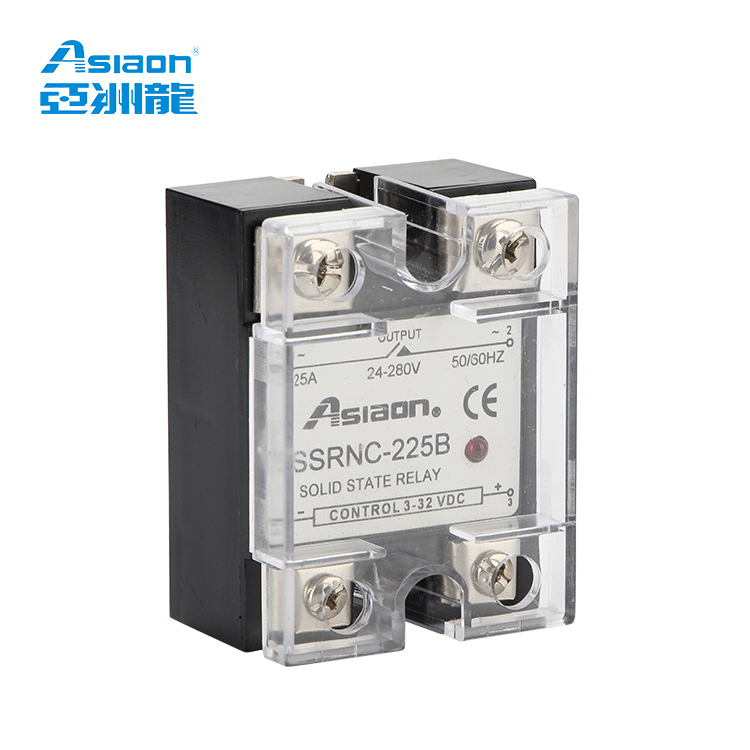

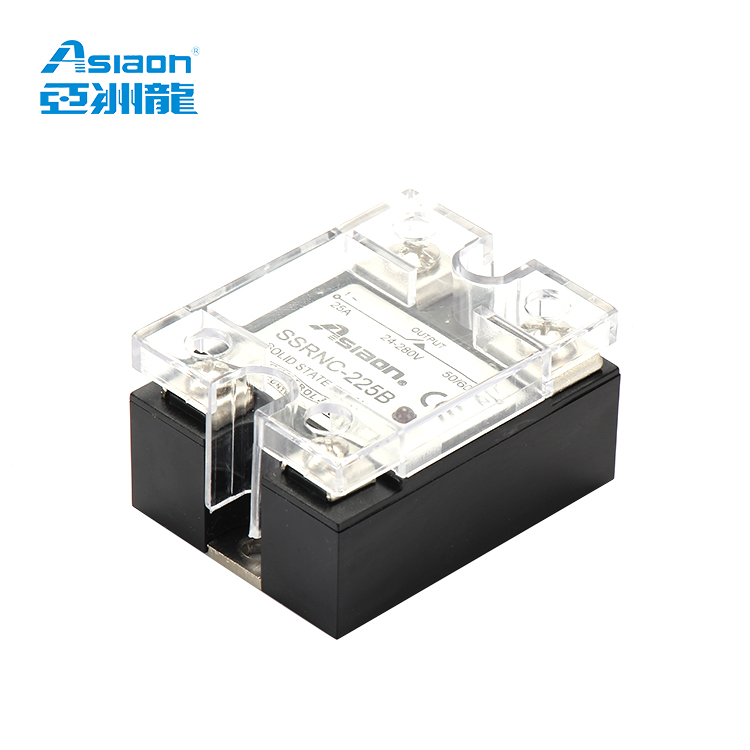

| Solid State Relay SSRNC | |
|---|---|
| Coil voltage: 280VDC~480VDC | |
| Contact Specification | |
| Dimension | 57.5Lx74Wx33H |
| Load Voltage | 24-450VAC |
| Load current | 10.15.20.30.40 |
| Input Voltage | A,B,C,D,E |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | ≥50M |
| On Voltage Drop | ≤1.6V |
| Off Leakage Current | ≤5mA |
| Reaction time | ≤10mS |
| Operation Temperature | -30°C~70°C |
| Huminity | 35%~85% |
| Weight | ≈400g |
| Technical Specification | |
| SSRNC-A: | 80-250VAC |
| SSRNC-B: | 3-32VDC |
| SSRNC-C: | 3-14VDC |
| SSRNC-D: | 8-32VDC |
| SSRNC-E: | 4-32VDC/AC |
The load voltage range for this solid state relay series is 24-450VAC.
We offer five different models to suit your requirements: SSRNC-A (80-250VAC), SSRNC-B (3-32VDC), SSRNC-C (3-14VDC), SSRNC-D (8-32VDC), and SSRNC-E (4-32VDC/AC).
The response and reaction time is highly efficient, rated at ≤10mS.
It is designed to operate safely and reliably under temperature conditions ranging from -30°C to 70°C.

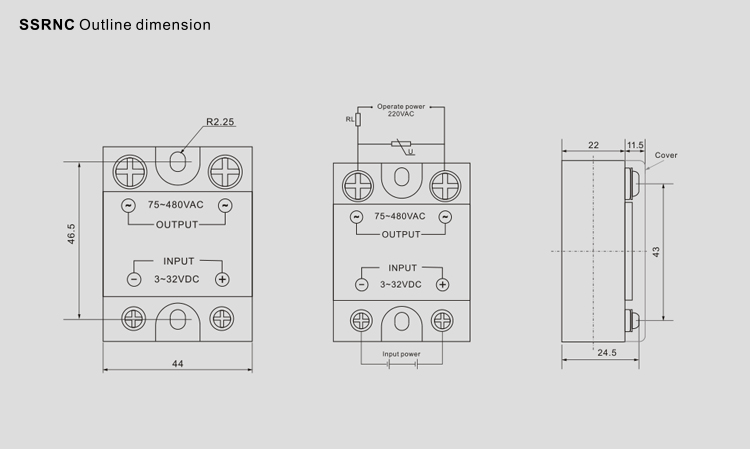

The dimensions of the relay are 57.5L x 74W x 33H mm, and it weighs approximately 400 grams.
The dielectric strength is 2500VAC, and the insulation resistance is ≥50MΩ.
