| Usage | Distribution system of metallurgy, mine, petro-chemistry and building, to control the equipments used electricity |
| Rated current | 800A, 630A, 400A, 200A |

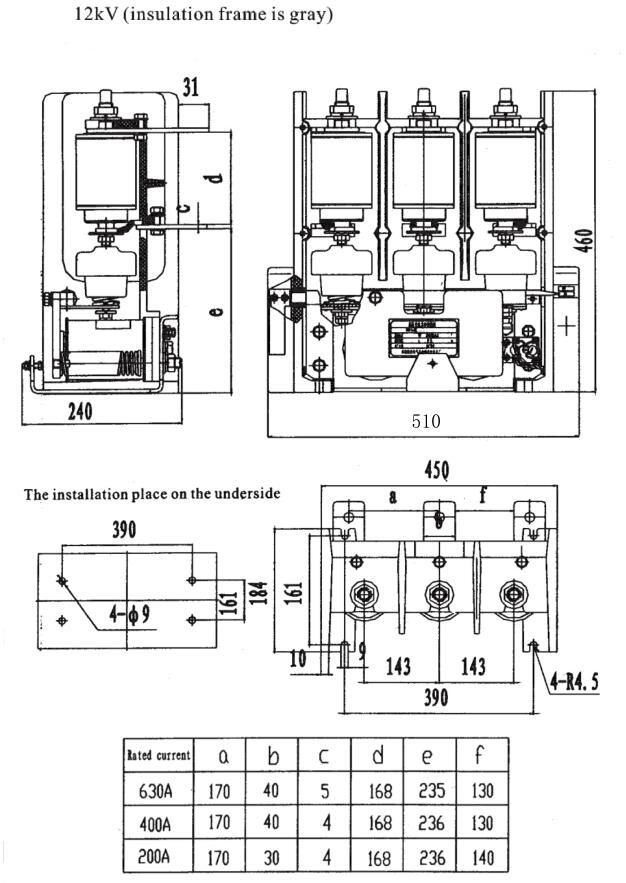

| Size | 510mm*240mm*450mm |
| Electricity life | AC-3: 25×104 times ; AC-4: 10×104 times |
| Mechanical life | 30×104 times (J type); 100×104 times (D type) |
| Rated operating voltage | 110/220V (AC, DC) |
| Pick-up voltage of switch-on coil | ≤DC14A/DC7A (800A, 630A); ≤DC6A/DC3.5A (400A, 200A) |
| Keeping current of holding coil | DC0.8A/DC0.4A (800A, 630A); DC0.45A/DC0.22A (400A, 200A) |
| Trip current of switch-off coil | DC2.5A/DC1.5A |

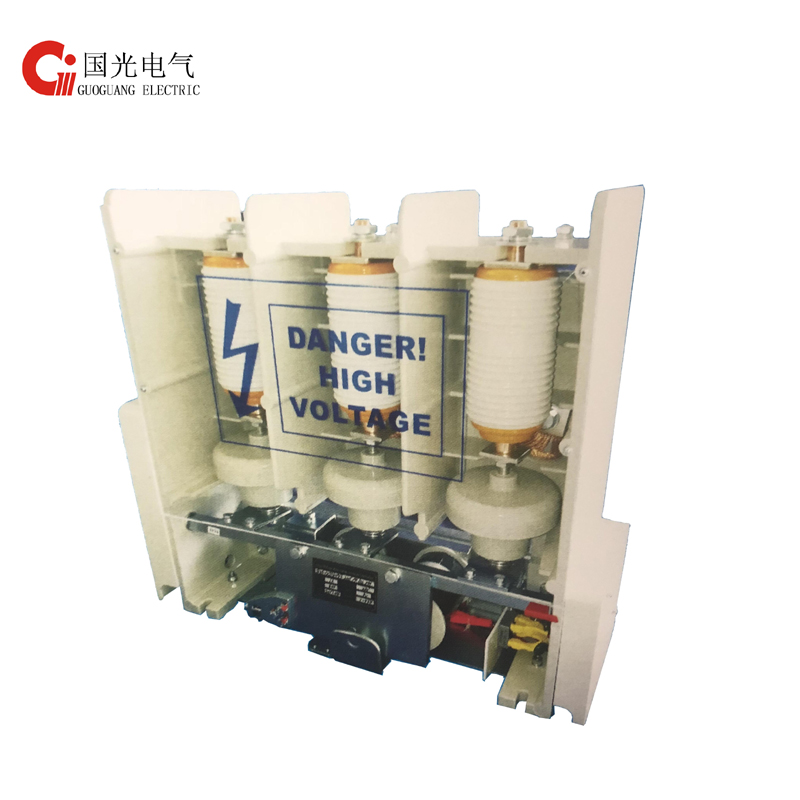

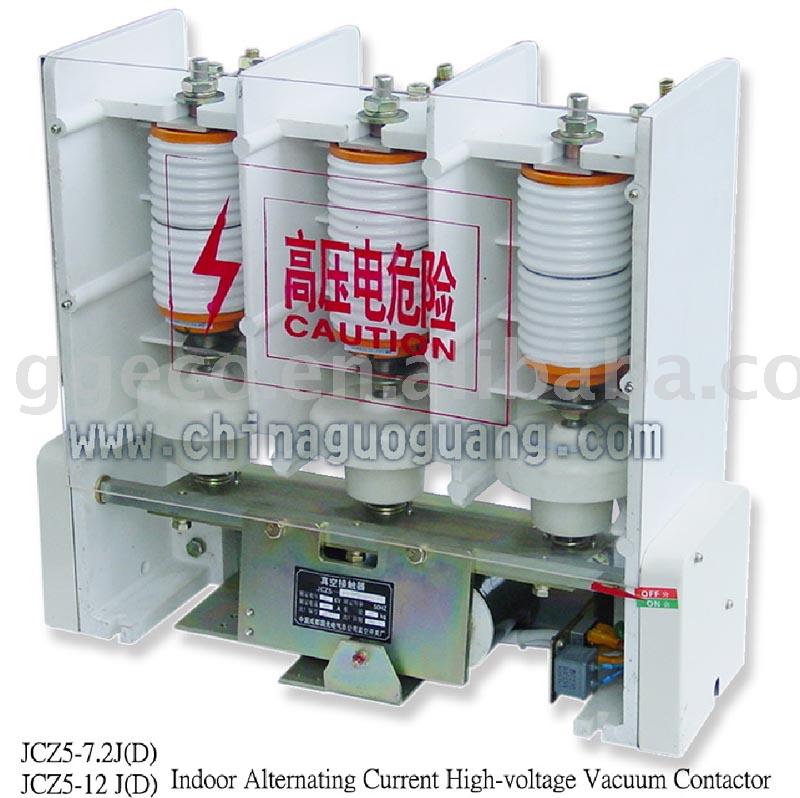

The series JCZ5-12J(D) of high-voltage vacuum contactor are suitable for the distribution system of metallurgy, mine, petro-chemistry and building, to control the equipments used electricity such as high-voltage motor of 12kV or under 12kV, transformer and capacitive loading etc. Especially suitable for frequent operation domain. Because of its small volume, light weight and packaged design of upper and lower arrangement, prevalented in the world. It is convenient to use and maintain, and is easy to form the complete equipment of F-C loop.
