| Model NO. | SFC52~53, SFC54~55, SFC56~57 |
| Phase | 3 |
| Main Circuit Rating Voltage | 110V, 220V, 380V, 24V, 48V |
| Main Circuit Rating Current | 210A, 300A, 400A, 550A |
| Type | Ac Contactors |
| Rated Frequency | 50/60 Hz |
| Protection Degree | IP20 |
| Mechanical Life | 6 Million |
| Auxiliary Contact | 2no+2nc |
| Transport Package | Exporting Carton Box |
| Trademark | OEM or YOKG |
| Origin | Wenzhou |
| HS Code | 8536300000 |
| Production Capacity | 100000PCS Per Month |
Application:
SFC series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated insulation voltage of 690V, and the rated current from 9A to 475A at the rated working voltage 380V in the AC-3 application type, and is used for long distance connection and breaking of the circuit. Contactor is suitable in frequent start and control of AC motor.
This series contactor complies with GB 14048, IEC60947-4-1

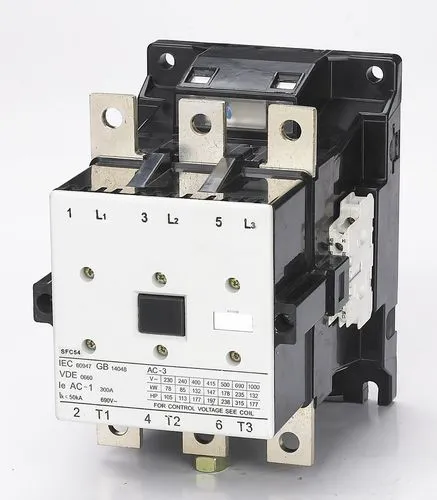

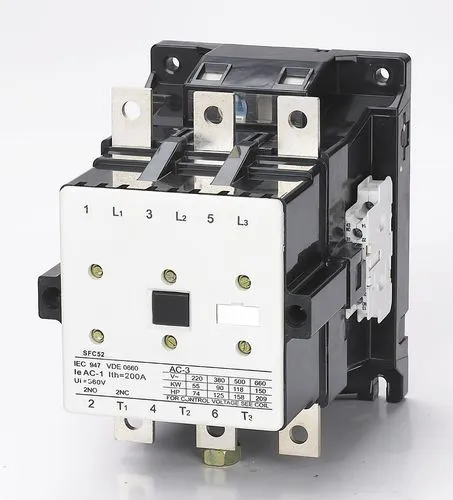

| Type | SFC52 | SFC53 | SFC54 | SFC55 | SFC56 | SFC57 |
|---|---|---|---|---|---|---|
| Rated heating current (A) | 210 | 210 | 300 | 300 | 400 | 550 |
| Mechanical life (10000/times) | 600 | 600 | 600 | 600 | 600 | 600 |
