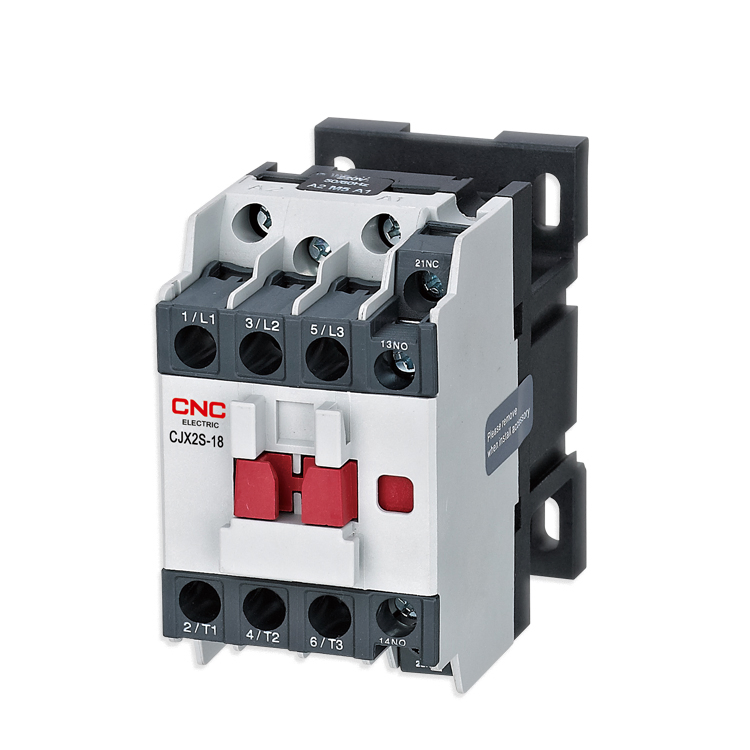

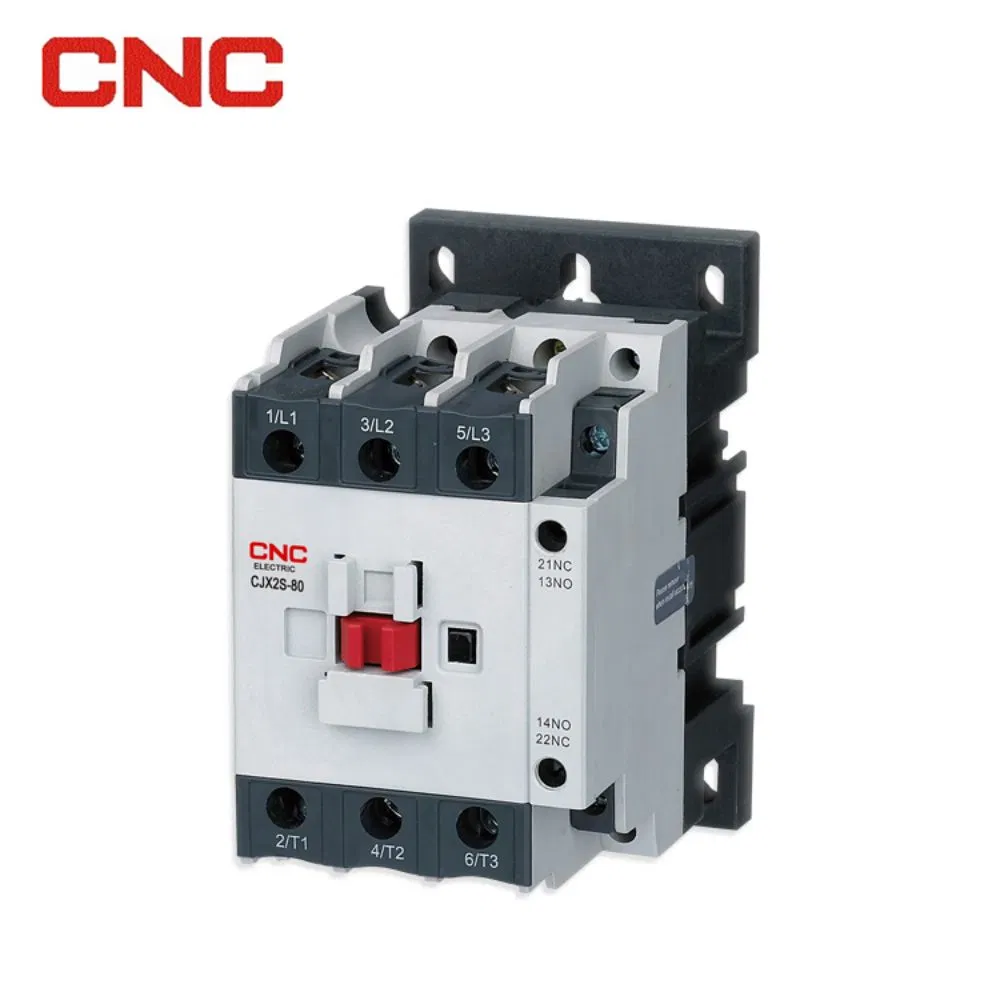

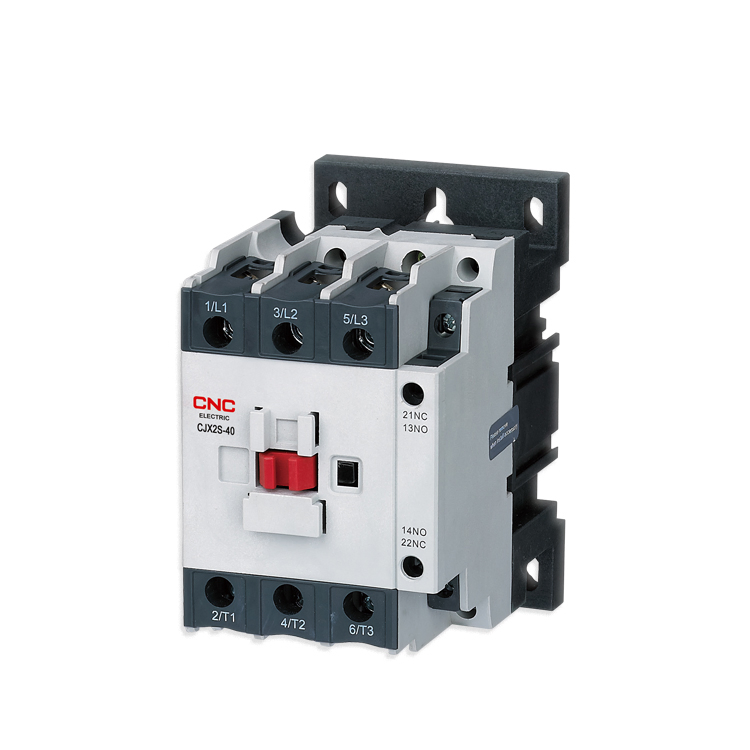

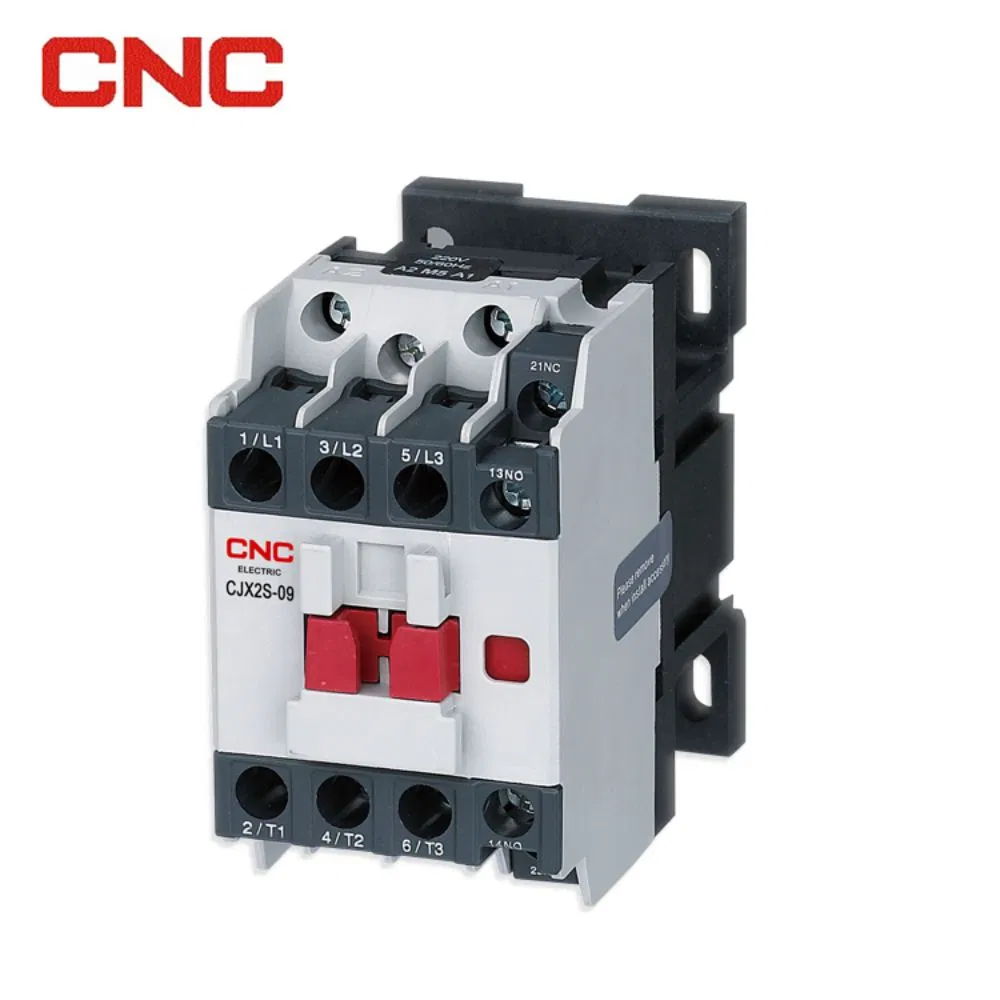

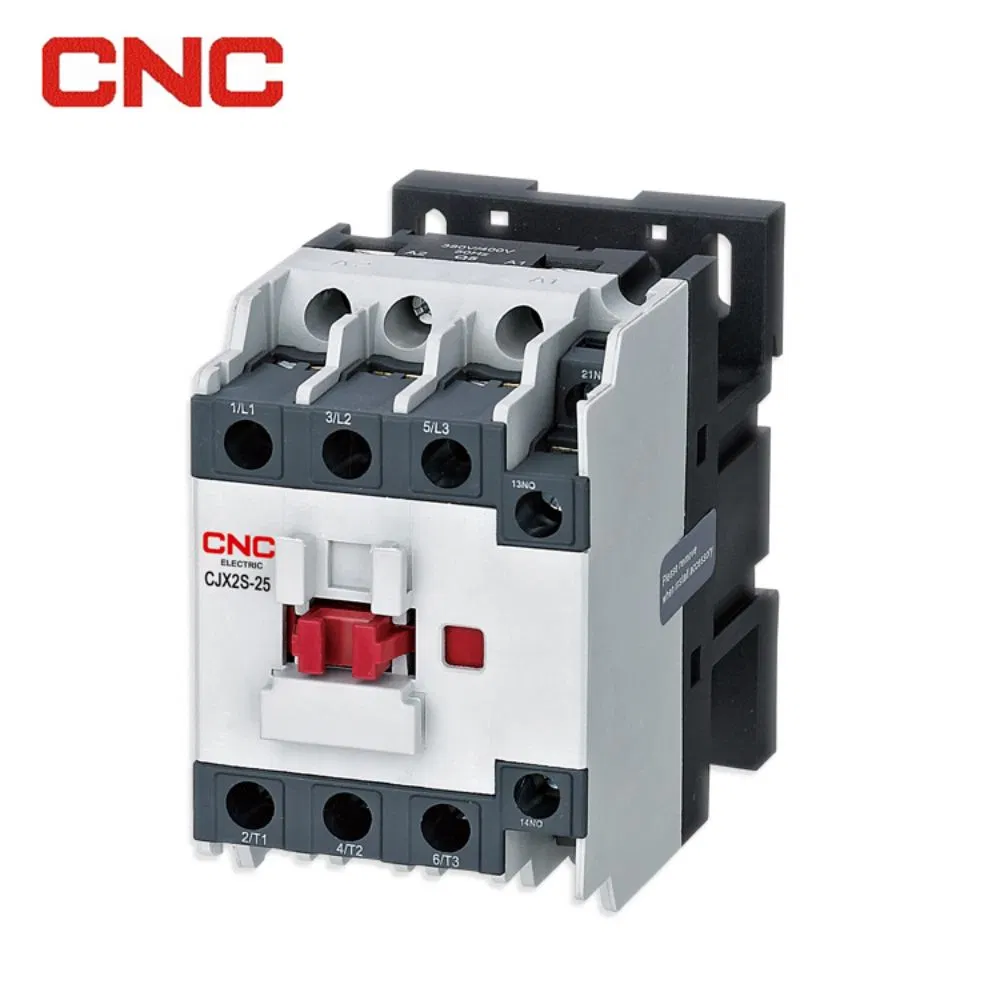

CNC New Design 9A 12A 18A 25A 32A 38A 40A 50A 65A 80A 95A 3p AC Electric Contactors 3 Pole Magnetic Contactor

1 / 5

CNC New Design 9A 12A 18A 25A 32A 38A 40A 50A 65A 80A 95A 3p AC Electric Contactors 3 Pole Magnetic Contactor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Product Description
Product Catalog
Company Profile
Our Advantages
Our Clients/Partners
Packaging & Shipping

Basic Info.

Model NO. CJX2S

Phase 3

Main Circuit Rating Voltage 220V - 690V

Main Circuit Rating Current 9A - 95A

Type Ac Contactors

Rated Current 9-95A

Rated Voltage 220V~690V

Poles 3p

Auxiliary Contacts 1no+1nc

Frequency of Operation 300-1200 Times/Hour

Electrical Life (Times) 170, 000 - 1, 100, 000

Mechanical Life ( Times) 6, 500, 000 - 12, 000

Certification CE, CB, CCC, TUV ..

Installation DIN Rail / Screw Installation

Standard IEC 60947-1, IEC 60947-4-1

Transport Package Standard Packing

Specification CJX2S

HS Code 8536300000

Production Capacity 800000 Set/Week

Packaging & Delivery

Package Size 35.00cm * 30.00cm * 30.00cm

Package Gross Weight 24.000kg

Product Description

AC Electric Contactors 3 Pole Magnetic Contactor Banner

AC Electric Contactors 3 Pole Magnetic Contactor Sub Banner

CJX2s series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter.

Standard: IEC 60947-1, IEC 60947-4-1

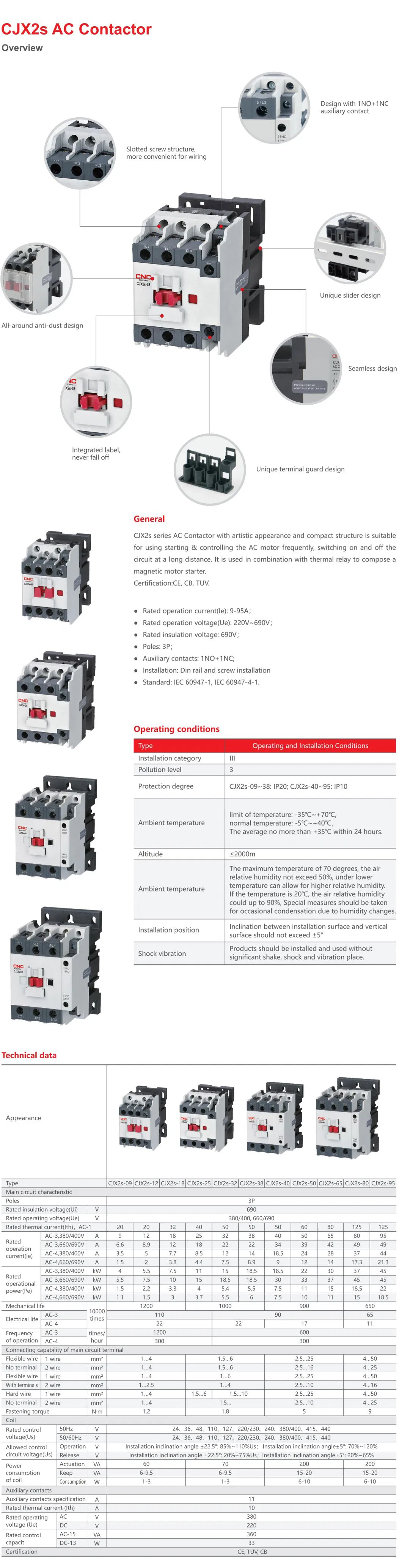

AC Electric Contactors 3 Pole Magnetic Contactor Technical Specifications

Type	Amax	Bmax	Cmax	a	b	c	d	e	f
CJX2s-09, 12, 18	74.5	45.5	85.5	35	50/60	-	-	-	-
CJX2s-25, 32, 38	83	56.5	97	40	50/70	-	-	-	-
CJX2s-40, 50, 65	127.5	74.5	117	-	-	105	40	100/110	59
CJX2s-80, 95	127.5	85.5	125.5	-	-	105	40	100/110	67

Product Catalog

Company Profile

Our Advantages

Our Clients/Partners

Packaging & Shipping

Frequently Asked Questions (FAQ)

Q1: What are the main applications of the CJX2s series AC Contactor?

A1: The CJX2s series AC Contactor is suitable for frequently starting and controlling AC motors, as well as switching on and off electrical circuits from a distance. It can also be combined with a thermal relay to form a magnetic motor starter.

Q2: What is the rated operation voltage and current range for this series?

A2: The rated operation voltage (Ue) ranges from 220V to 690V, and the rated operation current (Ie) is between 9A and 95A.

Q3: Which international standards does the contactor comply with?

A3: The contactors are manufactured in strict compliance with the IEC 60947-1 and IEC 60947-4-1 international electrical standards.

Q4: What are the installation options for the CJX2s contactor?

A4: The product supports dual installation methods: standard 35mm DIN Rail installation and robust screw-mount installation, ensuring flexibility in various control cabinets.

Q5: What certifications does the CJX2s series AC Contactor hold?

A5: This contactor series holds multiple safety and quality standards certifications, including CE, CB, CCC, and TUV.

Q6: What is the estimated electrical and mechanical lifespan of this contactor?

A6: The contactor offers an electrical life ranging from 170,000 to 1,100,000 operations, and a mechanical life up to 12,000,000 cycles, depending on operating conditions.
