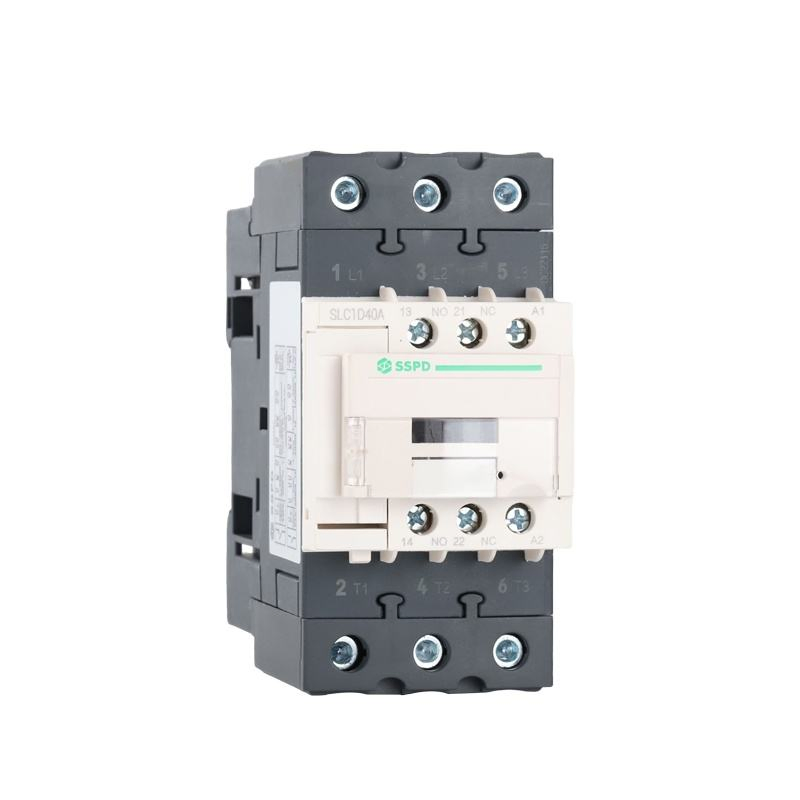

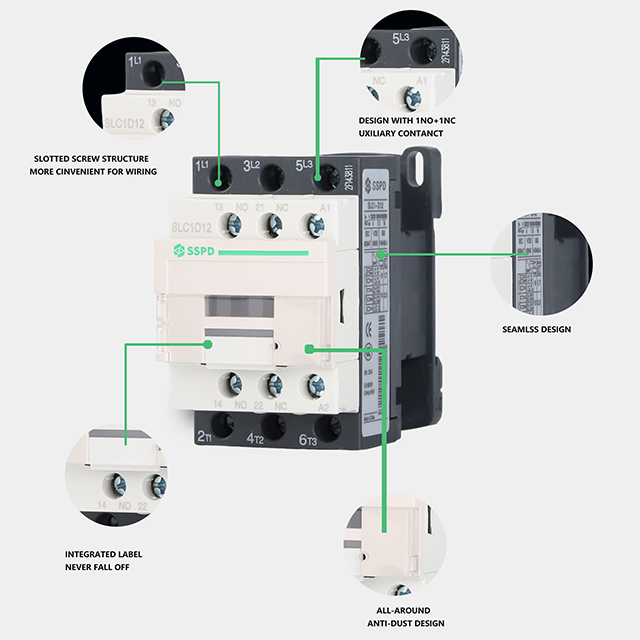

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor for Electrical Panel Motor Control

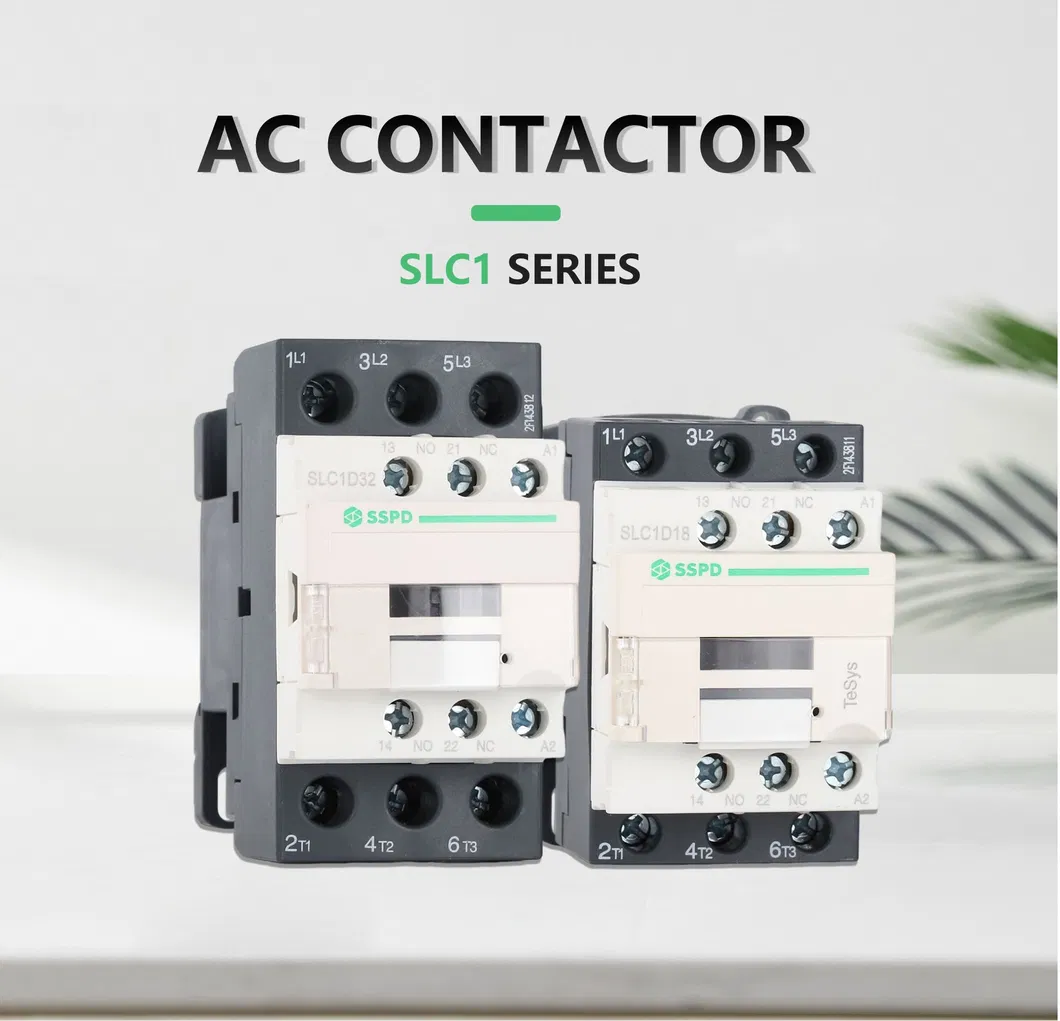

SLC1 AC Contactor

SSPD AC contactor CLC1D series are available from 9A-95A. SSPD CLC1D series has an exquisite appearance and high quality. The CLC1 series Ac Contractors rated insulation voltage up to 1000V in category AC-3 (0s 60 c), and the rated operation current is 9~95A in AC-3 440V. it is mainly used for making and breaking electric circuits at a long distance, and for frequent starting & stopping, and controlling AC Motors. SSPD CLC1 series AC Contactor complies with lEC60947-4.

40A Contactor: Ideal for high-power industrial applications with precise control.

220V AC Operation: Compatible with standard household and industrial power systems.

Din Rail Mounting: Easy installation and integration into existing electrical panels.

White Housing: Aesthetic and durable design suitable for various environments.

50/60Hz Compatibility: Universal frequency support for global use.

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 1

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 2

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 3

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 4

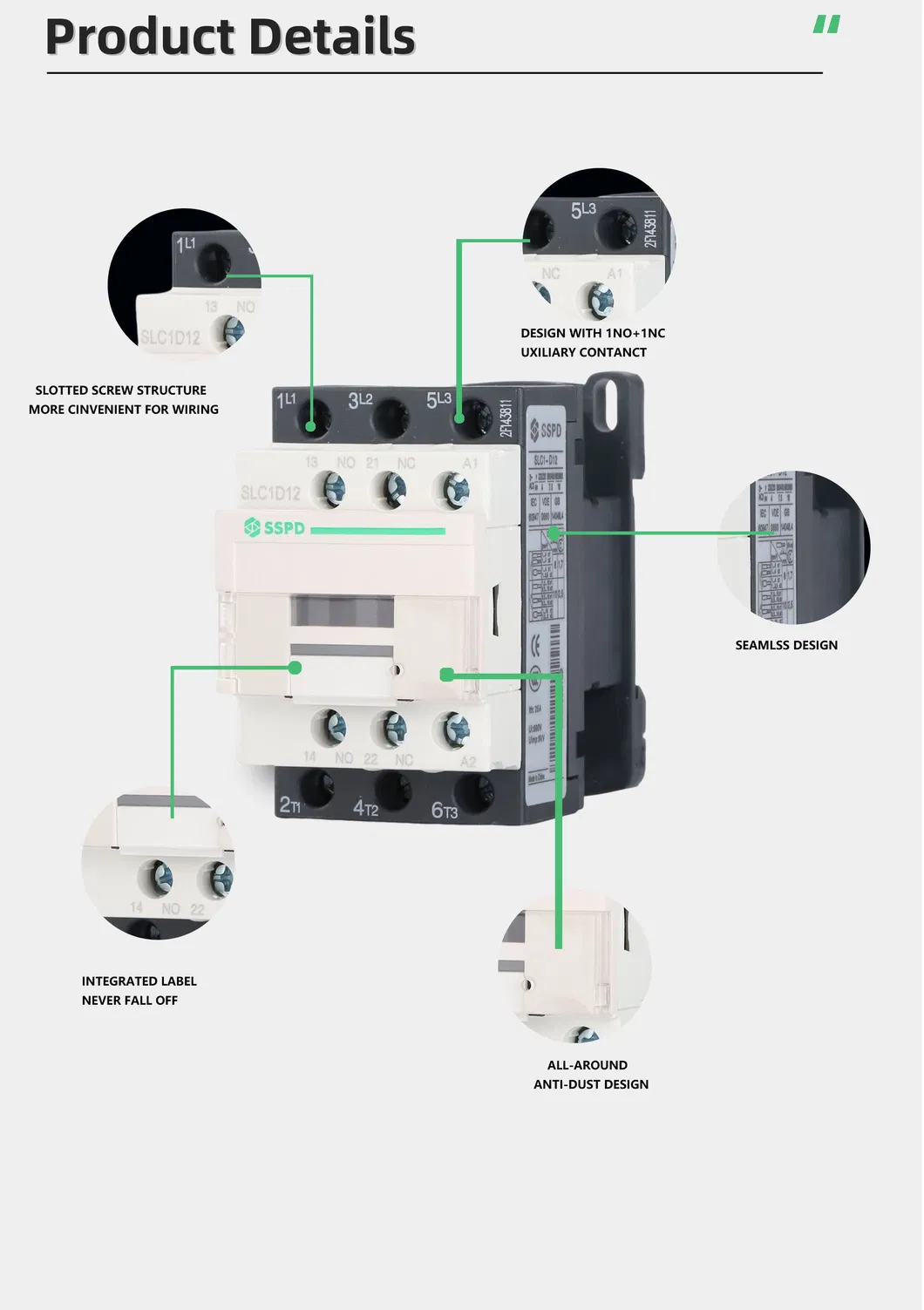

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 5

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 6

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 7

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 8

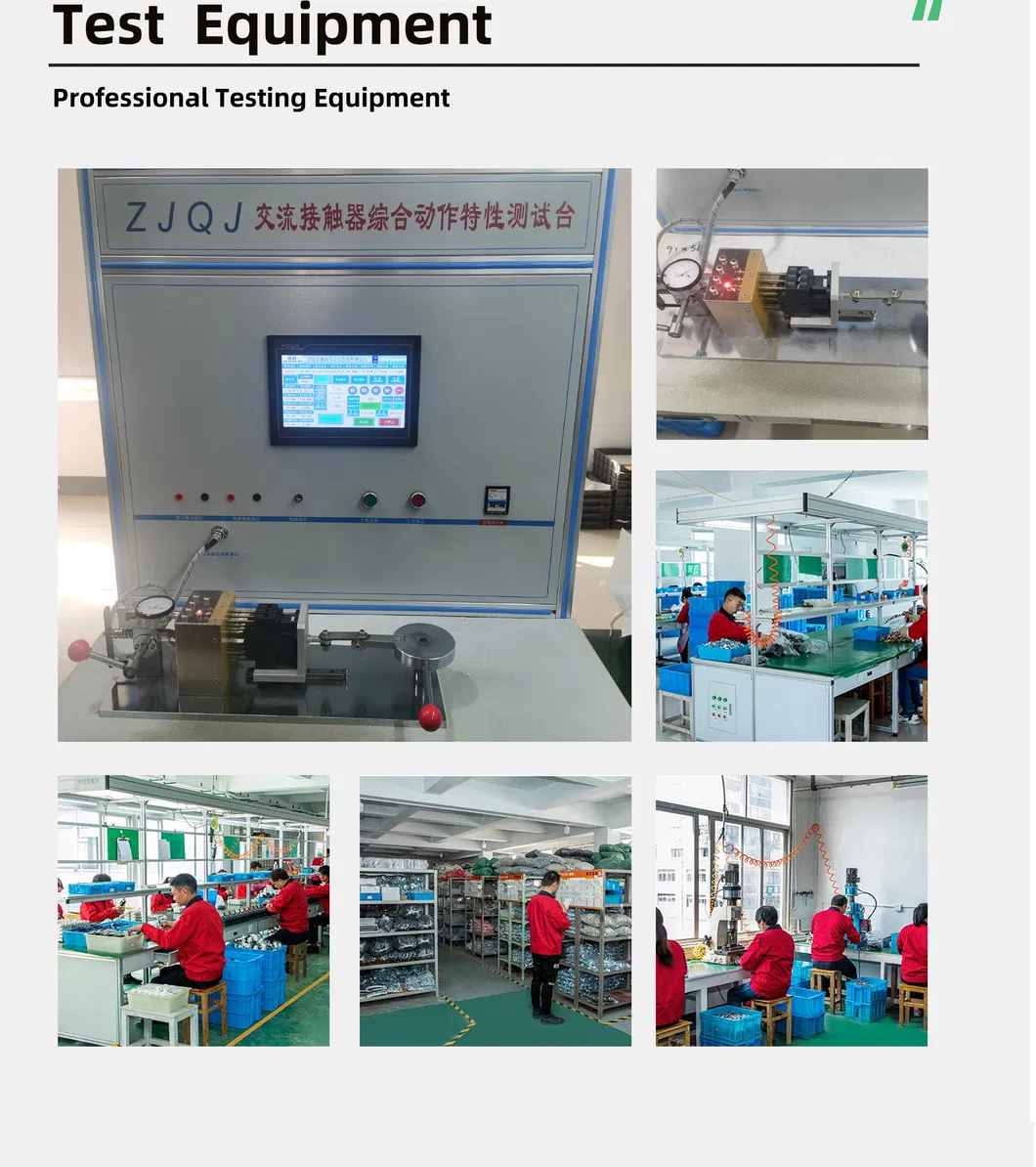

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 9

LC1d40 40A AC Contactor 220V Coil 3 Phase Magnetic Contactor 10

Functions and Characteristics

SLC1		D09	D12	D18	D25	D32	D38	D40A	50A	65A	D80	D95
Rated operational current in AC-3 440V up to		9A	12A	18A	25A	32A	38A	40A	50A	65A	80A	95A
Control circuit voltage		AC 24V, 110V, 220V, 380V, 415V
Standard power ratings of 3-phase motors 50-60 Hz in category AC-3 (θ≤ 60 °C)	220V/230V	2.2	3	4	5.5	7.5	9	11	15	18.5	22	25
	380V/400V	4	5.5	7.5	11	15	18.5	18.5	22	30	37	45
	415V	4	5.5	9	11	15	18.5	22	25	37	45	45
	440V	4	5.5	9	11	15	18.5	22	30	37	45	45
	500V	5.5	7.5	10	15	18.5	18.5	22	30	37	55	55
	660V/690V	5.5	7.5	10	15	18.5	18.5	30	33	37	45	45
	1000V	-	-	-	-	-	-	-	-	-	45	45
