AC Contactors with CE Approval LC1-D (CJX2)

Basic Specification

Model NO.

JCL1-D25

Phase

1

Main Circuit Voltage

380V

Main Circuit Current

9-95A

Type

Ac Contactors

Installation

DIN Rail

Contact

Silver

Transport Package

50PCS/CTN

HS Code

8536300000

Production Capacity

1000000/Year

Product Description

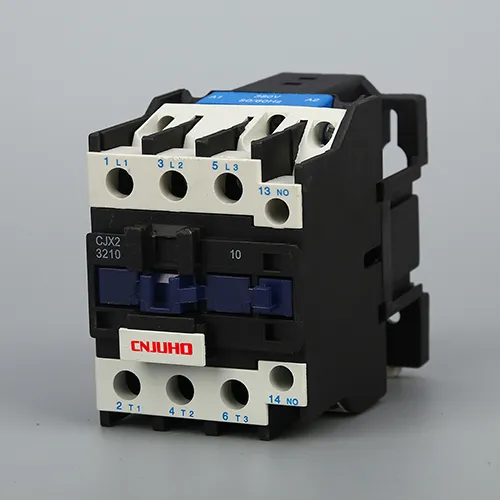

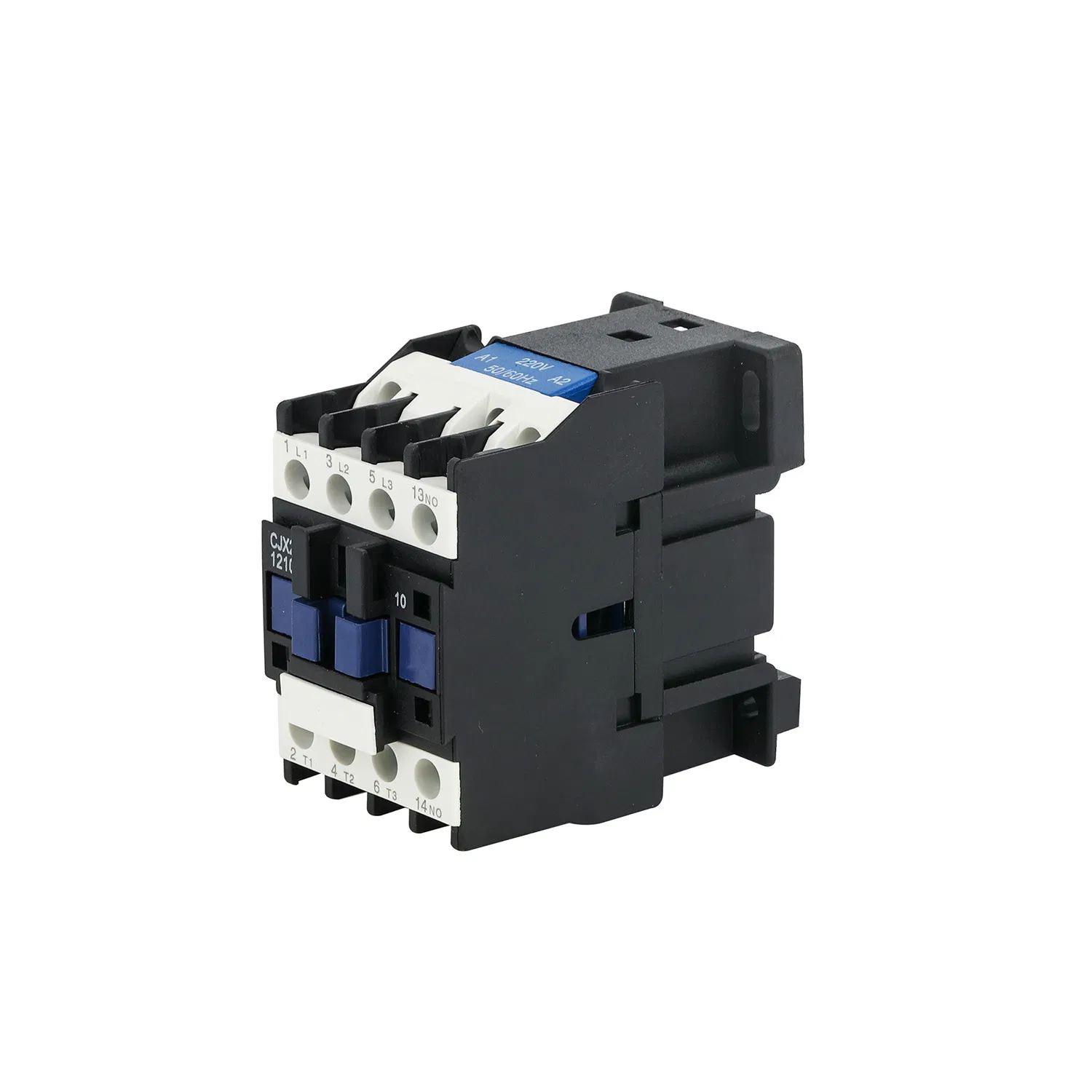

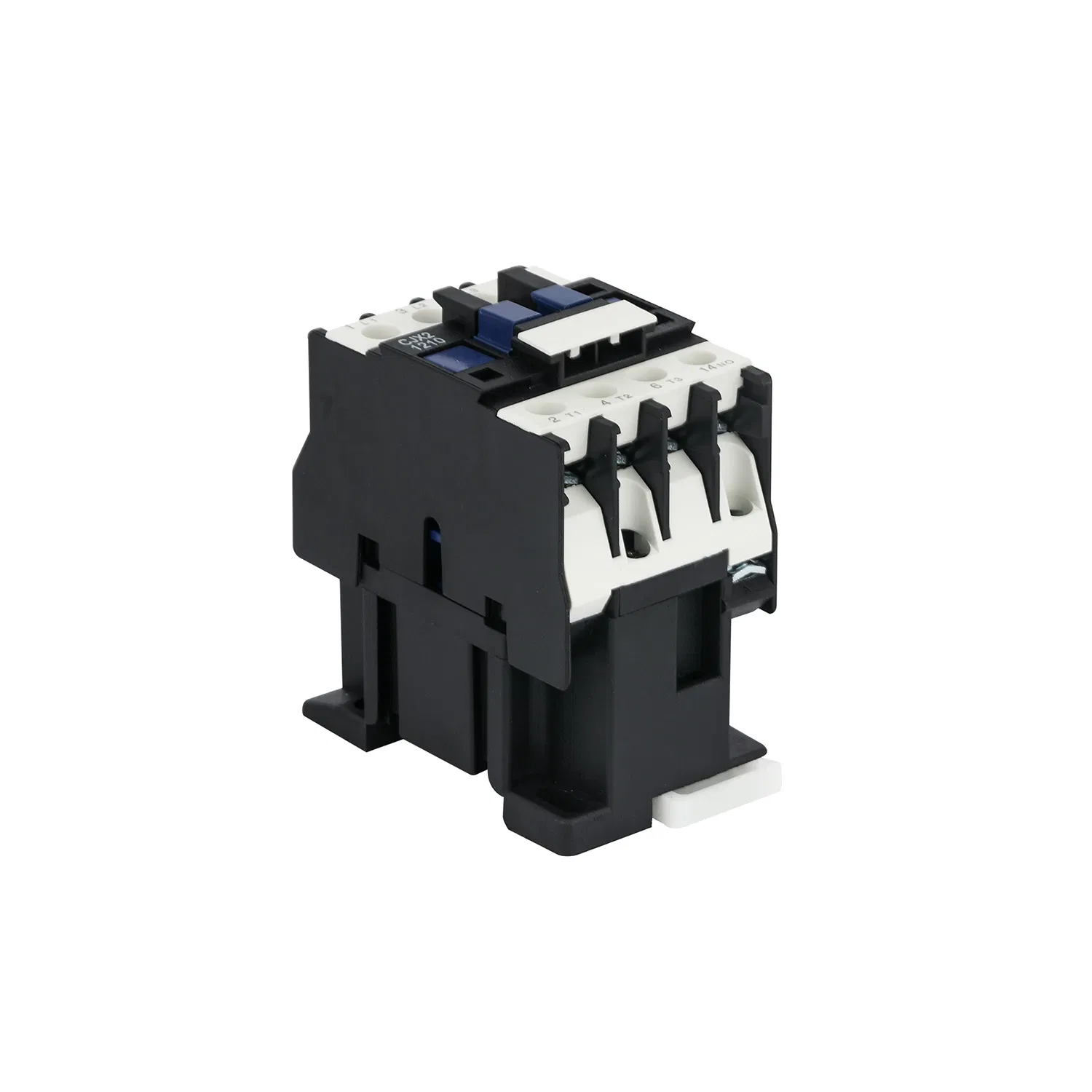

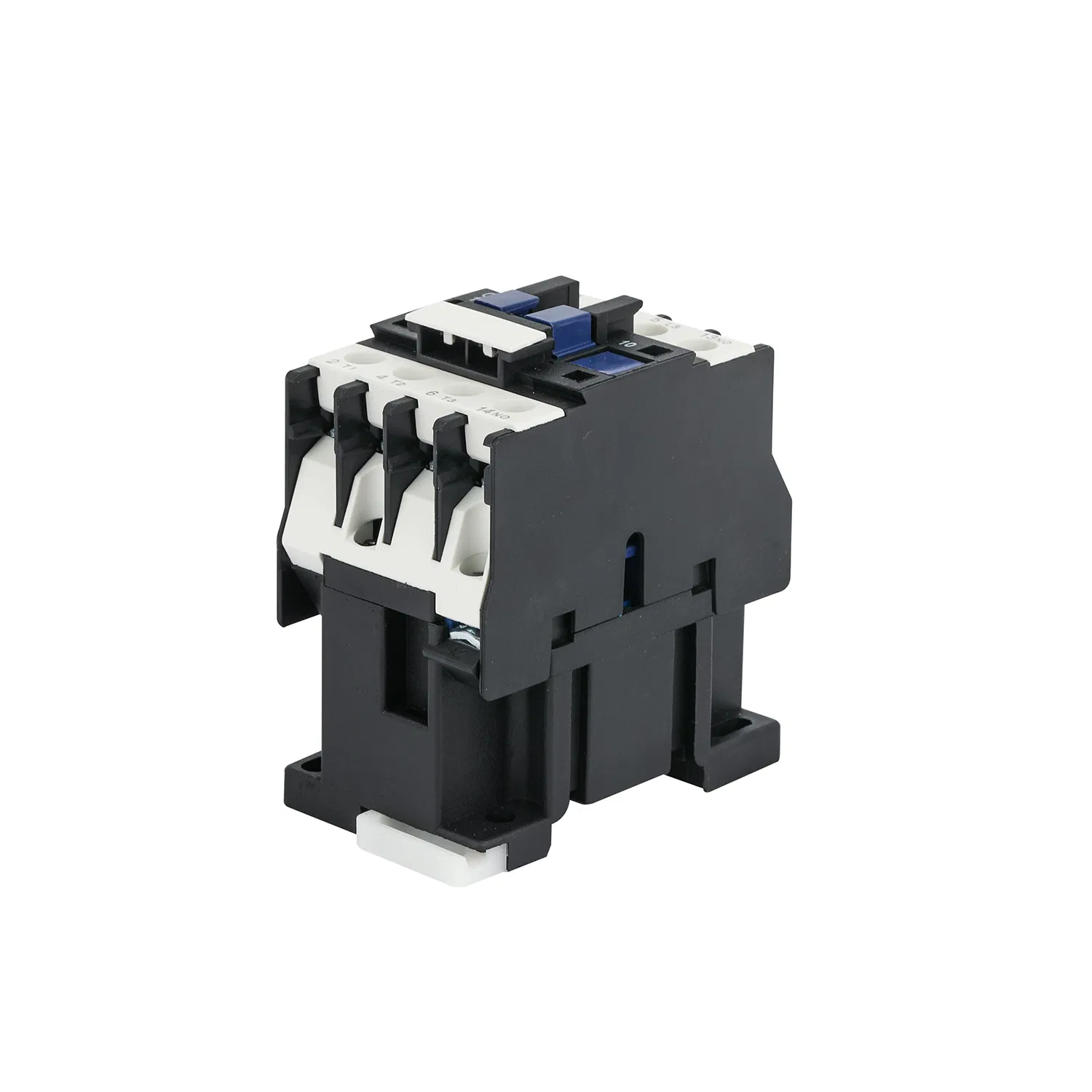

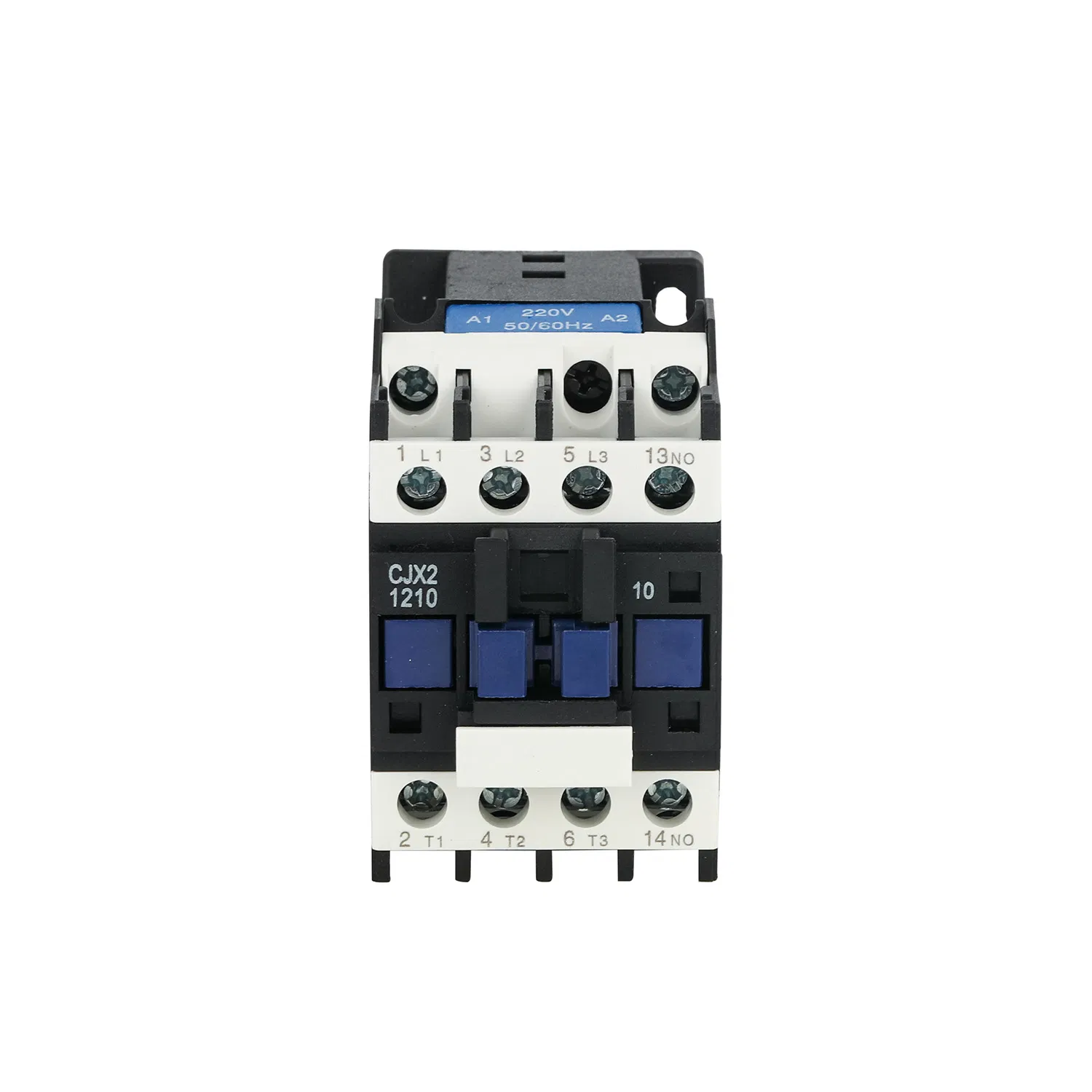

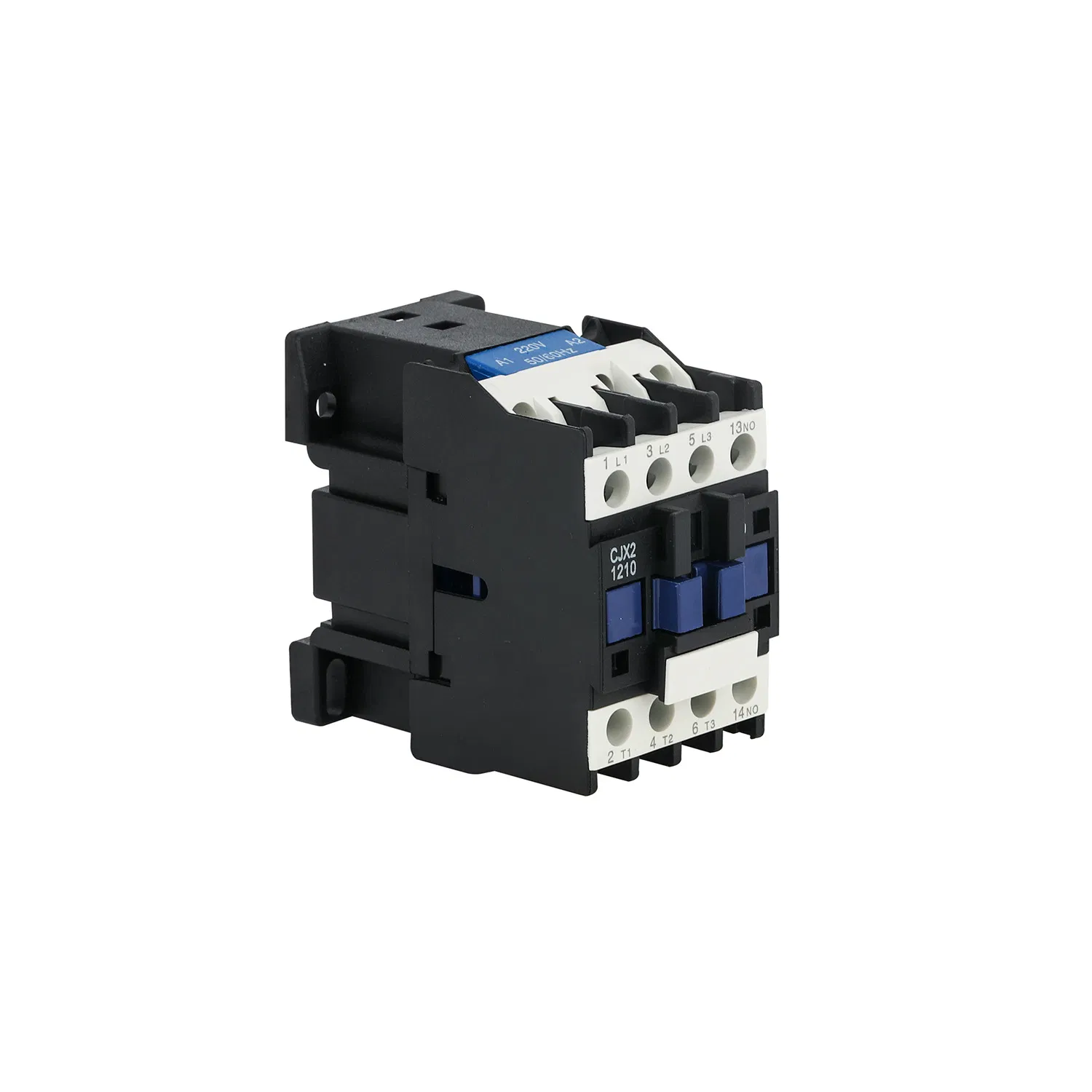

AC Contactors with CE Approval LC1-D (CJX2)

1. Application:
JLC1-D series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reversible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air timedelay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.

This product conforms to the requirement of IEC60947-4-1 & GB14048.4 standards.

2. Main Parameters

Type	Rated insulation voltage (V)	Conventional thermal current (A)	Rated operation current (A)	Control power (kw)					No. of contacts	Remark
Type	Rated insulation voltage (V)	Conventional thermal current (A)	Rated operation current (A)	220V	380V	415V	440V	660V	No. of contacts	Remark
JLC1-0910 / 0901	660	20	9	2.2	4	4	4	5.5	3P+NO / 3P+NC	Installation method: 1. With two screws 2. 35mm DIN rail
JLC1-1200 / 1201		20	12	3	5.5	5.5	5.5	7.5	3P+NO / 3P+NC
JLC1-1810 / 1801		32	18	4	7.5	9	9	9	3P+NO / 3P+NC
JLC1-2510 / 2501		40	25	5.5	11	11	11	15	3P+NO / 3P+NC
JLC1-3210 / 3201		50	32	7.5	15	15	15	18.5	3P+NO / 3P+NC
JLC1-4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	Installation method: 1. With three screws 2. 75mm or 35mm DIN rail
JLC1-5011		80	50	15	22	25	30	33
JLC1-6511		80	65	18.5	30	37	37	37
JLC1-8011		125	80	22	37	45	45	45
JLC1-9511		125	95	25	45	45	45	45

Type			JLC1-09	JLC1-12	JLC1-18	JLC1-25	JLC1-32	JLC1-40	JLC1-50	JLC1-65	JLC1-80	JLC1-95
Pick-up voltage 50/60Hz(V)			(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us	(0.85~1.1)Us
Release voltage 50/60Hz(v)			(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us	(0.2~0.75)Us
Coil power	50Hz / 60Hz	Pick-up(VA)	70	70	110	110	110	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Pick-up(VA)	80	80	115	115	115	200	200	200	200	200
		Holding(VA)	8	8	11	11	11	20	20	20	20	20
		Power consumption (W)	1.8~2.7	1.8~2.7	3~4	3~4	3~4	6~10	6~10	6~10	6~10	6~10
