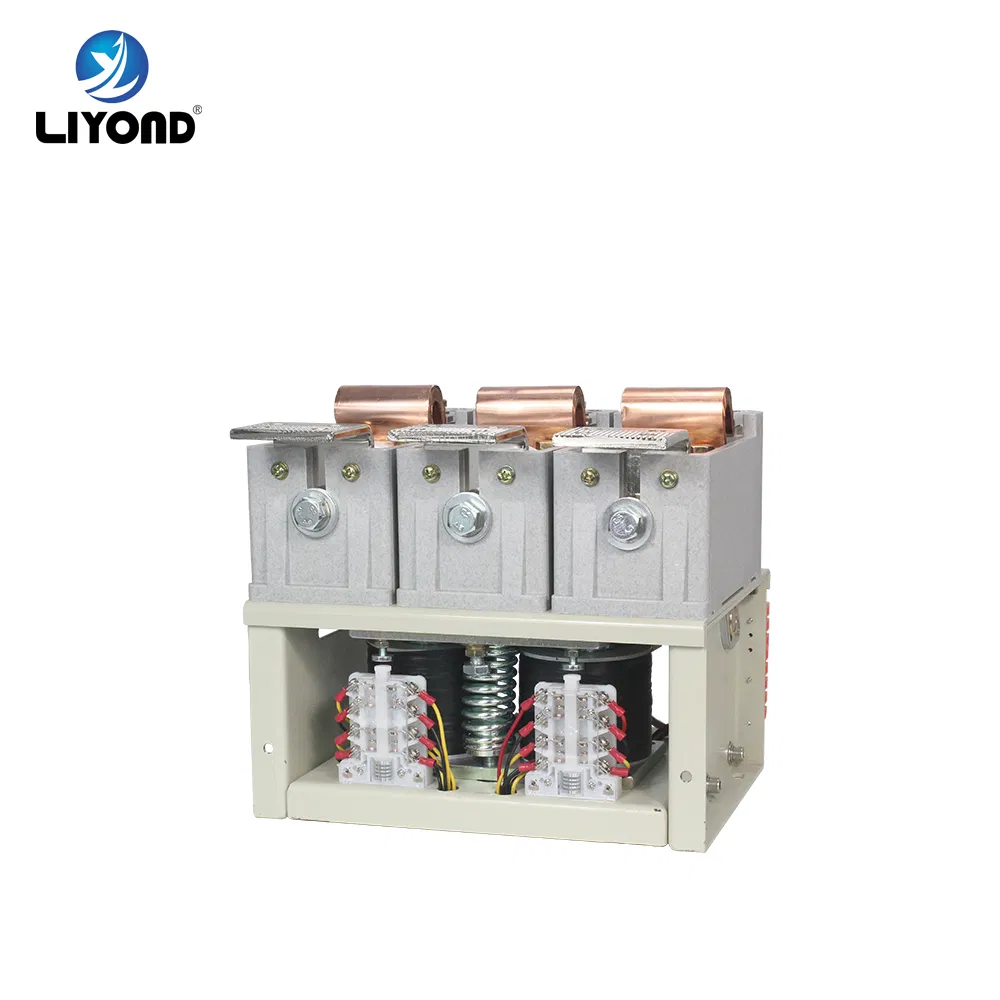

Ckj5 1600A 1140V Low Voltage Indoor AC Vacuum Contactor for Motor Control

1 / 5

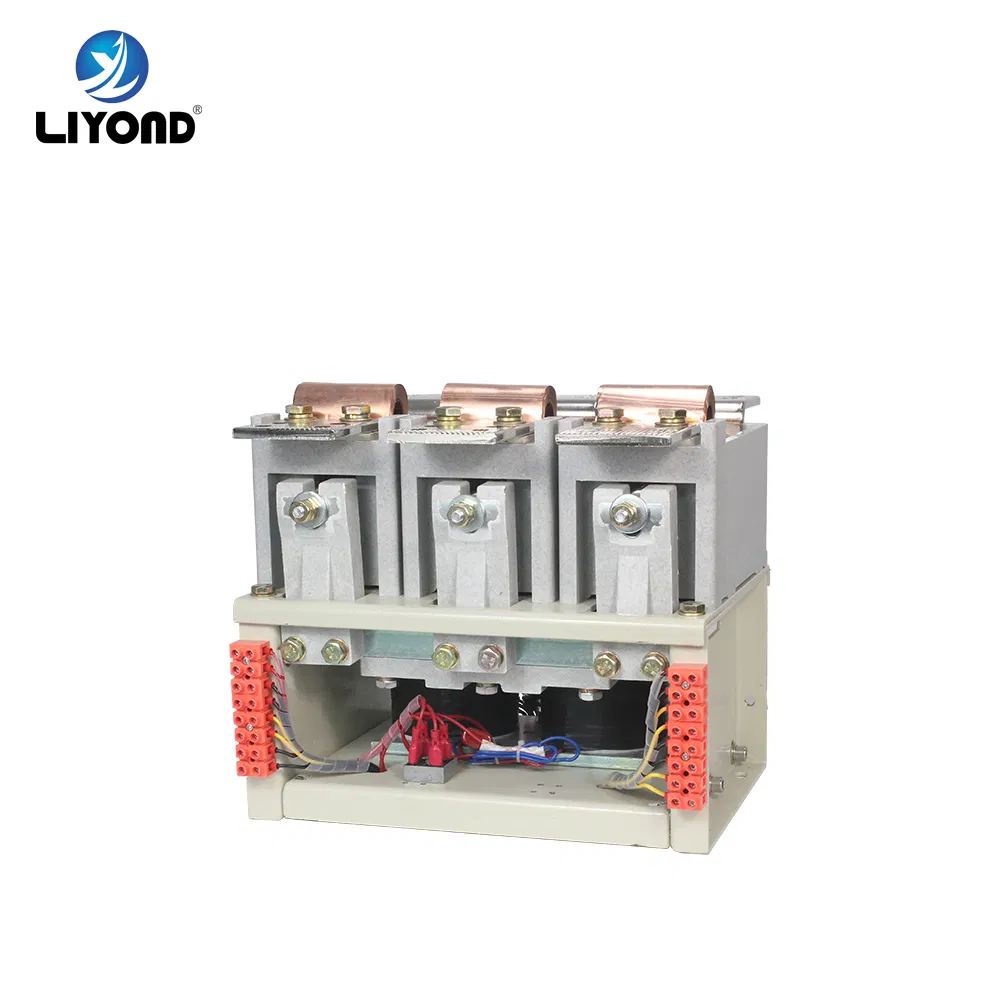

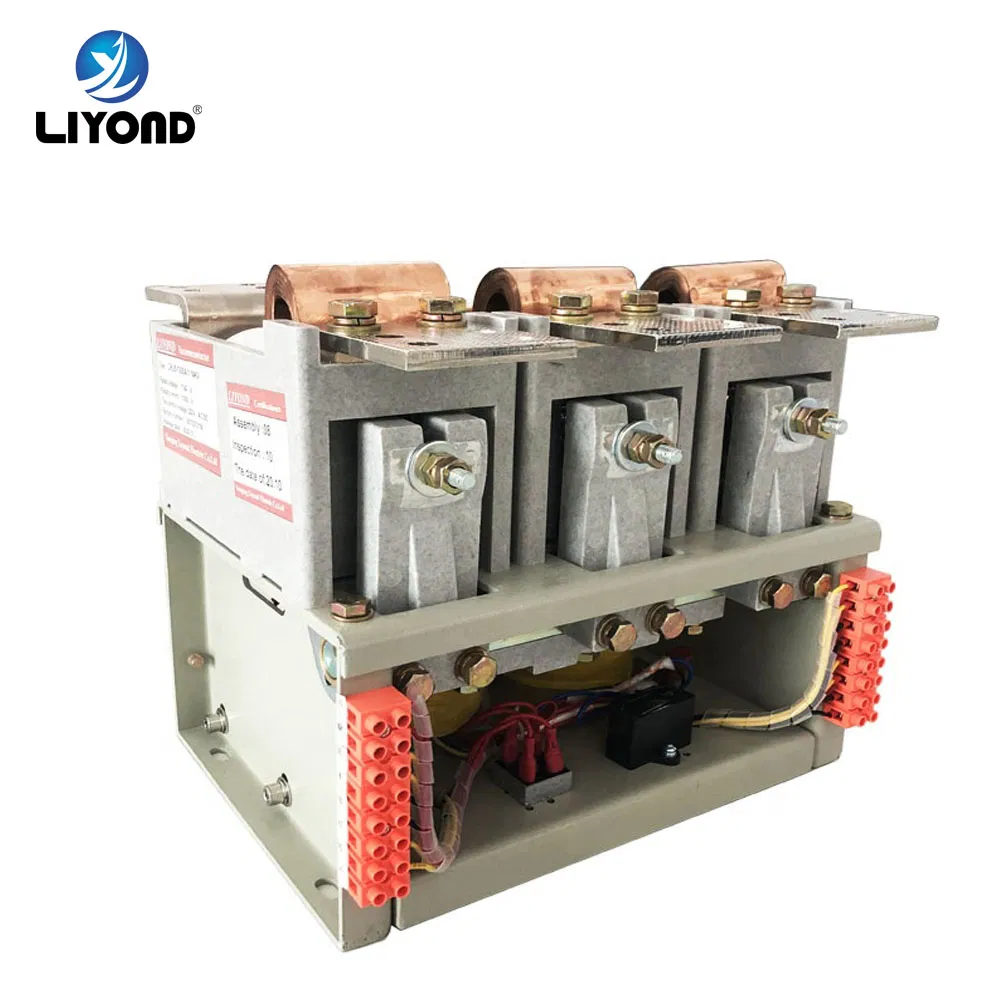

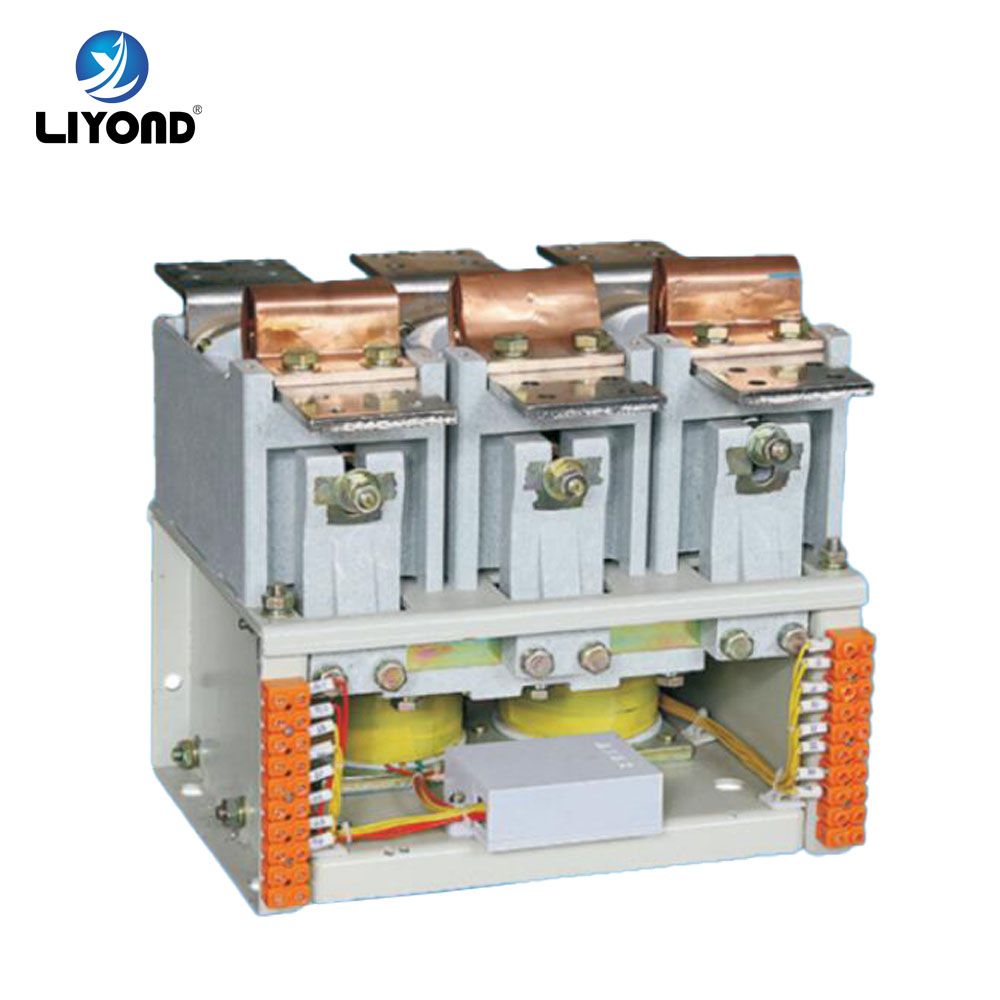

Ckj5 1600A 1140V Low Voltage Indoor AC Vacuum Contactor for Motor Control

Customization:	Available
Electricity Type:	AC
Number of Pole:	3

Send Inquiry

Product Description

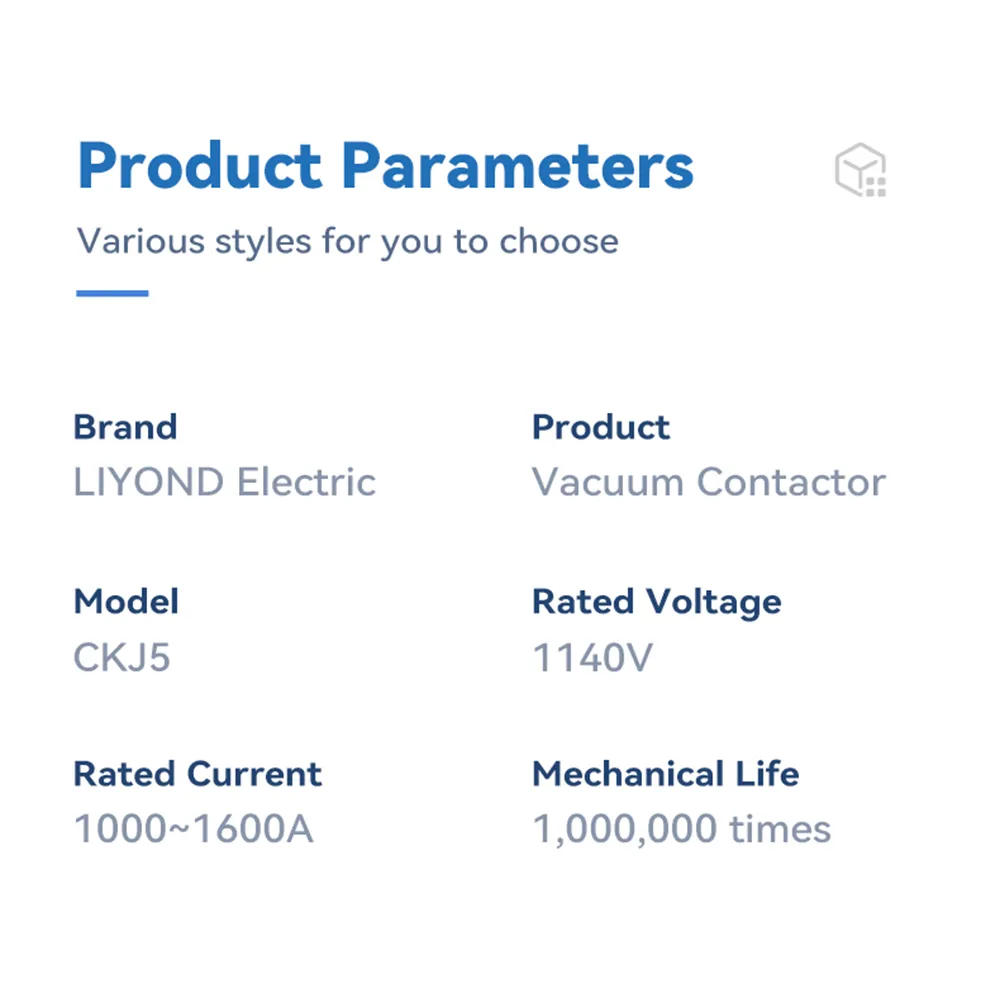

Product Overview & Basic Info

Model NO.

CKJ5-1.14KV/1600A

Phase

Main Circuit Voltage

1140V

Main Circuit Current

1600A

Type

AC Contactors

Product Name

Vacuum Contactor

Control Voltage

110V/220V/380V

Mechanical Life

3,000,000 Times

Rated Frequency

50 / 60 Hz

Arc Quenching Media

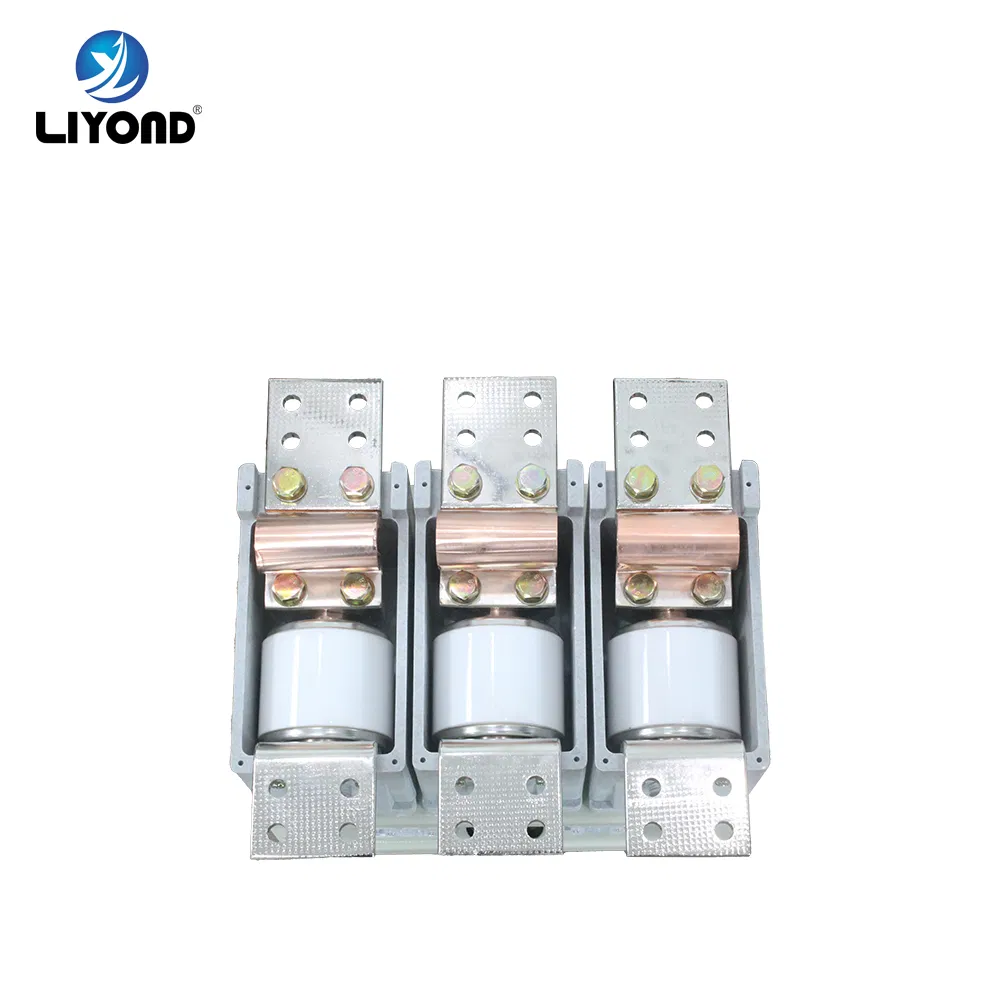

Vacuum Interrupter

Mechanical Structure

Vertical Type with Auxiliary Terminal Blocks

Applications

Mining Switchgear, Explosion-Proof Enclosures

OEM

Product Description

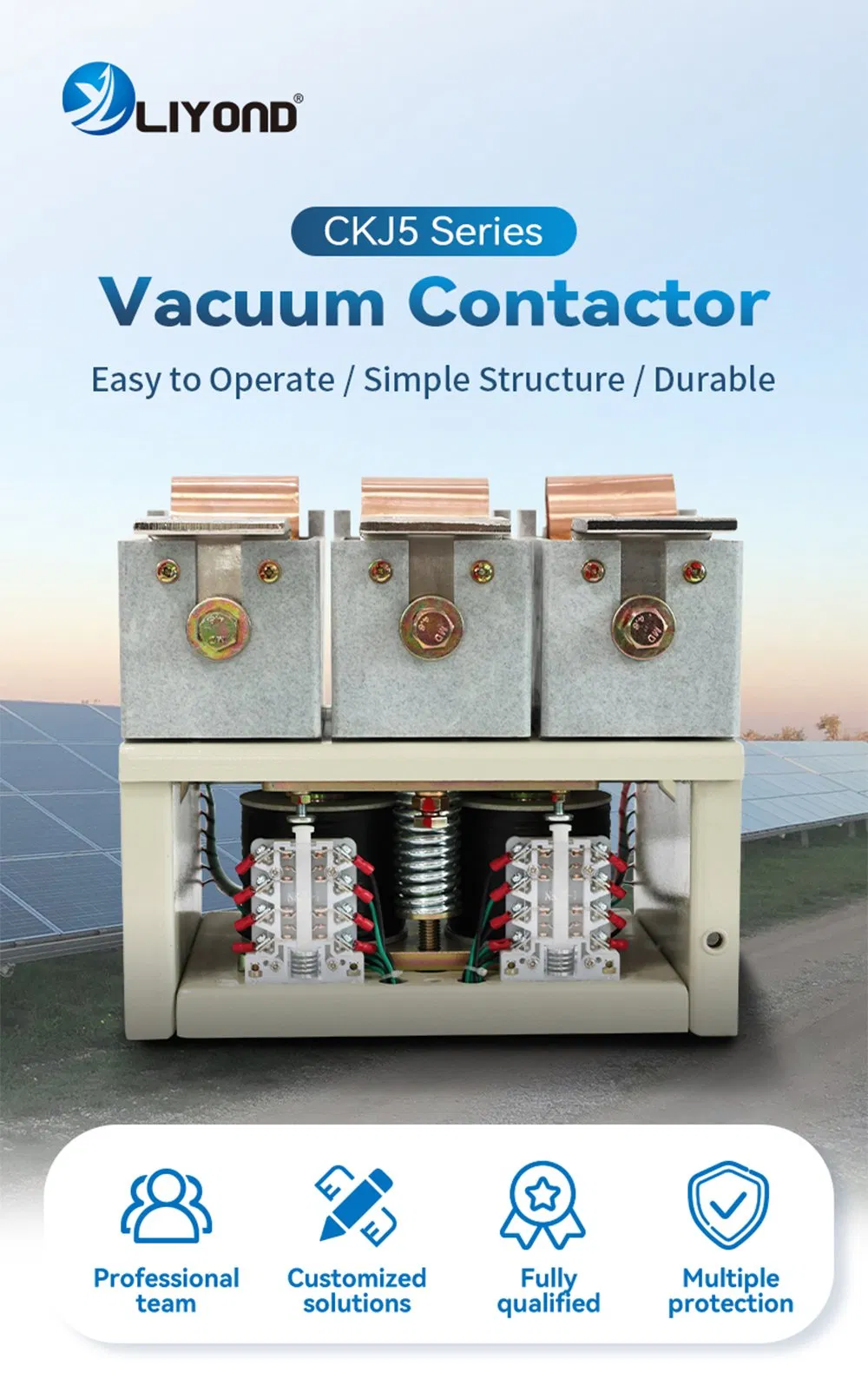

The CKJ5 series indoor low-voltage high-current AC vacuum contactor is a heavy-duty switching component designed for power systems rated up to 1140V AC 50/60Hz. Engineered for remote making and breaking of electrical circuits, this vertical-structure contactor is highly optimized for frequent starting and control of inductive and capacitive loads, including AC motors, transformers, and capacitor banks. It is widely utilized in heavy industries such as mining, metallurgy, petroleum, chemical processing, and power distribution panels (including explosion-proof electromagnetic starters).

Technical Parameters	Unit	Specifications
Main circuit rated voltage	kV	1.14
Main circuit rated current	A	1000	1250	1600
Main circuit making capacity	A/100times	6000	6000	6000
Main circuit breaking capacity	A/10times	4800	5000	5000
Limit breaking capacity	A/ 3 times	6000	6000	6000
Electrical life AC3	Ten-thousand times	20
Electrical life AC4	Ten-thousand times	2
Mechanical life time	Ten-thousand times	100
Rated operating frequency AC3	times/h	100
Rated operating frequency AC4	times/h	120
Contact opening	mm	3±0.5
Over travel	mm	≥1.3

Packaging & Delivery

Package Size

40.00cm * 35.00cm * 25.00cm

Gross Weight

20.000kg

Transport Package

Carton and Pallet

Frequently Asked Questions

What are the primary applications for the CKJ5-1600A vacuum contactor?

The CKJ5 series is specifically designed for heavy-duty industrial use in mining switchgear, metallurgy, petroleum processing, and chemical industries. It is ideal for frequent starting and control of AC motors, transformers, and capacitor banks.

What is the rated mechanical and electrical life of this unit?

This model features a high mechanical life of 3,000,000 operations. The electrical life varies by category, with AC3 rated at 200,000 times and AC4 rated at 20,000 times.

Which control voltages are available for the CKJ5 series?

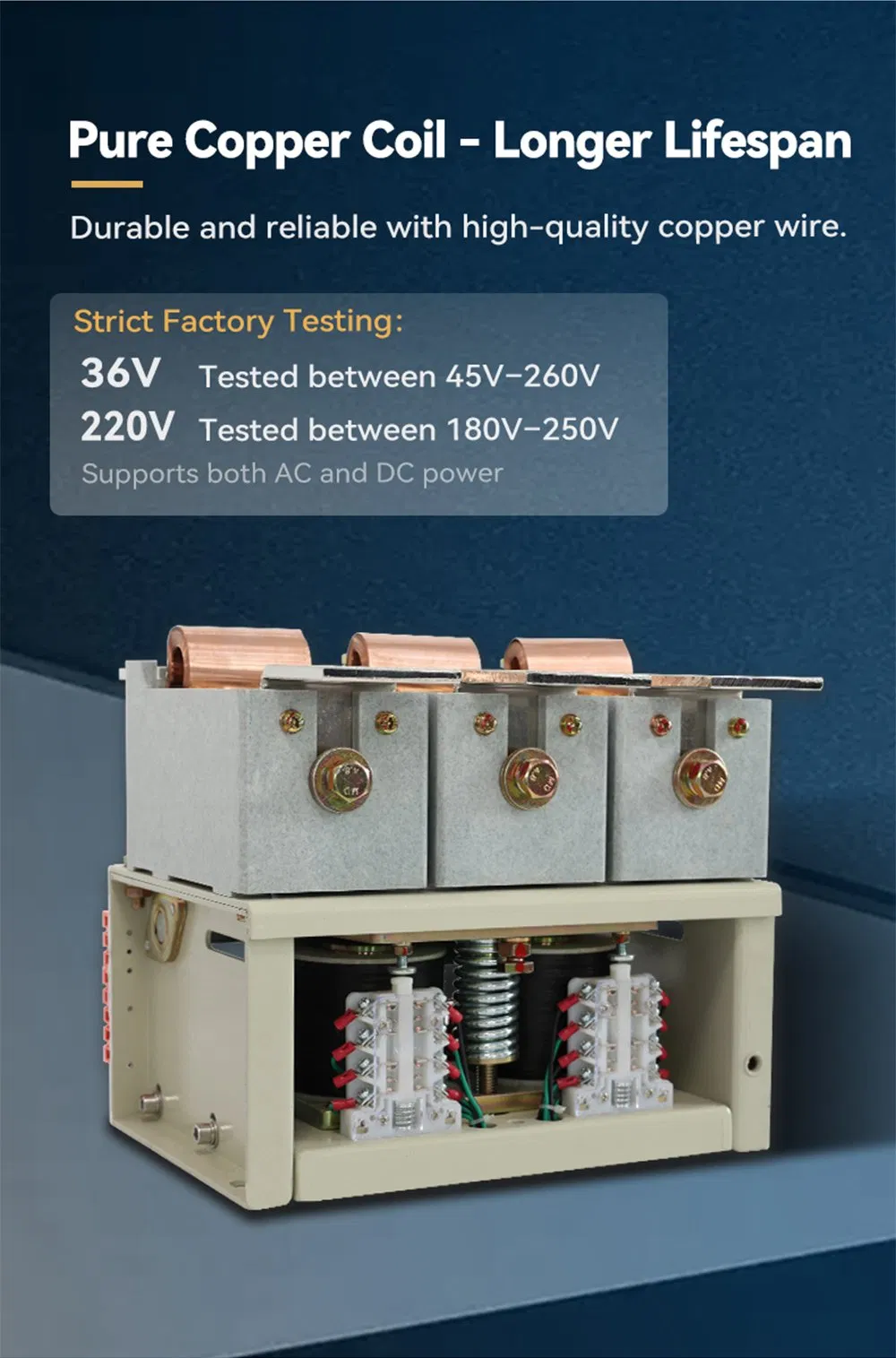

The CKJ5 contactor supports multiple control voltage options including 110V, 220V, and 380V to suit various power system requirements.

Can this contactor be used in explosion-proof environments?

Yes, it is widely utilized within explosion-proof electromagnetic starters and explosion-proof enclosures commonly found in mining and chemical processing plants.

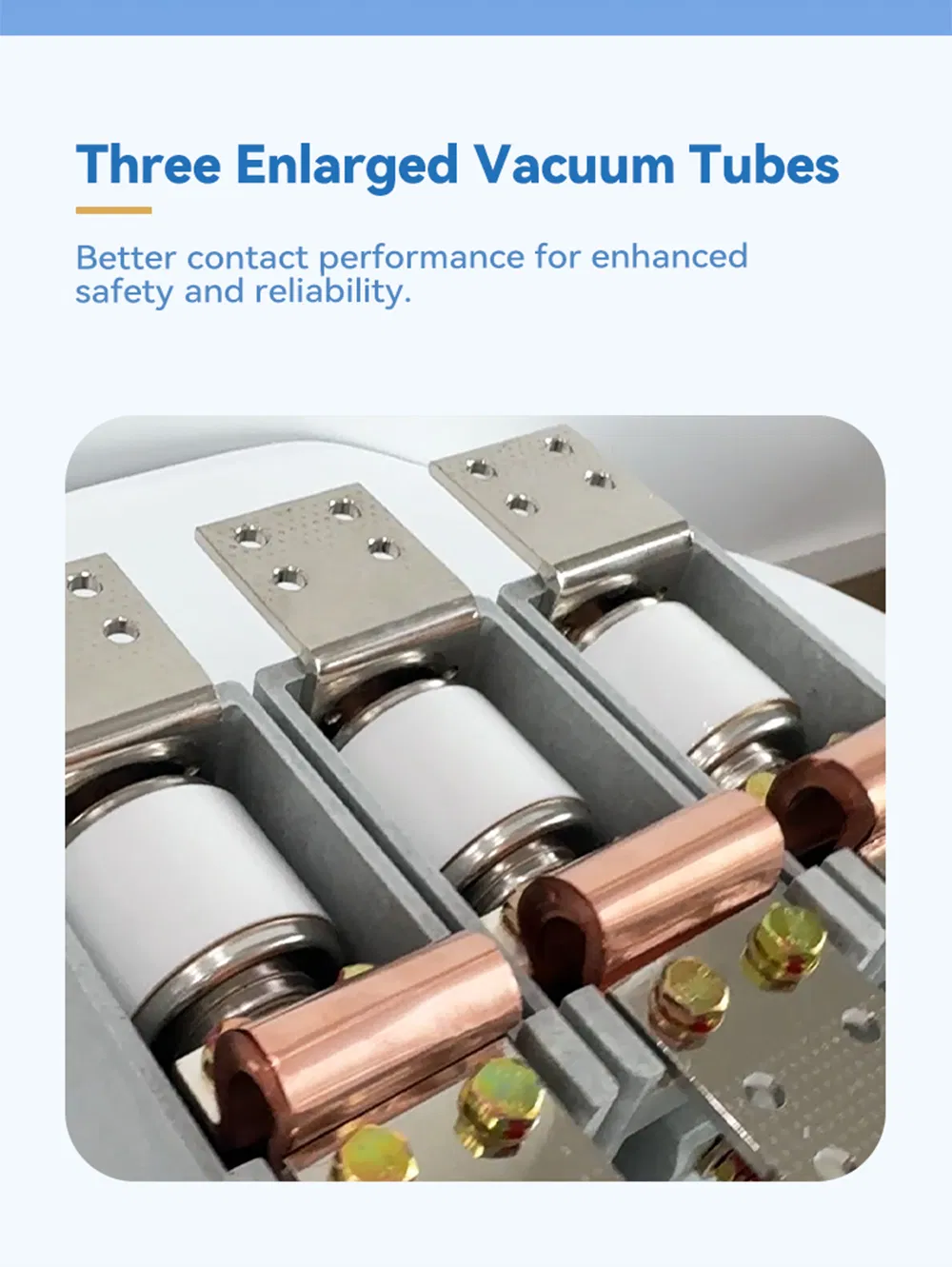

What is the advantage of using a vacuum interrupter for arc quenching?

The vacuum interrupter provides superior arc quenching media, ensuring fast circuit breaking, reduced wear on contacts, and maintenance-free operation compared to traditional air-break contactors.

What are the dimensions and weight for shipping purposes?

The product is packed in cartons and pallets with a package size of 40x35x25 cm and a gross weight of approximately 20.00kg.
