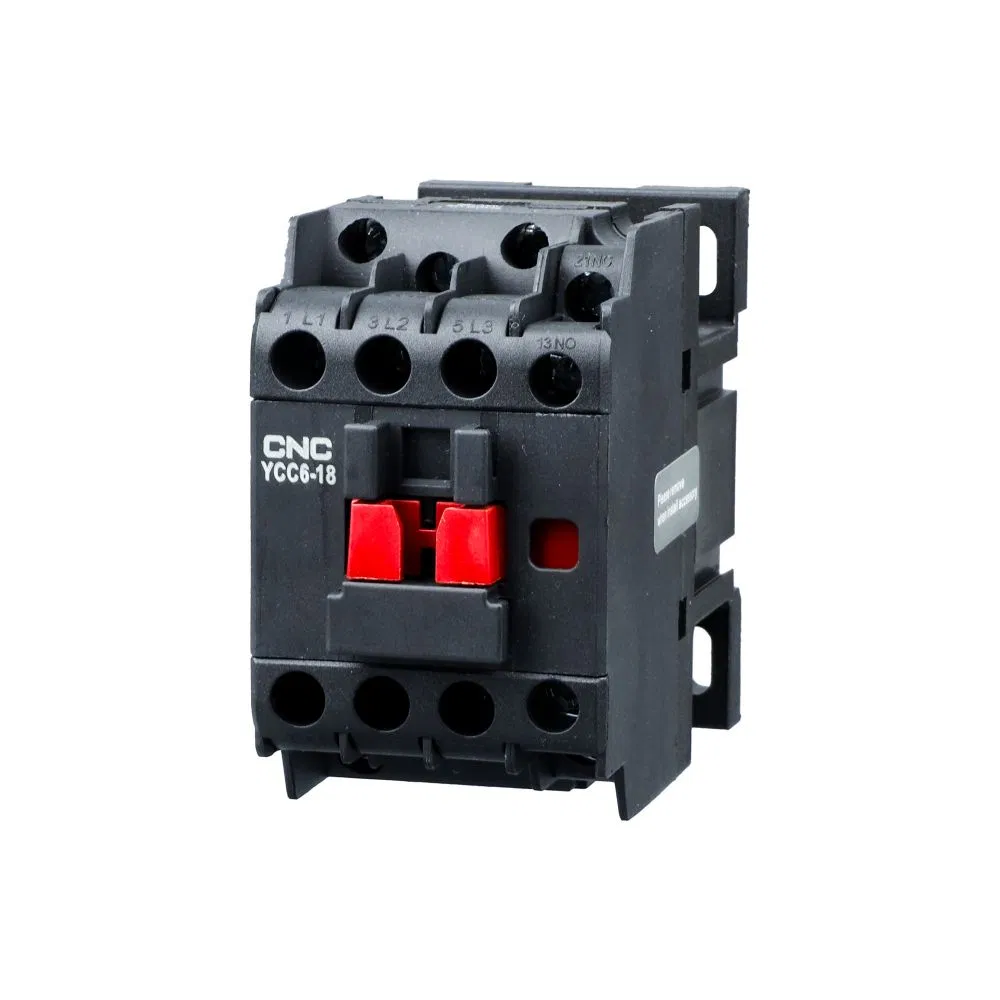

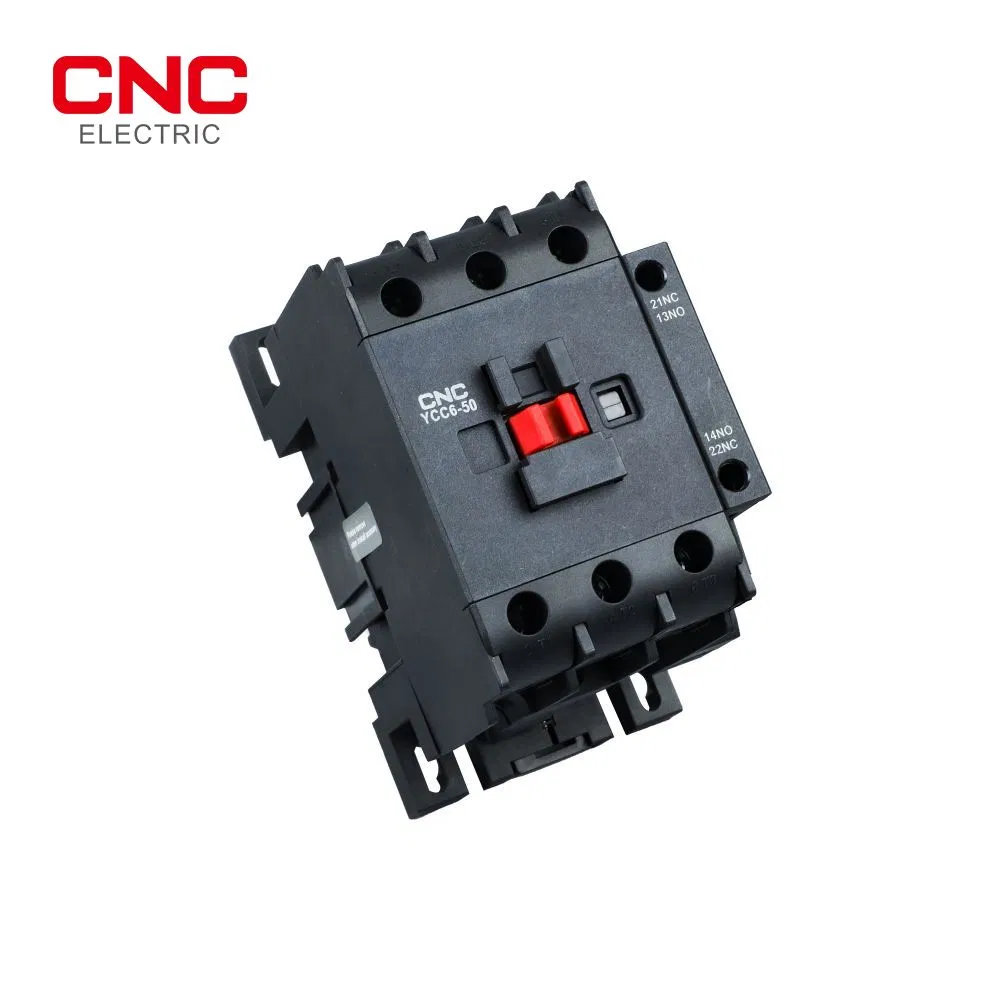

High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
1 / 5
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor

High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

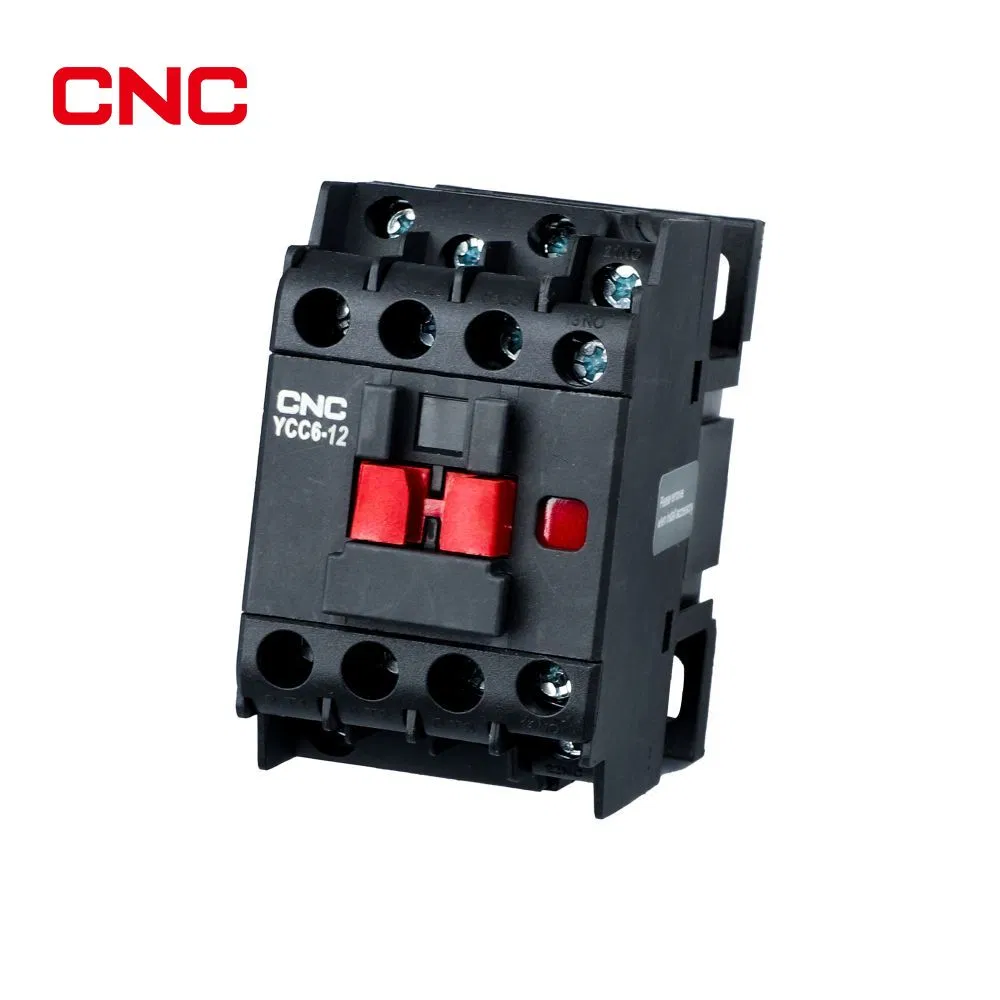

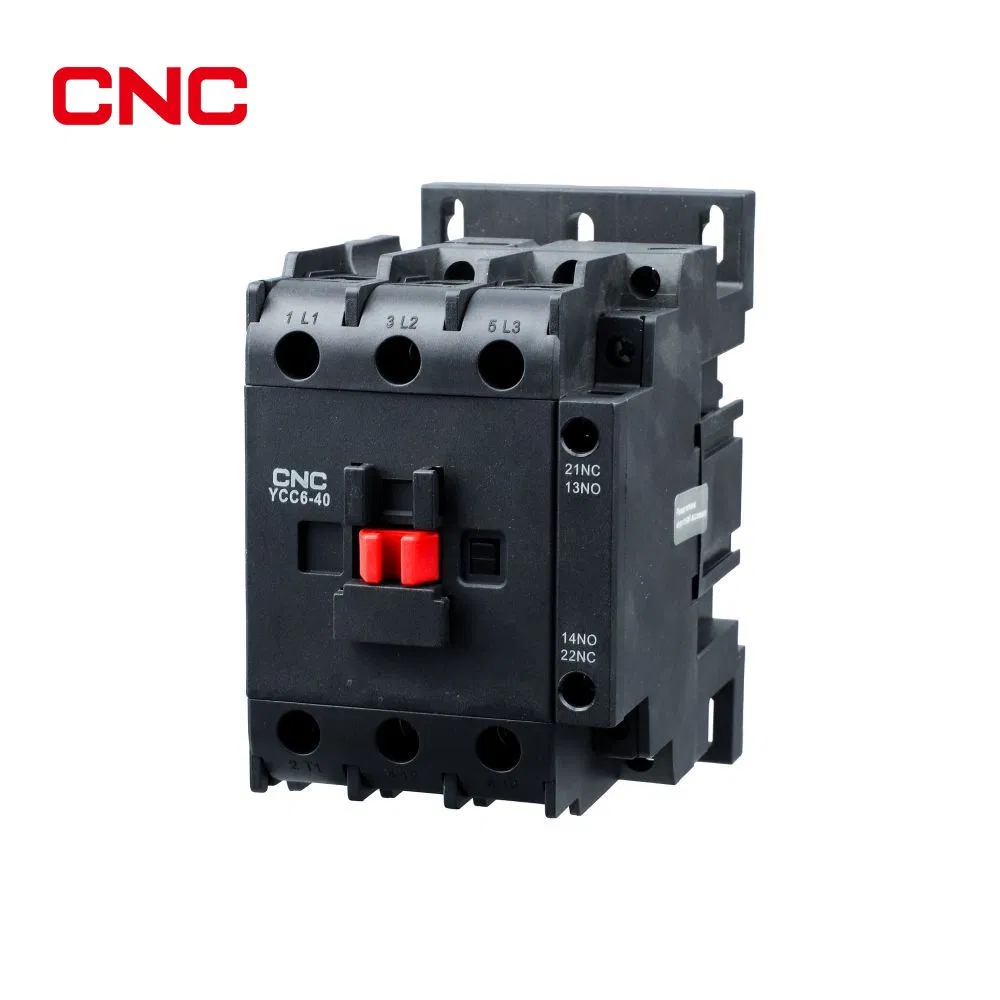

High Performance 220V - 690V Low Voltage Price Unit Automatic AC Contactor
Basic Info & Specifications
Product Parameters
Model NO.YCC6
Phase3
Main Circuit Rating Voltage220V - 690V
Main Circuit Rating Current9-95A
TypeAc Contactors
Rated Current9-95A
Auxiliary Contacts1no+1nc
Rated Operation Voltage690V
Poles3p
Operation & Delivery Details
InstallationDIN Rail / Screw Installation
CertificationCE, CB, CCC, TUV ..
Pollution Level3
Transport PackageStandard Packing
SpecificationYCC6
OriginZhejiang, China
HS Code8536300000
Production Capacity800000 Set/Week
Packaging & Delivery
Package Size50.00cm * 30.00cm * 25.00cm
Package Gross Weight25.000kg
Product Description
Product Overview
Ycc6 series Ac contactor with novel appearance and compact structure is suitable for starting & controlling the Ac motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter.
Standard: IEC 60947-1, IEC60947-4-1
Specifications & Conditions
Rated operation current (Ie): 9-95A
Poles: 3P
Installation: Din rail and screw installation
Type / Parameter Operating and Installation Conditions
Installation category Standard configuration
Pollution level 3
Certification CE, CB, CCC, TUV
Protection degree Standard protection level
Ambient temperature Limit: -35ºC to +70ºC; Normal: -5ºC to +40ºC; Average no more than +35ºC within 24 hours. (For abnormal environment operating range, refer to special instructions).
Altitude ≤2000m
Ambient humidity Maximum temperature of 70ºC: relative humidity not exceeding 50%. Under lower temperatures, higher relative humidity (up to 90%) is allowed. Condensation protection measures should be taken.
Installation position Inclination between installation surface and vertical surface is standard.
Shock & vibration Products should be installed and used in locations without significant shake, shock, and vibration.
Type Model YCC6-09 YCC6-12 YCC6-18 YCC6-25 YCC6-32 YCC6-38 YCC6-40 YCC6-50 YCC6-65 YCC6-80 YCC6-95
Poles 3P
Ui (V) 690
Ue (V) 220/230, 380/400, 660/690
Ith (A) AC-1 20 20 32 40 50 50 60 80 80 125 125
Ie (AC-3, 380/400V) 9 12 18 25 32 38 40 50 65 80 95
Ie (AC-3, 660/690V) 6.6 8.9 12 18 22 22 34 39 42 49 49
Ie (AC-4, 380/400V) 3.5 5 7.7 8.5 12 14 18.5 24 28 37 44
Ie (AC-4, 660/690V) 1.5 2 3.8 4.4 7.5 8.9 9 12 14 17.3 21.3
Pe (AC-3, 380/400V kW) 4 5.5 7.5 11 15 18.5 18.5 22 30 37 45
Pe (AC-3, 660/690V kW) 5.5 7.5 10 15 18.5 18.5 30 33 37 45 45
Terminal Capability YCC6-09~18 YCC6-25~38 YCC6-40~65 YCC6-80~95
Flexible wire (1 wire, mm²) 1…4 1.5…6 2.5…25 4…50
No terminal (2 wire, mm²) 1…4 1.5…6 2.5…16 4…25
With terminals (2 wire, mm²) 1…2.5 1…4 2.5…10 4…16
Fastening torque (N·m) 1.2 1.8 5 9
Coil Property YCC6-09~18 YCC6-25~38 YCC6-40~65 YCC6-80~95
Us (50Hz / 50/60Hz) 24, 36, 48, 110, 127, 220/230, 240, 380/400, 415, 440 V
Operation Voltage Inclination ±22.5°: 85%~110%Us; Inclination ±5°: 70%~120%Us
Release Voltage Inclination ±22.5°: 20%~75%Us; Inclination ±5°: 20%~65%Us
Actuation Power (VA) 60 70 200 200
Keep Power (VA) 6-9.5 6-9.5 15-20 15-20
Auxiliary Contacts Specification Value
Auxiliary contacts setup 1NO+1NC
Rated thermal current (Ith) 10 A
Rated operating voltage (Ue) AC 380 V
DC 220 V
Rated control capacity AC-15 360 VA
DC-13 33 W

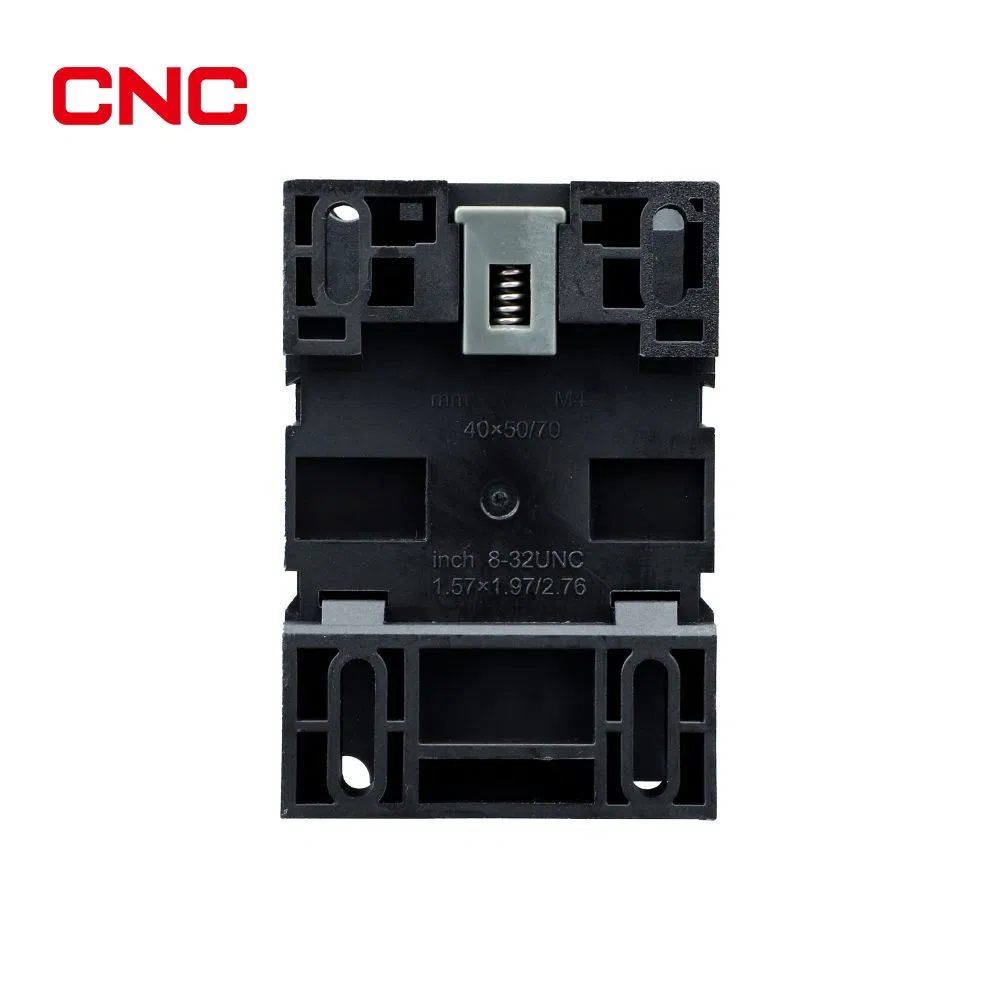

Type Model Amax Bmax Cmax a b c d e f
YCC6-09, 12, 18 74.5 45.5 85.5 35 50/60 - - - -
YCC6-25, 32, 38 83 56.5 97 40 50/70 - - - -
YCC6-40, 50, 65 127.5 74.5 117 - - 105 40 100/110 59
YCC6-80, 95 127.5 85.5 125.5 - - 105 40 100/110 67
Type Model (N) Ie (A) Ith (A) Pe AC-3 380V (kW) Pe AC-3 660V (kW)
YCC6-09N 9 20 4 5.5
YCC6-12N 12 20 5.5 7.5
YCC6-18N 18 32 7.5 10
YCC6-25N 25 40 11 15
YCC6-32N 32 50 15 18.5
YCC6-38N 38 50 15 18.5
YCC6-40N 40 50 18.5 30
YCC6-50N 50 60 22 33
YCC6-65N 65 80 30 37
YCC6-80N 80 95 37 45
YCC6-95N 95 95 45 55
Product Catalog
Catalog Item 1
Catalog Item 2
Catalog Item 3
Catalog Item 4
Catalog Item 5
Catalog Item 6
Catalog Item 7
Catalog Item 8
Catalog Item 9
Catalog Item 10
Catalog Item 11
Catalog Item 12
Catalog Item 13
Company Profile
Company Profile Details
Our Advantages
Our Advantages Infographics
Our Clients & Partners
Our Clients and Partners Map
Packaging & Shipping
Packaging and Logistics details
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the YCC6 series AC Contactor?
The YCC6 series AC Contactor is designed for frequently starting and controlling AC motors, and is highly suitable for switching electrical circuits on and off over long distances.
Q2: What international standards do these AC contactors comply with?
They strictly comply with global industrial standards including IEC 60947-1 and IEC 60947-4-1.
Q3: Can the YCC6 AC Contactor be paired with other protection devices?
Yes, it is commonly used in combination with a thermal relay to construct a reliable magnetic motor starter system.
Q4: What options are available for installing the contactor?
The contactor supports dual-purpose installation: it can be mounted using either a standard DIN Rail or directly via screw installation.
Q5: What are the temperature limits for safe operation?
The normal operating temperature range is -5ºC to +40ºC. Under extreme conditions, it has operational temperature limits spanning from -35ºC to +70ºC.
Q6: What is the auxiliary contact configuration of this contactor?
The YCC6 series features a standard auxiliary contact configuration of 1NO (1 Normally Open) + 1NC (1 Normally Closed).
