1. Application:

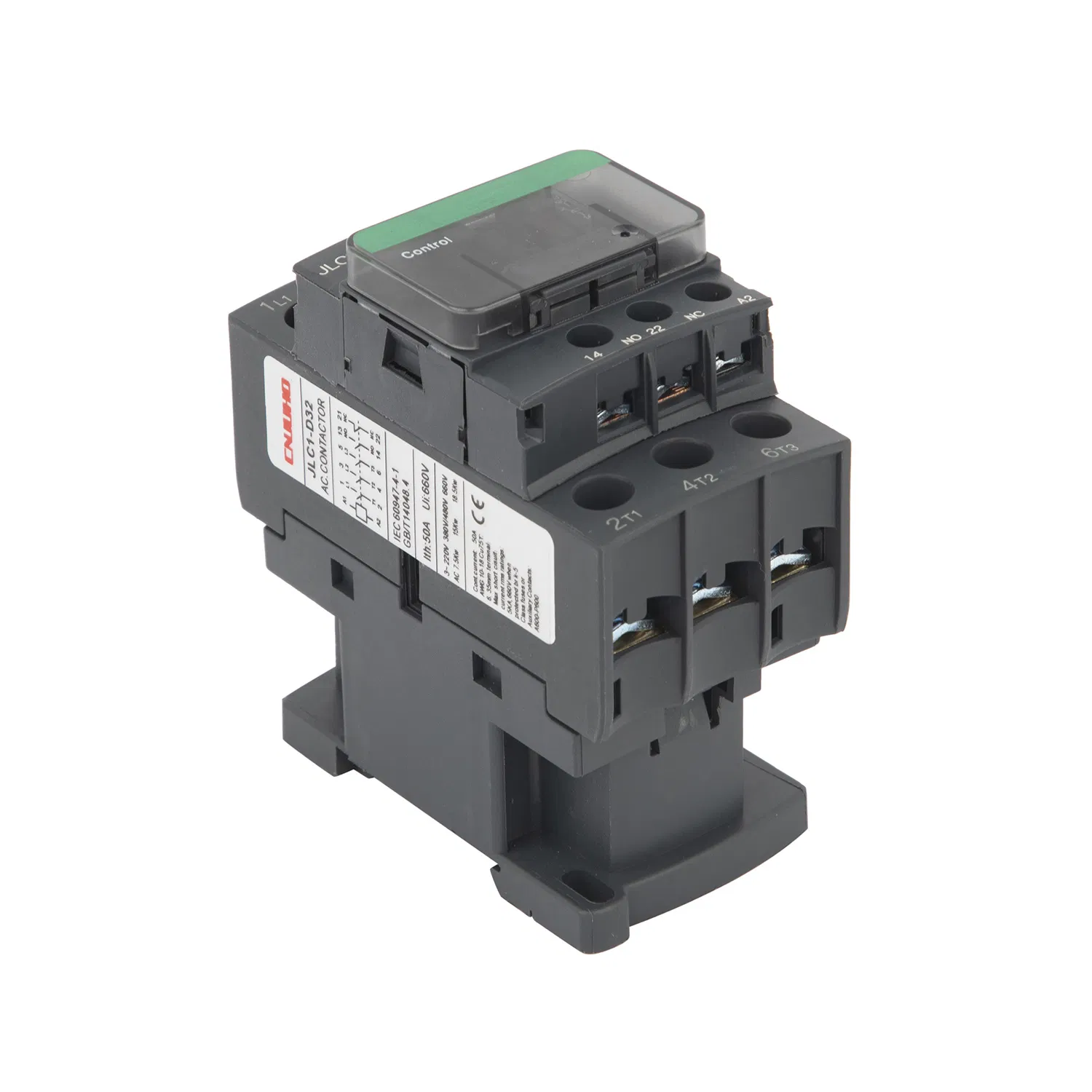

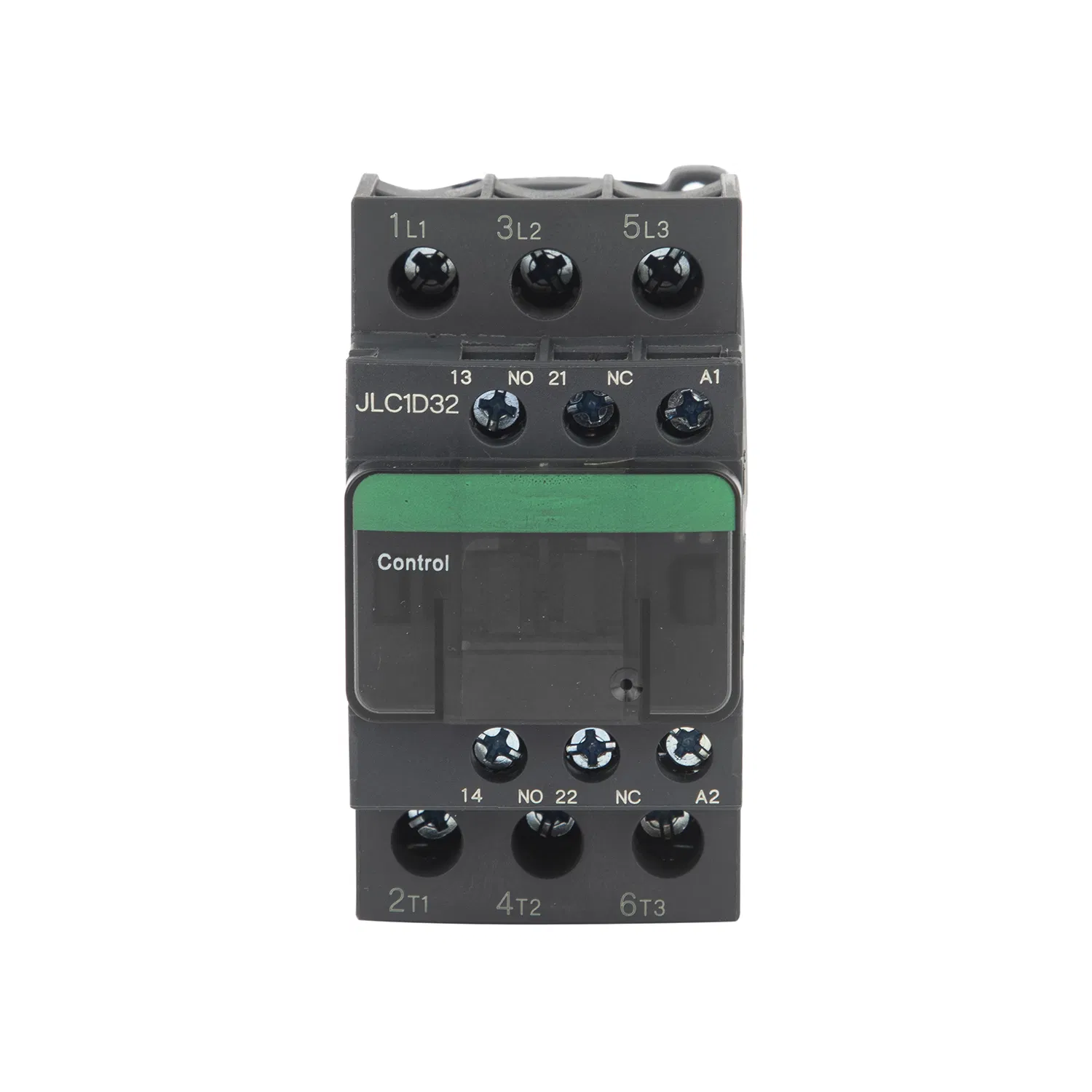

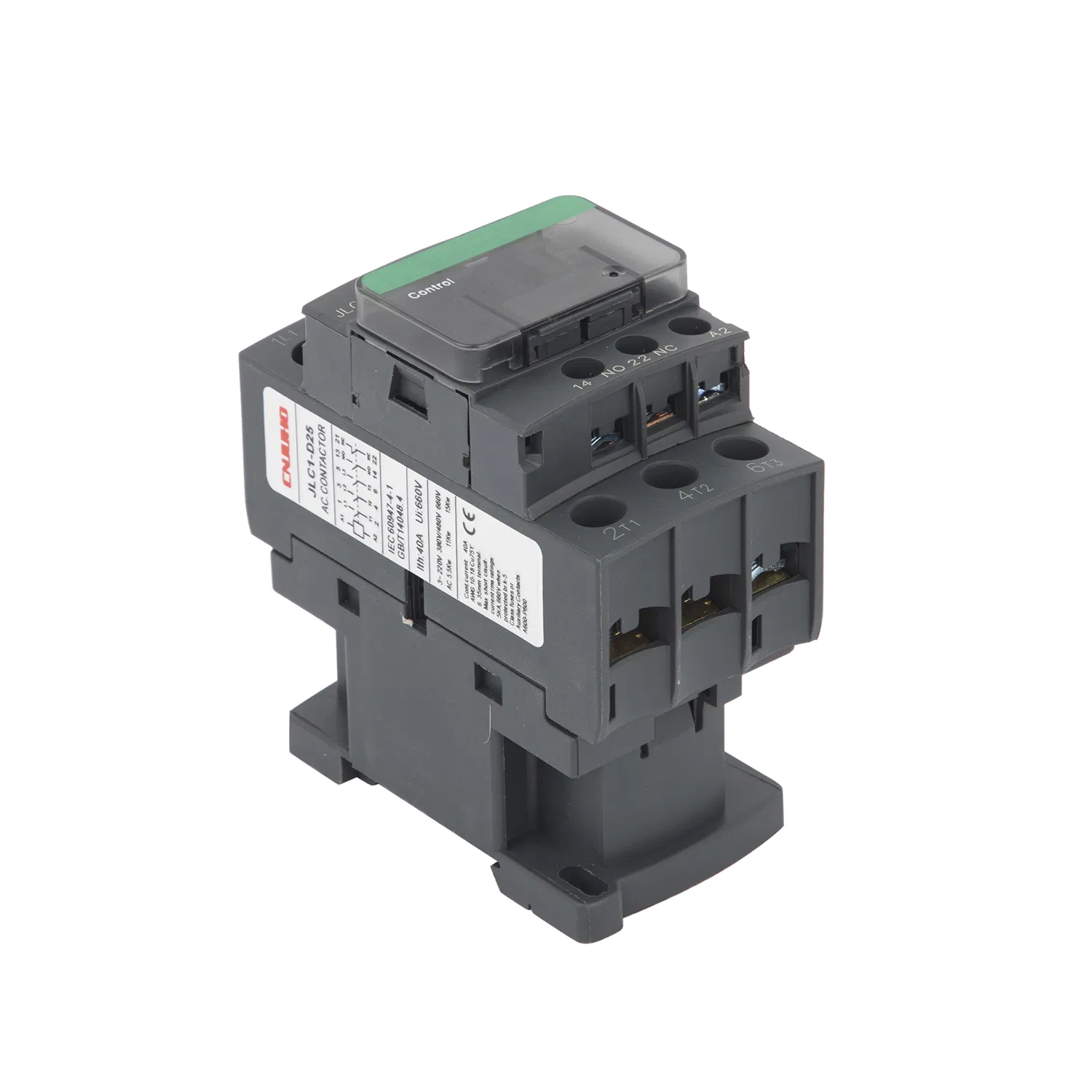

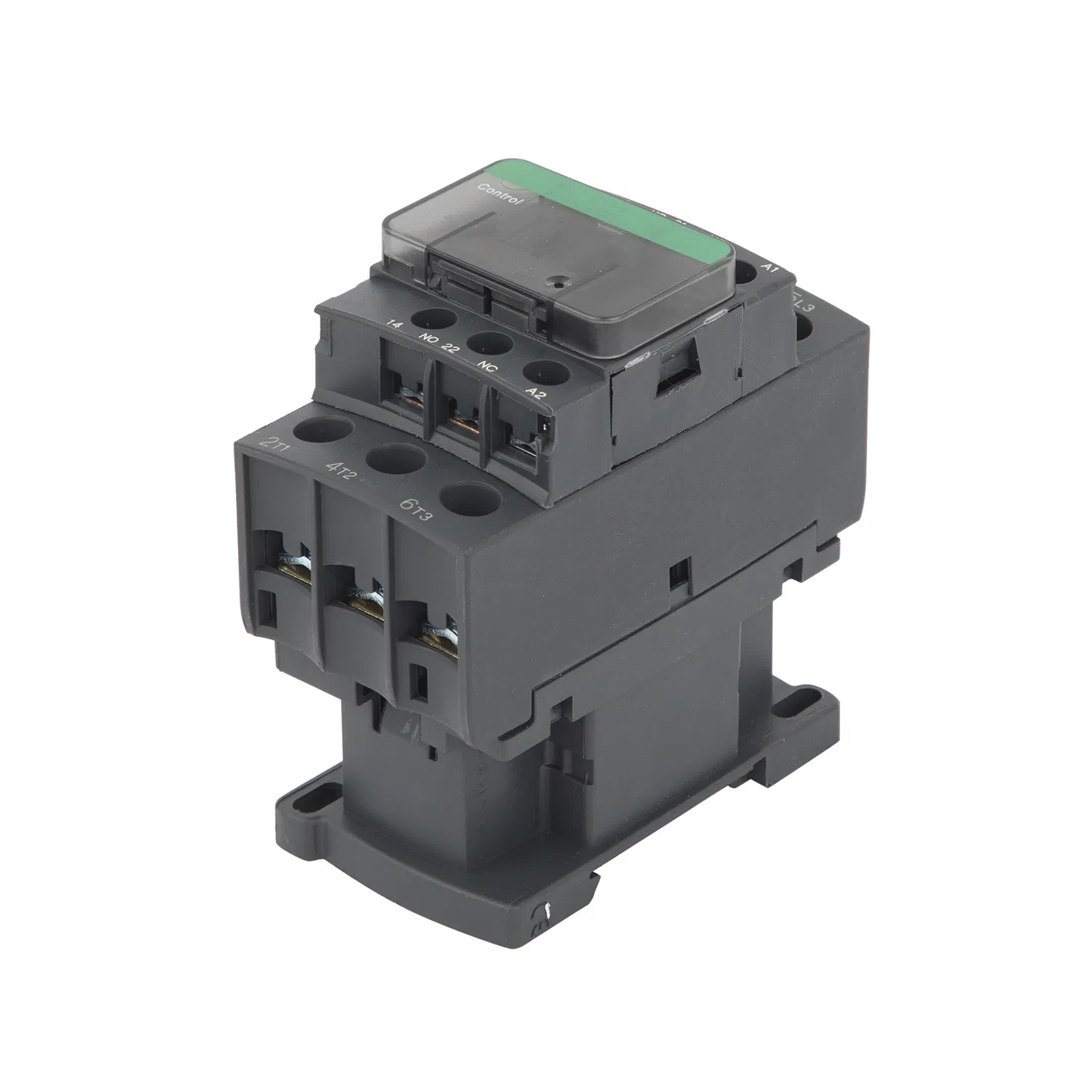

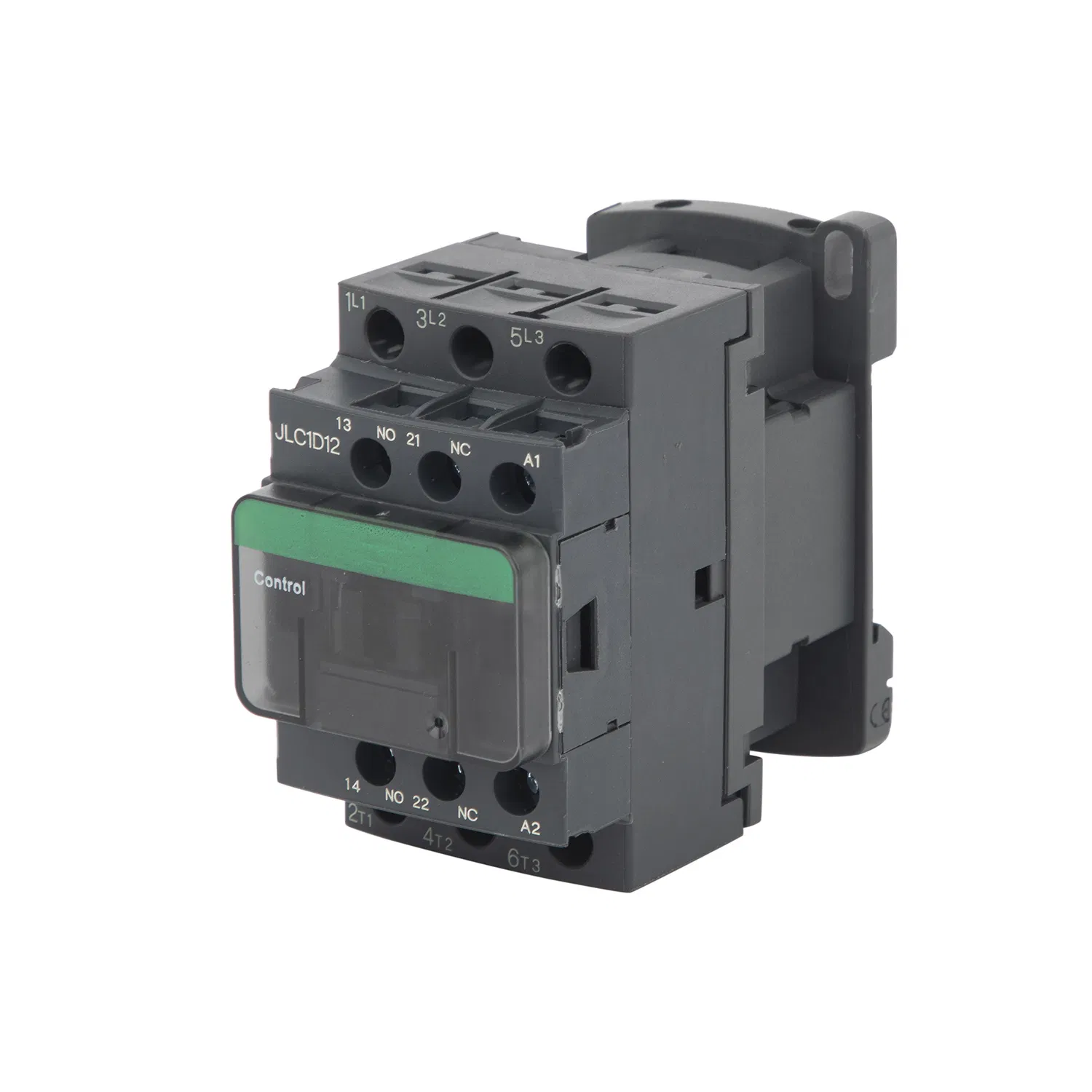

JLC1-D series 660V 9-65A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reversible contactor, star-delta starter by adding accessories such as modular auxiliary contact sets, air time-delay heads, and mechanical interlock mechanisms. It can also serve as an electromagnetic starter through the direct plug of a thermal relay.
This product conforms to the requirements of IEC60947-4-1 and GB14048.4 standards.
| Type | Insulation Voltage (V) | Thermal Current (A) | Operation Current (A) | Control Power (kw) | Contacts | ||||
|---|---|---|---|---|---|---|---|---|---|
| 220V | 380V | 415V | 440V | 660V | |||||
| JLC1-DN0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO/NC |
| JLC1-DN1200 | 660 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO/NC |
| JLC1-DN1810 | 660 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO/NC |
| JLC1-DN2510 | 660 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO/NC |
| JLC1-DN3210 | 660 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO/NC |
| JLC1-DN4011 | 660 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC |
| JLC1-DN5011 | 660 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | 3P+NO+NC |
| JLC1-DN6511 | 660 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | 3P+NO+NC |
