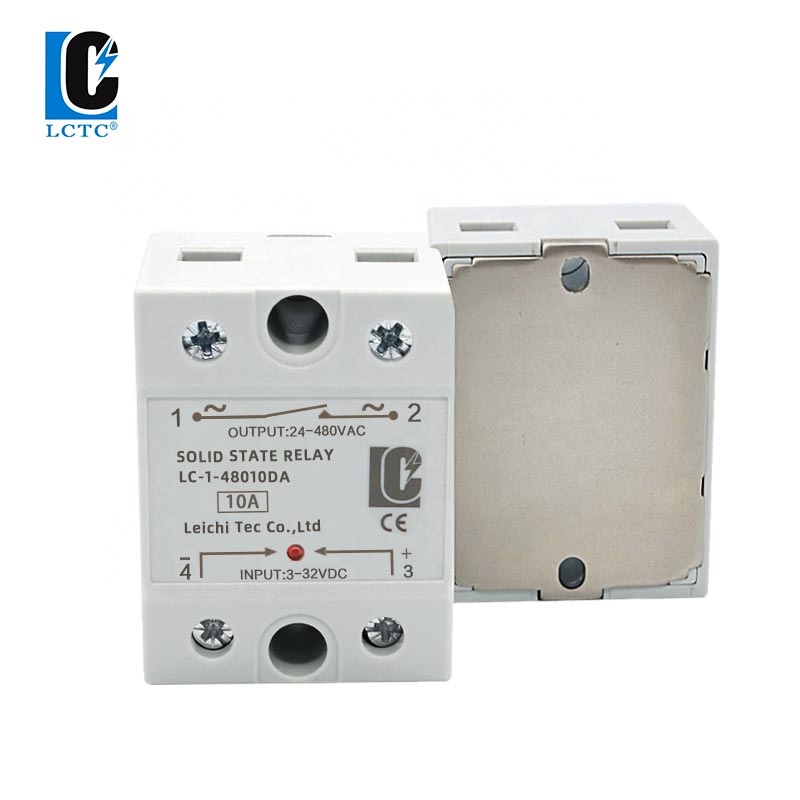

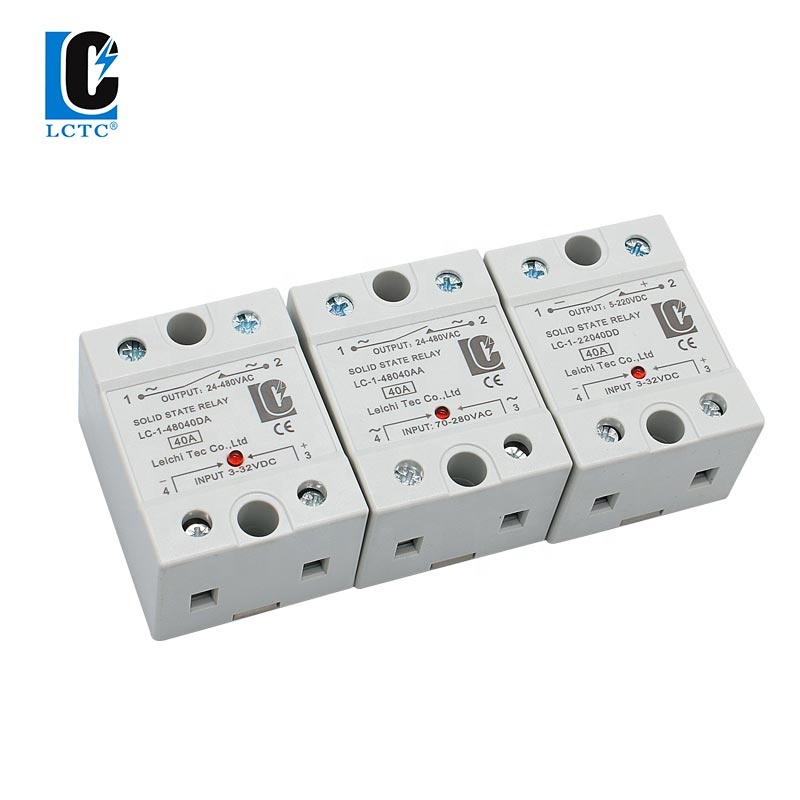

Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
1 / 5
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay
Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay

Solid State Switch 10A 25A 40A 60A 80A 90A 100A 120A SSR DA/DD/AA Single Phase Solid State Relay

Send Inquiry

Product Description

A Solid State Relay (SSR) is a device used for electrical power control. Unlike traditional electromechanical relays, an SSR does not contain mechanical moving parts; instead, it uses solid-state electronic components to achieve circuit switching. Key features of solid state relays include:
No Mechanical Parts
SSRs lack mechanical contacts or moving parts, enhancing their lifespan and reliability by eliminating mechanical wear and contact issues.
Fast Response
Due to the absence of mechanical movement, SSRs can switch at very high speeds, completing switching operations within milliseconds.
Low Noise and Vibration
SSRs do not produce arcing or mechanical vibration, resulting in minimal noise and vibration during operation.
High Insulation
SSRs typically offer high insulation between input and output, isolating the control circuit from the controlled circuit and reducing electrical interference and risks.
Good Corrosion Resistance
Because there are no mechanical contacts, SSRs tend to perform well in humid and corrosive environments.

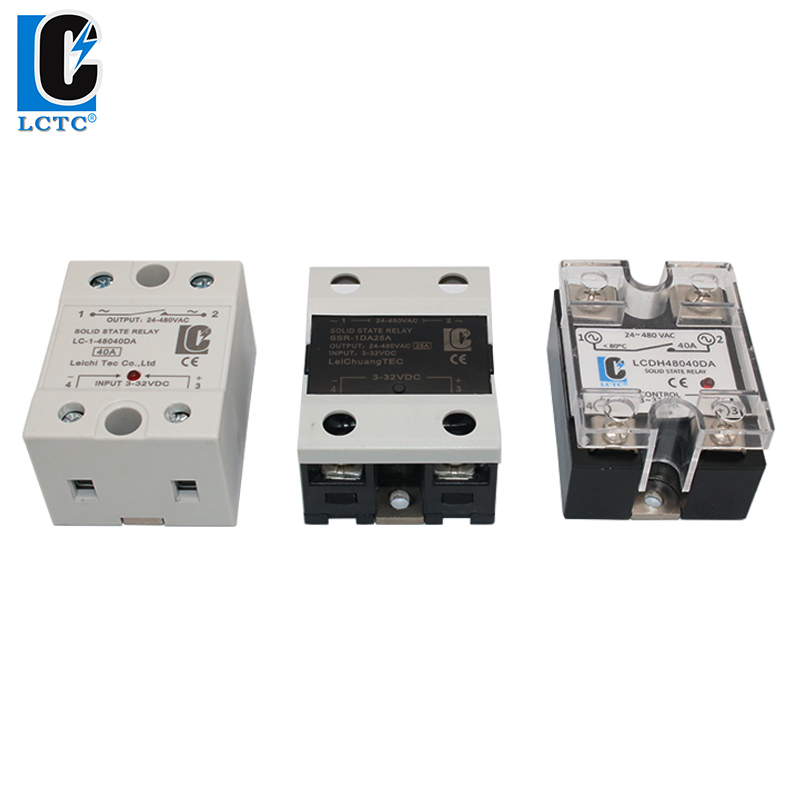

Solid State Relay
10A 25A 40A 50A 60A 80A 90A 100A 120A SSR DA/DD/AA Single phase/Three Phase Solid State Relay
How to Choose a Solid State Relay?
STEP 1
Choose a correct type for current
  • For Resistive load: Current of SSR = 2 x working current of load
  • For Inductive load: Current of SSR = 6 x working current of load
  • For Capacitive load: Current of SSR = 10 x working current of load
STEP 2

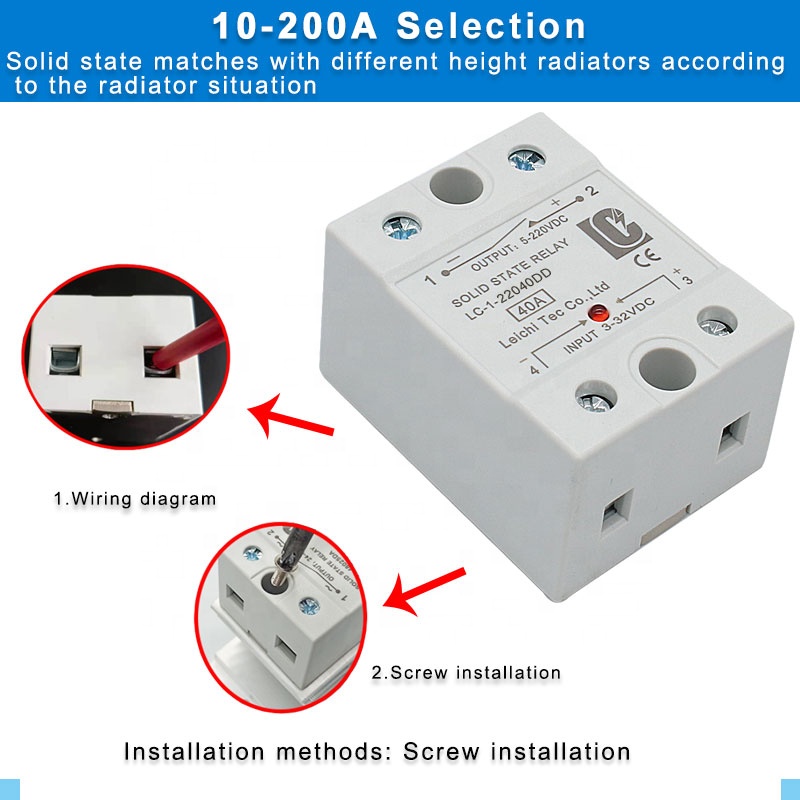

Choose a suitable heat sink
  • When SSR is working, it will give out a lot of heat. To extend the life of your SSR, please install a heat sink. If the current is over 60A, a cooling fan is also required.
  • Apply heat-conductive silicon grease between SSR and heat sink.
Attention
  • 1. Use fast fuse to protect SSR from load short circuit.
  • 2. The temperature of heatsink at use must remain below 80°C.
  • 3. It is recommended to use a varistor for inductive loads.
Features
  • Built-in TVS to protect triac.
  • With LED indicator.
  • Zero-cross or Random turn on.
Specifications
Parameter Details / Range
Model LC-1-480 10-120DA

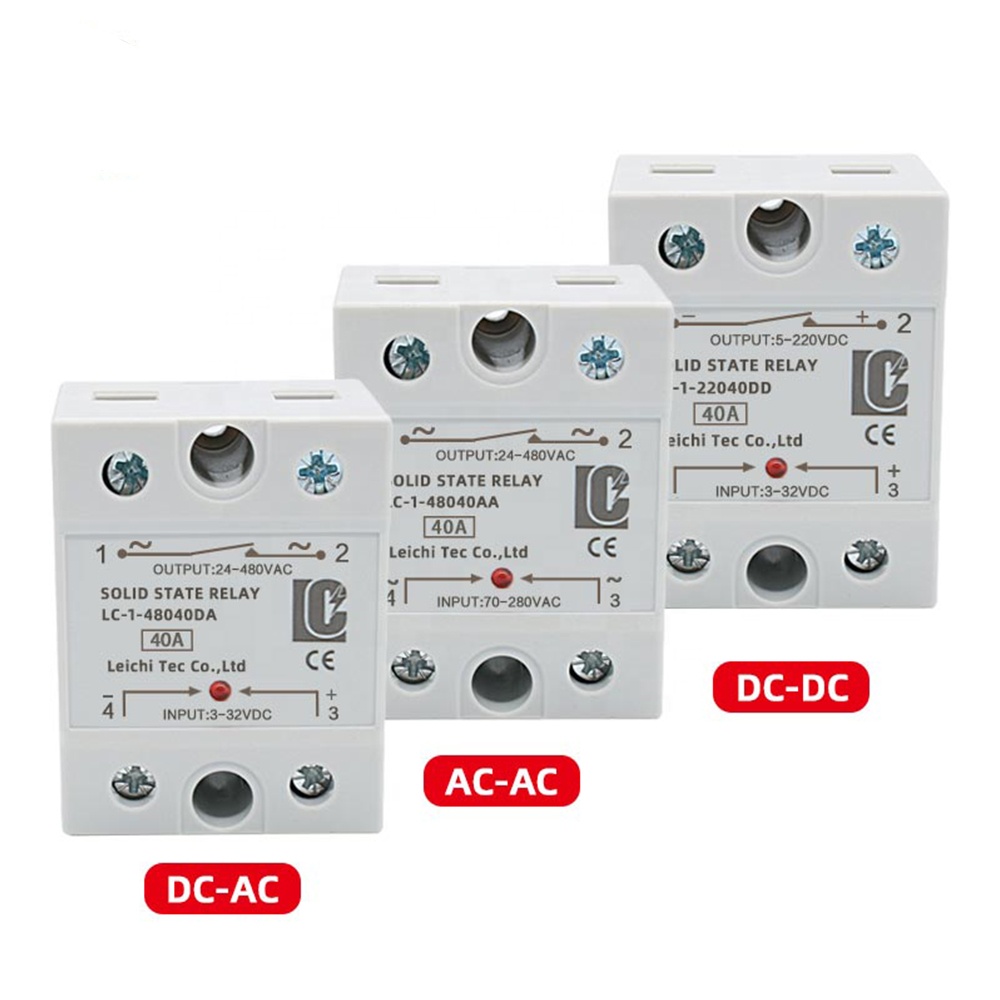

Control DC to AC / AC to AC / DC to DC
Load Current 10A, 25A, 40A, 50A, 60A, 80A, 90A, 100A, 120A
Control Voltage 3~32VDC / 70~280VAC / 24~480VAC
Max Input Current 12mA
Must Operation Voltage 2.8VDC / 50VAC / 2VDC
Must Release Voltage 1.5VDC / 70VAC / 3VDC
Output Voltage 24-480VAC / 5~220VDC
Peak Voltage 800V
Operation Temperature -30°C to 80°C
Max off-state leakage current 2mA
Max on-state voltage drop 1.5V
Dielectric strength 2500V
Certificates CE
Detail Images
Detail Image 1

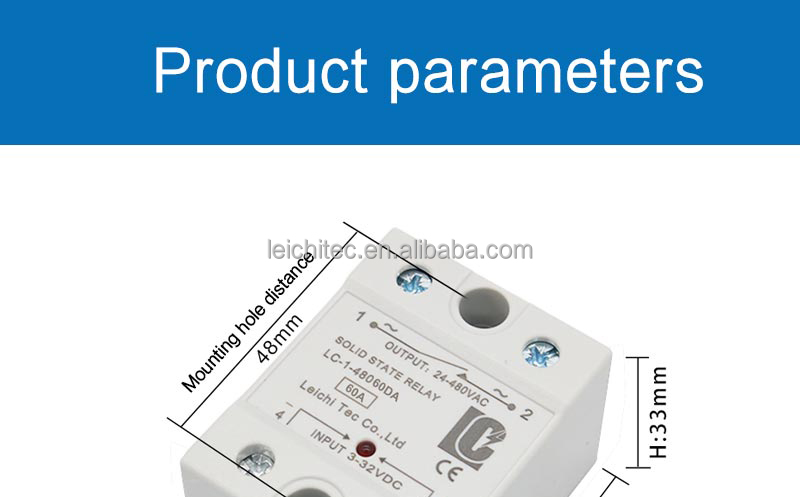

Detail Image 2

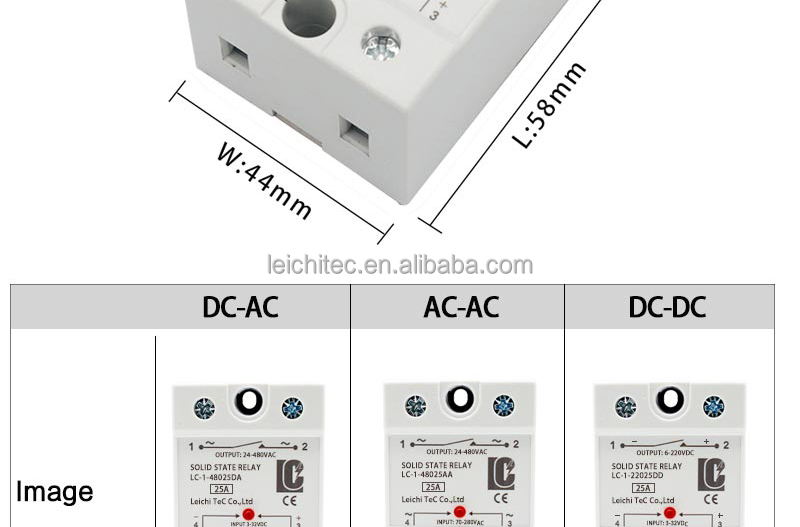

Detail Image 3

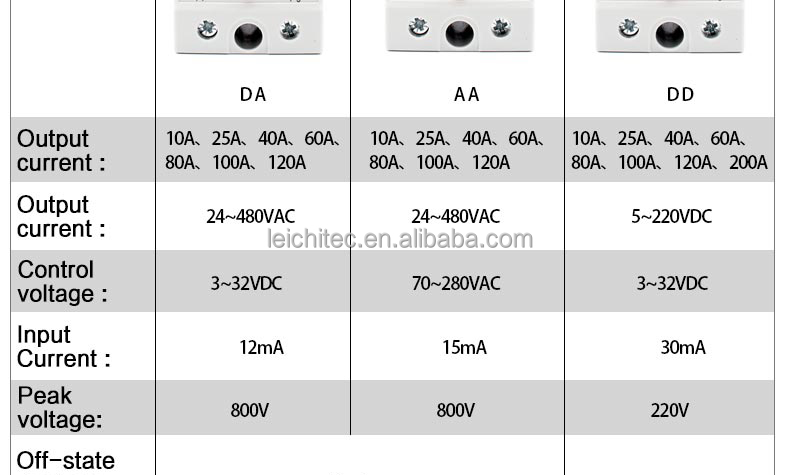

Detail Image 4

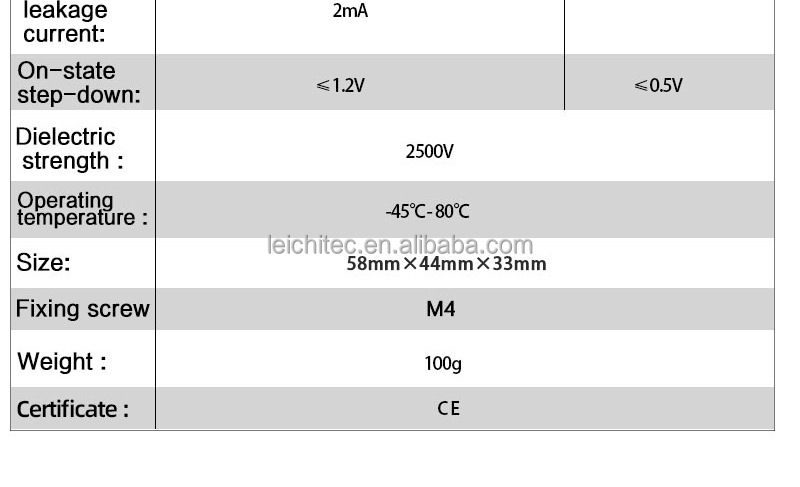

Detail Image 5

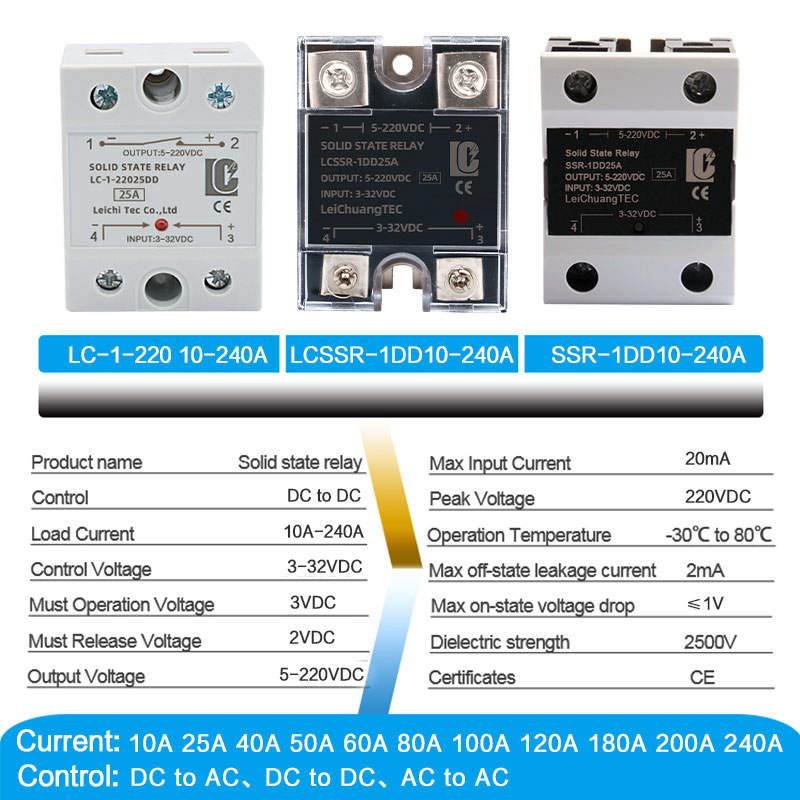

Detail Image 6
Certifications
Certifications
Production Facility
Factory Area 1

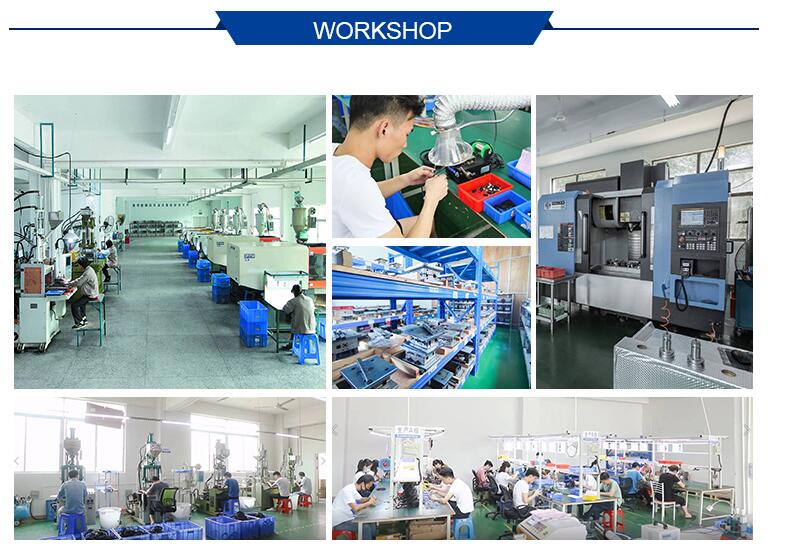

Factory Area 2
Product Packaging
Packaging Detail 1
Packaging Detail 2
FAQ
Are your products original?
Yes! All products are original and produced by original manufacturers. Our parts can undergo testing, and we assume full responsibility for any quality issues.
What is your warranty?
We offer a warranty within 90 days after the package has been received.
What is your lead time?
There is no lead time for in-stock products. Most parts can be shipped out within 3 days after payment has been confirmed.
What is the MOQ for your products?
We accept small orders from our customers.
May I have a sample for testing?
Yes! Free samples can be sent for testing; you only need to cover the shipping cost.
How is my parcel shipped?
Normally we ship via DHL, FedEx, TNT, EMS, etc.
