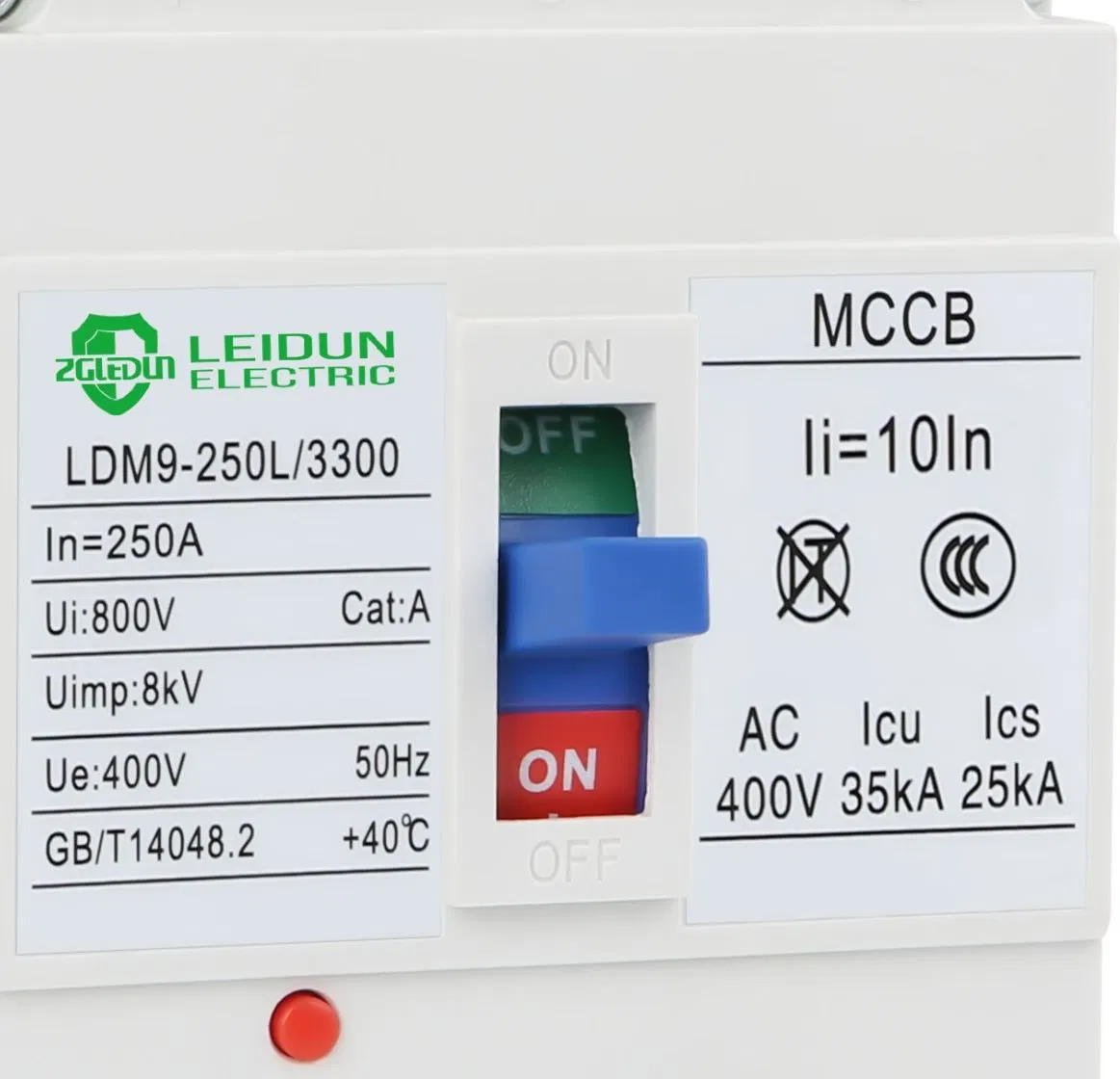

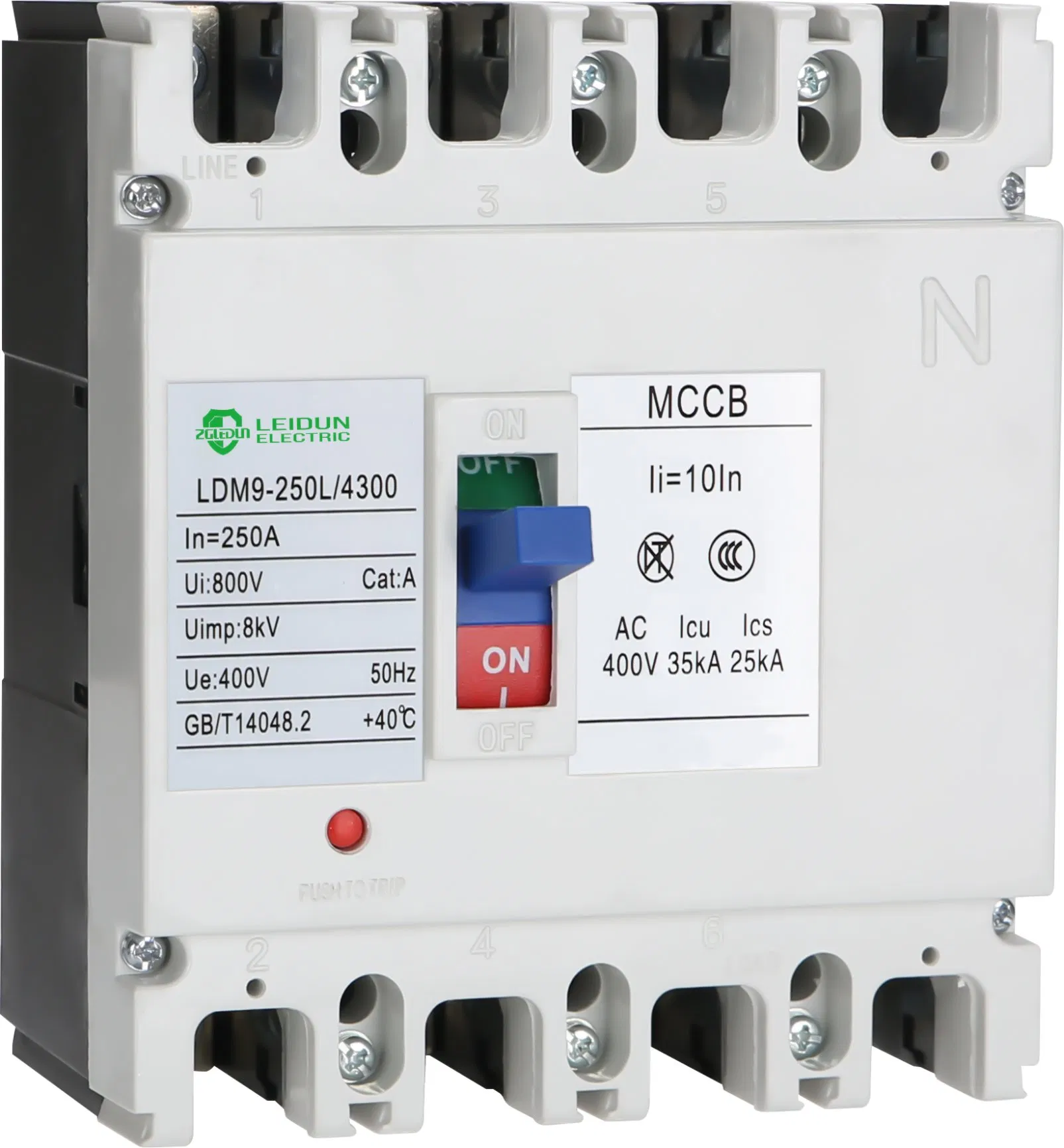

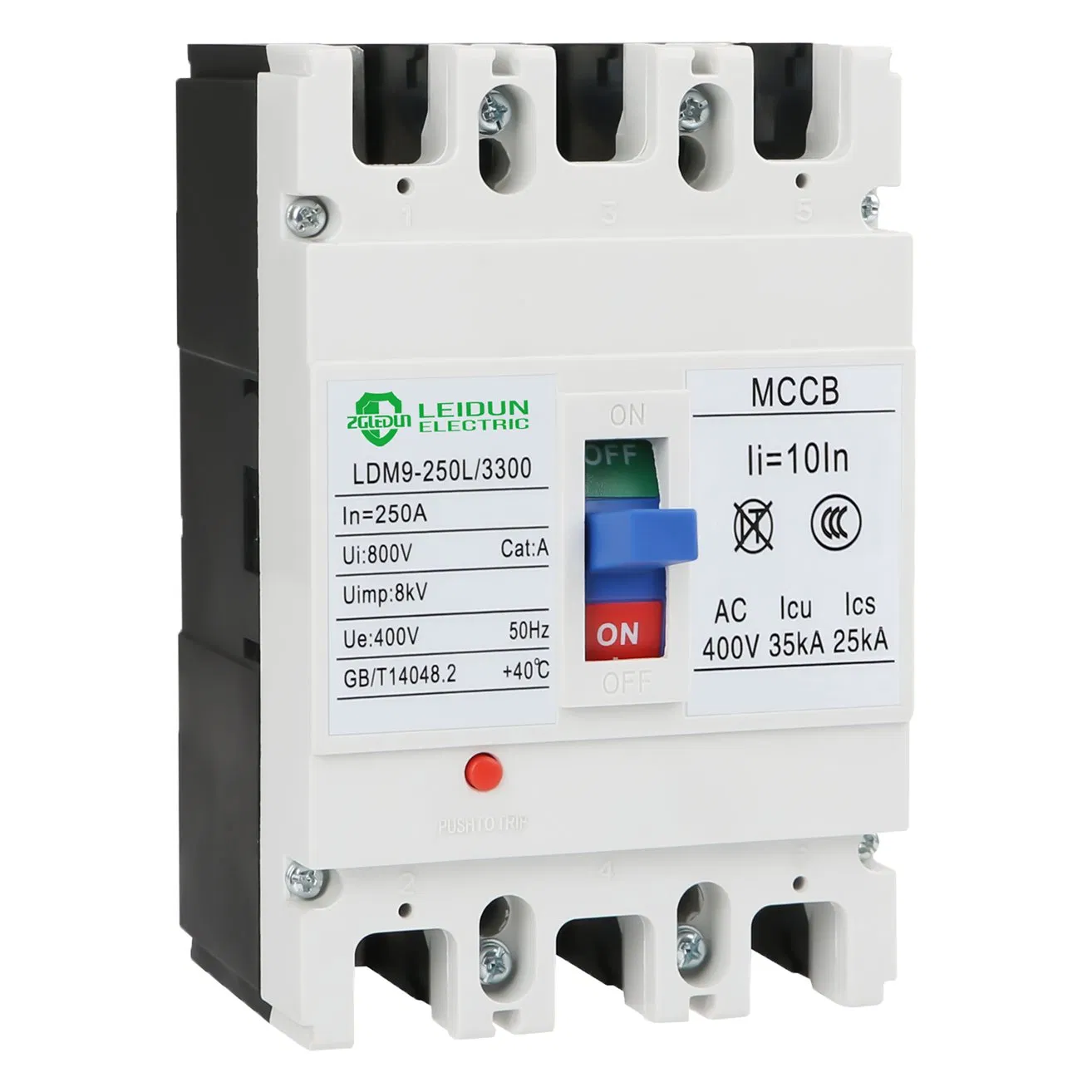

LDM9 Plastic Molded Case Circuit Breaker (MCCB) is developed using internationally advanced design and manufacturing technology. Its rated insulation voltage is 800V, suitable for AC 50Hz, with a maximum rated working voltage of 690V, and a rated working current of up to 800A.

It provides reliable overload, short circuit, and undervoltage protection to safeguard circuits and power equipment.

Terms of Use

• Ambient Temperature: -5ºC to +40ºC (average over 24h does not exceed +35ºC).
• Altitude: Not exceeding 2000m.
• Humidity: Max 50% at +40ºC; higher humidity allowed at lower temperatures (e.g., 90% at 20ºC).
• Pollution Level: III.
• Installation: Should be free from explosion hazards, conductive dust, and corrosive gases.
