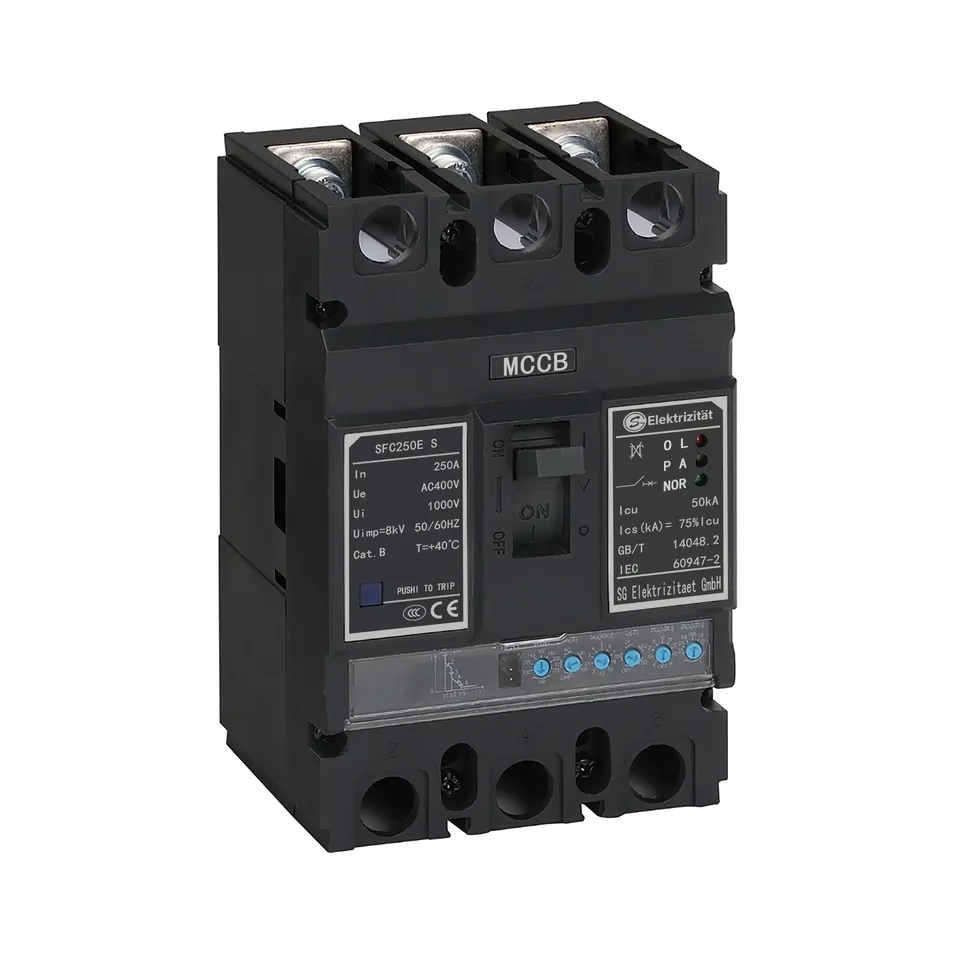

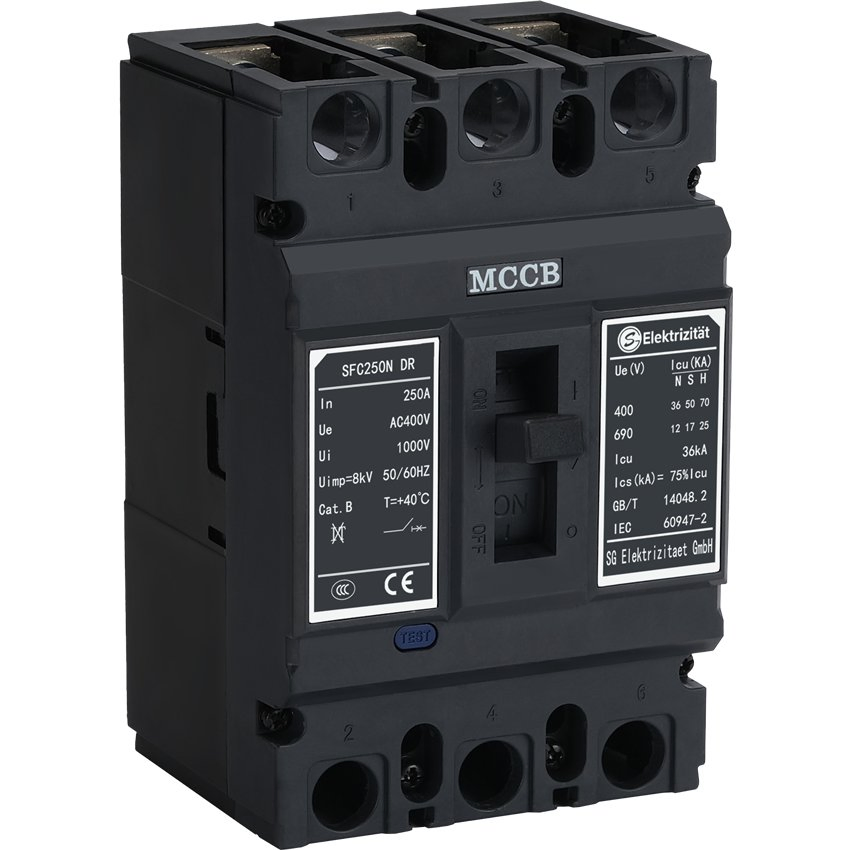

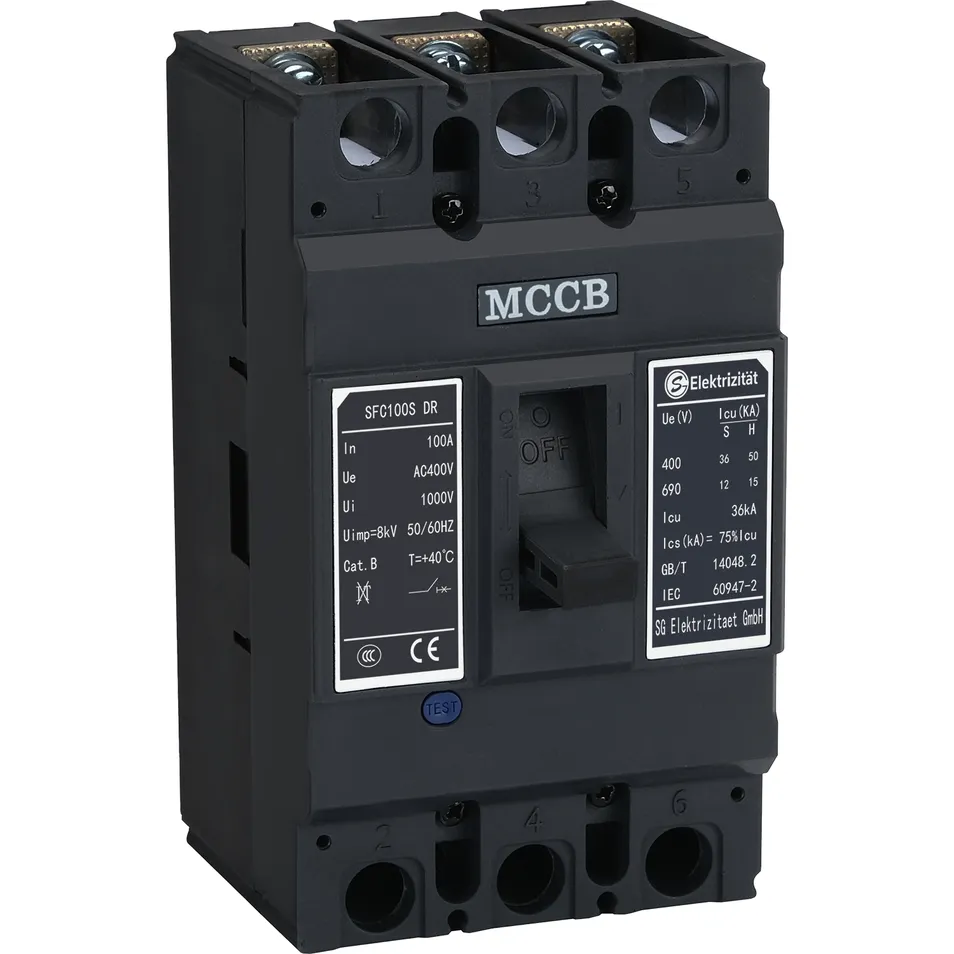

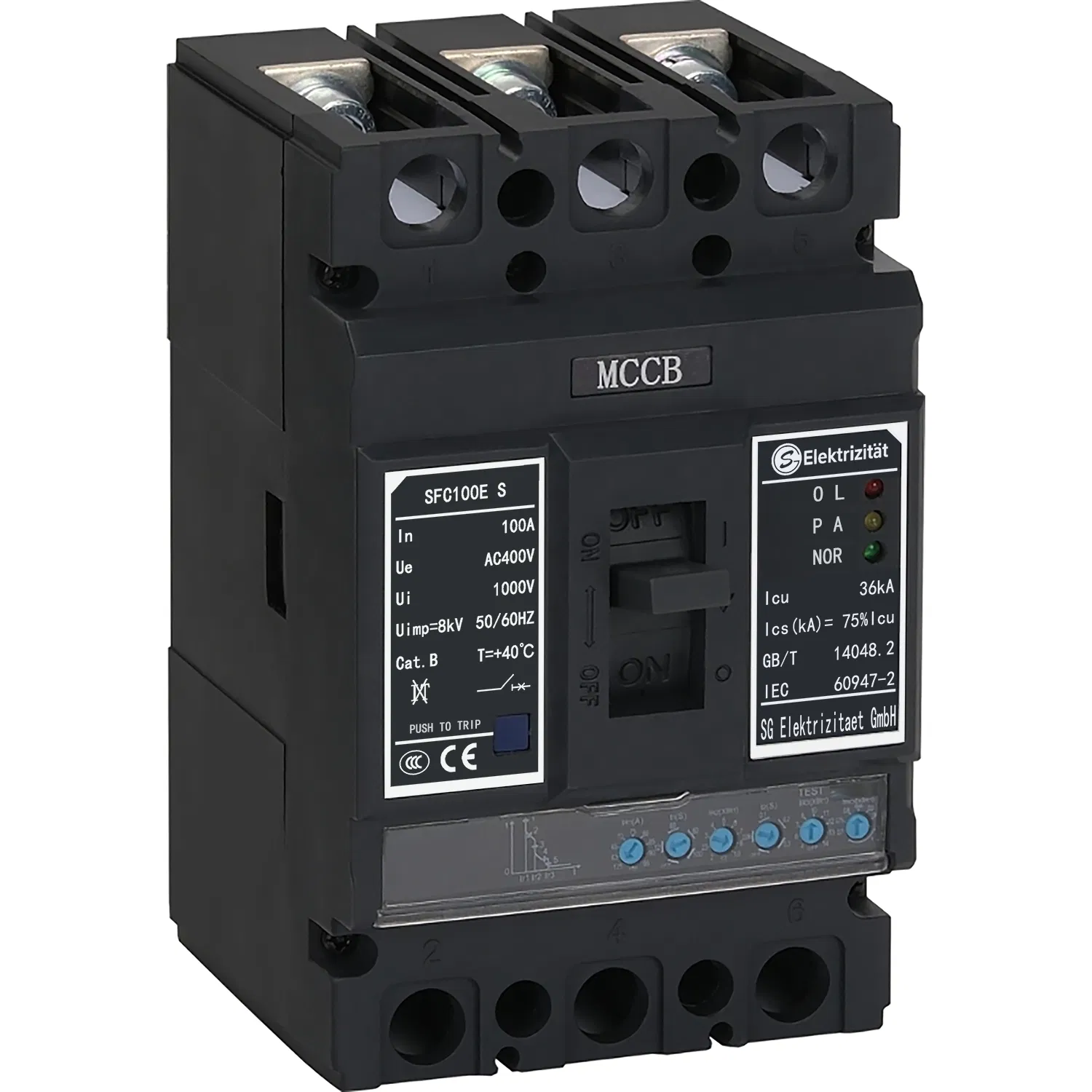

SFC Series Moulded Case Circuit Breaker has a rated insulation voltage of 1000 V. It is suitable for circuits with AC 50/60 Hz, rated operating voltage up to 400 V/690 V, and rated operating current up to 800 A, for infrequent circuit switching and motor protection.
The circuit breaker provides overload, short circuit and undervoltage protection to protect lines and power supply equipment against damage, and is suitable for use as an isolator.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Current (A) | 10-100 | Nominal Voltage (V) | AC400/AC690 |
| Isolation Voltage (V) | 1000 | Rated Frequency (Hz) | 50 |
| Breaking Capacity (KA) | 12-50 | Electrical Life (times) | 4000 |
