| MCCB Normal working conditions and installation methods | |
|---|---|
| Category | Requirements |
| Elevation | Installation site not exceeding 2000 meters above sea level |
| Ambient air temperature | The upper limit does not exceed +40 ºC; the lower limit does not exceed -5 ºC; the average value of 24 hours does not exceed +35 ºC |
| Pollution Level | Level 3 |
| Installation Category | Installation Category III, Circuit Breaker 1600A IV |
| Atmospheric conditions | Atmospheric relative humidity does not exceed 50% when the ambient air temperature is +40 C. It can have a higher relative humidity at a lower temperature. The average maximum relative humidity of the wettest month is 90%, and the average minimum temperature of the month is +25 C. Considering the condensation occurring on the surface of the product due to temperature changes. |
| Installation Conditions | Installed in places without significant shaking and shock vibration, the magnetic field near the installation site should not exceed 5 times of the magnetic field in any direction, and leakage circuit breakers should generally be installed vertically. |
| Installation | Circuit breaker can be installed vertically (i.e. vertically) or horizontally (i.e. horizontally). |
| Input mode | Circuit breaker can't go down, that is, only 1,3,5 power lines, 2,4,6 load lines |

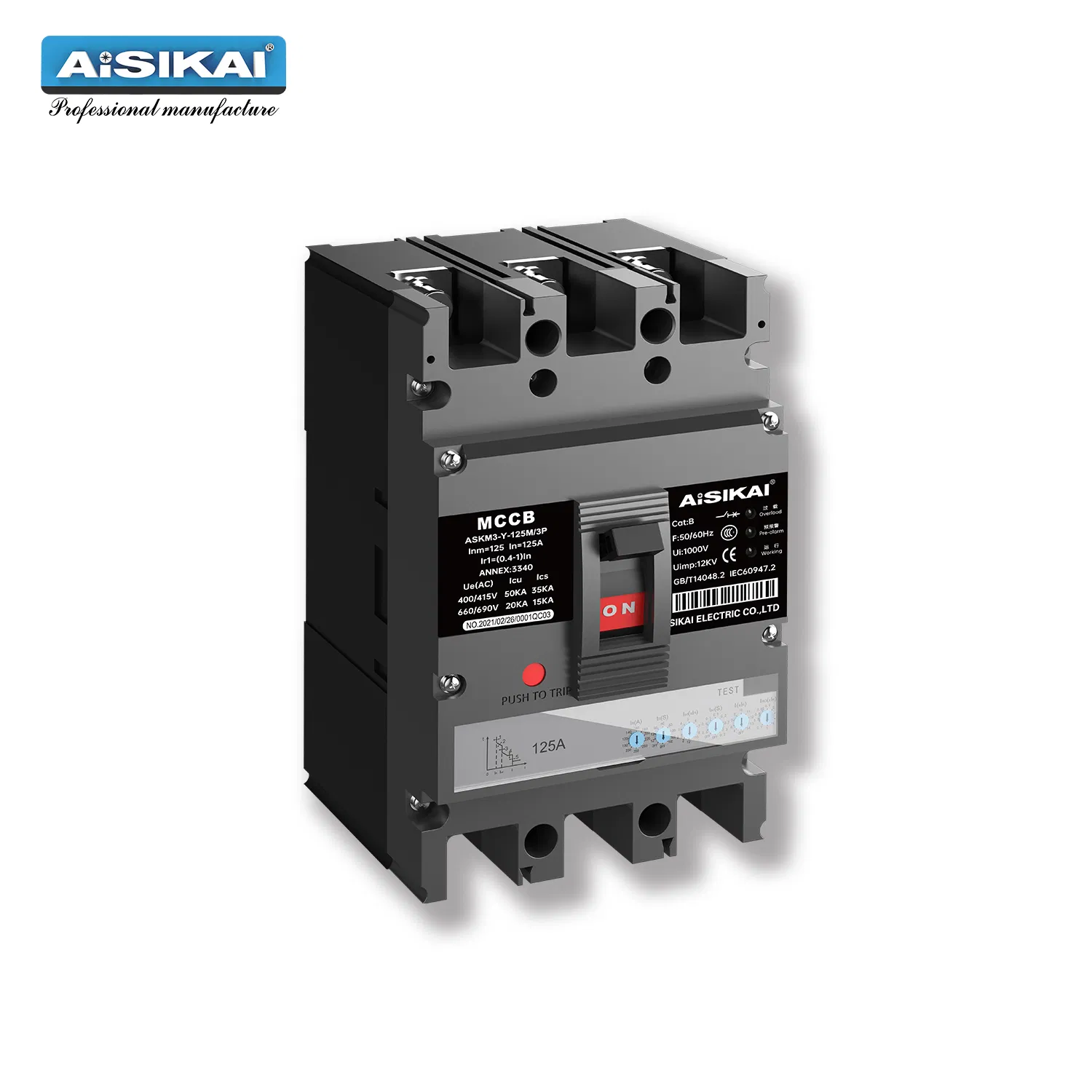

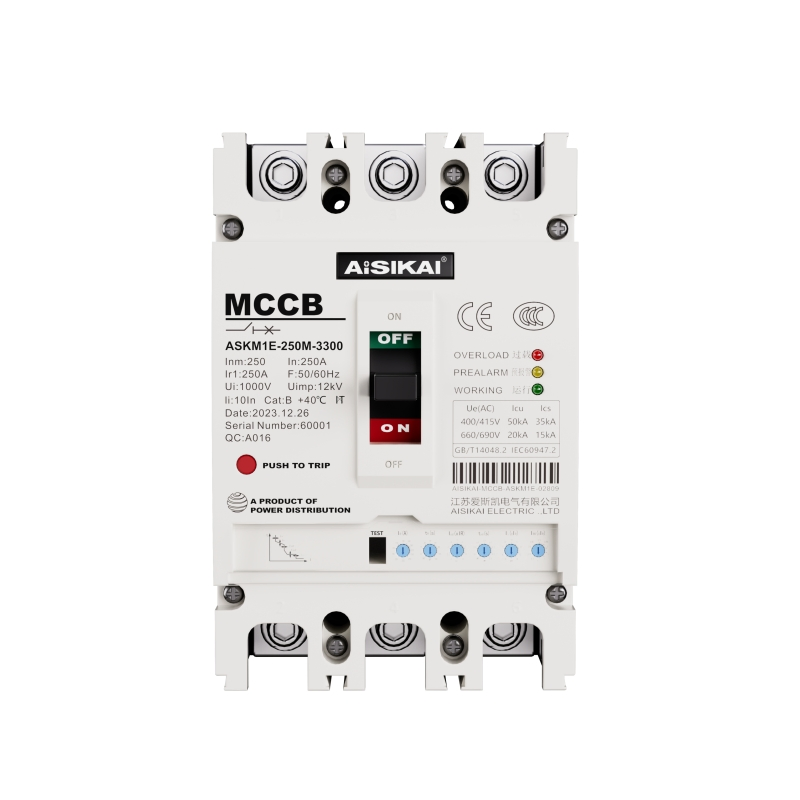

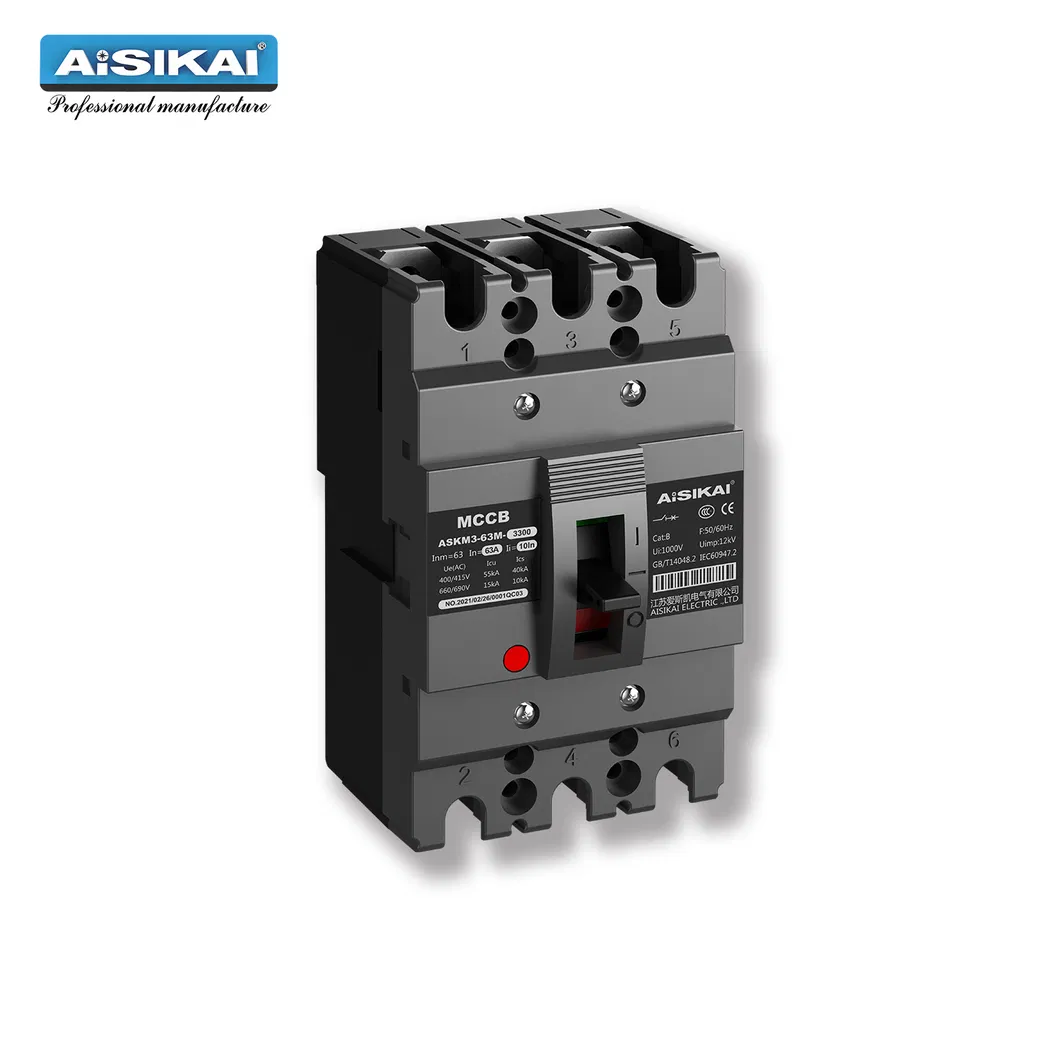

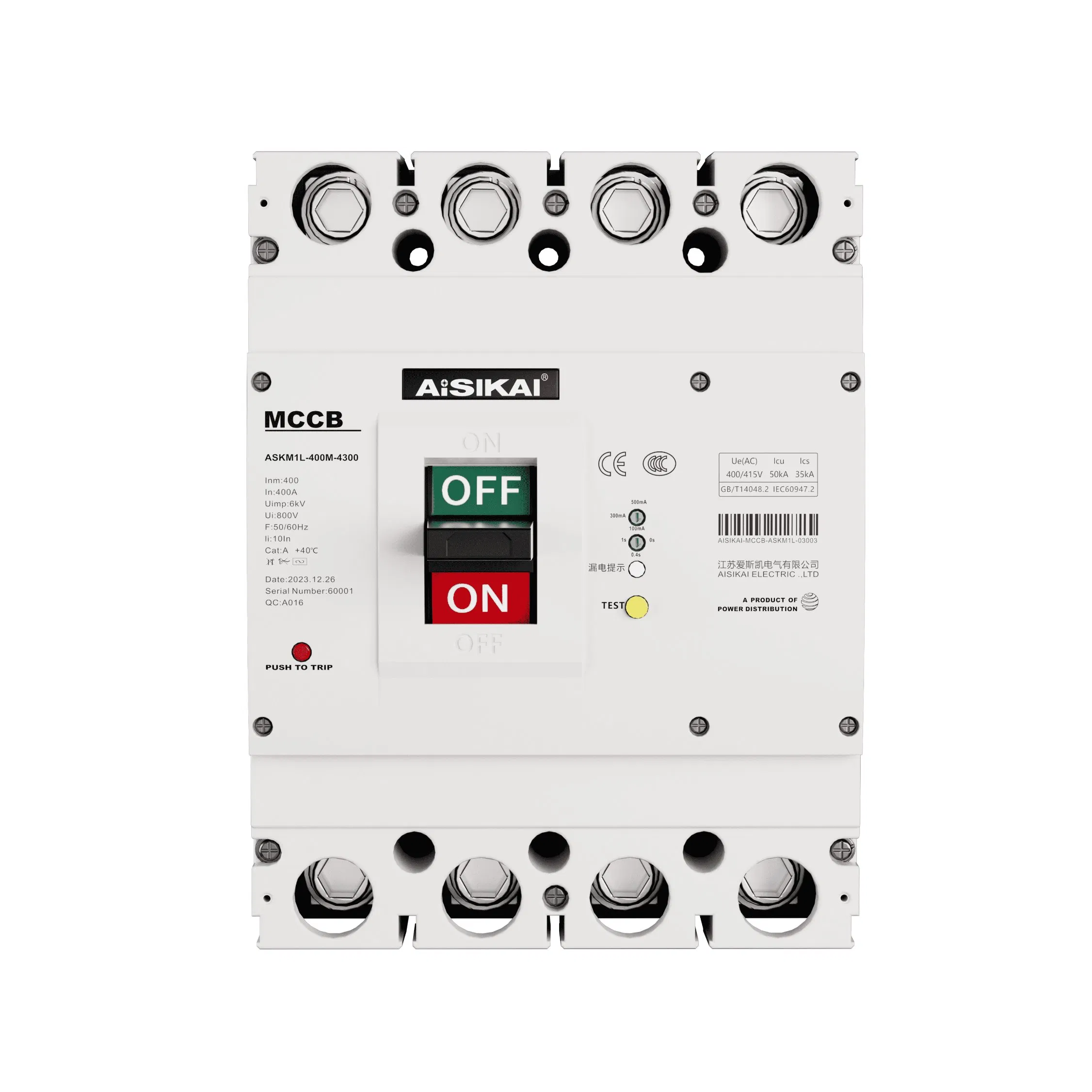

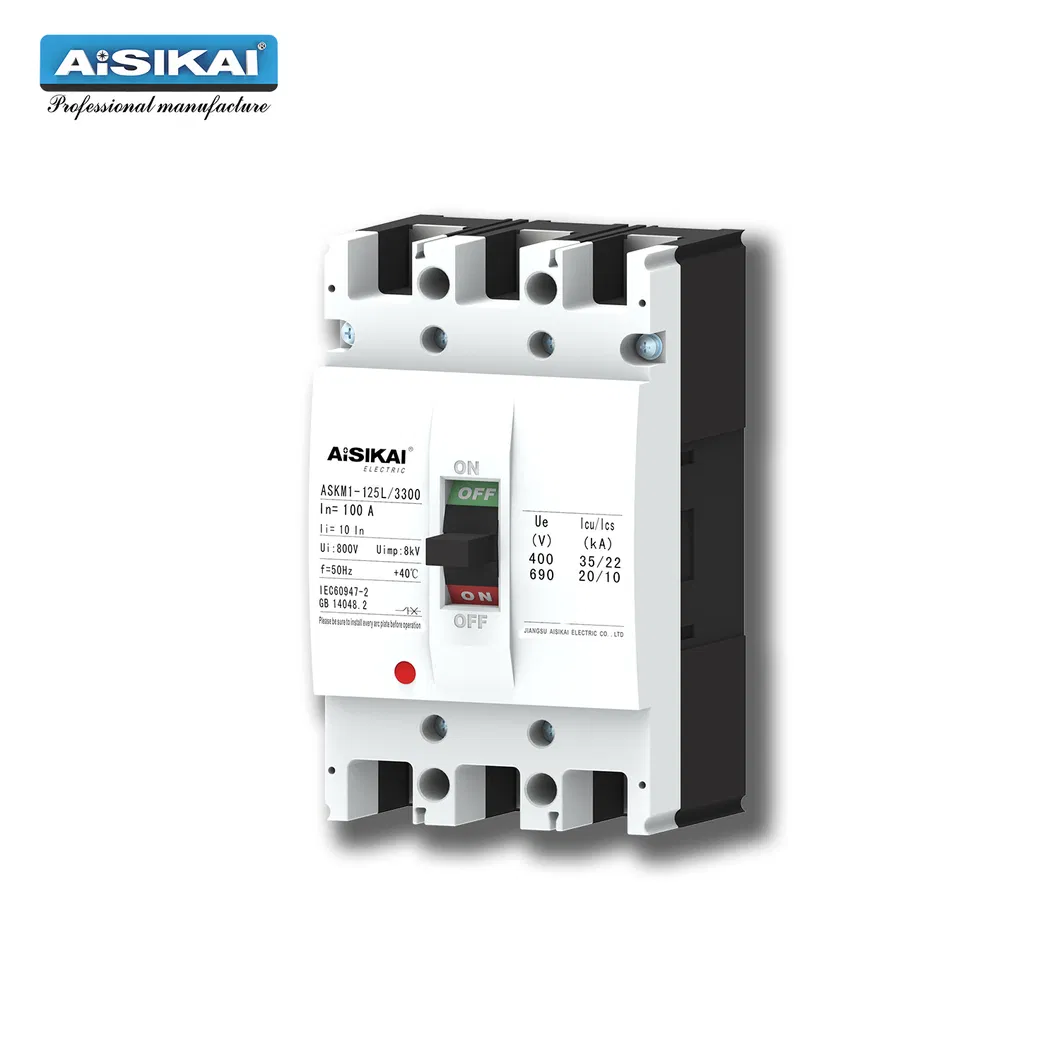

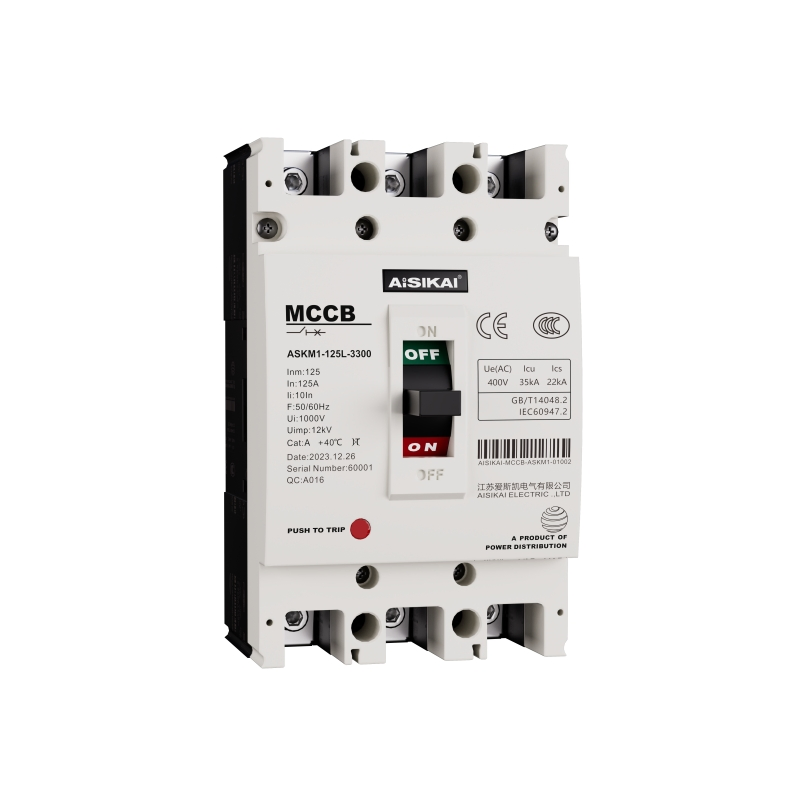

MCCB molded case circuit breaker is a new type of the circuit breaker designed and developed through adoption of a combination of international advanced technologies.
Circuit breaker with overload, short circuit and under voltage protection device to protect the power lines and equipment from damage.
The circuit breaker can be installed vertically (ie, vertical loading), or horizontally (ie, cross-loaded).
According to the level of its rated ultimate short circuit breaking capacity, it is divided into three categories, namely L type (standard type), M type (comparatively high breaking type), H type (high breaking type). The product features small volume, high breaking capacity, short arcing, and anti-vibration characteristics. It is ideal for land and marine use.
Rated insulation voltage 800V, suitable for AC 50HZ, rated working voltage 690V and below the circuit for infrequent start with.
| Molded Case Circuit Breaker Main Technical Indicators | ||||||||
|---|---|---|---|---|---|---|---|---|
| The setting value of instantaneous action characteristic of MCCB for distribution is 10In±20%, ASKM-1600: 7In±20%. Setting value of instantaneous action characteristic of motor protection circuit breaker is 12±20%. | ||||||||
| Item | Number of Pole | Rated current (A) | Rated Operating Voltage (V) | Rated insulation voltage (V) | Icu (Rated limit short-circuit breaking capacity) | Arcing distance (mm) | ||
| Test voltage (V) | Icu (kA) | Ics (kA) | ||||||
| ASKM1-63L | 3/4 | 10/16/20/25/32/40/50/63 | 400 | 800 | 400*1.10 | 22 | 18 | 0 |
| ASKM1-63M | 3/4 | 35 | 22 | |||||
| ASKM1-125L | 3/4 | 16/20/25/32/40/50/63/80/100/125 | 400 | 800 | 400*1.10 | 35 | 22 | ≤50 |
| ASKM1-125M | 3/4 | 400 | 50 | 35 | ||||
| ASKM1-125H | 3/4 | 400 | 85 | 50 | ||||
| ASKM1-125L | 3/4 | 690 | 10 | 5 | ||||
| ASKM1-125M | 3/4 | 690 | 20 | 10 | ||||
| ASKM1-250L | 3/4 | 100/125/140/160/180/200/225/250 | 400 | 800 | 400*1.10 | 35 | 22 | |
| ASKM1-250M | 3/4 | 400 | 50 | 35 | ||||
| ASKM1-250H | 3/4 | 400 | 85 | 50 | ||||
| ASKM1-250L | 3/4 | 690 | 10 | 5 | ||||
| ASKM1-250M | 3/4 | 690 | 20 | 10 | ||||
| ASKM1-400L | 3/4 | 225/250/315/350/400 | 400 | 800 | 400*1.10 | 65 | 50 | ≤100 |
| ASKM1-400M | 3/4 | 400 | ||||||
| ASKM1-400H | 3/4 | 400 | ||||||
| ASKM1-400L | 3/4 | 690 | ||||||
| ASKM1-400M | 3/4 | 690 | ||||||
| ASKM1-630L | 3/4 | 400/500/630 | 400 | 800 | 400*1.10 | 75 | 65 | |
| ASKM1-630M | 3/4 | 400 | ||||||
| ASKM1-630H | 3/4 | 400 | ||||||
| ASKM1-630L | 3/4 | 690 | ||||||
| ASKM1-630M | 3/4 | 690 | ||||||
| ASKM1-800L | 3/4 | 630/700/800 | 400 | 800 | 400*1.10 | 85 | 70 | |
| ASKM1-800M | 3/4 | 400 | ||||||
| ASKM1-800H | 3/4 | 400 | ||||||
| ASKM1-800M | 3/4 | 690 | ||||||
| ASKM1-1600M | 3/4 | 800/1000/1250/1600 | 400 | 800 | 400*1.10 | 85 | 65 | |
| ASKM1-1600H | 3/4 | 400 | ||||||
| ASKM1-1600M | 3/4 | 690 | ||||||
| MCCB DIMENSION SHEET | |||||||
|---|---|---|---|---|---|---|---|
| Dimension | M1-63L | M1-63M | M1-125L/M | M1-125H | M1-250L/M | M1-250H | M1-250L/M |
| Overall Dimensions (C) | 85 | 85 | 87.5 | 87 | 102 | 102 | 102 |
| Overall Dimensions (E) | 51 | 51 | 55 | 55 | 55 | 55 | 55 |
| Overall Dimensions (F) | 22 | 22 | 22 | 22 | 22 | 22 | 22 |
| Overall Dimensions (G) | 14 | 14 | 17.5 | 17.5 | 23 | 23 | 23 |
| Overall Dimensions (G1) | 6.5 | 6.5 | 7.5 | 7.5 | 11.5 | 11.5 | 11.5 |
| Overall Dimensions (H) | 76 | 76 | 73 | 90 | 89 | 106 | 106 |
| Overall Dimensions (H1) | 90 | 100 | 87 | 105 | 112 | 127 | 127 |
| Overall Dimensions (H2) | 18.5 | 18.5 | 24 | 24 | 23 | 23 | 23 |
| Overall Dimensions (H3) | 8 | 8 | 8.5 | 9 | 7 | 7 | 7 |
| Overall Dimensions (L) | 136 | 136 | 150 | 150 | 166 | 166 | 166 |
| Overall Dimensions (L1) | 170 | 170 | 255 | 255 | 292 | 292 | 292 |
| Overall Dimensions (L2) | 118 | 118 | 131 | 131 | 144 | 144 | 144 |
| Overall Dimensions (W) | 78 | 78 | 92 | 92 | 106 | 106 | 106 |
| Overall Dimensions (W1) | 25 | 25 | 30 | 30 | 35 | 35 | 35 |
| Mounting Dimensions (A) | 25 | 25 | 30 | 30 | 35 | 35 | 35 |
| Mounting Dimensions (B) | 117 | 117 | 129 | 129 | 129 | 126 | 126 |
| Mounting Dimensions (Φd) | 4.5 | 4.5 | 4.5*6 | 4.5*6 | 4.5*6 | 5.5 | 5.5 |
