3200acb Air Circuit Breaker 3 Poles Air Circuit Breaker

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Oil-immersed Type
Installation
Fixed
Structure
RCCB
Poles Number
1
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification
VDE, ISO9001-2000, CE, CB, CCC
Maximum Flow Capacity Lanx
40
Working Temperature
-40~+85
Leakage Current 0.75u Ima(μa)
≤20
Transport Package
Standard
Specification
Standard
Origin
China
Production Capacity
5000000piece/Year
Product Description
The ACB is a circuit breaker that uses air as the arc-extinguishing medium. Through the rapid breaking of the internal contacts and the synergistic effect of the arc-extinguishing device, it can automatically cut off the current when abnormal conditions such as overload, short circuit or undervoltage occur in the circuit, protecting electrical equipment and lines from damage.
Overload protection
Monitor whether the current exceeds the rated value and achieve delayed disconnection through a thermal trip unit.
Short-circuit protection
It quickly responds to instantaneous large currents through an electromagnetic trip unit and cuts off the circuit.
Under-voltage protection
It cuts off the circuit when the voltage drops abnormally to prevent equipment damage.
Isolation function
After manual or electric tripping, it provides a clear disconnection point to ensure maintenance safety.

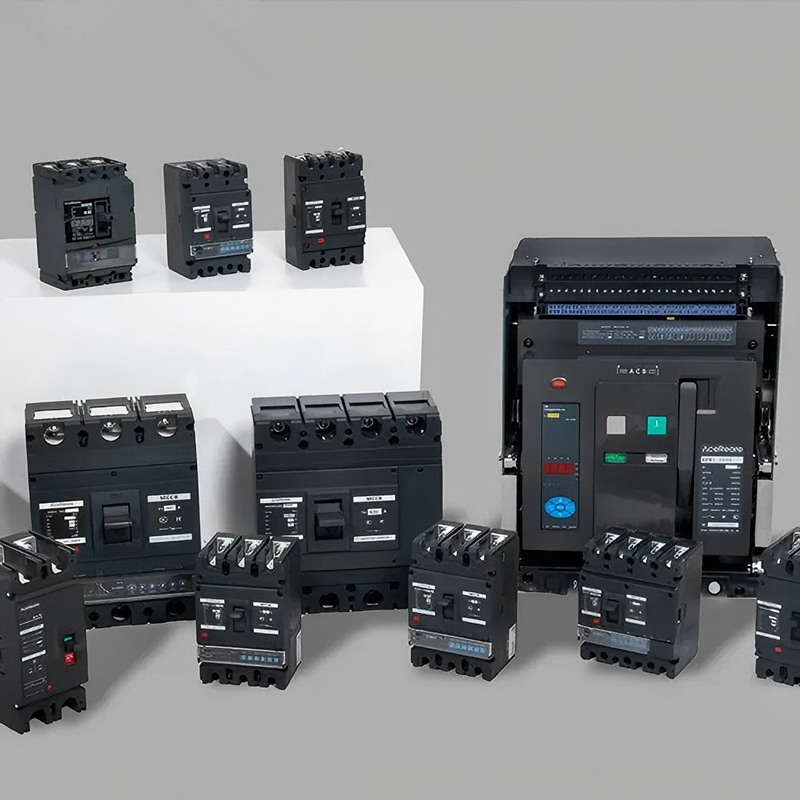

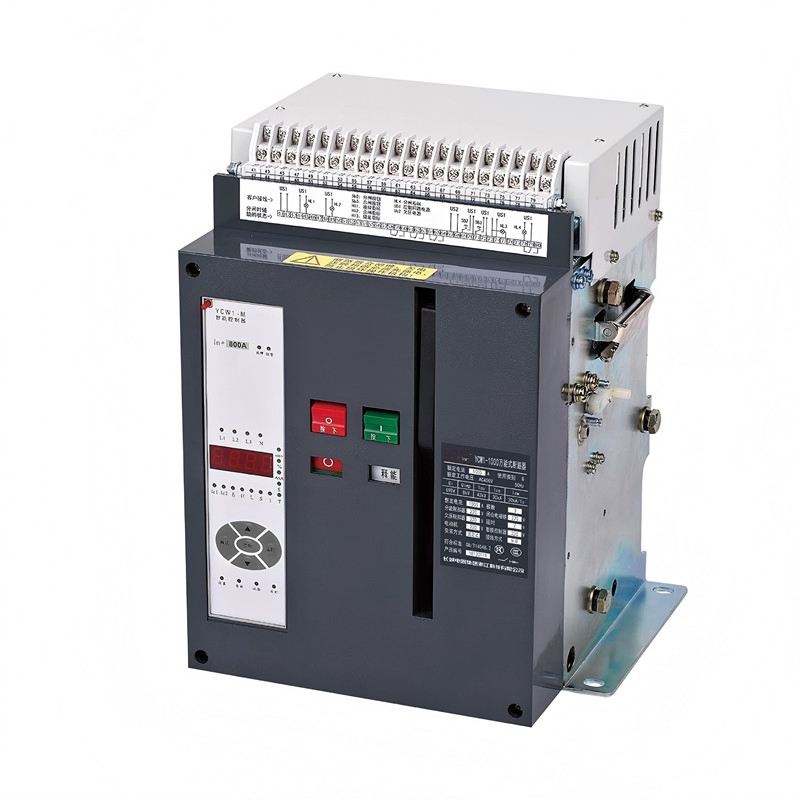

3200acb Air Circuit Breaker 3 Poles Air Circuit Breaker

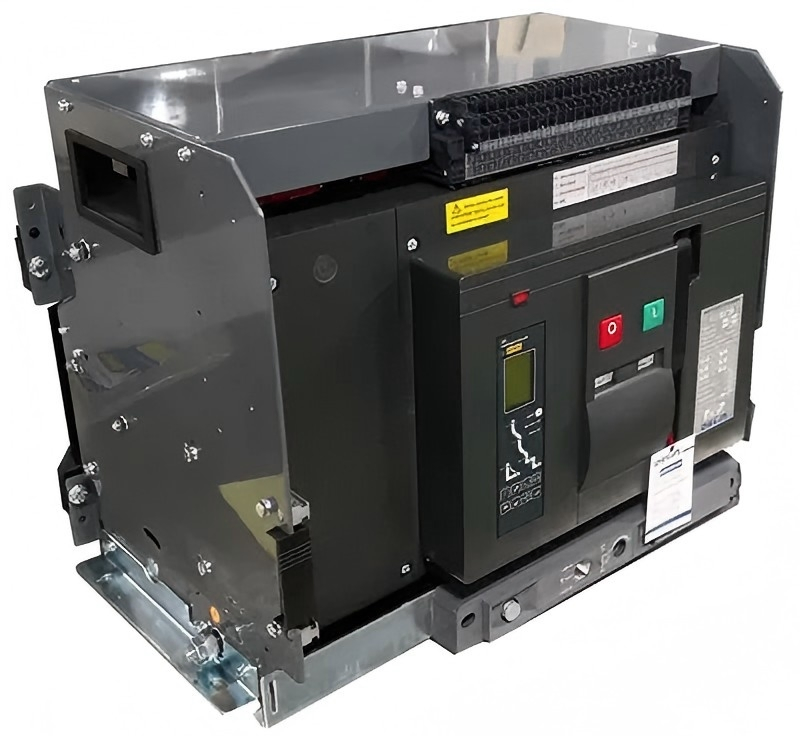

3200acb Air Circuit Breaker 3 Poles Air Circuit Breaker

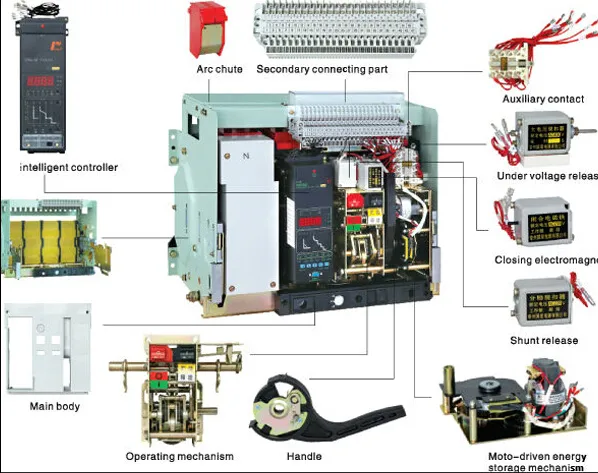

Breaker Classify
  • By installation type: Fixed type / Withdrawable
  • By pole number: 3 pole or 4 pole
  • By operation method: Motor operation (only for test and maintenance)
  • By release type: Intelligent Release, under-voltage release, shunt release
  • By Intelligent controller:
    • H type (with communication), M (normal type), L (Economic type)
    • With all protection characteristics.
    • Single phase earthing protection.
    • Display function including setting current, action current.
    • Alarm function, Self-checking function, Test function.
    • MCR Making and Breaking Function.
    • HSISC Protection.

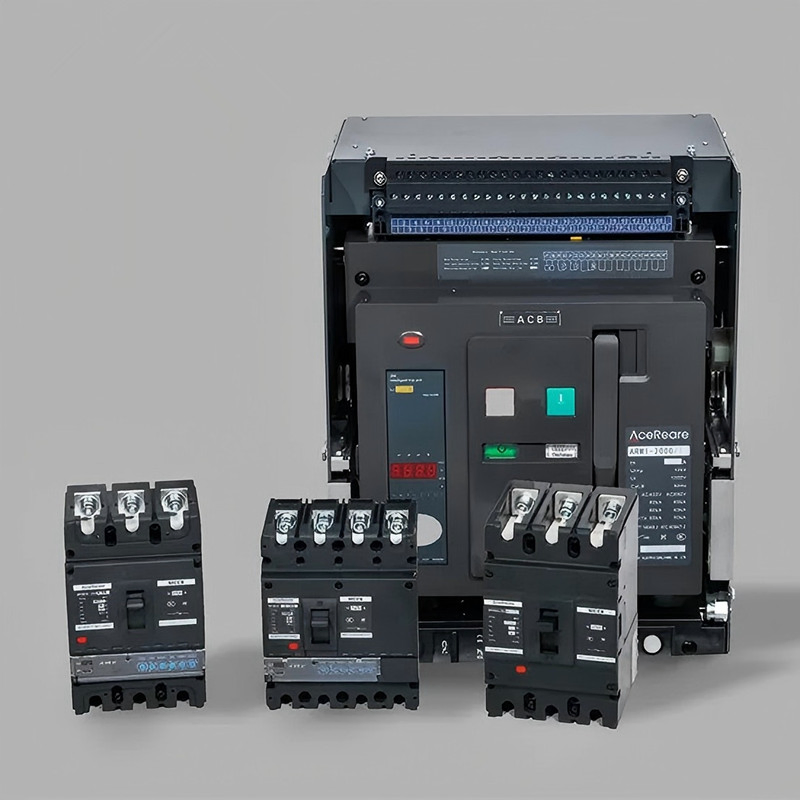

3200acb Air Circuit Breaker 3 Poles Air Circuit Breaker
Operation condition & Technical Specification
  • Ambient Temperature: Min. - 5ºC, Max. +40ºC, the average value of 24 hours shall not exceed 35ºC.
  • Altitude: <2000m
  • Air condition: At mounting site, the relative humidity shall not exceed 50% at the max. temperature 40ºC. Higher relative humidity is allowable at lower temperature (e.g. RH can be 90% at 20ºC).
  • Pollution Grade: Grade III
  • Use categories: B
Why Choose Us?

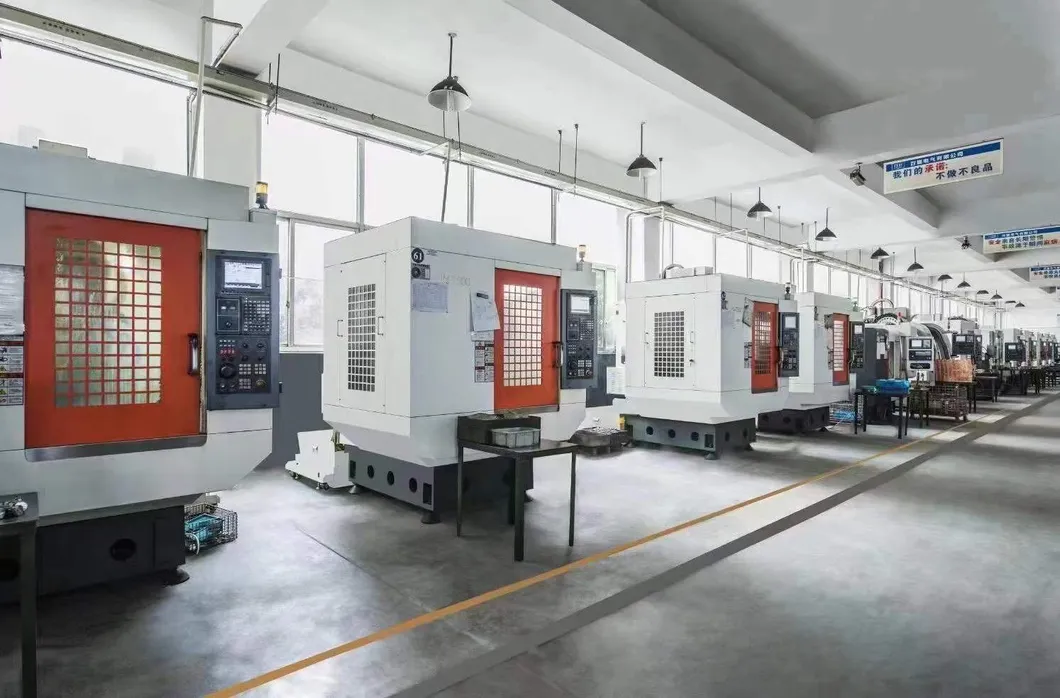

We have strong technical production capabilities and possess multiple production lines with leading domestic technical levels, as well as surge protectors, lightning current impulse transmitters, transformer calibrators, pressure gauges, PD instruments, etc. Through cooperation with top foreign design institutes, we introduce world-class equipment, supplemented by imported high-quality PC materials and exquisite manufacturing industry, to create products that are close to users and lead the market. With strong technical research and development capabilities and humanized management concepts, we are committed to providing users with high-quality products. We strictly implement the ISO9001:2000 international quality management system standard and strive to enhance the brand awareness and reputation of high-quality products and services. In the spirit of serving the whole society and consumers, we will continue to provide customers with more perfect products and more considerate services. We warmly welcome people from all walks of life to visit and patronize us. We firmly believe that through unremitting efforts and persistent pursuit, we will continue to make progress with the times.
Frequently Asked Questions
Q1 Can I deliver the goods from other suppliers to your factory? And then load them together?
Sure, we are very willing to help customers obtain the products quickly.
Q2 Is OEM acceptable?
We can provide OEM and ODM services. We have many different specifications and appearances for customers to choose from.
Q3 Have you provided samples? Free or paid?
We can offer free samples to customers, but only one piece. However, the shipping cost needs to be borne by the customer.
Q4 What is your minimum order quantity?
We decide based on the product packaging. Our minimum order quantity is 100 pieces.
Q5 Can your products be installed in cold or hot weather?
The operating environment temperature range of our surge protector is -40ºC to 80ºC. As long as the installation environment you are in does not exceed this range, it can work normally.
Q6 How long is your delivery time?
Our delivery time is determined based on the purchase volume. Generally, it takes about 3 to 40 days. For 300 pieces or less, it takes 5 days; for 300 to 2,000 pieces, it takes 7 to 15 days; and for 2,000 to 20,000 pieces, it takes 15 to 40 days.
