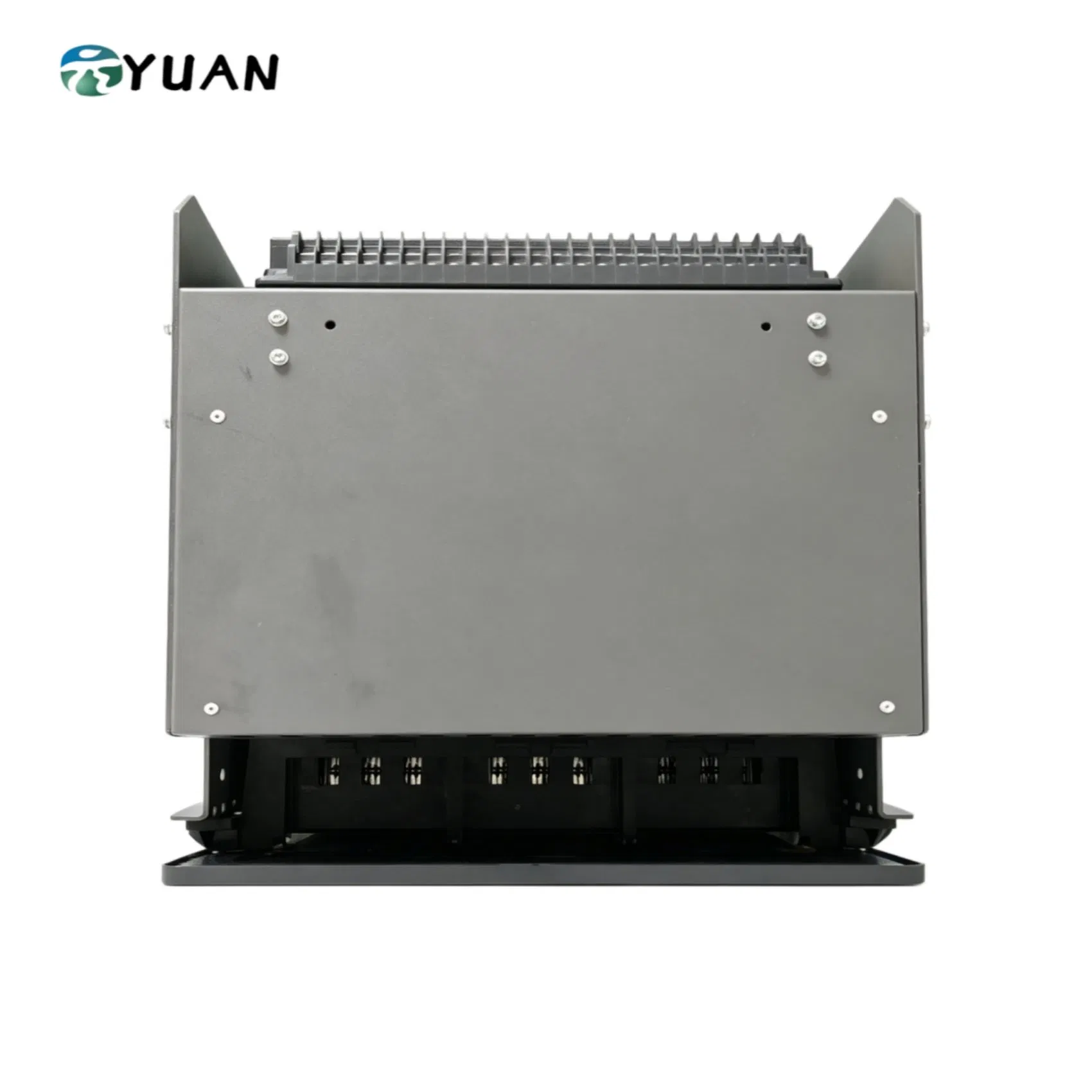

Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
1 / 5
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution

Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution

Customization: Available
Product Name: Intelligent Air Circuit Breaker (Acb)
Model Number: Xyw1-2000V3
Send Inquiry

Product Description

Overview Product Description Specification Key Selling Points Core Applications Production Profile FAQ
Overview
Basic Info
Model NO. XYW1-2000
Number of Poles 3p / 4p (3 Pole / 4 Pole)
Installation Type Draw-out Type / Withdrawable
Application Power Distribution, Industrial Switchgear
Transport Package Export Standard Fumigated Plywood Case
Specification Standard Specifications or Customized
Production Capacity 500sets/Year
Packaging & Delivery
Package Size 52.00cm * 50.00cm * 56.00cm
Package Gross Weight 70.000kg
Product Description
As a manufacturer focused on technology export, we provide not only standard switchgear but also customized power distribution solutions tailored to different regional grid codes and project requirements.
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution

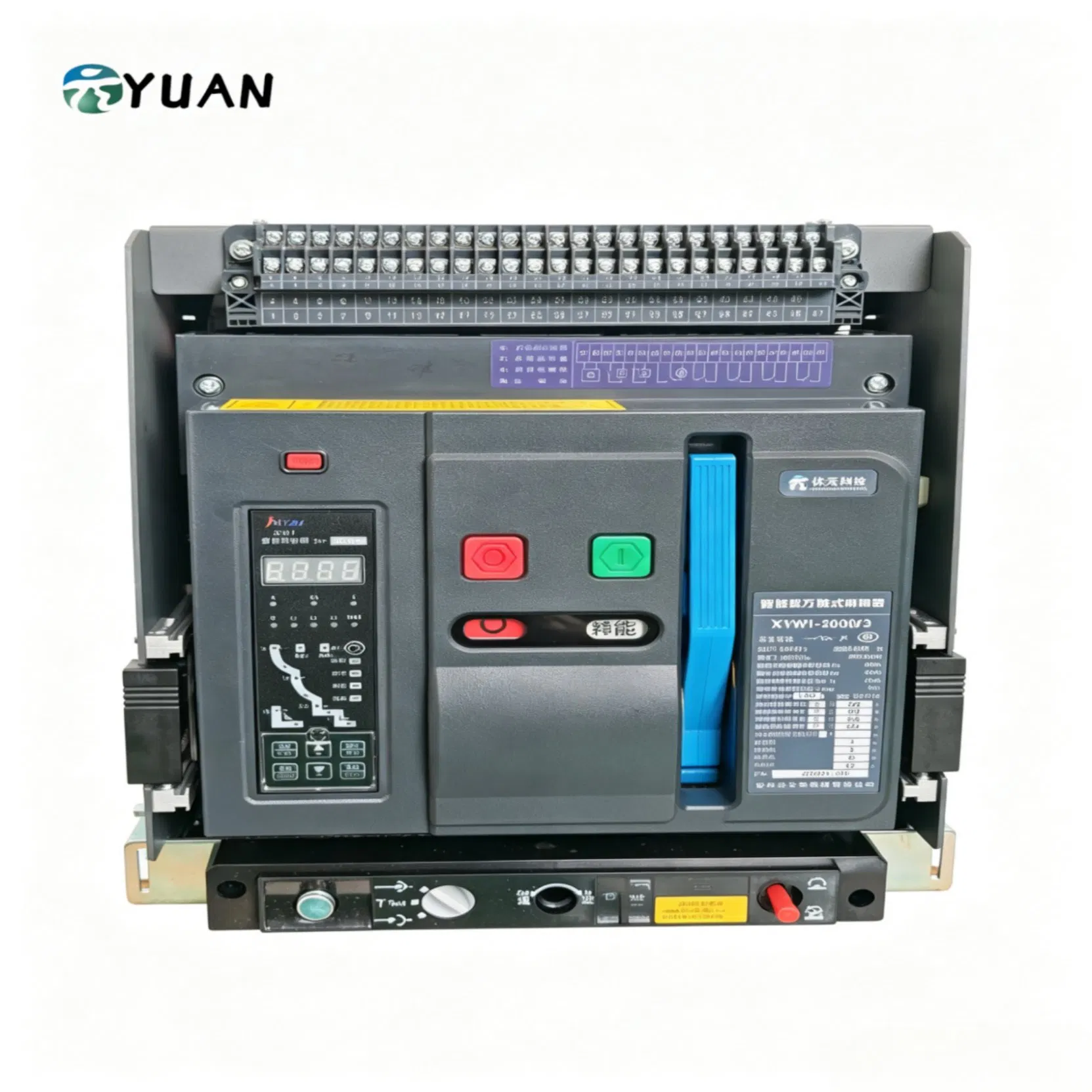

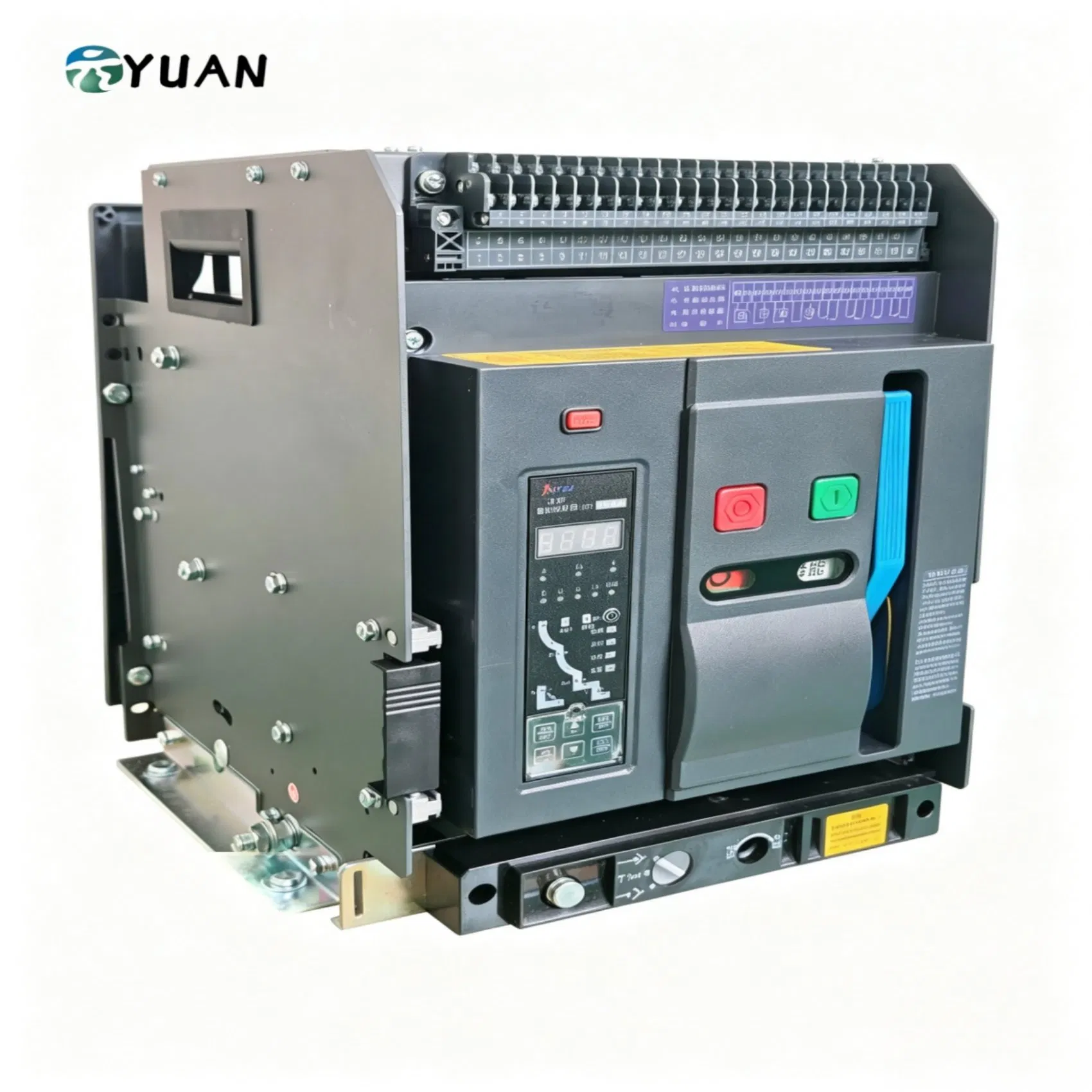

The XYW1-2000 series Intelligent Air Circuit Breaker (ACB) is a high-performance low-voltage circuit breaker designed for reliable power distribution and comprehensive circuit protection. It is widely used in industrial plants, high-rise buildings, and modern power distribution switchgears. With its compact design, advanced microprocessor technology, and excellent breaking capacity, it ensures the maximum safety and continuity of your electrical system.

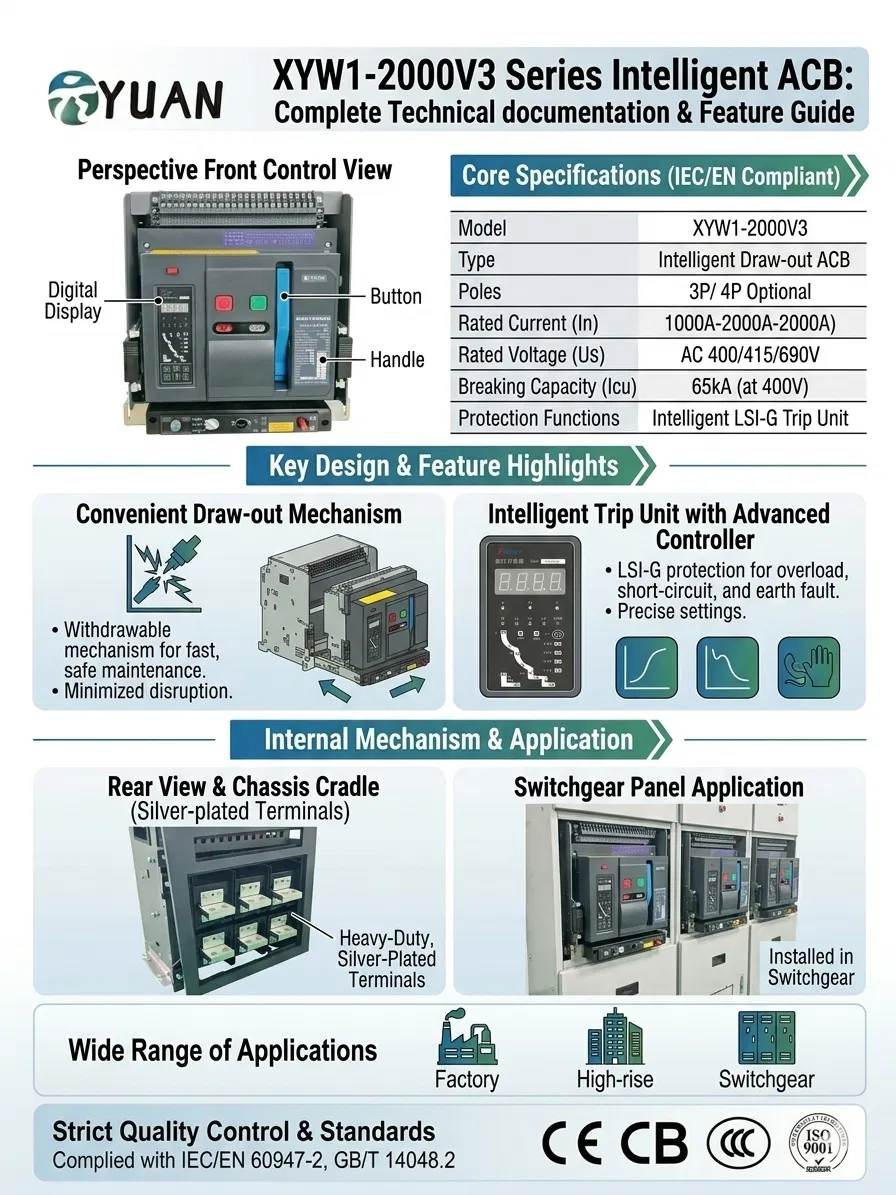

Specification
Product Feature Technical Parameter
Product Series XYW1-2000 Smart Air Circuit Breaker
Frame Size Rated Current (Inm) 2000A
Rated Current (In) 630A, 800A, 1000A, 1250A, 1600A, 2000A
Number of Poles 3 Pole (3P) / 4 Pole (4P)
Installation Method Draw-out Type (Withdrawable) / Fixed Type
Rated Operational Voltage (Ue) AC 400V / 415V / 690V
Rated Insulation Voltage (Ui) 1000V
Rated Impulse Withstand Voltage (Uimp) 12kV
Rated Frequency 50Hz / 60Hz
Service Short-circuit Breaking Capacity (Ics) 65kA (at 400V) / 50kA (at 690V)
Rated Short-time Withstand Current (Icw) 50kA / 1s
Arc-over Distance 0 mm (Zero Flashover)
Mechanical Life (without maintenance) 20,000 times
Intelligent Controller Type V3 / M Type (Digital Display)
Ultimate Short-circuit Breaking Capacity (Icu) 65kA (at 400V) / 50kA (at 690V)

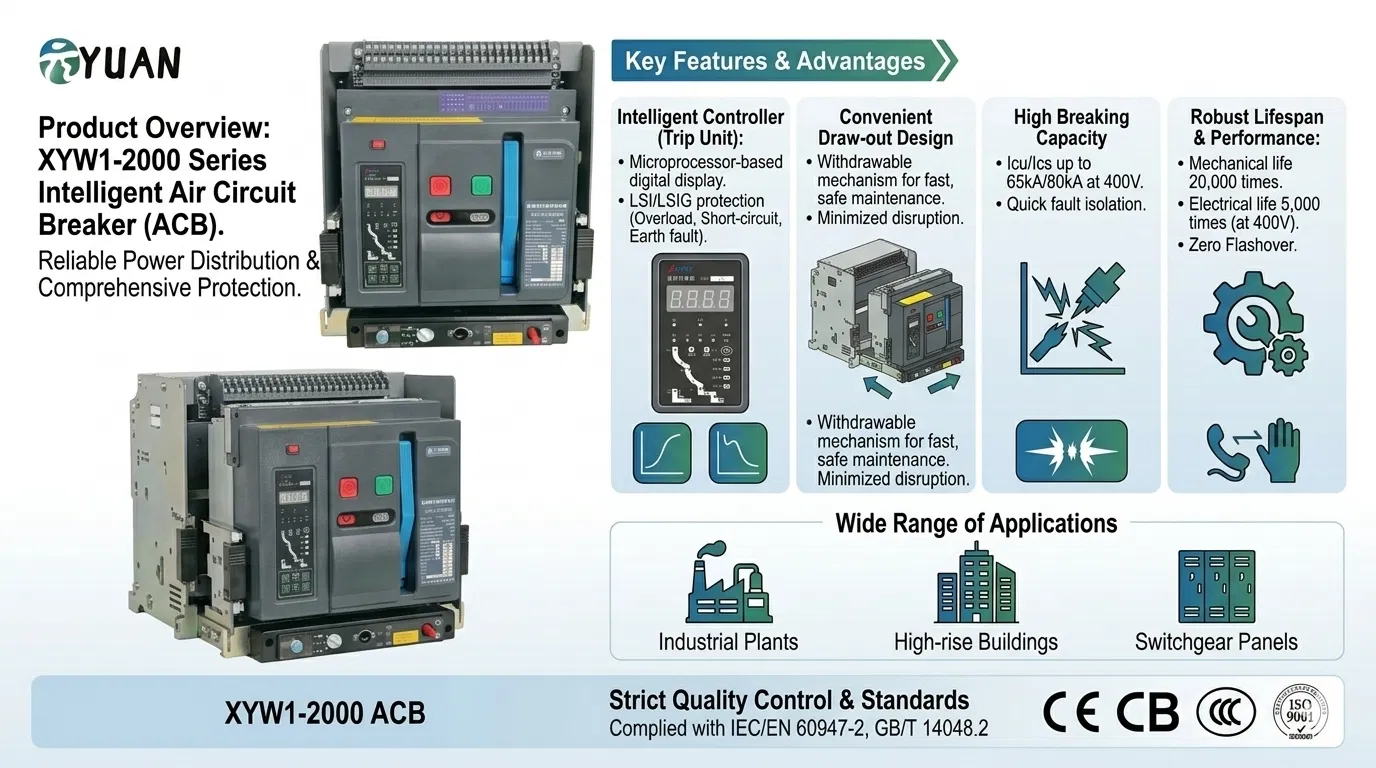

Key Selling Points
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution
High-Performance Breaking Capacity
Featuring a rated short-circuit breaking capacity (Icu/Ics) of up to 65kA at 400V, this ACB can quickly and safely isolate faults, minimizing damage to downstream equipment and reducing maintenance costs.
Zero Flashover (Arc-over Distance)
The optimized arc chute system achieves zero flashover during fault breaking. This permits compact installation inside the switchgear panel, saving valuable space for cabinet builders.
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution

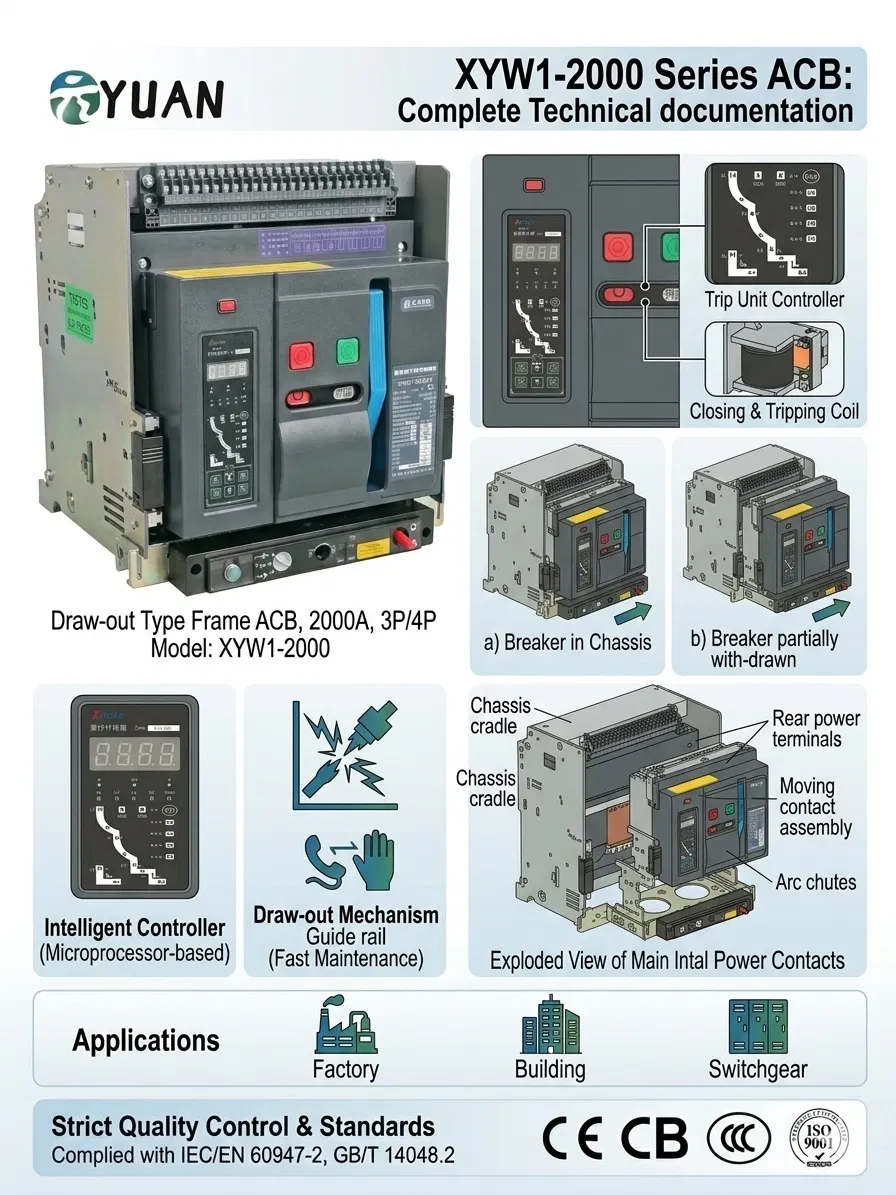

Microprocessor-Based Intelligent Controller (Trip Unit)
Equipped with an advanced digital display control unit, it offers precise protection adjustments. It supports comprehensive LSI/LSIG protection, including Overload long time-delay, Short-circuit short time-delay, Short-circuit instantaneous, and Earth fault protection.
Intelligent 3 Pole 2000A Draw-out Type Air Circuit Breaker (ACB) for Power Distribution

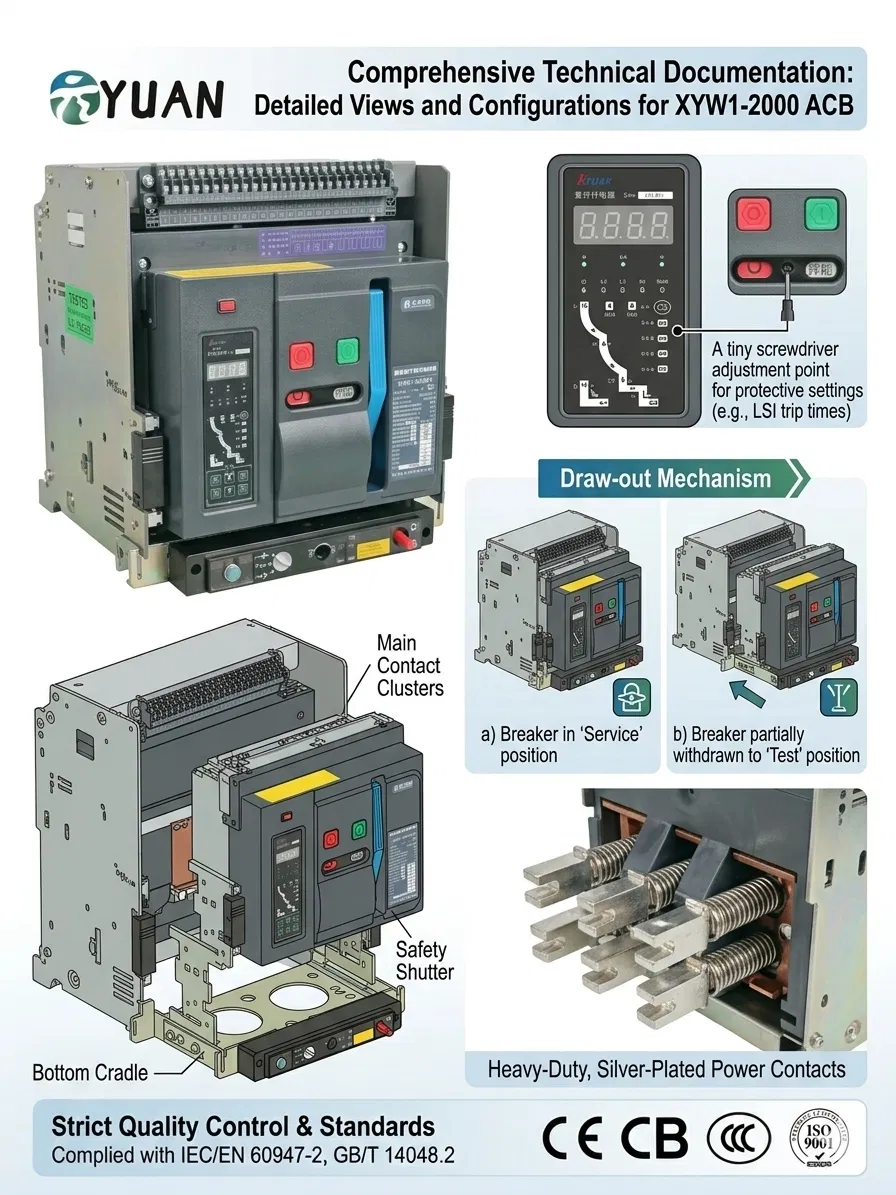

Convenient Draw-out (Withdrawable) Design

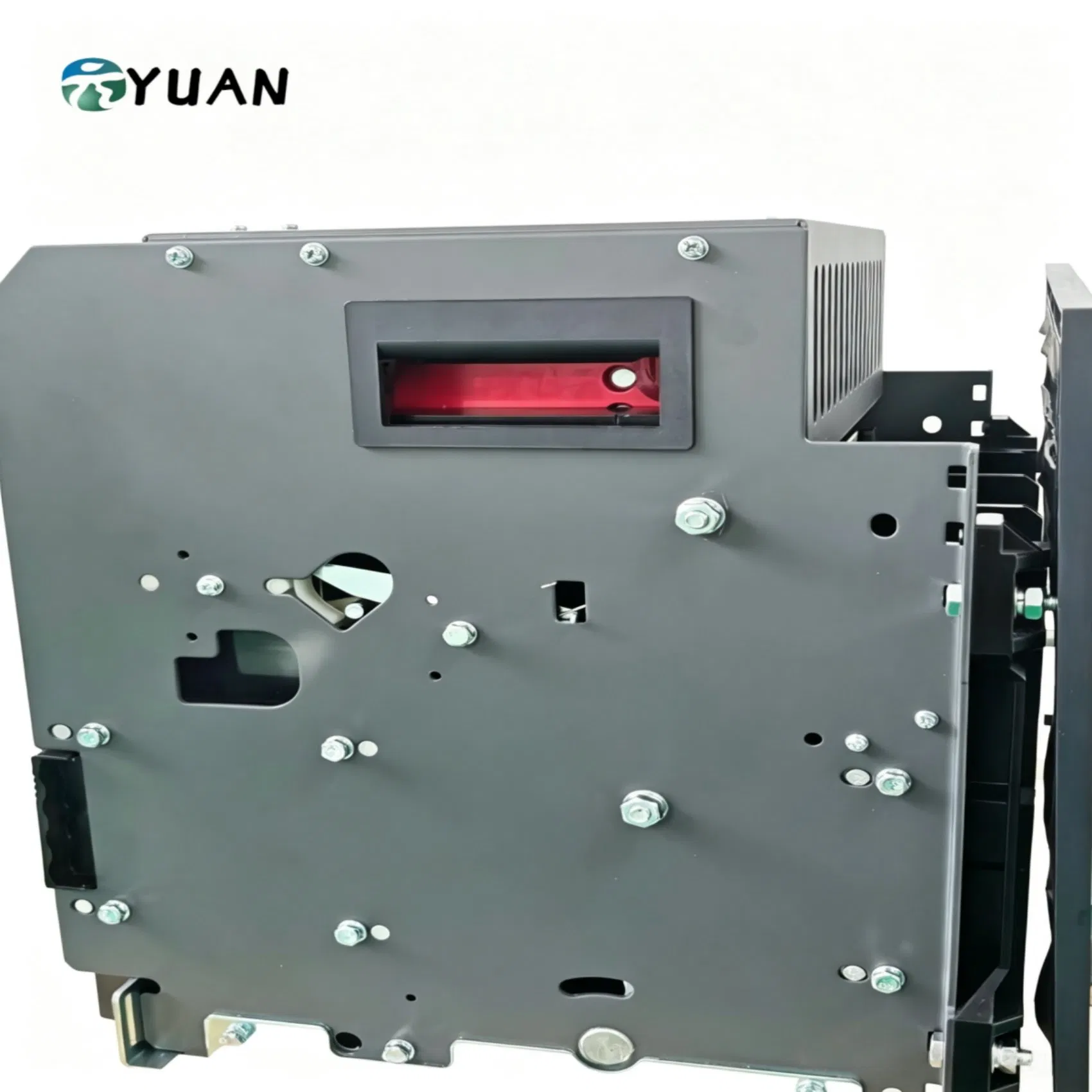

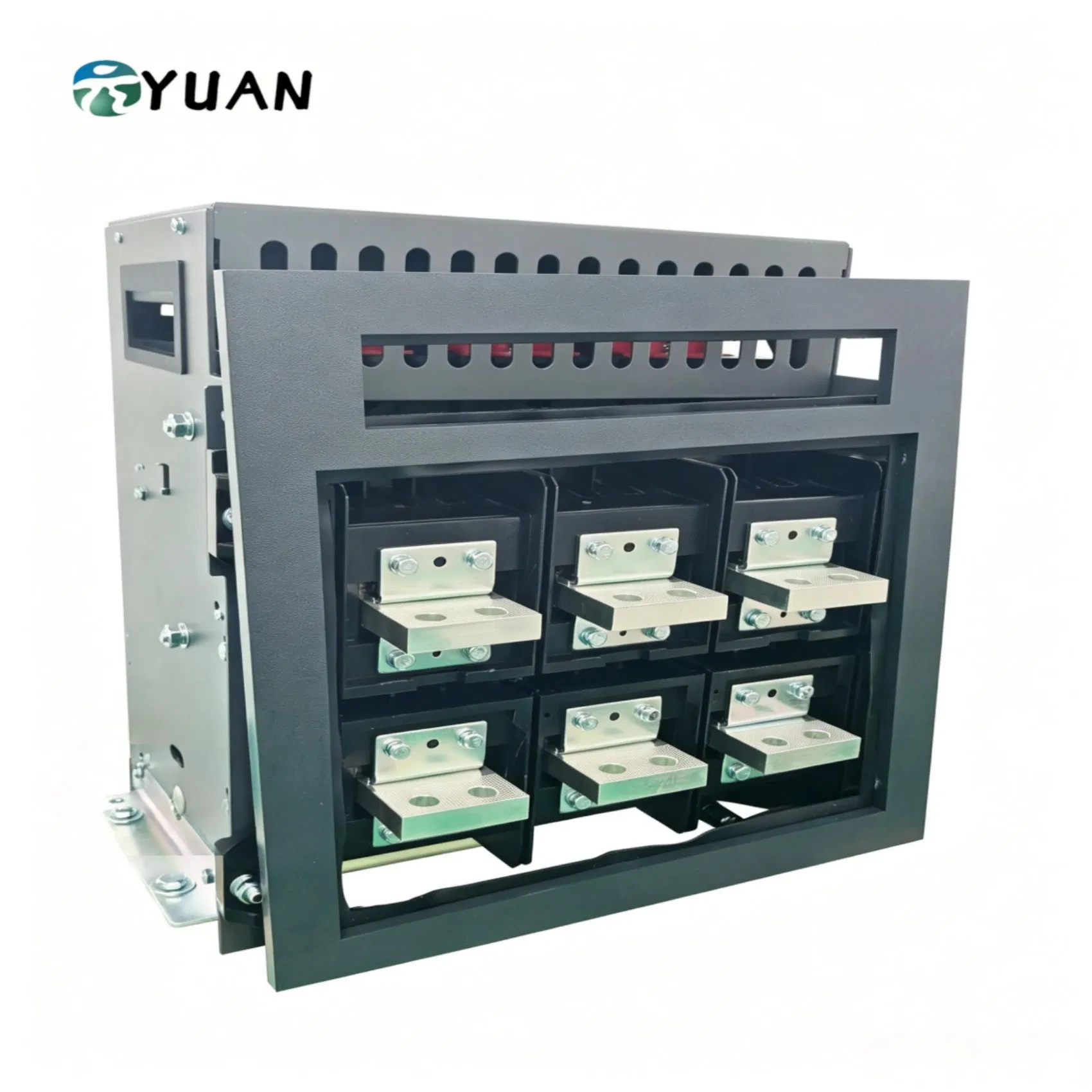

The draw-out structure allows the main body of the circuit breaker to be easily pulled out from its chassis. This makes inspection, maintenance, and replacement extremely fast and safe, without disrupting the entire main busbar system.
Robust Mechanical & Electrical Lifespan
Built with high-quality components and premium contact materials, it delivers a mechanical life of up to 20,000 times and an electrical life of 5,000 times, ensuring stable, long-term operation in heavy-duty industrial environments.

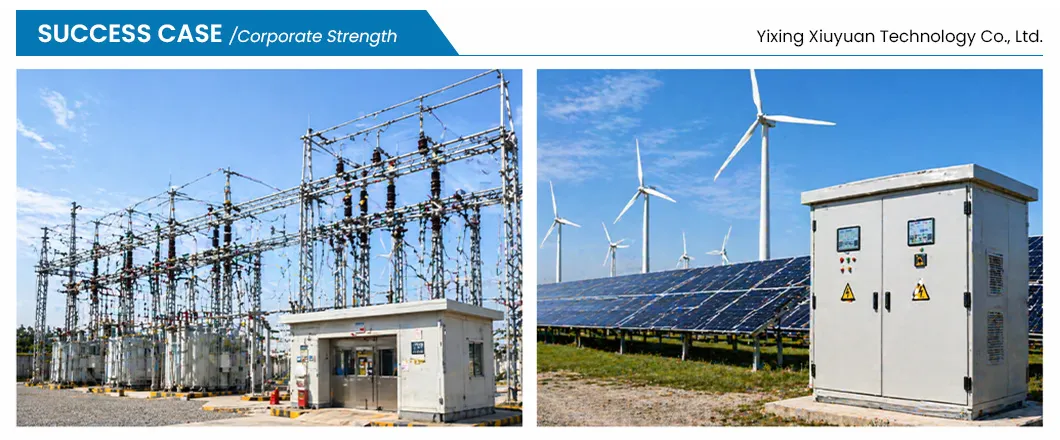

Core Applications

Our XYW1-2000 Air Circuit Breakers are the ideal choice for:

  • Low-voltage power distribution switchgears and control panels.
  • Industrial factories, manufacturing plants, and mining enterprises.
  • Commercial buildings, data centers, hospitals, and infrastructure projects.
  • Generator protection and main incoming switch applications.

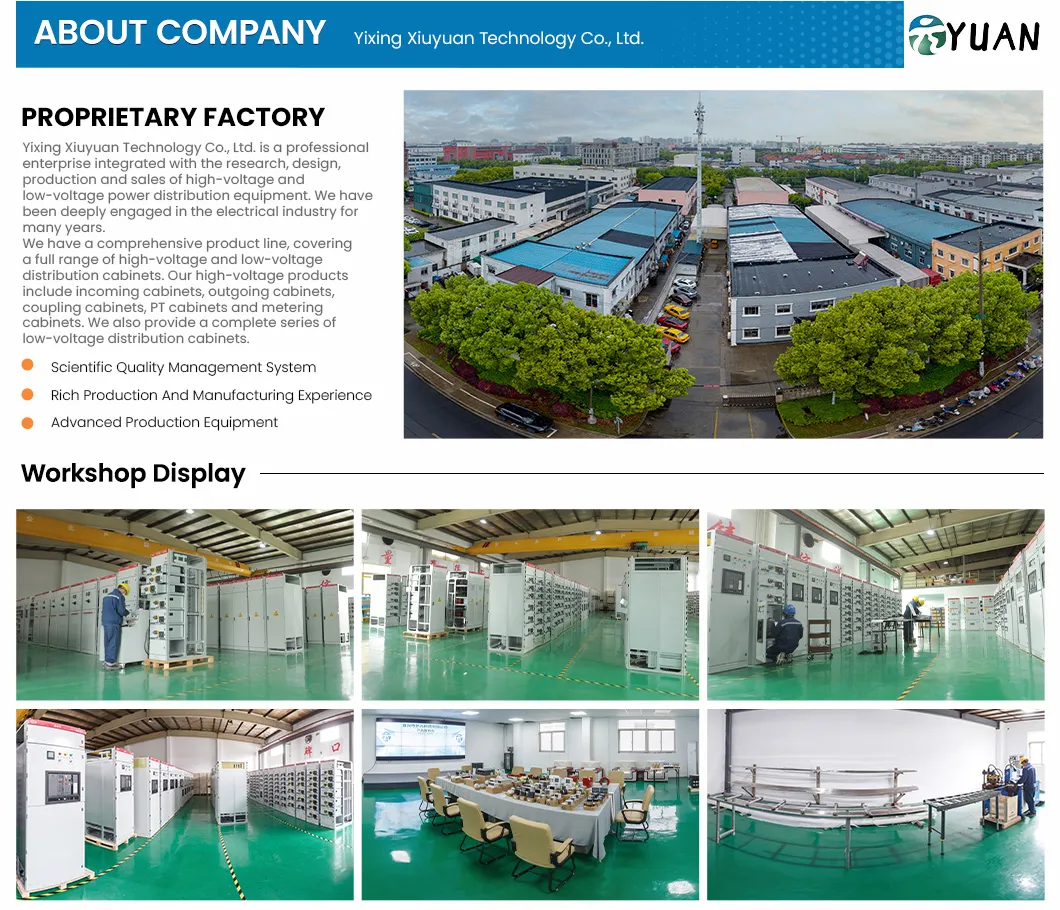

Production Profile
Production Facility 1 Production Facility 2 Production Facility 3 Production Facility 4 Production Facility 5
FAQ
Q1: What is the delivery time (lead time) for the XYW1-2000 Air Circuit Breaker?
A: For standard configurations and sample orders, the lead time is usually 7-10 working days. For bulk orders or customized requests (such as specific voltage or special trip units), it typically takes 15-25 days depending on the order quantity. Please contact our sales team to get an exact schedule.
Q2: Does this ACB come with certificates for international markets?
A: Yes, absolutely. Our XYW1 series Air Circuit Breakers are strictly manufactured under ISO9001 quality management and comply with international standards such as IEC/EN 60947-2. We can provide CE, CB, and CCC certifications to support your local customs clearance and project compliance.
Q3: Can you offer OEM or ODM customization services?
A: Yes, we welcome both OEM and ODM orders. As a professional manufacturer, we can customize the product based on your technical drawings or specific parameters, including branding/logo printing, specialized rated voltage, customized auxiliary contact configurations, and specified trip unit types.
Q4: What are the differences and options between Draw-out type and Fixed type?
A: Draw-out (Withdrawable) Type: The breaker body is installed on a chassis guide rail. It can be easily pulled out for safe maintenance without disconnecting the main power busbar. This is highly recommended for critical industrial switchgears.

Fixed Type: The breaker is directly bolted inside the cabinet. It is more compact and cost-effective but requires a complete power shutdown for maintenance.
Q5: What standard accessories are included in the package?
A: Our standard package for the XYW1-2000 Draw-out ACB includes: the main breaker body, the chassis cradle, a digital intelligent trip unit (V3 type), auxiliary contacts, a closing coil, a shunt release, an under-voltage release, and a door frame profile. Motorized operating mechanisms are available as an option.

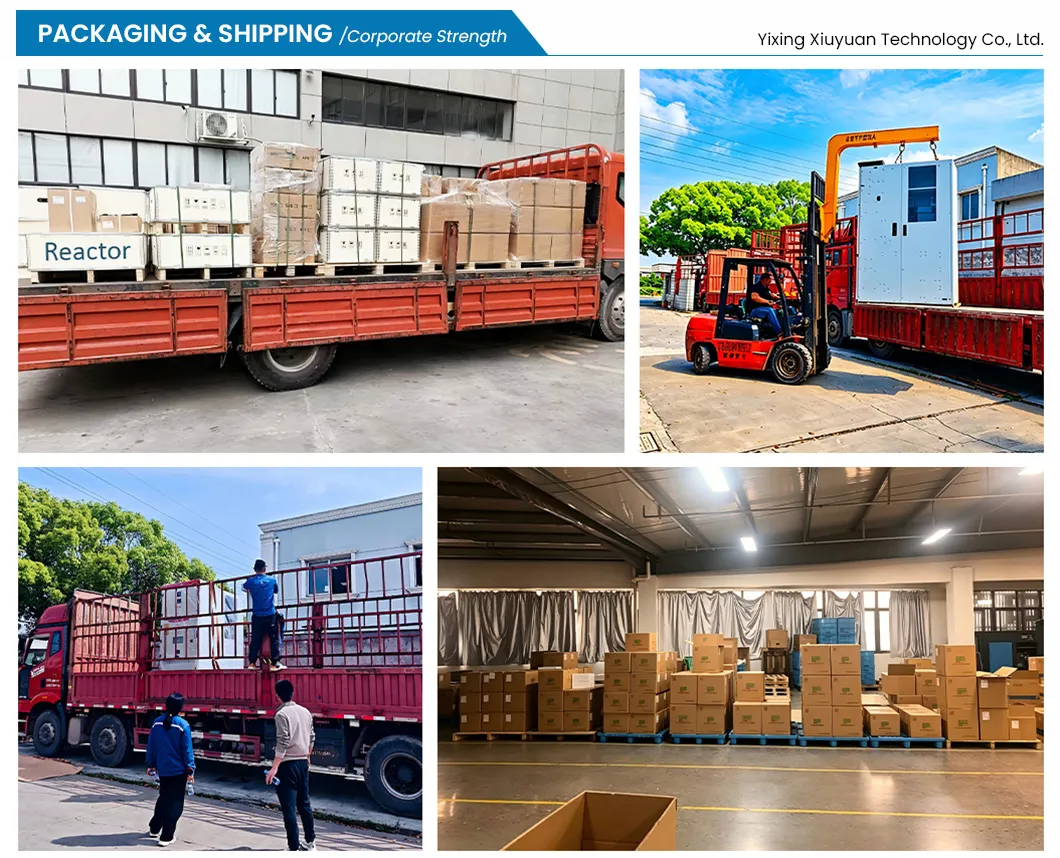

Q6: How do you pack this heavy equipment for international shipping?
A: Since the 2000A frame circuit breaker is a heavy-duty industrial item (usually weighing over 50kg), we pack each unit inside a rugged, export-standard fumigated wooden case with shock-absorbing foam inside. This ensures the product remains 100% safe and undamaged during long-distance ocean, air, or land transportation.
