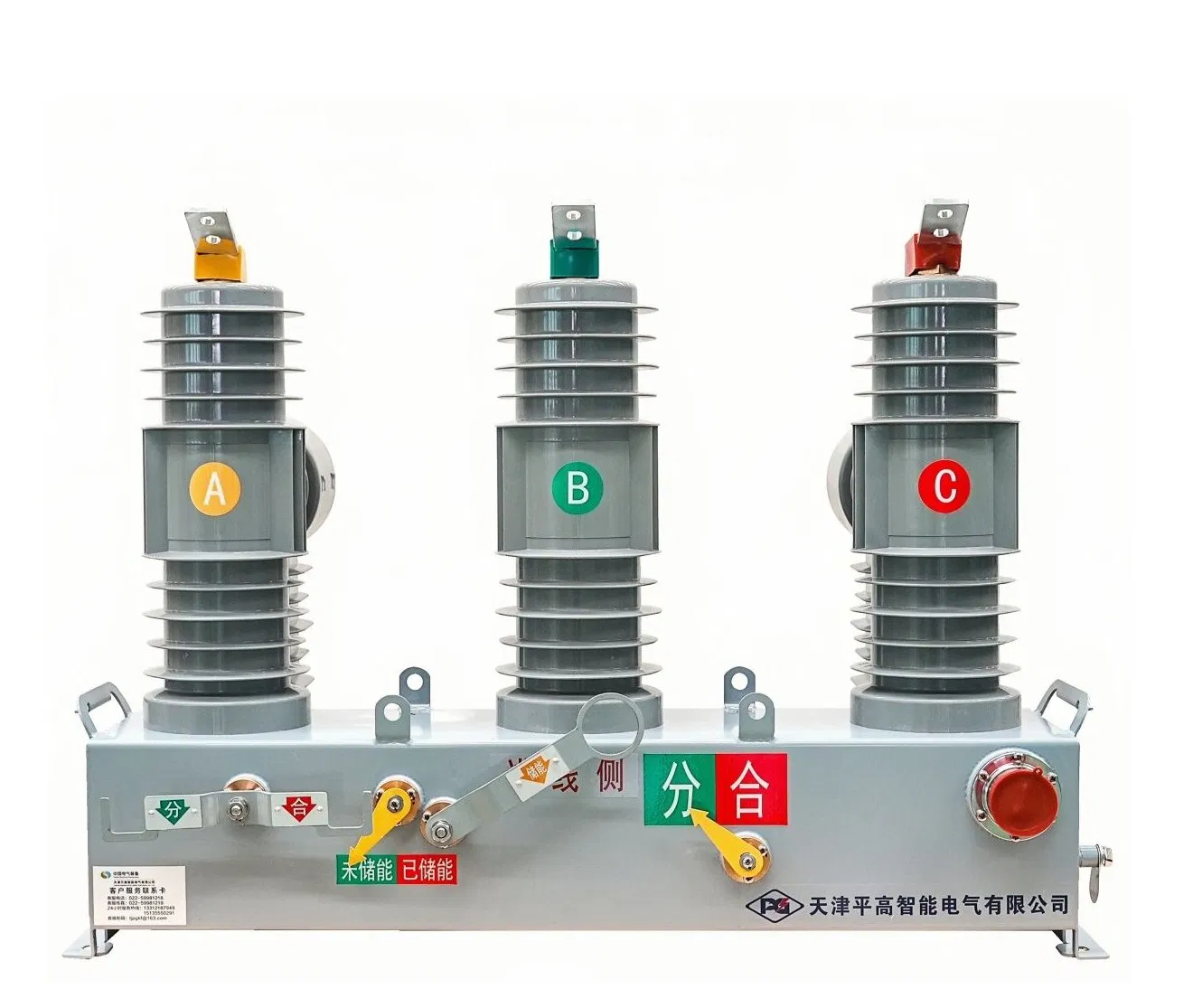

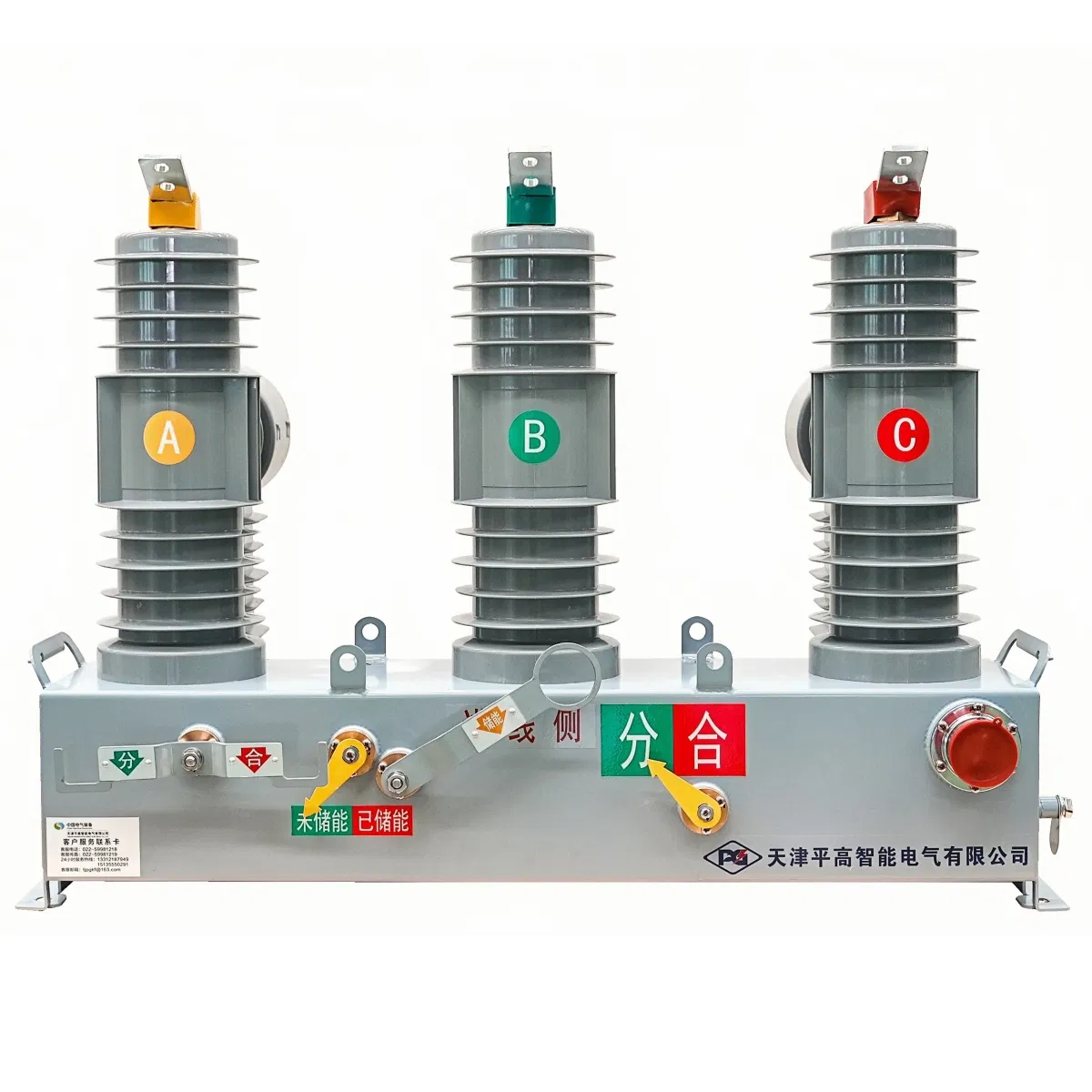

Product name: ZW32-12 Outdoor AC Vacuum Circuit Breaker (Standard Fusion Type)
ZW32-12 product enjoys widespread market application due to its compact size, reliable operation, and absence of oil or SF6, among numerous advantages, making it extensively utilized in overhead distribution lines across various regions, earning broad recognition from grid users, and being selected as one of the standardized schemes. Our product, building upon the original design, enhances its protection capabilities and intelligent interface, meeting the requirements for intelligent and customized distribution networks.
Features and advantages:
The current-voltage integrated sensor enables a modular product structure, characterized by high accuracy and the integration of measurement, metering, and protection functions. It is available in three sensor forms: electromagnetic, electronic, and digital.
| Item | Unit | Parameter |
|---|---|---|
| Rated voltage | kV | 12 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630 |
| Rated short-circuit breaking current | kA | 20/25 |
| Rated short-circuit making current | kA | 50/63 |
| Rated peak withstand current | kA | 50/63 |
| Mechanical life (Spring) | Times | 10000 |
| Protection level | - | IP65 |
