| System Configuration Specifications | |
|---|---|
| Model | UNIVERSAL AIR CIRCUIT BREAKER |
| Design serial | Standard type |
| Frame rating current (A) | 2000/2500/ 2500U /3200 /4000 /6300 |
| Number of poles | 3P: 3 poles; 4P: 4 poles; 3P+N (3P + connect to external neutral) line current transformer |
| Intelligent controller (L type) | L type: LED display current, overload long/short delay protection |
| Intelligent controller (M type) | M: LCD type, LCD screen displaying current and voltage, adjust by buttons |
| Intelligent controller (H type) | H: LCD communication type, adding communication function to M type |
| Intelligent controller (Type code) | C: Drawout type; G: Fixed type |
| Installation method | Under voltage tripper, vertical inlet and outlet busbars, mechanical interlocking, door interlocking, breaking position key lock, external current transformer of neutral line N, DC power module, phase partition |
| Rated operational current (A) | 630, 800, 1000, 1250, 1600, 2000 (2000A frame) |
| Rated operational current (A) | 2000, 2500 (2500A, 2500U frame) |
| Rated operational current (A) | 2000, 2500, 2900, 3200 (3200A frame) |
| Rated operational current (A) | 3200, 3600, 4000 (Capacity-expanded type 4000 frame) |
| Rated operational current (A) | 4000, 5000, 6300 (6300A frame) |
| Rated operational current (A) | 3200, 3600, 4000 (Standard type 4000 frame) |
| Frequency | 50Hz/60Hz |
| TECHNICAL PARAMETER AND PERFORMANCE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Frame rating current Inm A | Rated current In A | Rated impulse voltage Uimp kV | Rated Ue V | Rated limit short-circuit breaking capacity Icu kA (o-co) | Rated service short-circuit breaking capacity Ics kA (o-co-co) | Rated short-time withstand current Icw KA(1s) delay 0.4s (o-co) | Power loss (In) W | ||||
| 400V | 660/690V | 400V | 660/690V | 400V | 660/690V | Fixed | Drawout | |||||
| ASKW1-2000 | 2000 | 630 | 12 | AC 50Hz /60Hz 400V 690V | 85 | 65 | 65 | 65 | 65 | 65 | 40 | 80 |
| 800 | 60 | 130 | ||||||||||
| 1000 | 90 | 205 | ||||||||||
| 1250 | 90 | 205 | ||||||||||
| 1600 | 140 | 310 | ||||||||||
| 2000 | 170 | 310 | ||||||||||
| ASKW1-2500 | 2500 | 2500 | 100 | 70 | 80 | 70 | 80 | 70 | 260 | 510 | ||
| ASKW1-2500U | 2500 | 2500 | 100 | 70 | 80 | 70 | 80 | 70 | 170 | 400 | ||
| ASKW1-3200 | 3200 | 2000 | 100 | 70 | 80 | 70 | 80 | 70 | 170 | 400 | ||
| 2500 | 260 | 510 | ||||||||||
| 2900 | 320 | 650 | ||||||||||
| 3200 | 420 | 760 | ||||||||||
| ASKW1-4000 | 4000 | 3200 | 100 | 70 | 80 | 70 | 80 | 70 | 430 | 780 | ||
| 3600 | 440 | 790 | ||||||||||
| 4000 | 450 | 800 | ||||||||||
| ASKW1-6300 | 6300 | 4000 | 120 | 85 | 100 | 85 | 100 | 85 | 1225 | |||
| 5000 | 1250 | |||||||||||
| 6300 | 1625 | |||||||||||
|
1. Arc distance is zero. 2. In this form, the breaking capacities of upper inlet and lower inlet are same. |
||||||||||||

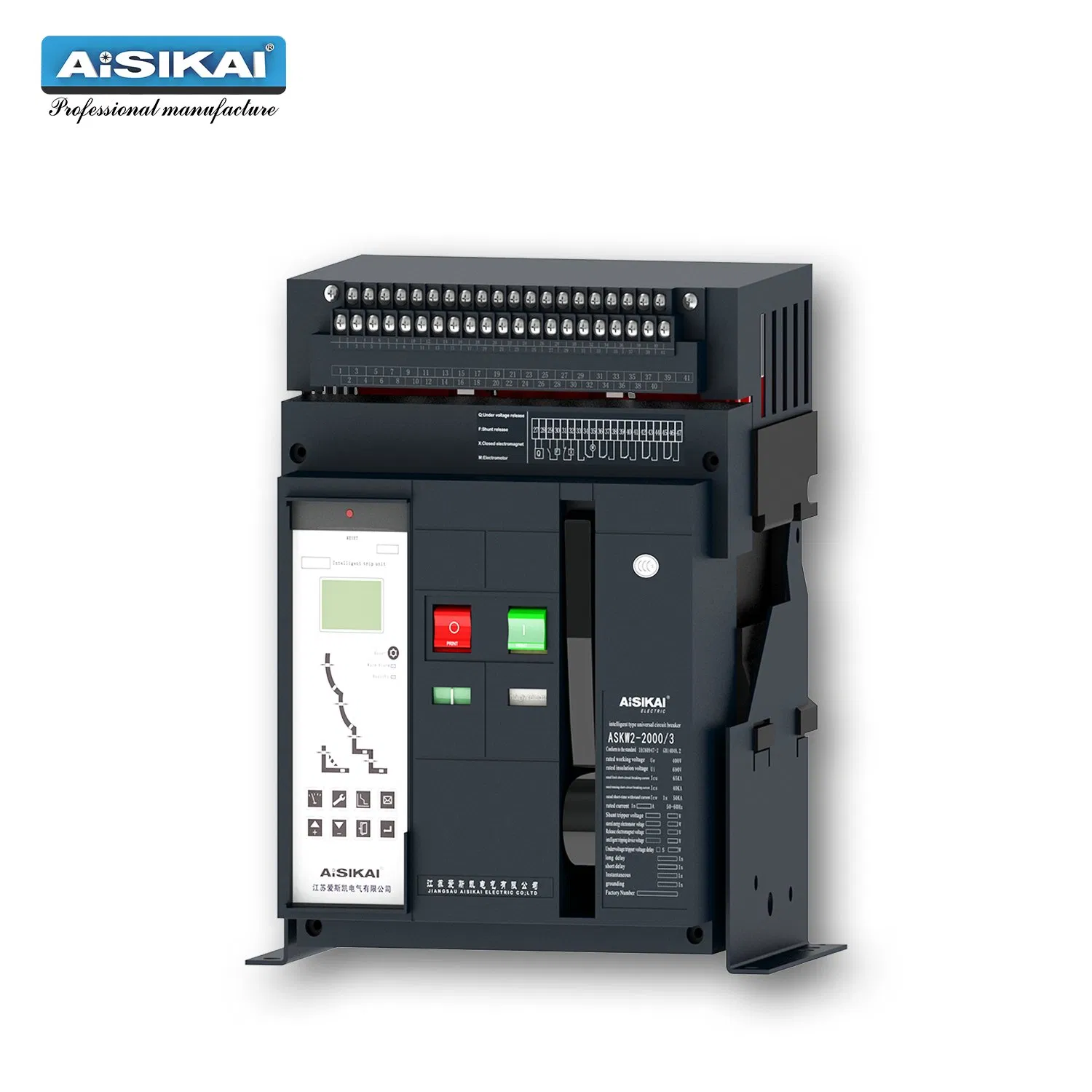

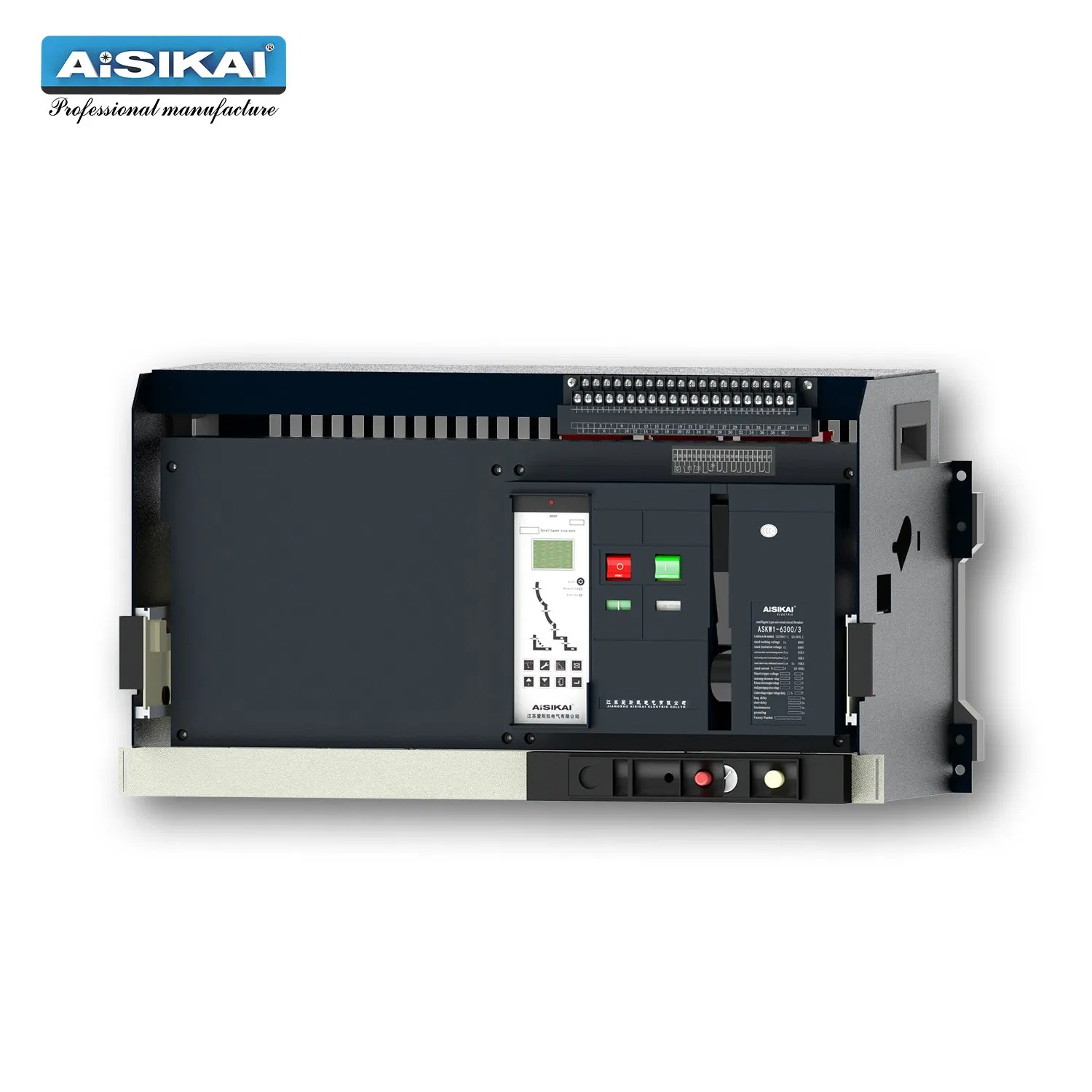

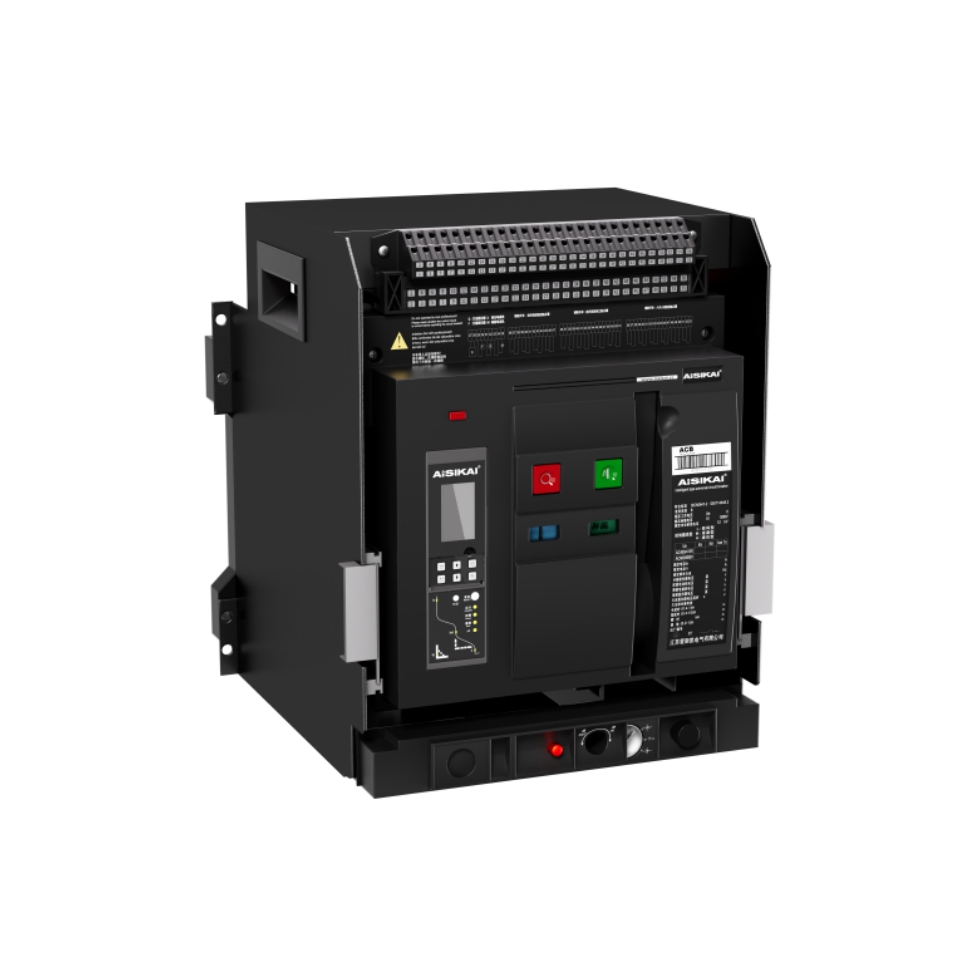

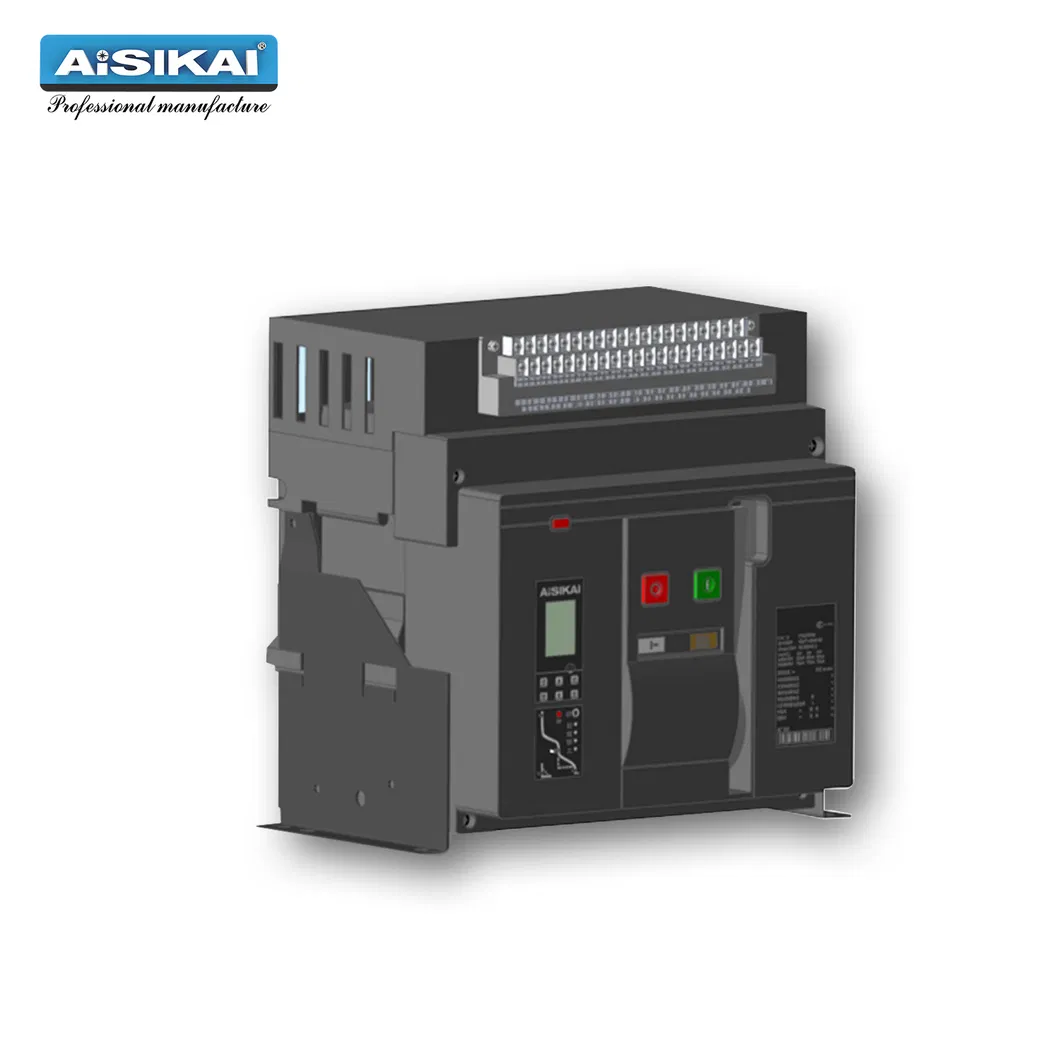

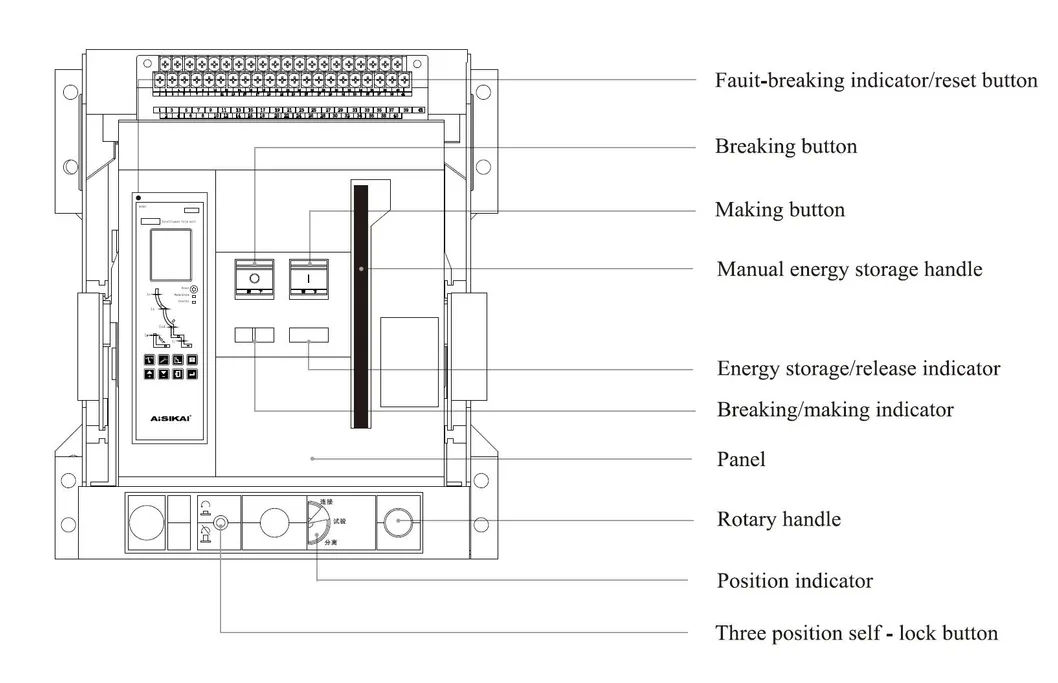

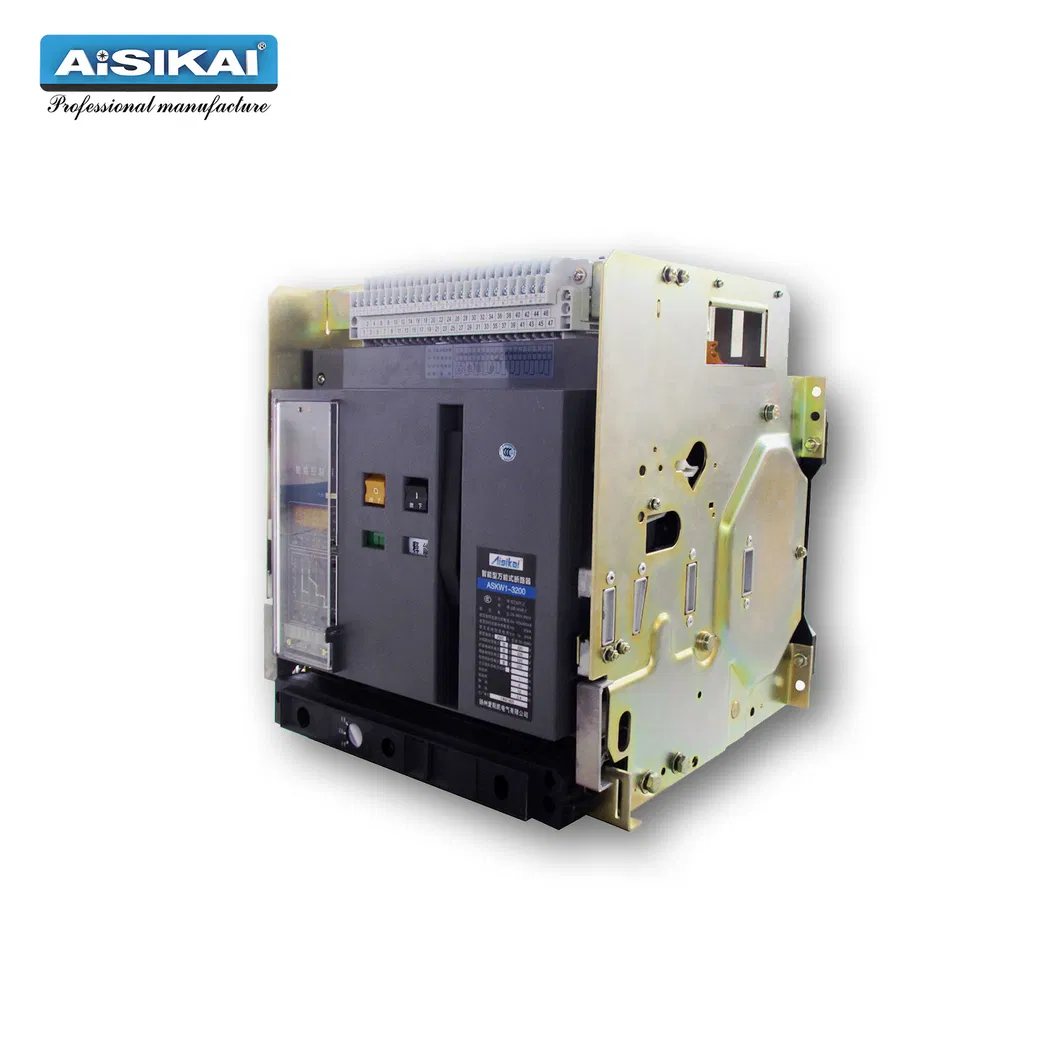

ASKW1 & ASKW2 Series Frame Type Universal Circuit Breaker covers current ranges from 200A to 6300A. It integrates a self-developed multi-functional intelligent liquid crystal controller, utilizing a Chinese/English display setup that ensures the operator interface is highly accessible, clear, and easy to configure.

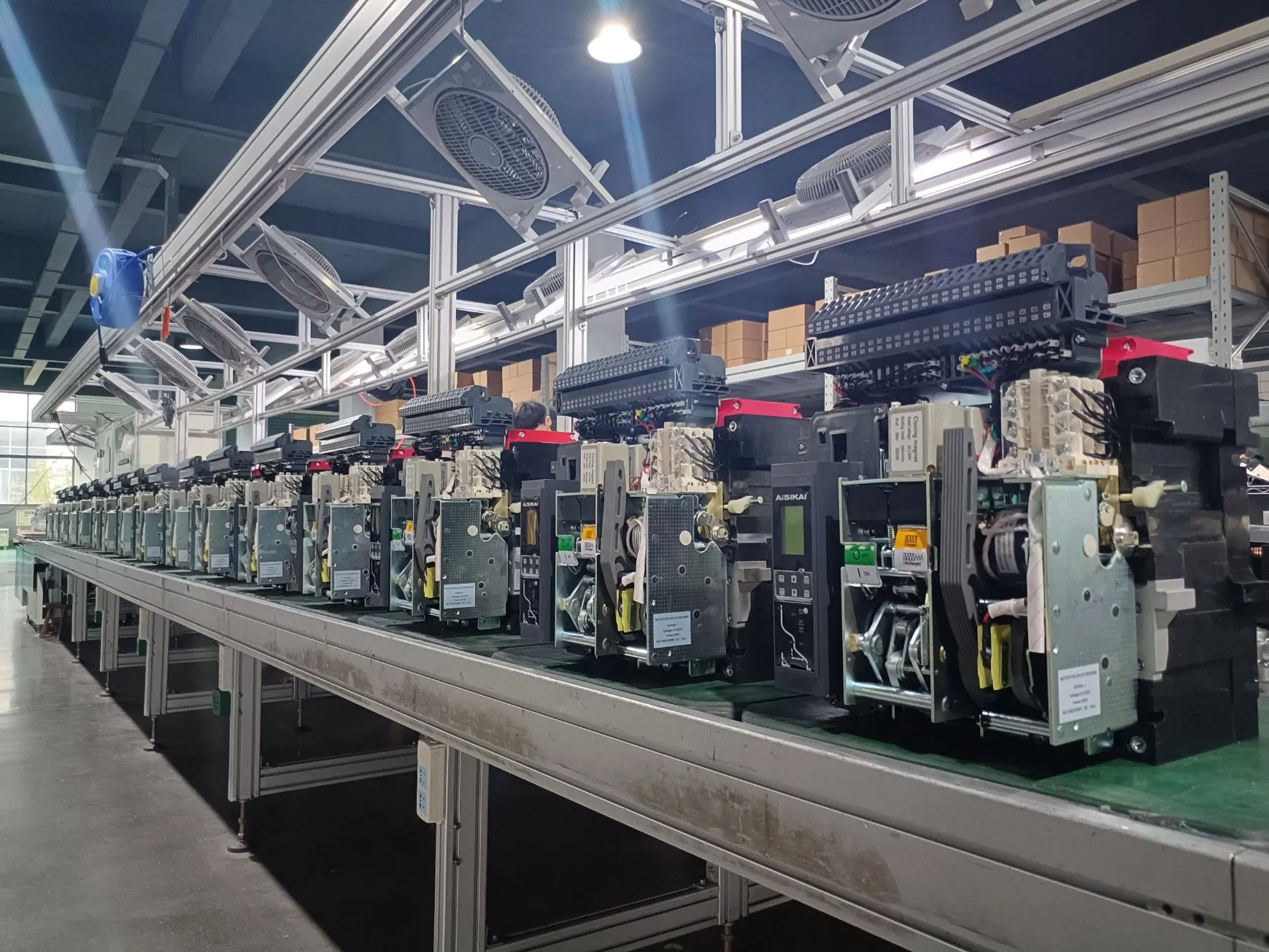

Focusing on the design, research, development, and precise manufacturing of low-voltage electrical products ensures maximum safety and performance. Continual product evolution focuses heavily on safety, reliability, and satisfying customer specifications. Advanced automated assembly lines and rigorous production rules ensure that every single product is 100% qualified before release.
| Dimensions Diagram Parameters | |||
|---|---|---|---|
| Inm | a (mm) | b (mm) | c (mm) |
| 2000-3P/4P | 306 | 173 | 346 |
| 2500(Economical)-3P/4P | 306 | 173 | 346 |
| 2500(Residential power distribution type)-3P/4P | 366 | 202.5 | 405 |
| 3200-3P/4P | 366 | 202.5 | 405 |
| 4000-3P | 366 | 202.5 | 405 |
| 4000-4P | 306 | 173 | 346 |
| 6300-5000A/3P/4P | 366 | 202.5 | 405 |
| 6300-6300A/3P/4P | 366 | 202.5 | 405 |
