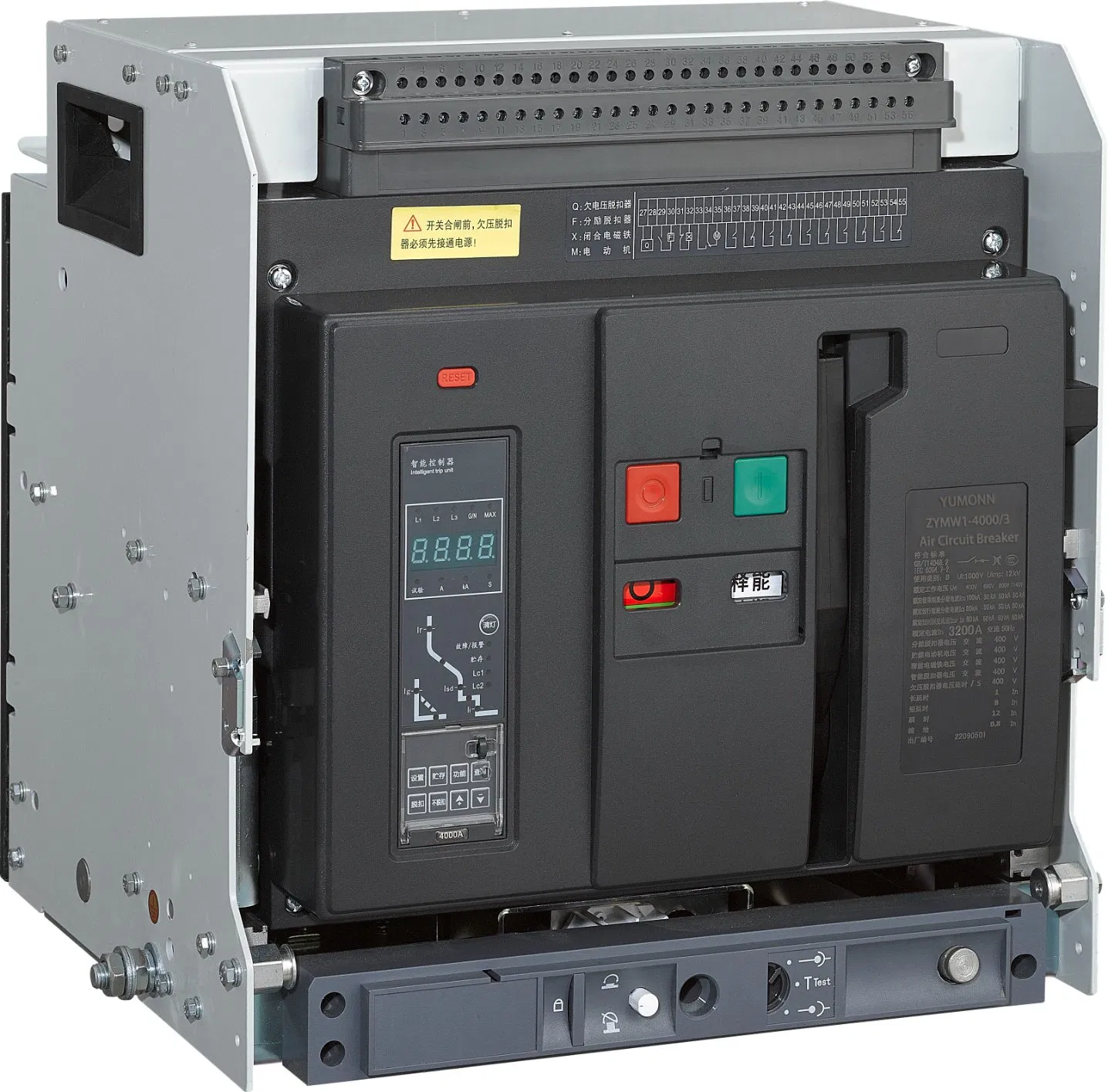

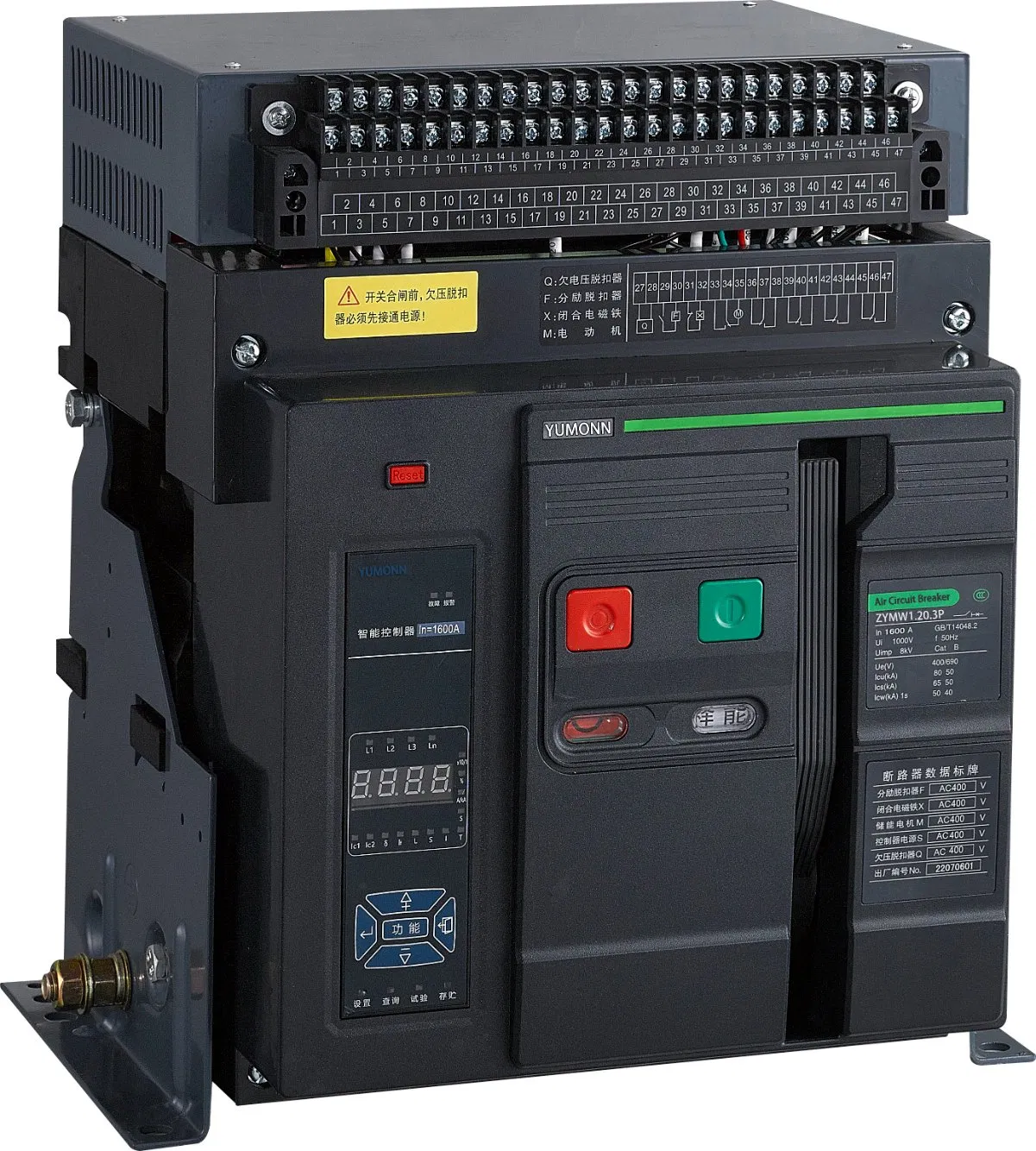

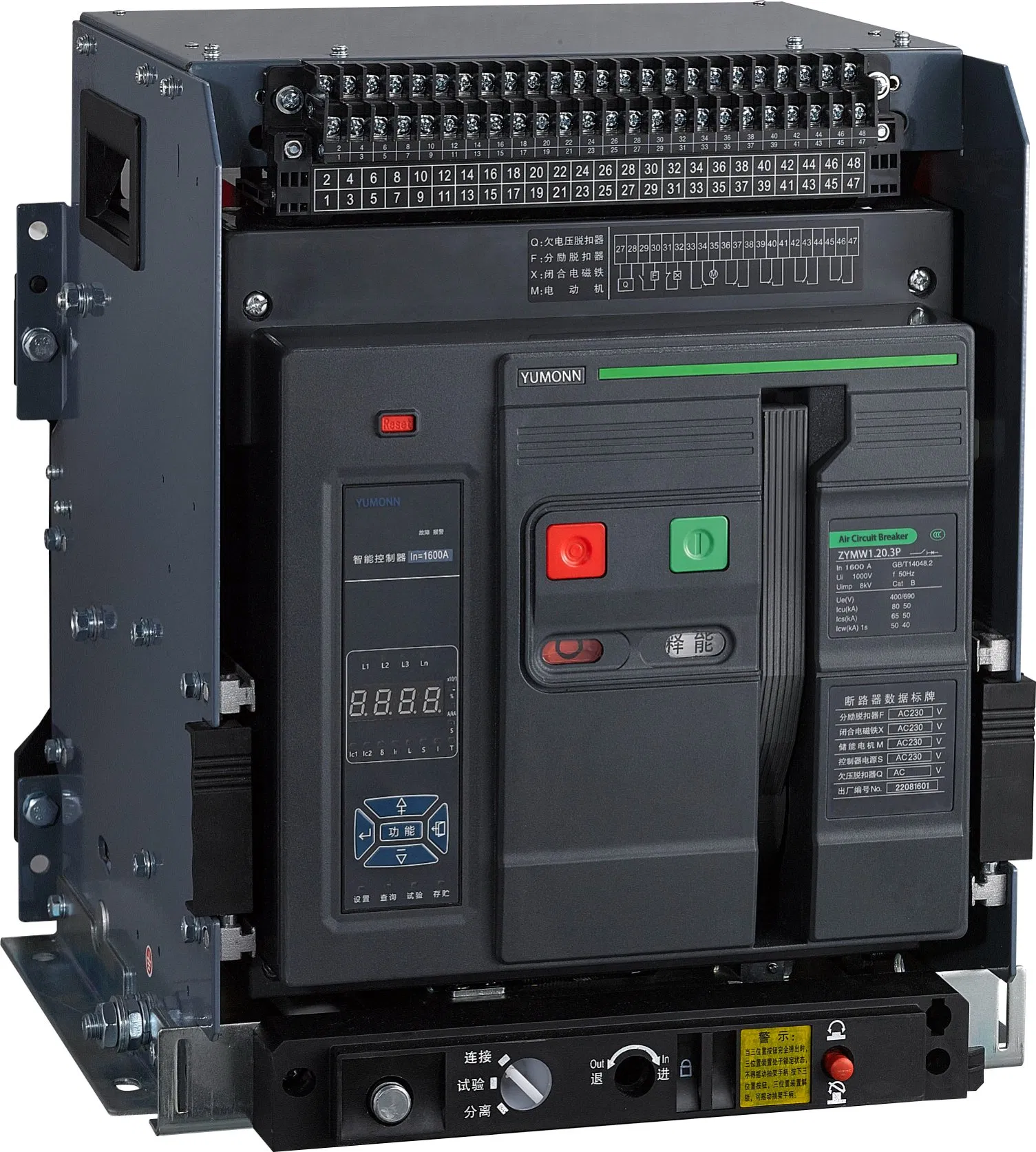

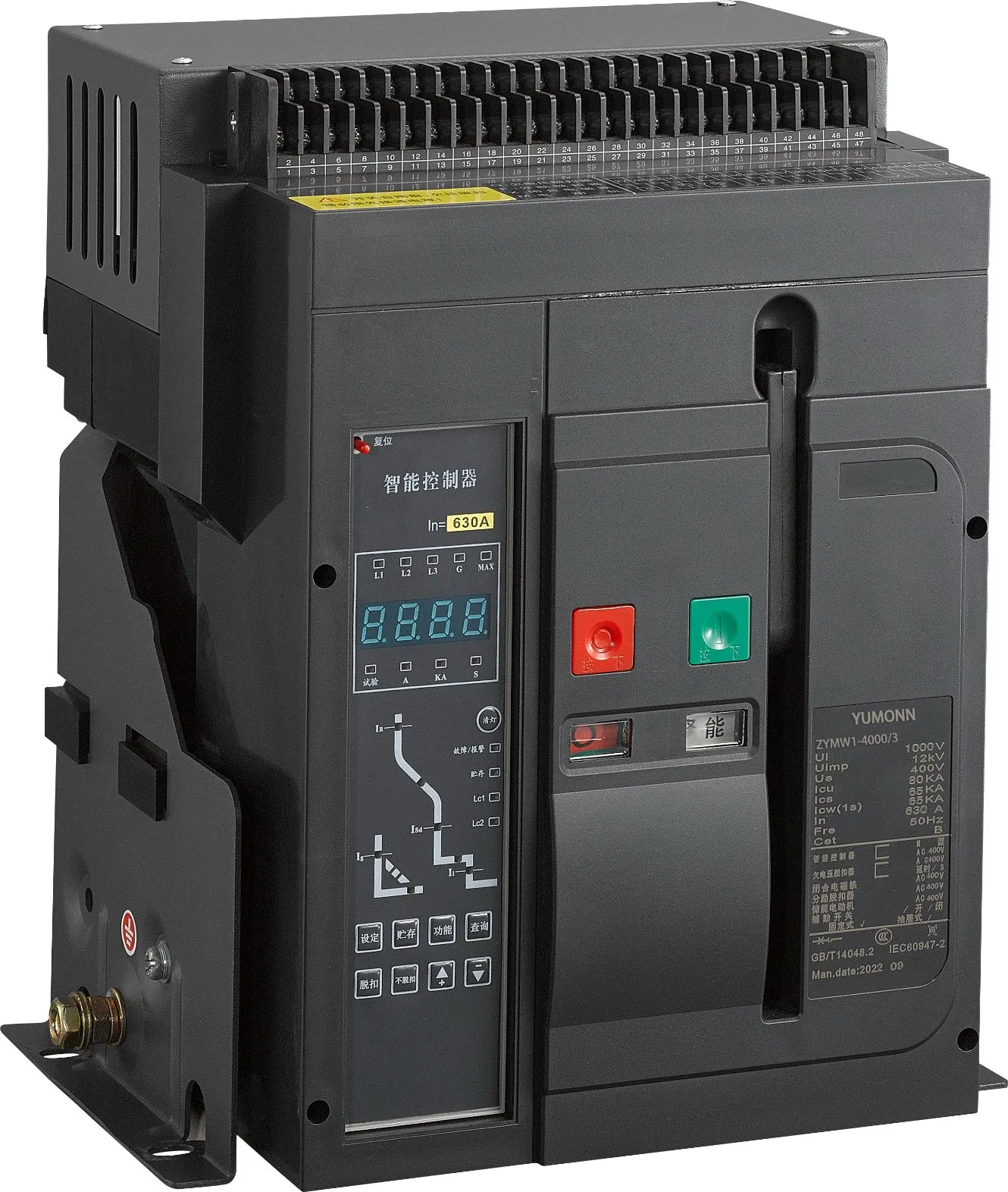

The Air Circuit Breaker (ACB) is a vital component in modern electrical systems, designed to provide reliable protection and efficient management of electrical circuits. Engineered for safety and durability, ACBs are essential in safeguarding electrical infrastructure in industrial, commercial, and residential settings.
| No. | Specification | Details |
|---|---|---|
| 1 | Rated current | 630A-6300A |
| 2 | Rated insulating voltage | AC 800V |
| 3 | Rated impulse withstand voltage | AC 8000V |
| 4 | Rated working voltage | AC 400V |
| 5 | Breaking capacity | 35/50KA |
| 6 | Metal parts materials | Steel/brass/copper |
| 7 | Insulating materials | DMC |
| 8 | Color | White/bright grey/dark grey/black |
| 9 | Fire rating | Flame retardant/Non flame retardant |
| 10 | Electrical life | 600~2000 times |
| 11 | Mechanical life | 2000~7000 times |
| 12 | Certificate | ISO9001 |
| 13 | Warranty | 2 years |
| 14 | Price | Negotiation |
W1 Series Intelligent Low Voltage Air Circuit Breakers (hereinafter referred to as circuit breakers) are suitable for frequency of AC 50Hz, rated voltage up to 660V (690V) and below, and rated current from 200A to 6300A. It is used to distribute electric energy and protect lines and electric equipment from overload, undervoltage, short circuit, single-phase grounding and other faults. With intelligent protection functions and precise selective protection, the circuit breaker can improve the reliability of power supply and avoid unnecessary power outages.
At the same time, it has an open type communication interface for four-remote operation to meet the requirements of the control centre and automation system. The impulse withstand voltage of the circuit breaker is 8000V at 2000 metres above sea level (according to the standard correction for different altitudes, the impulse withstand voltage is 8000V at 2000 metres above sea level, and the maximum voltage does not exceed 12000V). The circuit breaker complies with GB 14048.2 'Low-voltage switchgear and controlgear Part 2: Circuit breakers' and IEC60947 'Low-voltage switchgear and controlgear Part 3: Circuit breakers' and other standards.
| Rated frame current Inm A | Rated frame current Inm A Detail Options |
|---|---|
| 2000 | 400, 630, 800, 1000, 1250, 1600, 2000 |
| 3200 | 2000, 2500, 2900, 3200 |
| 4000 | 3200, 3600, 4000 |
| 6300 | 4000, 5000, 6300 |

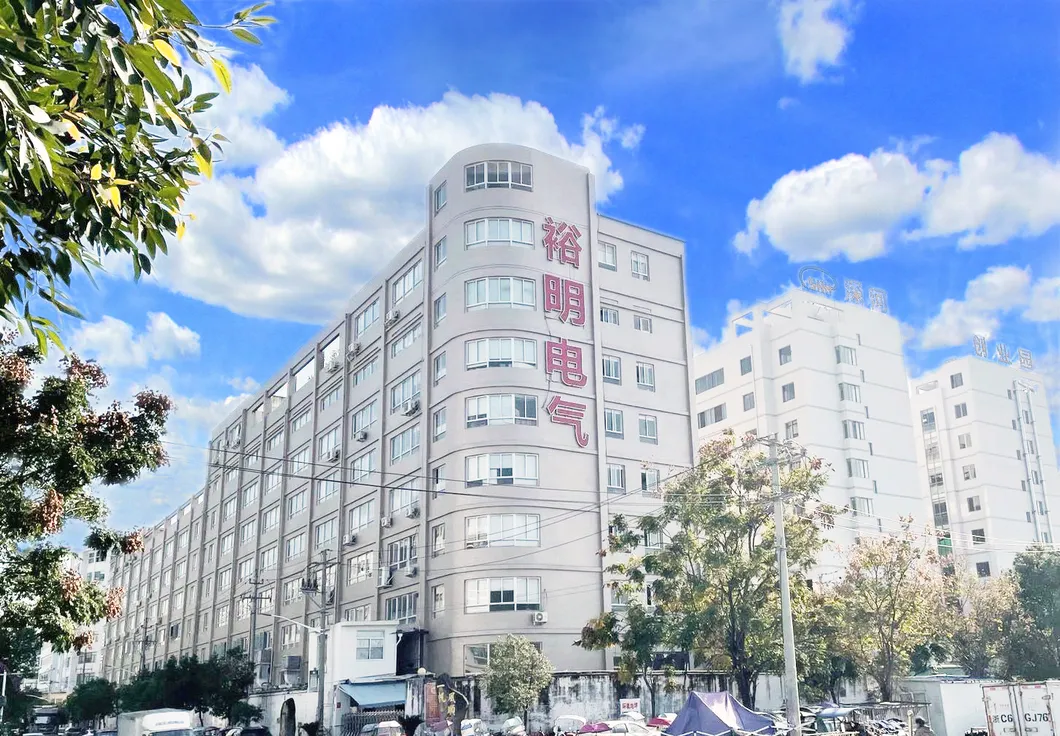

We founded in 2013, with our mother factory operating as one of the professional manufacturers in the electrical manufacturing industry for over 23 years, covering a total area of around 10,000m².
We are an integrated industrial & trading enterprise for design, production, sales and customized service. We are specialized in developing and manufacturing each metal part of Air Circuit Breaker, Earth Leakage Circuit Breaker and Electronic Mould Case Circuit Breaker series, and assembling the finished products.
Since inception, we comply with the quality policy: "technical innovation makes quality better, quality system makes quality steady, high grade service makes quality realistic".

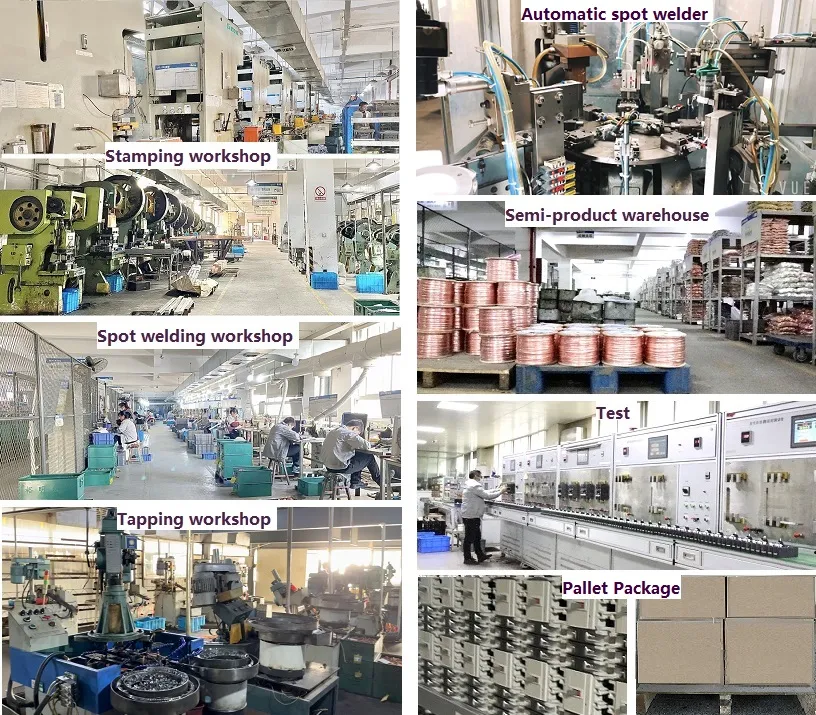

With important processes integrated into the production of intelligent devices, we implement quality management strictly according to ISO9001 standards and rely on an experienced technical team for development projects, ensuring a highly stable and premium supply of products.
Our products are widely used in petroleum, chemical, power, building, machinery and metallurgical industries. We provide professional and efficient customized services with our strong R&D capability, technical support capability and mold manufacturing capabilities to build interdependent, mutual benefit and win-win friendly partnerships.
Our corporate tenet is: Better competitive, Better lead time, Better service.
