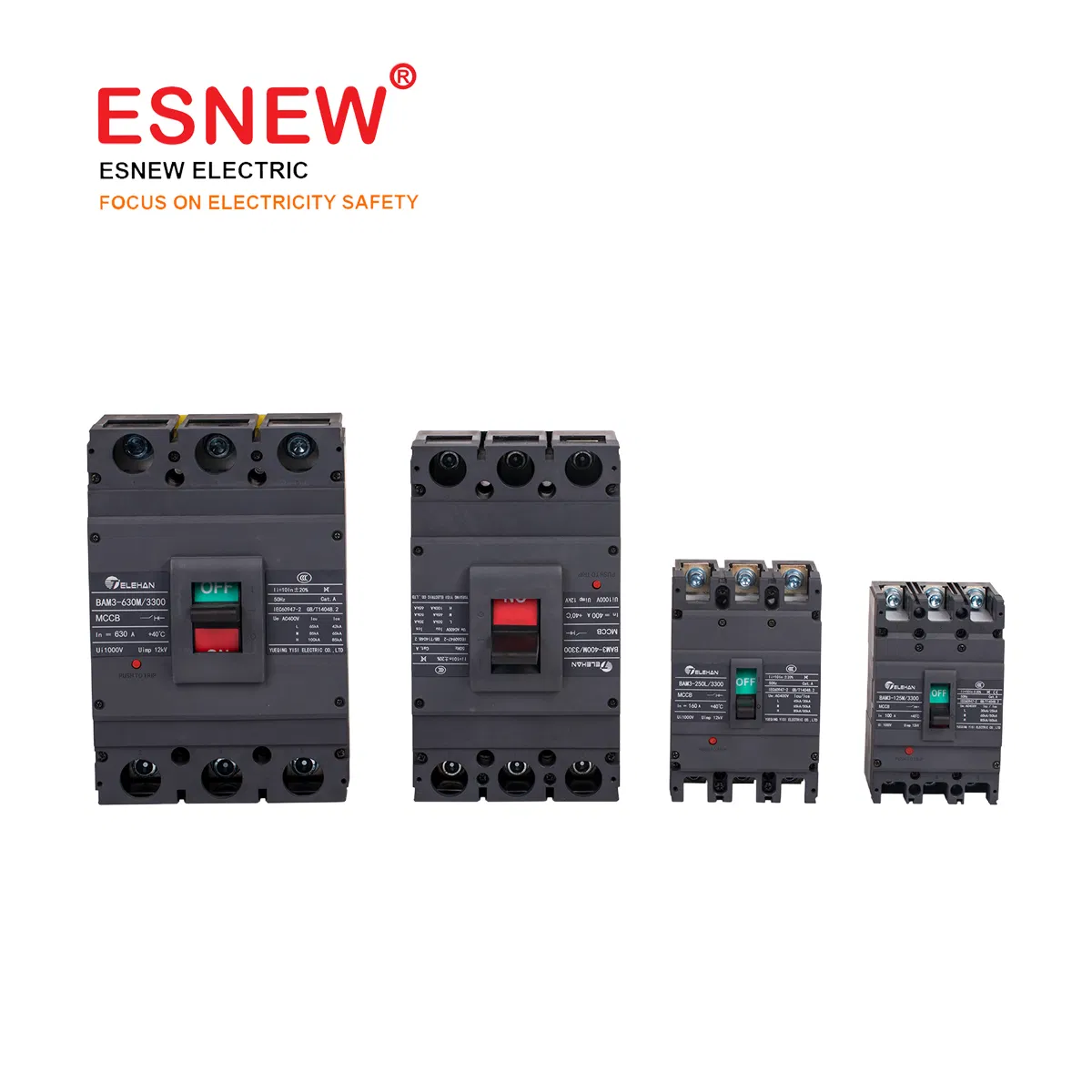

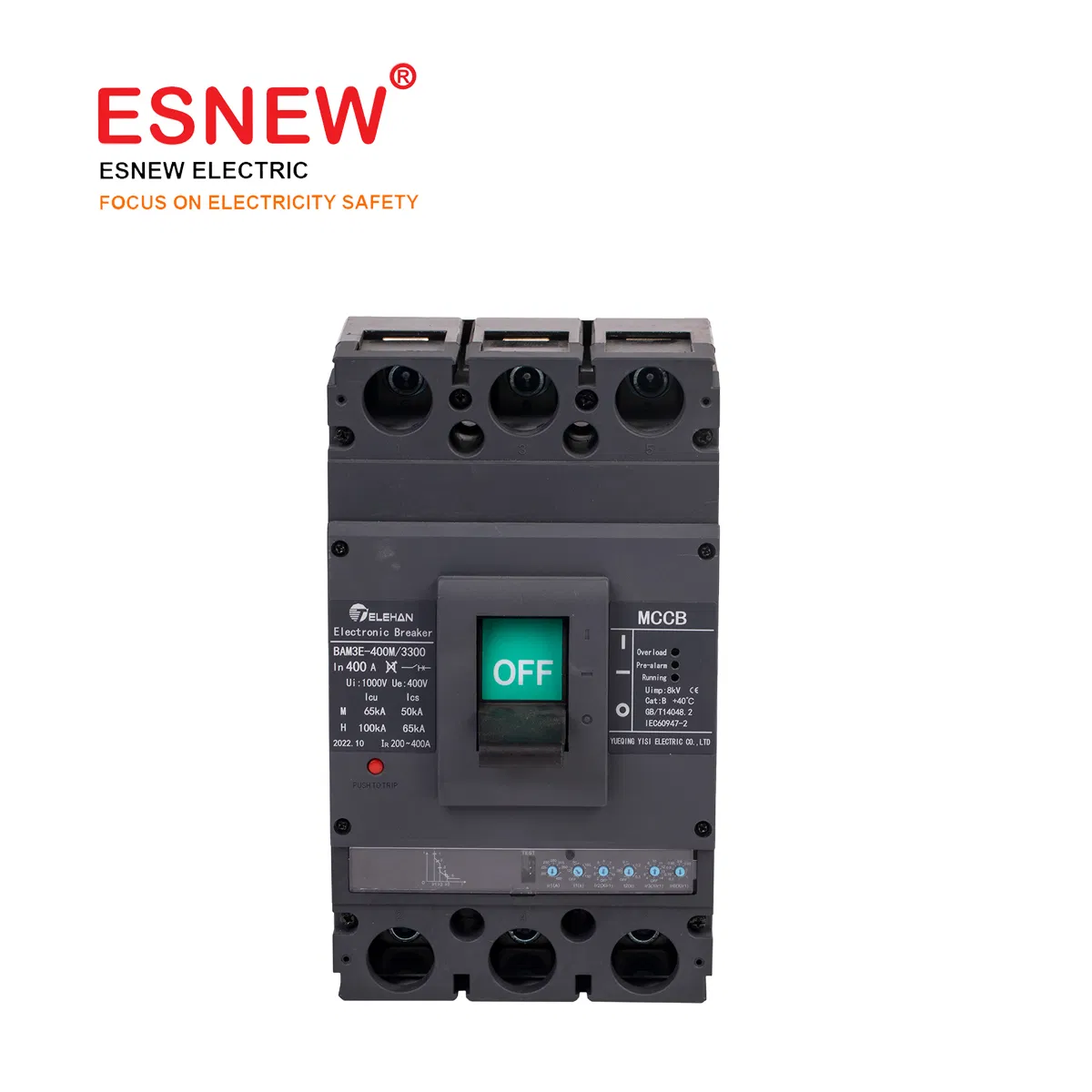

AC 800V, 1000V, 1140V BAW5HU, PV AC Molded Case Circuit Breaker, MCCB, Breaker switch, Wind energy MCCB
BAW5HU series high-voltage circuit breakers (hereinafter referred to as circuit breakers) are used in high-voltage power grid circuits with rated voltages of 800V, 1000V, 1140V, and rated operating currents of 63A to 800A. This circuit breaker has overload and short circuit instantaneous protection functions, used to distribute electrical energy and protect lines and power equipment from overload, short circuit, and other fault hazards.
| Working Conditions and Installation | |
|---|---|
| Ambient Temperature | The allowable ambient temperature is not higher than +70°C and not lower than -45°C; (If the capacity is reduced by more than +40°C, the details must be negotiated with the manufacturer) |
| Atmospheric Conditions | When the ambient temperature is 40°C, the relative humidity of the atmosphere does not exceed 50% and higher relative humidity is allowed at lower temperatures; e.g., 90% at 20°C, taking into account condensation on the product surface due to temperature changes. |
| Class of Pollution | Class 3 |
| Installation Category | III |
| Magnetic Field for Installation |
1. The magnetic field at the installation position shall not exceed 5 field in any direction; 2. In a medium without explosion risk, and without gas and conductive dust sufficient to corrode metal and damage insulation; 3. Where there is no wind or snow erosion. |
| Installation Conditions |
1. Can be installed horizontally and vertically; 2. The installation site should be free of significant impact and vibration, and should not be installed in flammable and explosive places. |

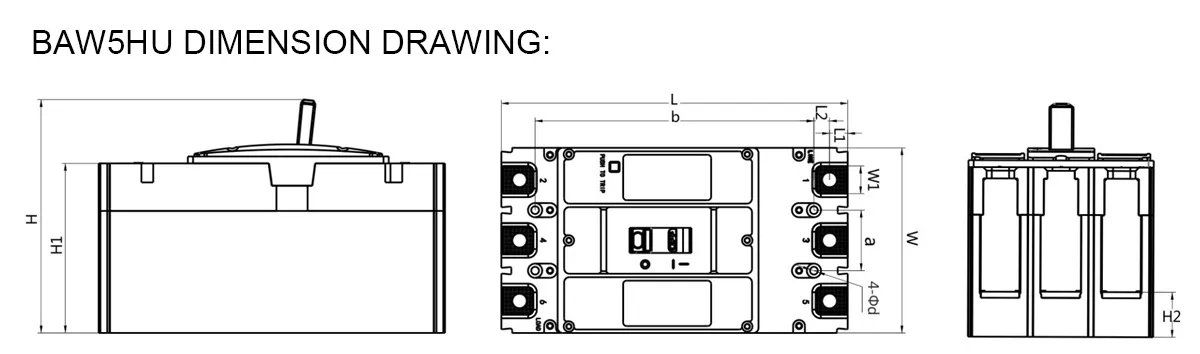

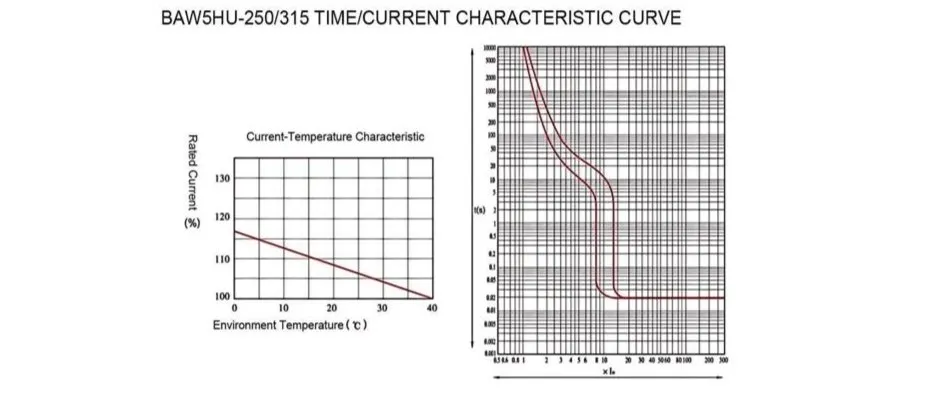

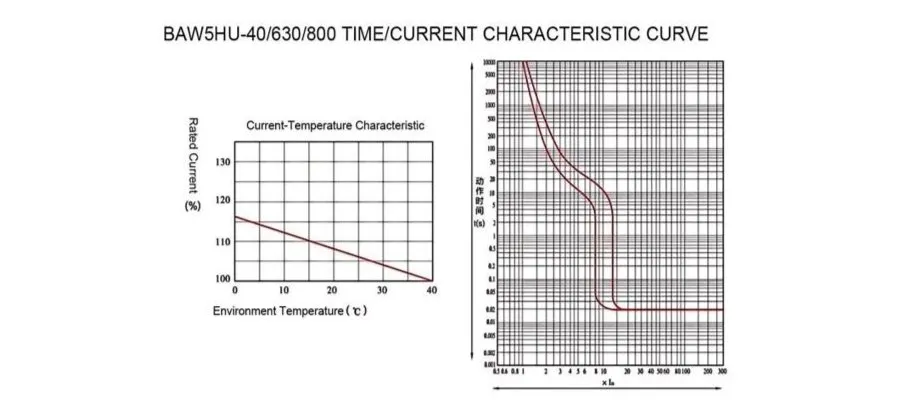

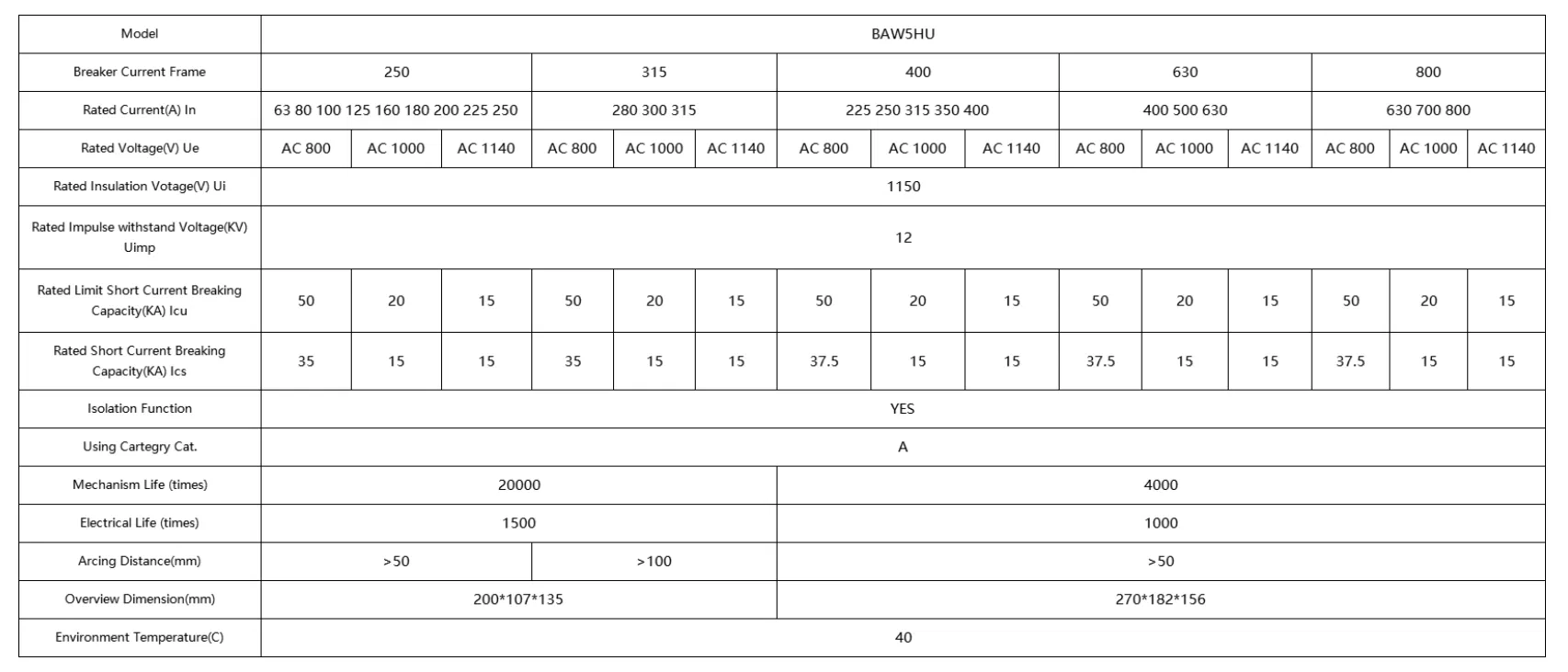

| Model & Spec. | BAW5HU-250 | BAW5HU-315 | BAW5HU-400 | BAW5HU-630 | BAW5HU-800 | |
|---|---|---|---|---|---|---|
| Over Dimension (mm) | L | 200 | 270 | |||
| W | 107 | 180 | ||||
| H | 135 | 156 | ||||
| L1 | 10.5 | 18 | ||||
| L2 | 9.5 | 18 | ||||
| W1 | 22 | 41 | ||||
| H1 | 98 | 118 | ||||
| H2 | 26 | 29 | ||||
| Installation Dimension | a | 35 | 58 | |||
| b | 160 | 200 | ||||
| 4-ød | ø4 | ø7 | ||||
| BAW5HU series MCCB installation section area | |
|---|---|
| Current(A) | Section Area(mm²) |
| 63 | 16 |
| 80 | 25 |
| 100 | 35 |
| 125/400 | 50 |
| 160 | 70 |
| 180/200/225 | 95 |
| 250 | 20×5 |
| 280/300/315 | 20×5×2 |
| 350/400 | 40×5 |
| 500/630 | 40×8 |
| 700/800 | 40×5×2 |

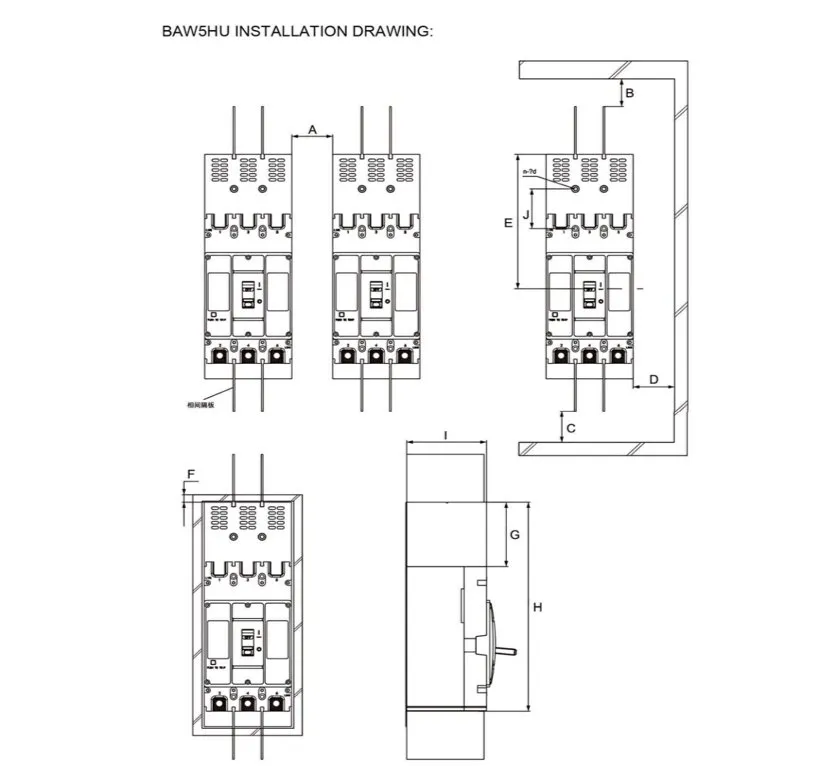

| DISTANCE (mm) | Model & Spec. | BAW5HU-250 | BAW5HU-315 | BAW5HU-400 | BAW5HU-630 | BAW5HU-800 |
|---|---|---|---|---|---|---|
| A | 30 | 30 | ||||
| B | 30 | 30 | ||||
| C | 30 | 30 | ||||
| D | 30 | 30 | ||||
| E | 188 | 185 | ||||
| F | 13 | 13 | ||||
| G | 80 | 50 | ||||
| H | 280 | 320 | ||||
| I | 94 | 118 | ||||
| J | 53 | 60 | ||||
| 4-ød | 2-ø4.5 | 4-ø4.5 | ||||
| Packing Size | 70cm * 60cm * 60cm |
| Packing Gross Weight | 10kg |

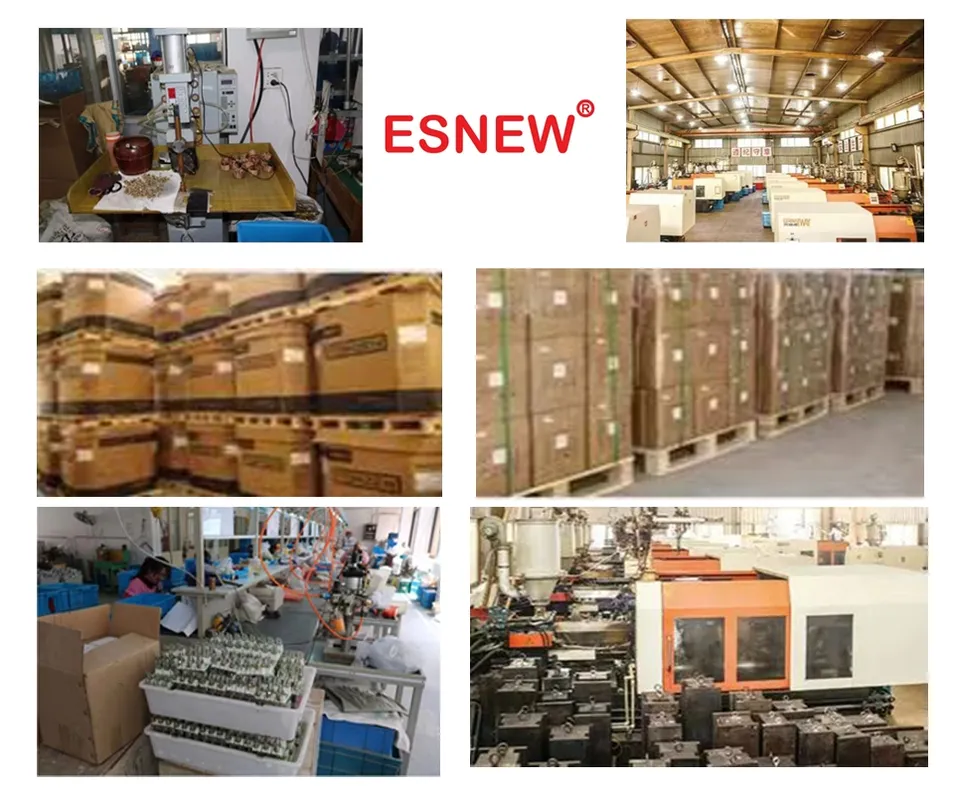

We are a professional manufacturer of cabinet accessories, electrical automation components, high-voltage electrical components, and new energy photovoltaic system products such as circuit breaker, fuses, contactors, relays, heat shrinkable tubing, PV connectors, wire connectors and terminals etc. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in industrial automatic, home using, gardening area and other industries. With well-equipped testing facilities and strong technical force.
