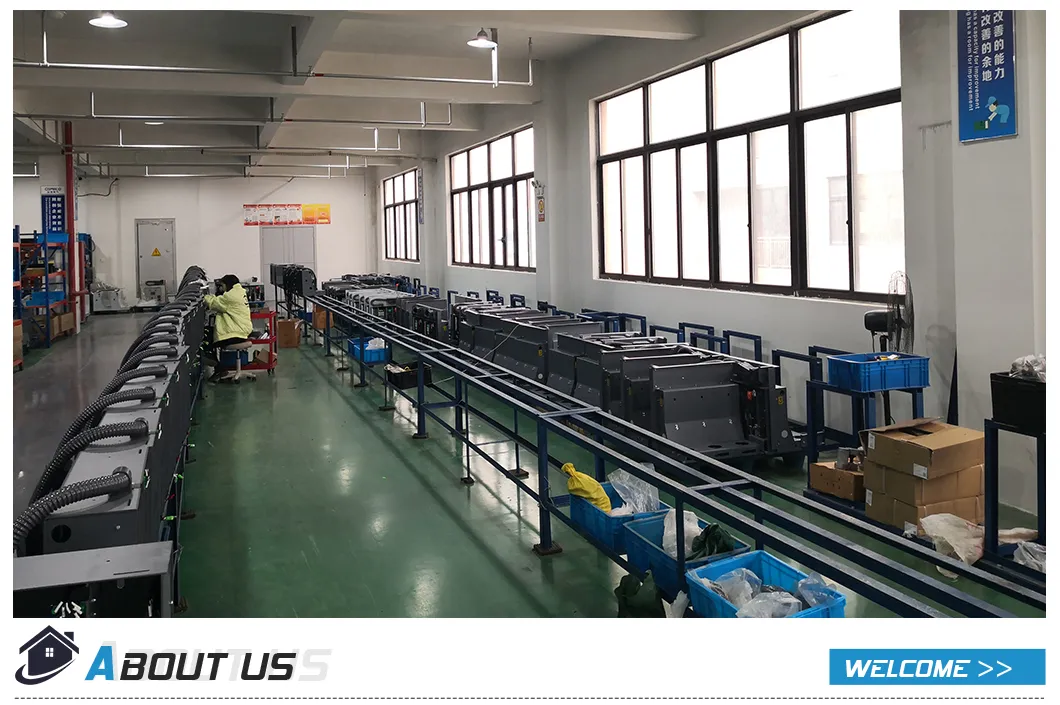

- Our Factory
- Company Advantage
- Our Certificates

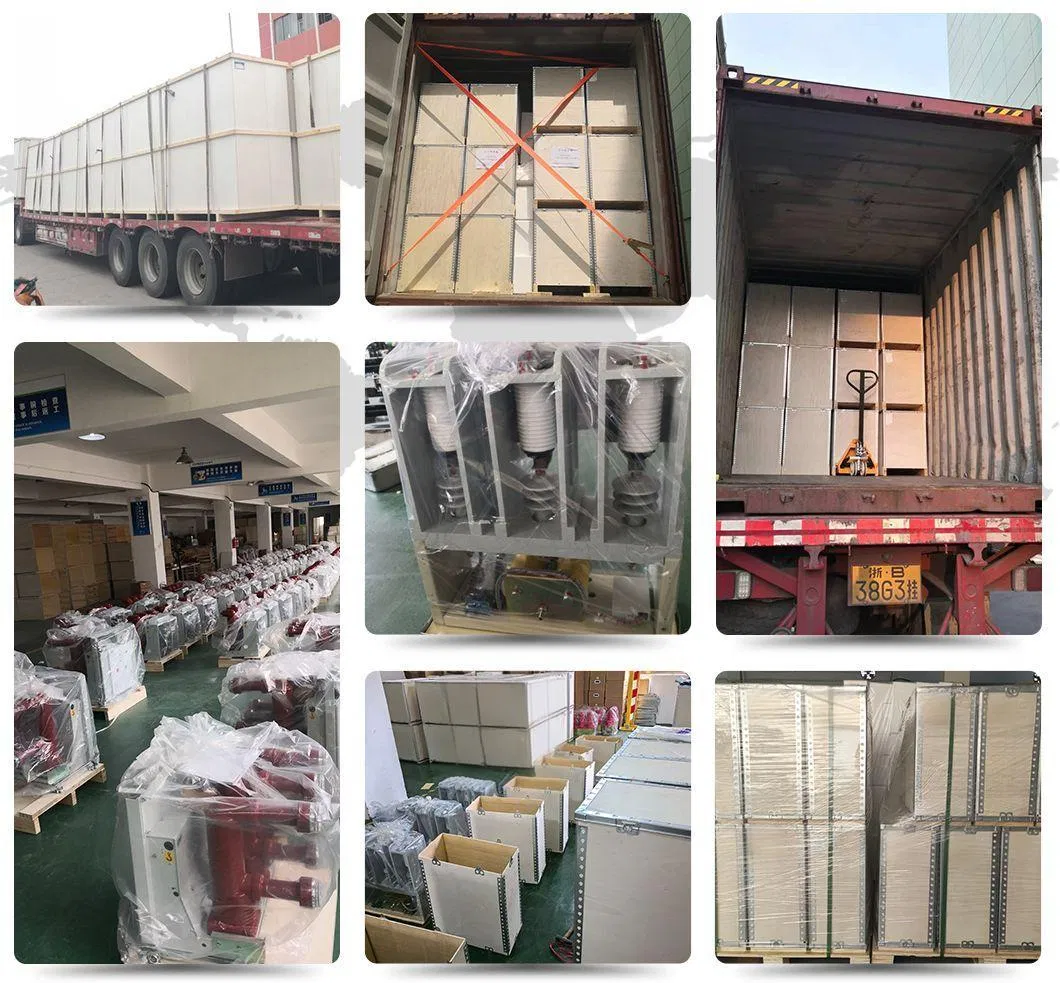

- Packaging & Shipping
- FAQ

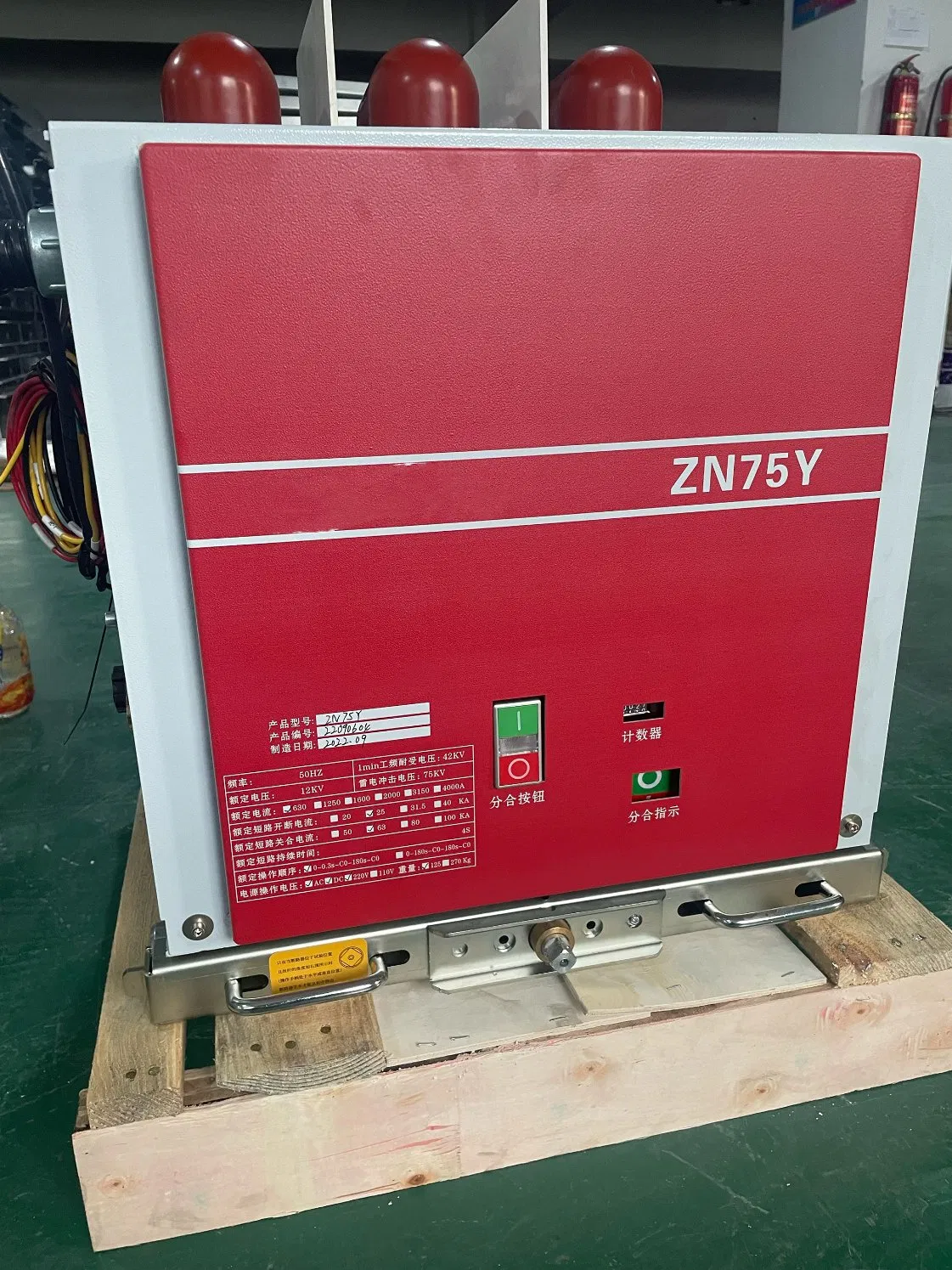

Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Vacuum
Function
Conventional Circuit Breaker, Failure Protection, Overcurrent Protection, OVP, Undervoltage, Anti-Jumping
Certification
ISO9001-2000, CE, GB1984-2003
Payment
T/T, L/C or Negotiation
Trade Term
FOB, EXW, C&F, FCA or Negotiation
Rated Short-Circuit Breaking Current
20, 25, 31.5, 40ka
Rated Current
630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A
Rated Voltage
12kv, 24kv, 35kv
Polar Distance
150mm, 180mm, 210mm, 300mm or Customization
Transport Package
Plastic Bag & Wooden Case or as Requested
Specification
Steel, Copper, Ceramic, epoxy resin
Production Capacity
2000PCS Per Month
Package Size
700.00cm * 550.00cm * 800.00cm
Package Gross Weight
75.000kg

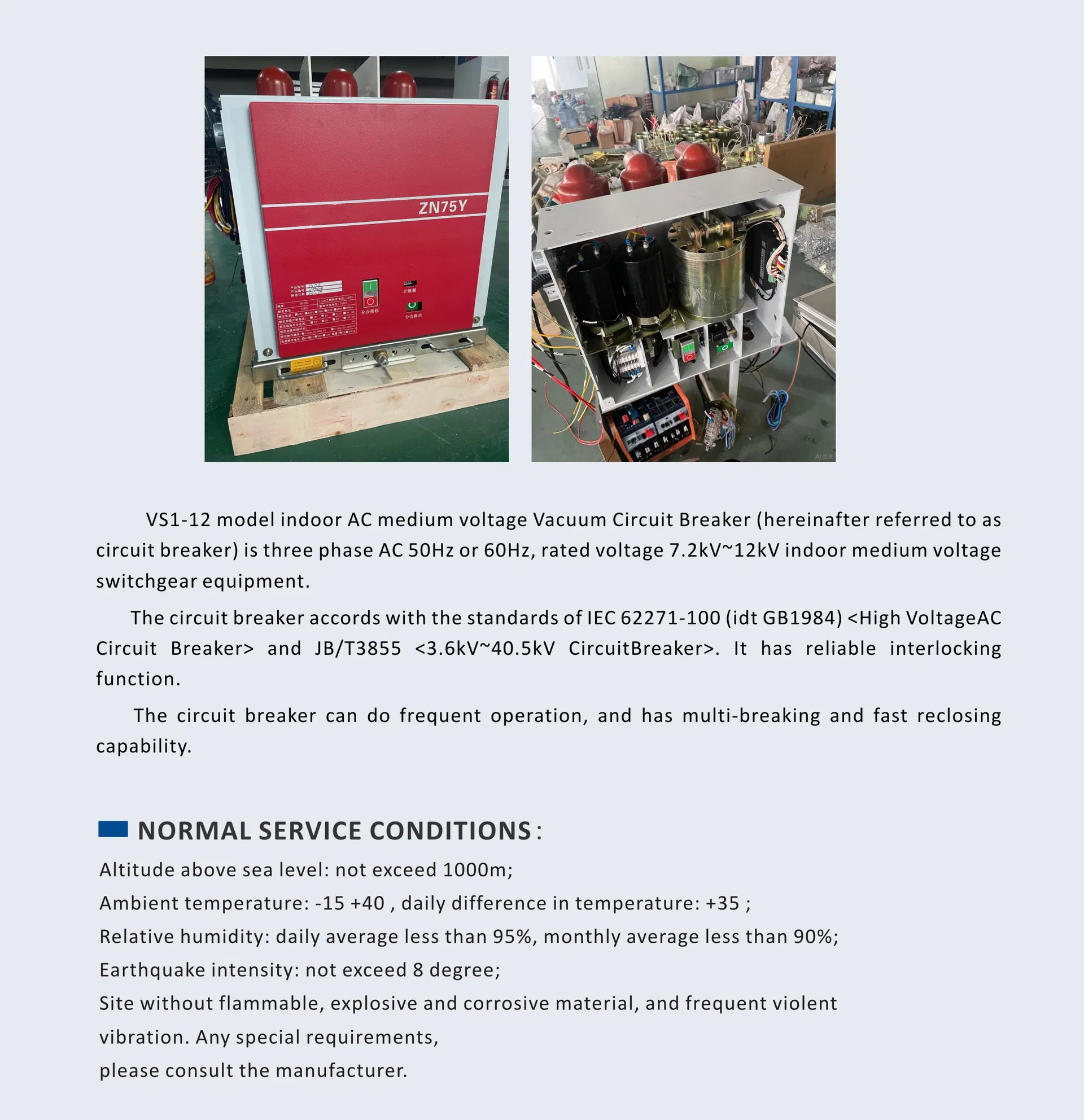

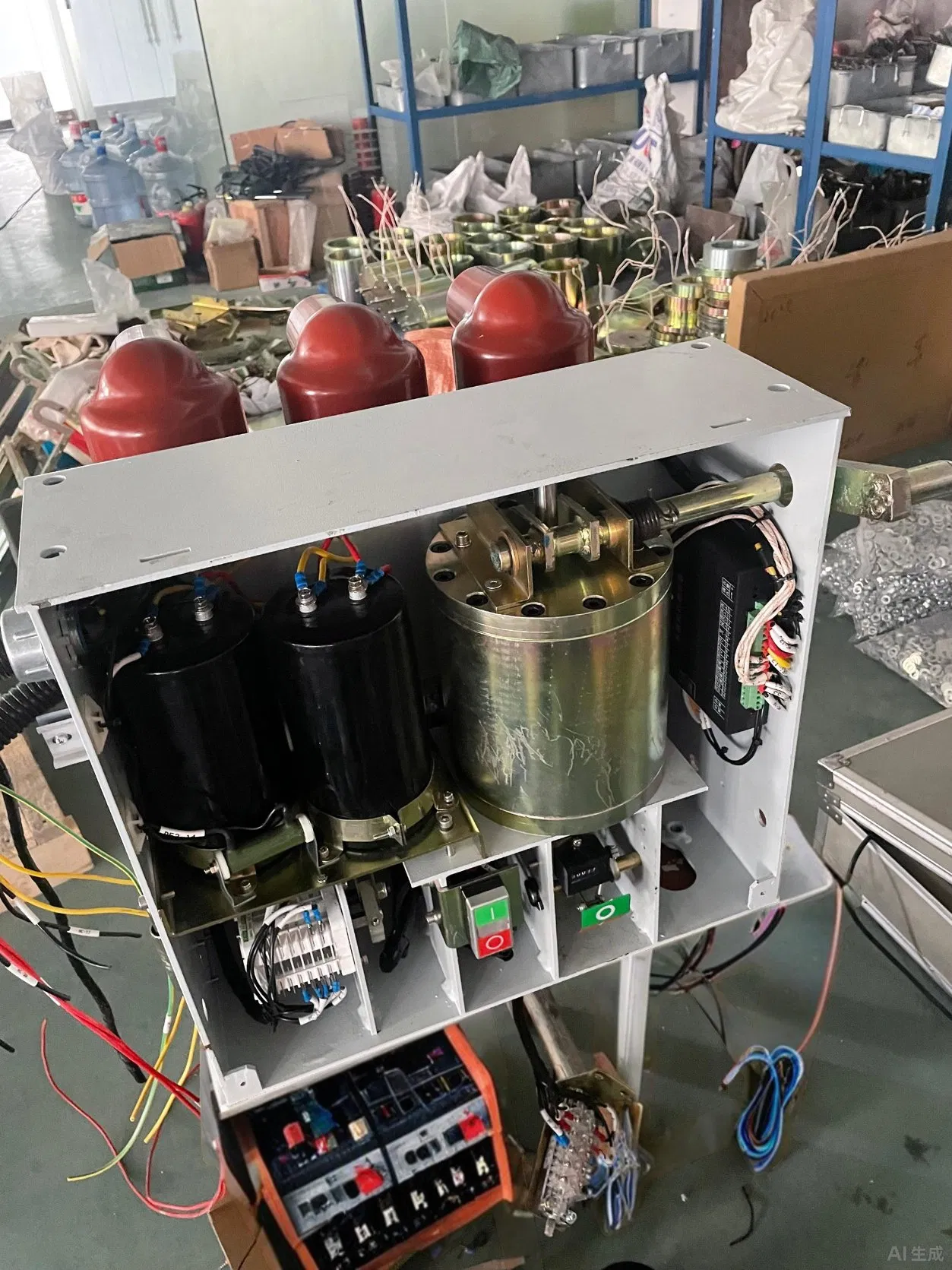

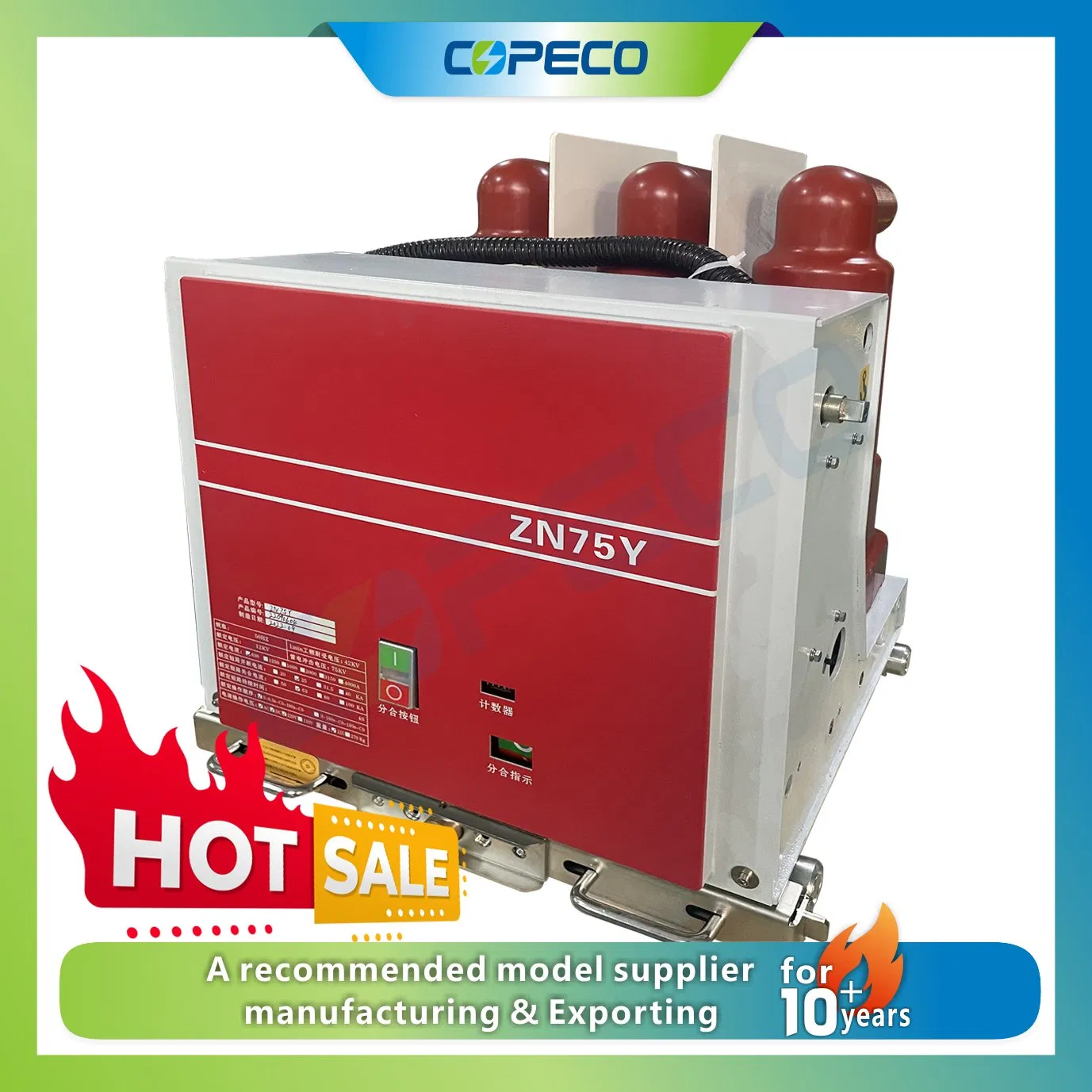

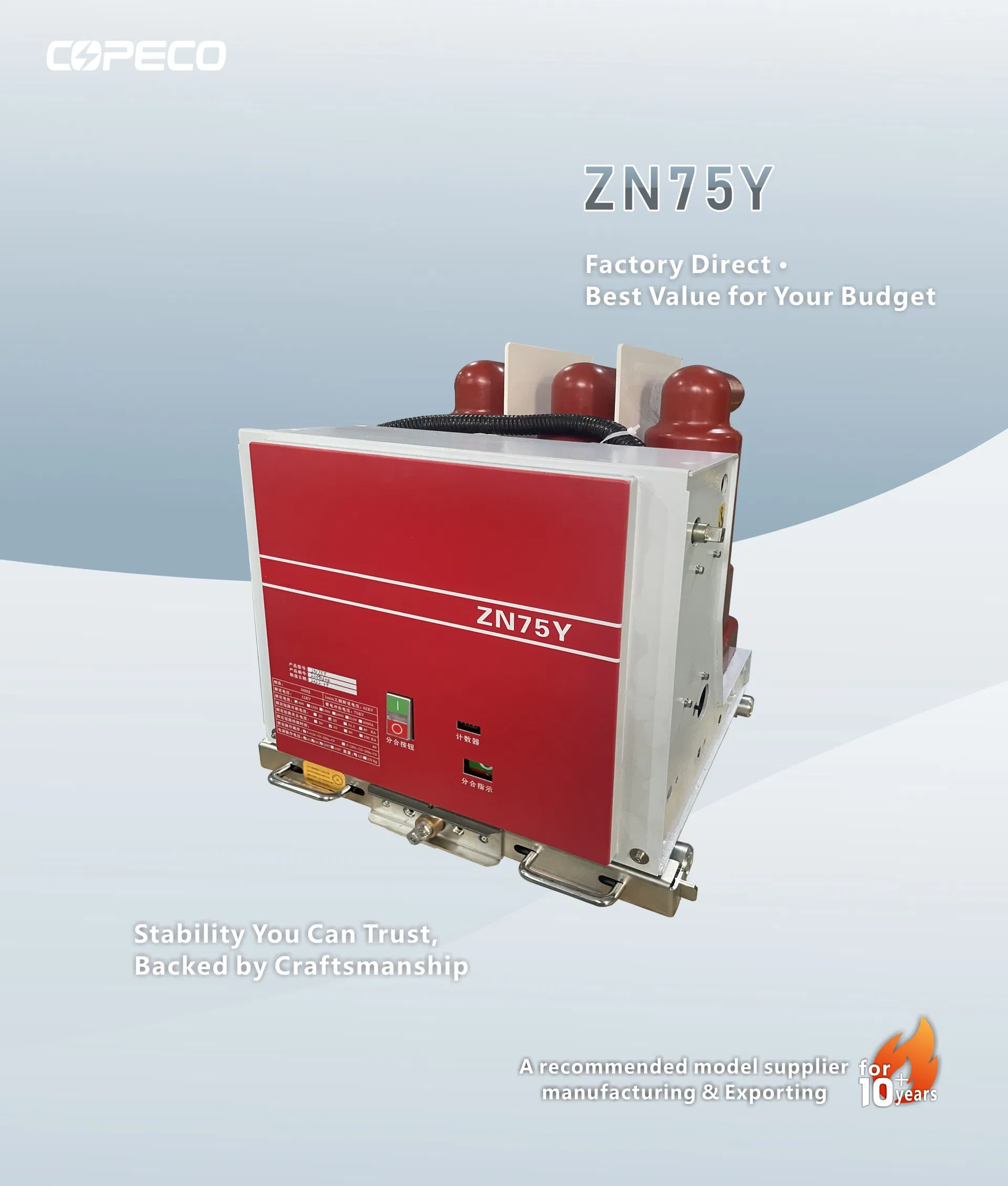

Product Introduction
MODEL AND MEANING
Rated technical parameters of circuit breaker (Table 1)
| Rated voltage |
12kV |
| Rated frequency |
50 or 60Hz |
| Rated lightening impulse withstand voltage |
75kV (peak value) |
| Rated 1 min P.F. withstand voltage |
42kV (valid value) |
| Rated operating sequence |
O-0.3s-CO-180s-CO (O-180s-CO-180s-CO for 40kA) |
| Rated current |
Rated breaking current (kA) |
Rated peak short-circuit making current (kA) |
Rated short-circuit duration (s) |
Breaking times |
Mechanical life |
| 630, 1250 |
20 , 25 |
50, 63 |
4 |
50 |
20000 |
| 1250, 1600, 2000, 2500 |
31.5 |
80 |
4 |
50 |
20000 |
| 1600, 2000, 2500, 3150, 4000 |
40 |
100 |
4 |
30 |
10000 |
Mechanical parameters of circuit breaker (Table 2)
| No. |
Name |
Unit |
Data |
| 1 |
Open distance of contact |
mm |
11±1 |
| 2 |
Over travel of contact |
mm |
3.5±0.5 |
| 3 |
Three phase opening/closing asynchronism |
ms |
≤2 |
| 4 |
Bounce time of contact closing |
ms |
≤2 |
≤3 |
| 5 |
Contact closing pressure |
N |
20kA: 2000±200 |
25kA: 2400±200 |
31.5kA: 3100±200 |
40kA: 4750±250 |
| 6 |
Average opening speed |
m/s |
0.9~1.3 (average speed for opening 6mm) |
| 7 |
Average closing speed |
m/s |
0.4~0.8 |
| 8 |
Closing time |
ms |
≤100 |
| 9 |
Opening time |
ms |
≤50 |
| 10 |
Arcing time |
ms |
≤15 |
Remarks: Items of No.1, 2, 6, 7 are technical parameters for domestic vacuum interrupter. If any discrepancy to test report, please be subject to test report.
Technical parameters of tripper and locking electromagnet (Table 3)
| Name |
Power (W) |
Rated voltage (V) |
| Opening tripper |
245 |
AC/DC 220 / 110 |
| Closing tripper |
245 |
| Locking electromagnet |
10 |
| Over-current tripper |
5A |
- |
Technical parameters of energy storage motor (Table 4)
| Rated voltage |
Power (W) |
Energy storing time (s) |
Applicable current class |
| AC/DC 220 / 110 |
50 |
≤10 |
630~1600A |
| 75 |
≤10 |
2000~3150A |
Main Product
Company Profile
Established in 2012, we have developed as a professional high volt. Power Transmission and Distribution equipment and components supplier in the past years, also being as one of the recommended model companies for National Power Grid Construction & Reformation. We're now special in manufacturing and exporting Vacuum Circuit Breaker (VCB), Vacuum Contactors, SF6 Circuit Breaker, Disconnecting Switch, Load Break Switch (LBS), switchgear and components. We have developed new products and assembly line optimization against our reinforced enterprise strength, refined technical & management team, to meet the customers' diverse needs. Over ten years' production and sales experience, we're well received in Southeast Asian, Russian, African market and American countries by the excellent quality and the best after-sales service. We're also a OEM & ODM manufacturer, accept a small trial order to know the better about our product quality, packaging and shipment. Welcome to inquiry us which all will be replied within 24 hours. We also cordially welcome all customers overseas to visit us and discuss business cooperation or being as our agent in your country.
Our Factory
Company Advantage
Our Certificates
Packaging & Shipping
FAQ
Why choose us from numerous suppliers?
We're a recommended model supplier by overseas customers due to the high cost-effectiveness and excellent after-sales service.
How is your after-sales service?
We are one of the professional manufacturers and exporters. We can provide a series of supporting services from installation and debugging, operation and maintenance, fault diagnosis, to replacement of related accessories.
How long is the warranty period and what is the scope of warranty?
We offer 24 months' warranty period, including the defects in covering materials or assembly processes. Artificial damage or arbitrary modification, failure to use as required, etc. are not covered by the warranty.
Do you accept OEM orders or can you provide customized non-standard products?
Yes, we have a refined technical & management team, and we can meet the diverse needs from domestic and foreign customers.
Is there a MOQ and what is the usual delivery time?
No MOQ is requested; 1 sample can be supplied and the normal delivery time is 3-40 days. Special or customized products will be discussed separately.
What materials are used in the specification of the VCB?
Our vacuum circuit breakers are manufactured using high-quality components and materials, including steel, copper, ceramic, and epoxy resin.
