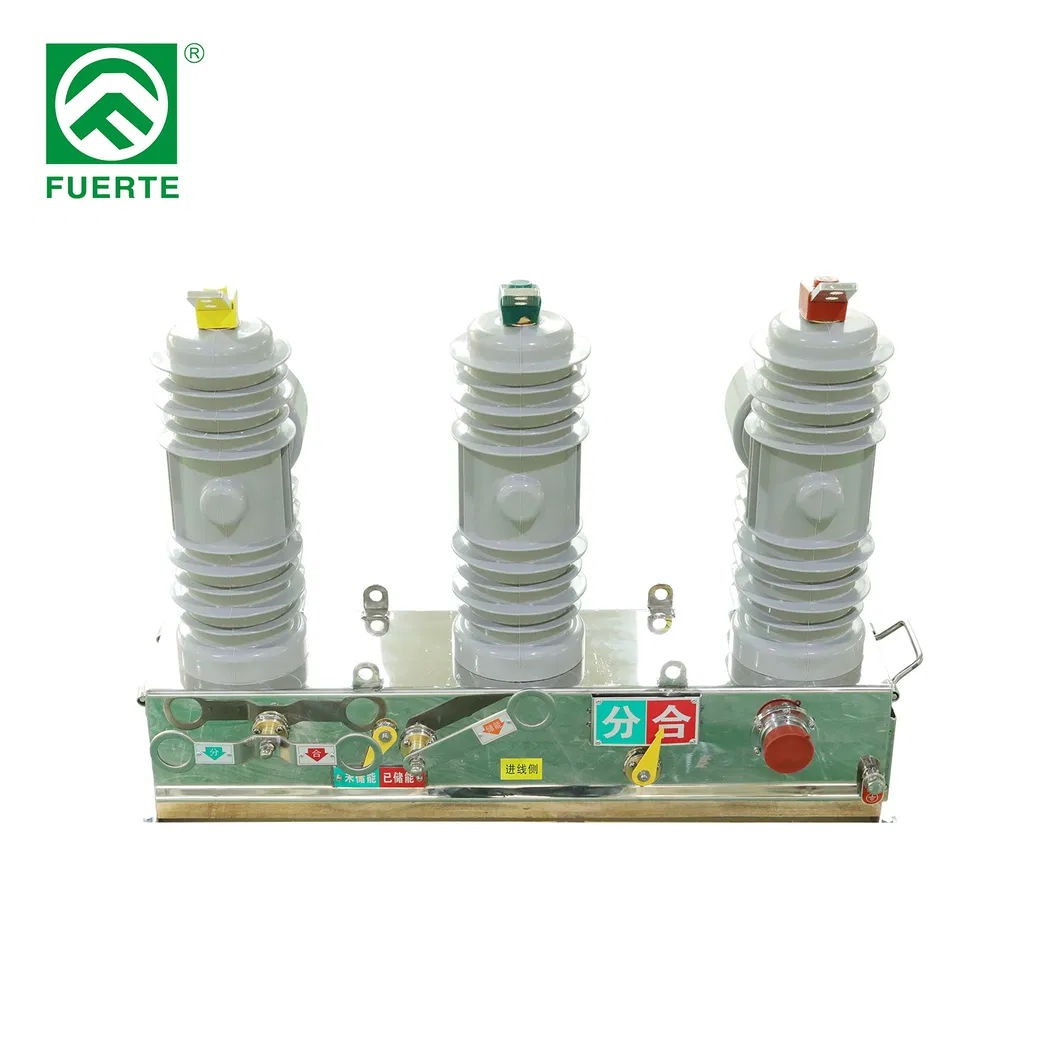

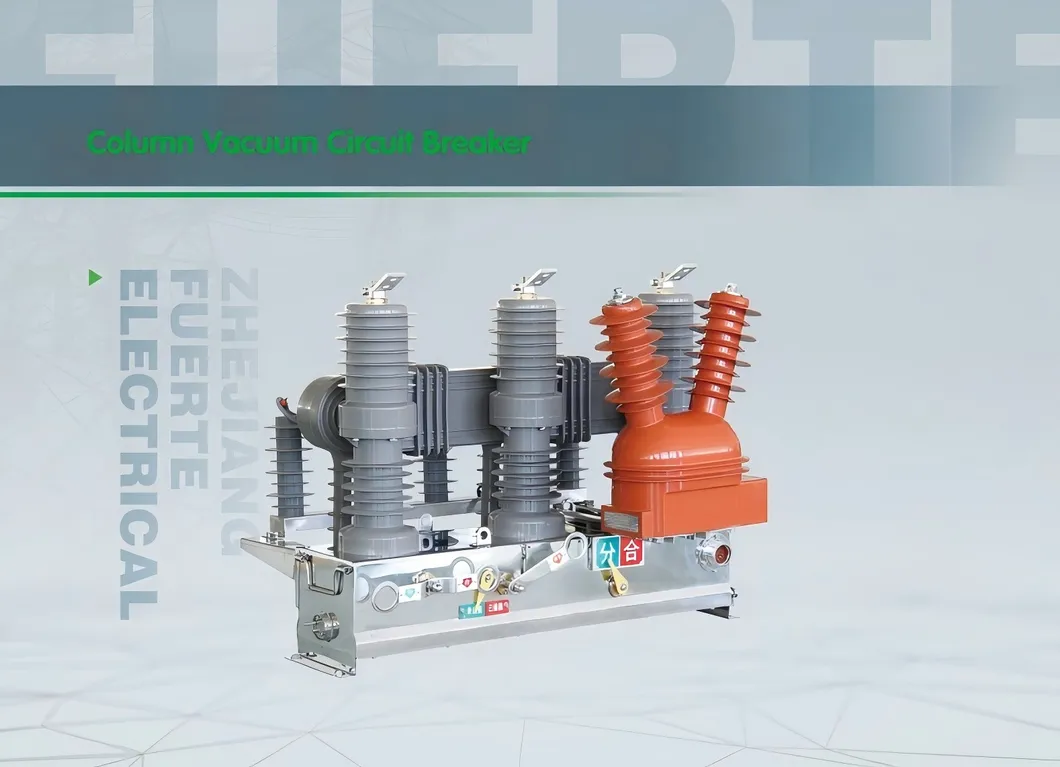

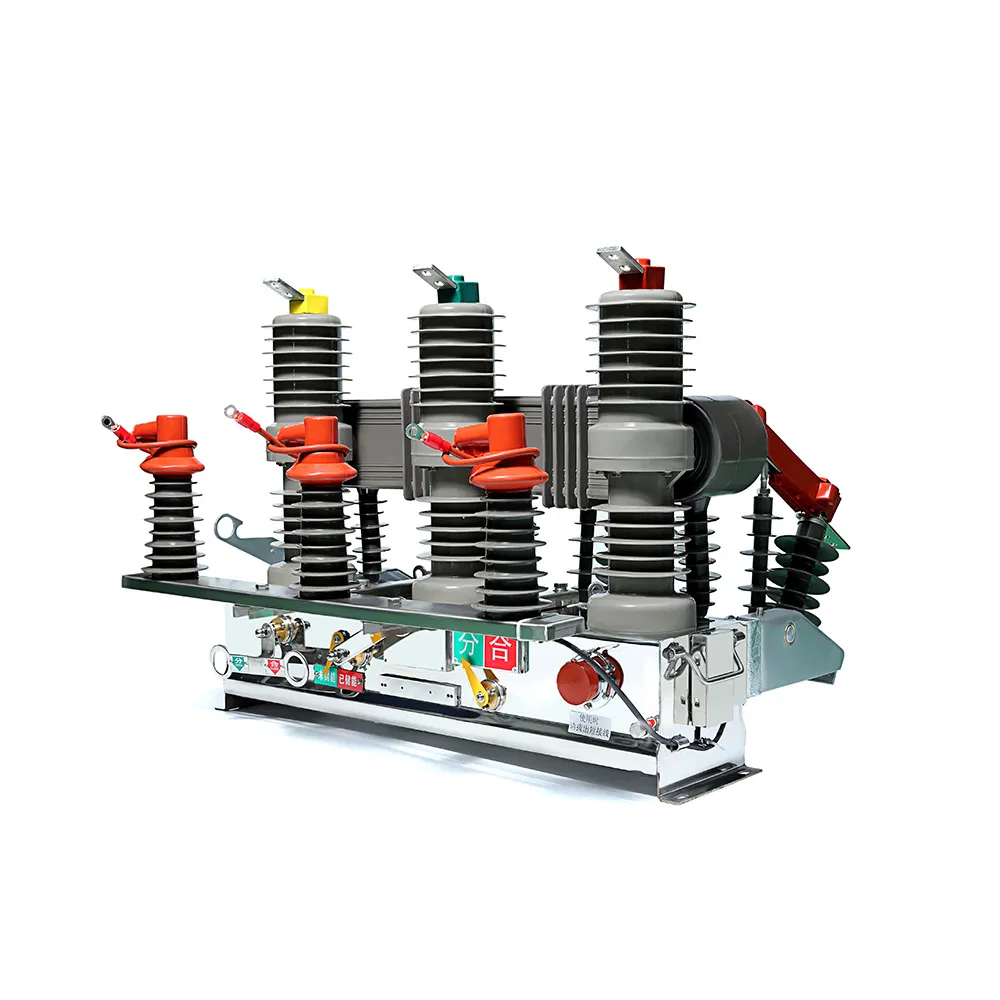

ZW32 outdoor high-voltage AC vacuum circuit breaker for the rated voltage 12kv, three-phase AC 50HZ outdoor high-voltage power distribution device. It is in line with national standards GB1984-2014 "High Voltage AC Circuit Breaker", JB/T3855-2008 "High Voltage AC Vacuum Circuit Breaker", DL/T 403-2000 "12kV~40.5kV High Pressure Vacuum Circuit Breaker Ordering Technical Requirements" of the relevant provisions.
It adopt the unique designed permanent magnet operating mechanism system and high-reliable intelligent controller, suitable for the use of Open/Close of load current, overload current and short circuit current in power distribution device, rural power grid, substation and industrial mining enterprises. Can Auto-reclose 0-3 times.
| No. | Parameter Item | Unit | Standard Values |
|---|---|---|---|
| 1.1 Vacuum Circuit Breaker | |||
| 1.1.1 | Model No | - | ZW32 |
| 1.1.2 | Switching structure - Transformer form | - | Strut external, common box internal |
| 1.1.2 | Switching structure - Insulating Material | - | Silicone rubber over epoxy resin |
| 1.1.3 | Dielectric | - | Air |
| 1.1.4 | Rated Voltage | kV | 12 |
| 1.1.5 | Rated Current | A | 630 |
| 1.1.6 | Rated cable charging and breaking current | A | 25 |
| 1.1.7 | Rated short-circuit breaking current | kA | 20, 16 |
| 1.1.8 | Temperature rise test current | - | 1.1Ir |
| 1.1.9 | Rated frequency 1 min withstand voltage (Relative to / Between) | kV | 42 |
| 1.1.9 | Rated frequency 1 min withstand voltage (Intermittent) | kV | 48 |
| 1.1.10 | Rated lightning impulse withstand voltage (Relative to / Between) | kV | 75 |
| 1.1.10 | Rated lightning impulse withstand voltage (Intermittent) | kV | 85 |
| 1.1.11 | Rated short-time withstand current and duration | kA/s | 20/3 |
| 1.1.12 | Rated peak withstand current | kA | 50 |
| 1.1.13 | Rated short-circuit breaking current | kA | 20 |
| 1.1.14 | Rated short-circuit closing current | kA | 50 |
| 1.1.15 | Main circuit resistance | μΩ | Bidder provide |
| 1.1.16 | Mechanical stability | times | ≥10000 No load(5 cycles) |
| 1.1.17 | Minimum creepage distance for external insulation | mm | 372 |
| 1.1.18 | Rated short-circuit breaking current breaking times | times | ≥30times |
| 1.1.19 | Closing and opening not synchronized | ms | ≤2 |
| 1.1.20 | Contact closing bounce time | ms | ≤2 |
| 1.1.21 | Partial discharge(1.1Ur) | pC | ≤20 |
| 1.2 Operating Mechanism | |||
| 1.2.1 | Type | - | Sprung |
| 1.2.2 | Operating Method | - | Motorized with manual operation |
| 1.2.3 | Motor Voltage | V | DC24 |
| 1.2.4 | Instantaneous power of opening and closing | W | ≤480 |
| 1.2.5 | Duration of energy storage | s | ≤15 |
| 1.2.6 | Energy storage power | W | ≤240 |
| 1.2.7 | Closing and opening peak current | A | ≤20 |
| 1.2.8 | Auxiliary contact capacity | - | DC24V, 10A |
| 1.2.9 | DC resistance of telecommunication circuit | - | After 100times operations < 192 |
| 1.3 Transformer Combination Mode | |||
| 1.3 | Includes current transformers, electronic zero sequence voltage transformers, and electromagnetic voltage transformers. | ||
| 1.4 Current Transformer | |||
| 1.4.1 | Rated current ratio | - | (1) Phase current 600A/5A (2) Zero sequence current 100A/1A |
| 1.4.2 | Accuracy Level | - | (1) phase current protection 5P10level, measurement 0.5S (2) Zero sequence current use 100A/1A. Meets requirements of 1S (ratio & angle difference) when input current on primary side is 1A to rated current; protection accuracy level is 5P10. |
| 1.4.3 | Implementation method | - | Electromagnetic |
| 1.4.4 | Temperature range | - | -20ºC~70ºC |
| 1.5 Electromagnetic Voltage Transformers (External) | |||
| 1.5.1 | Quantities | - | A: 2 (for subparagraphs/liaison) B: 1 (for branching/dividing) |
| 1.5.2 | Rated Voltage Ratio | - | Line Voltage measurement 10kV/0.1KV Supply voltage: 10kV/0.22kV |
| 1.5.3 | Accuracy Level | - | Measuring voltage winding: 0.5 level Supply voltage winding: 3 levels |
| 1.5.4 | Capacity (VA) | - | Measuring voltage winding: ≥10VA Supply voltage winding long-term capacity ≥50VA, Short-time capacity ≥300VA/30s |

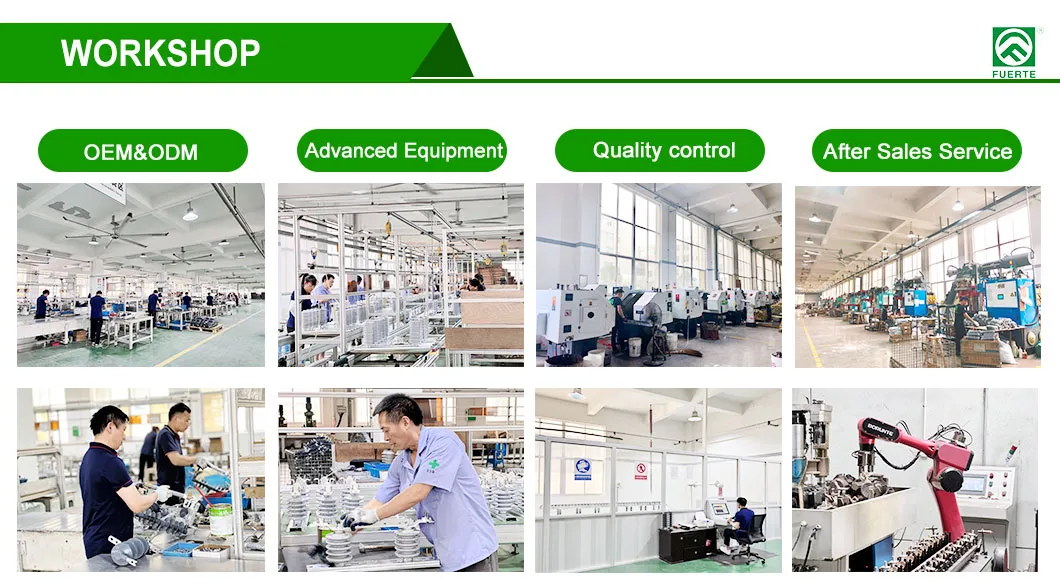

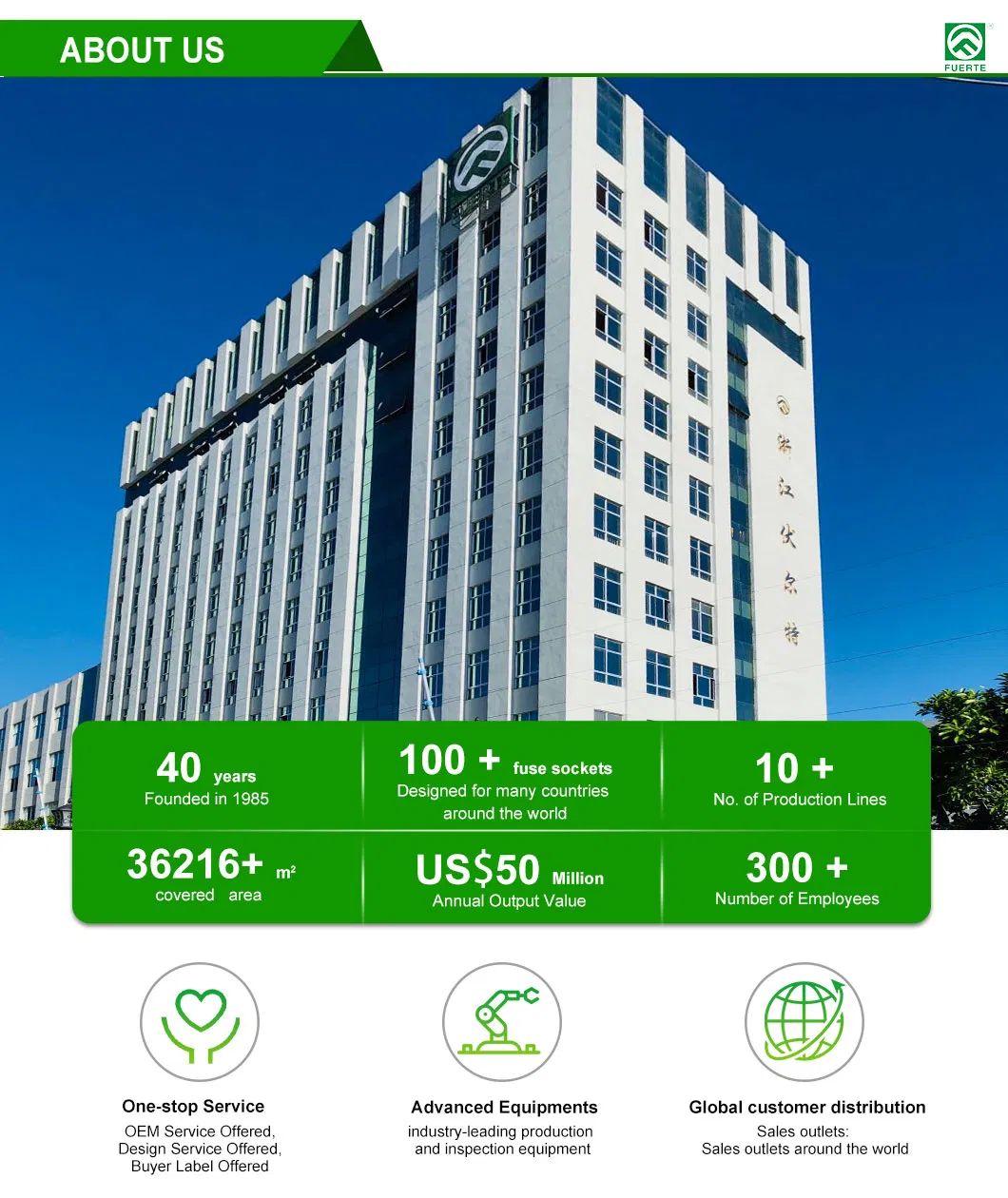

Our company was founded in 1985. We employ 220 staffs, and have a site area of 19,881m² with a covered area of 36,216m².
