GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
1 / 5
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A
GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A

GSW3 Intelligent Air Circuit Breaker ACB From 200A to 7400A

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
GSW3
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Installation
Withdrawable Type, Fixed Type
Structure
ACB
Poles Number
3 Pole, or 4 Pole
Certification
CE, CCC
Standard
IEC60947-2
Operating Temperature
-25 to +70 Centigrade
Site Altitude
2000 Meter
HS Code
8536500000
Production Capacity
80000PCS/Year
Packaging & Delivery
Package Size
60.00cm * 40.00cm * 50.00cm
Package Gross Weight
25.000kg
General Introduction

GSW3 ACB could be suited for distribution net including frequency: 50Hz, rated voltage: 400V, 690V, rated current: 2000-7400A. Used for assigning the electrical energy and the protection line and the power equipment, the circuit breaker has the intellectualized protection function, which can enhance the power supply reliability, and avoid nonessential power cuts. Features compact structure, small volume, and high breaking capacity. The intelligent controller has test, load monitoring, display, real-time programming and communication functions.

Product Description & Data
Model Number of poles Rated current (A)
GSW3-16003p, 4p200-1600
GSW3-20003p, 4p630-2000
GSW3-32003p, 4p2000-3200
GSW3-74003p, 4p4000-7400

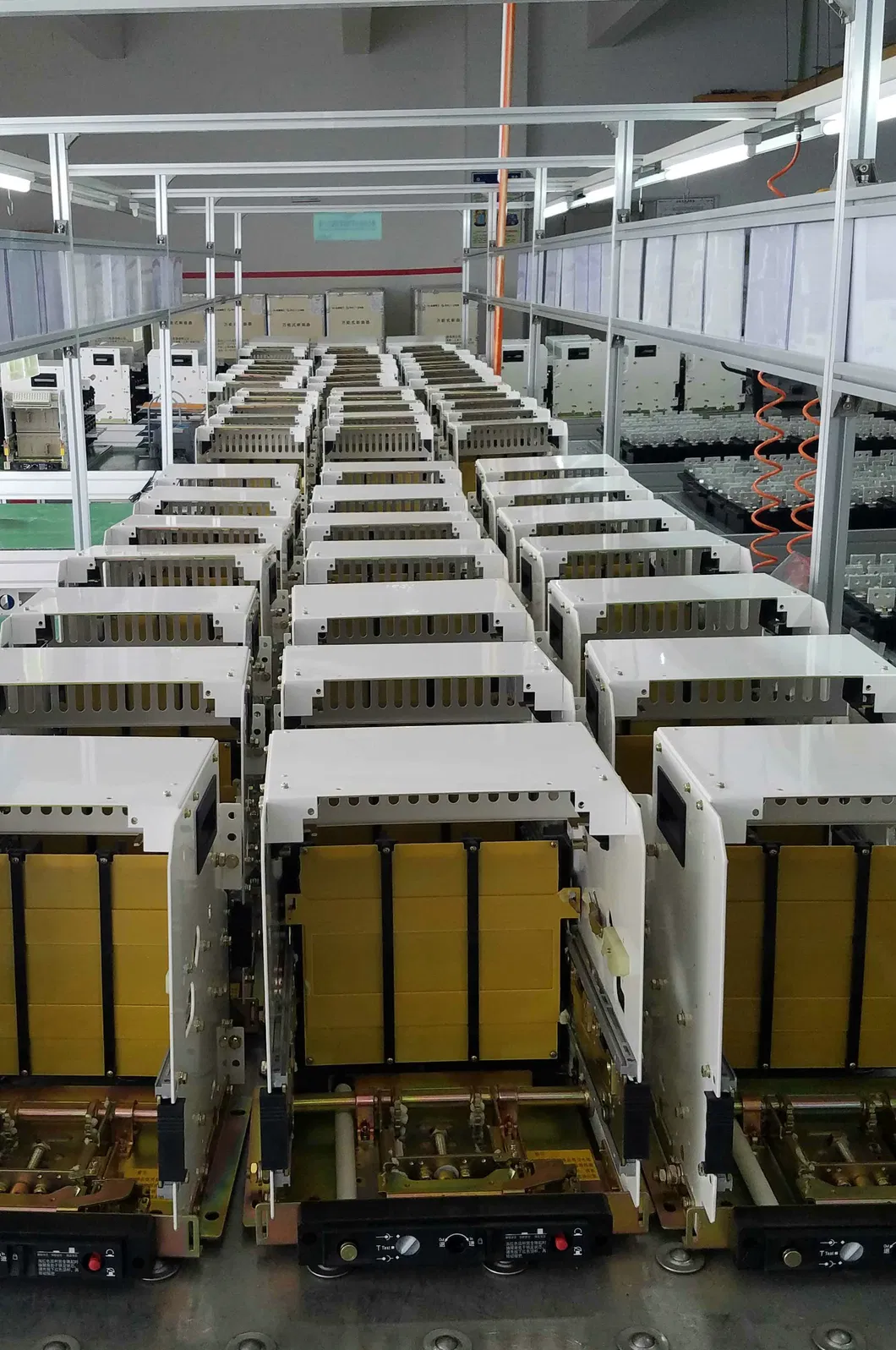

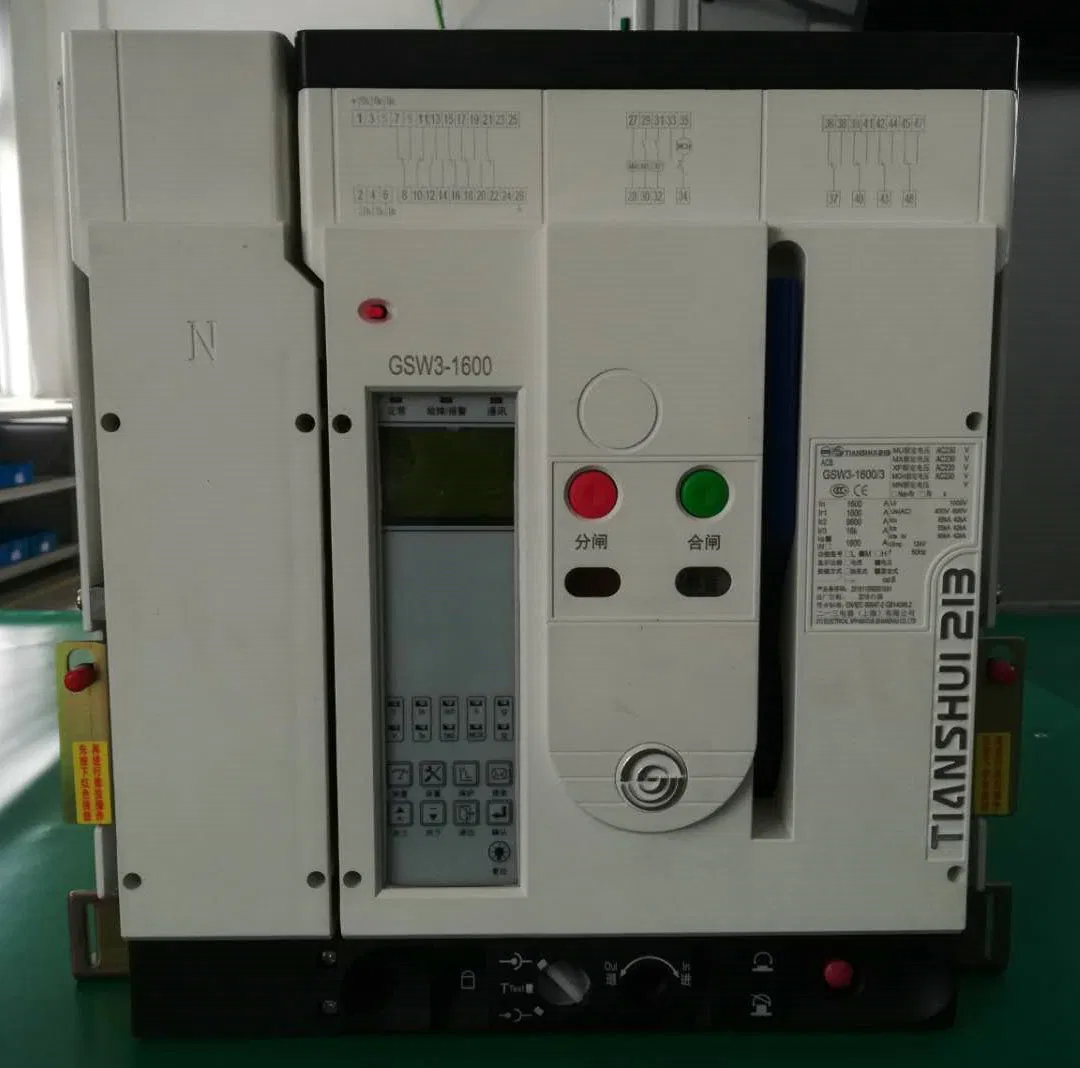

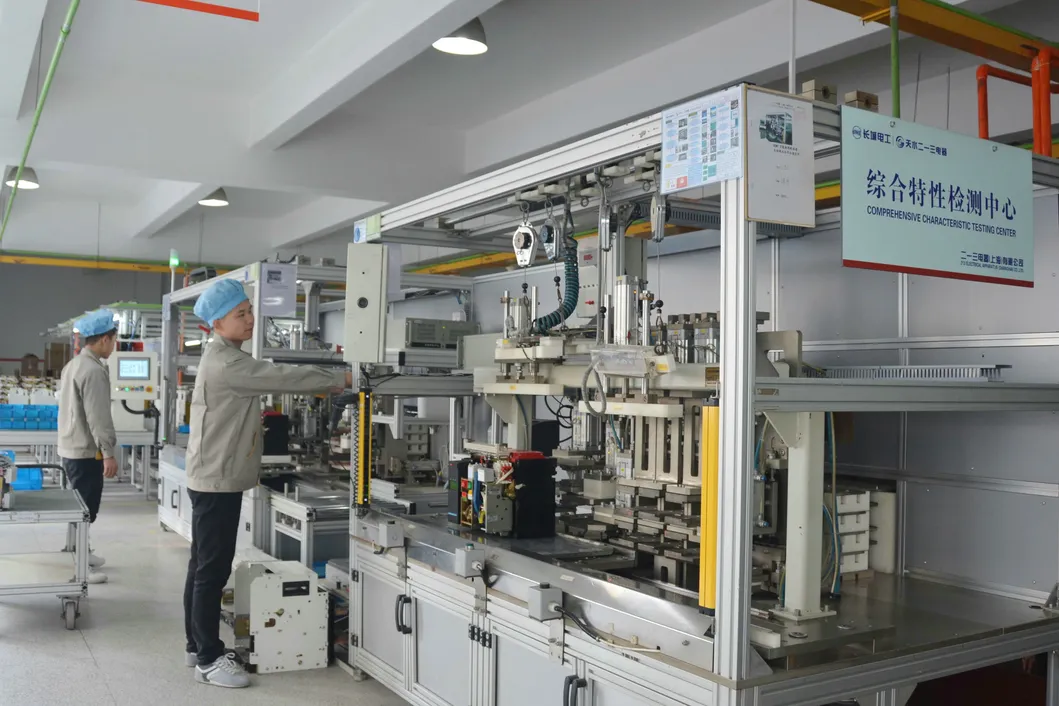

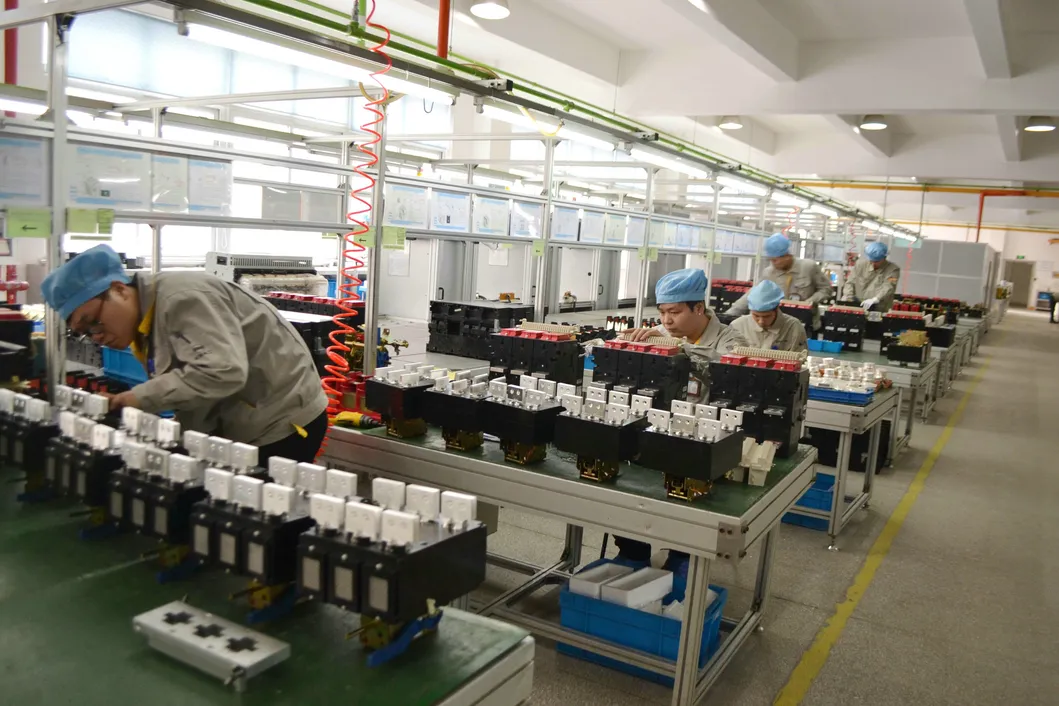

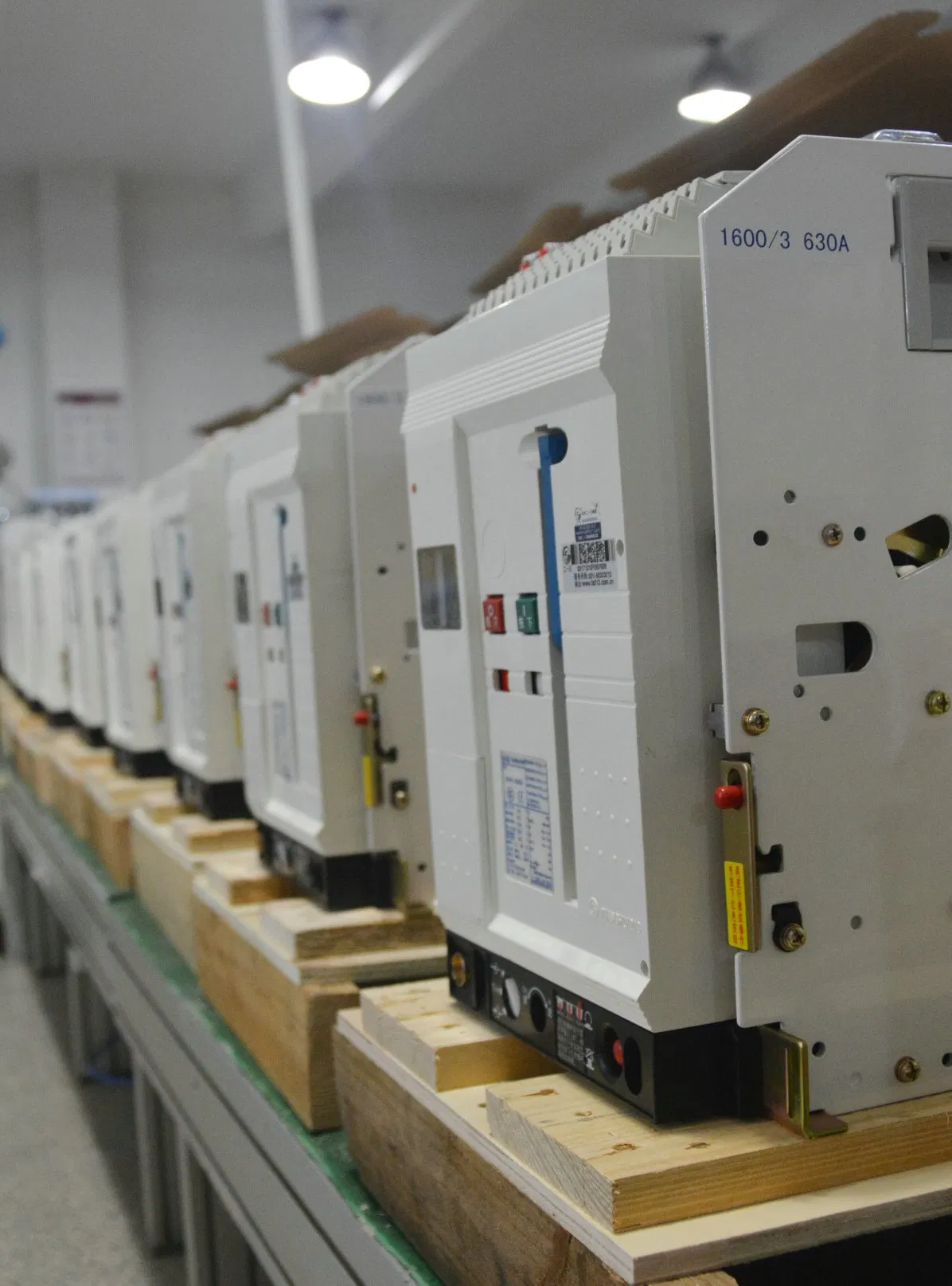

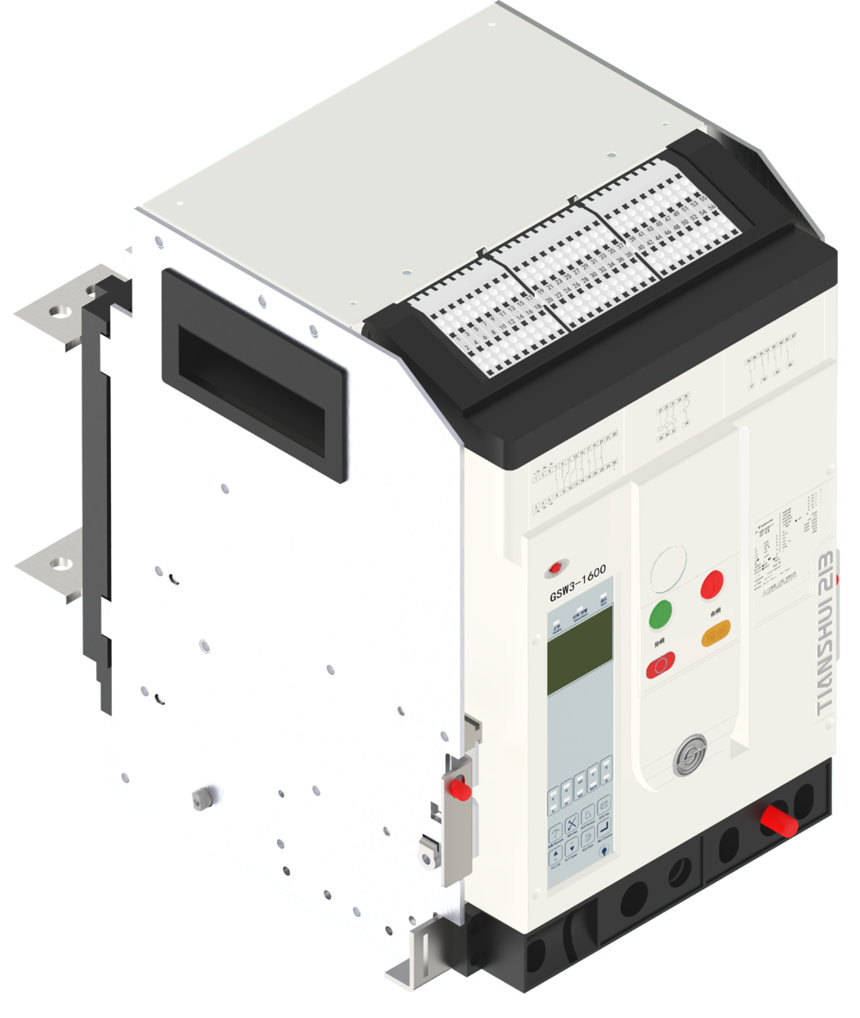

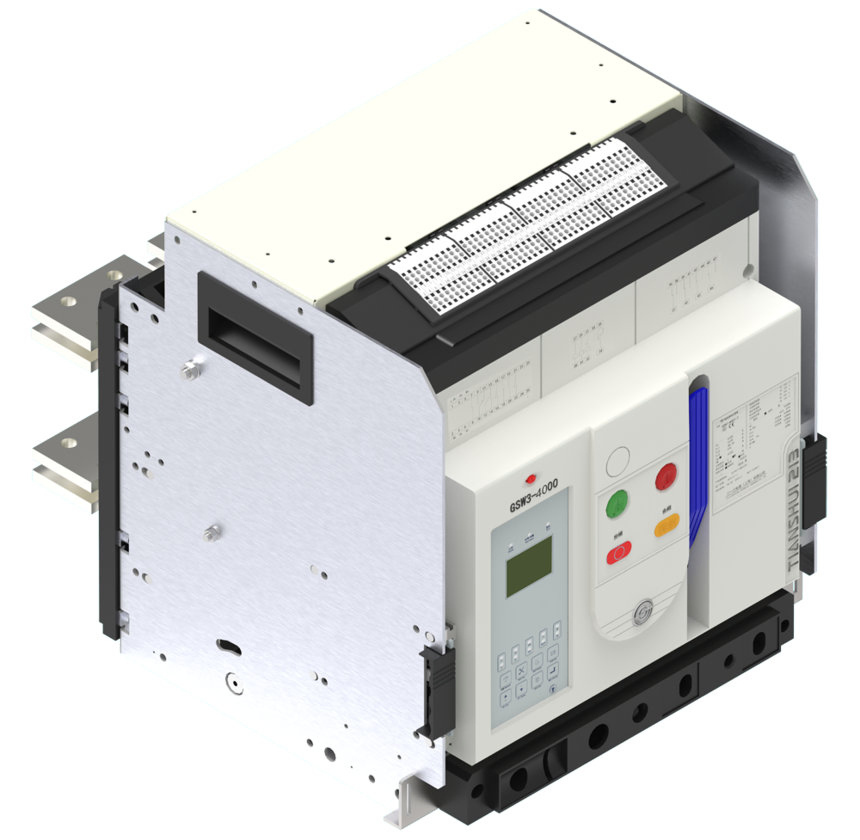

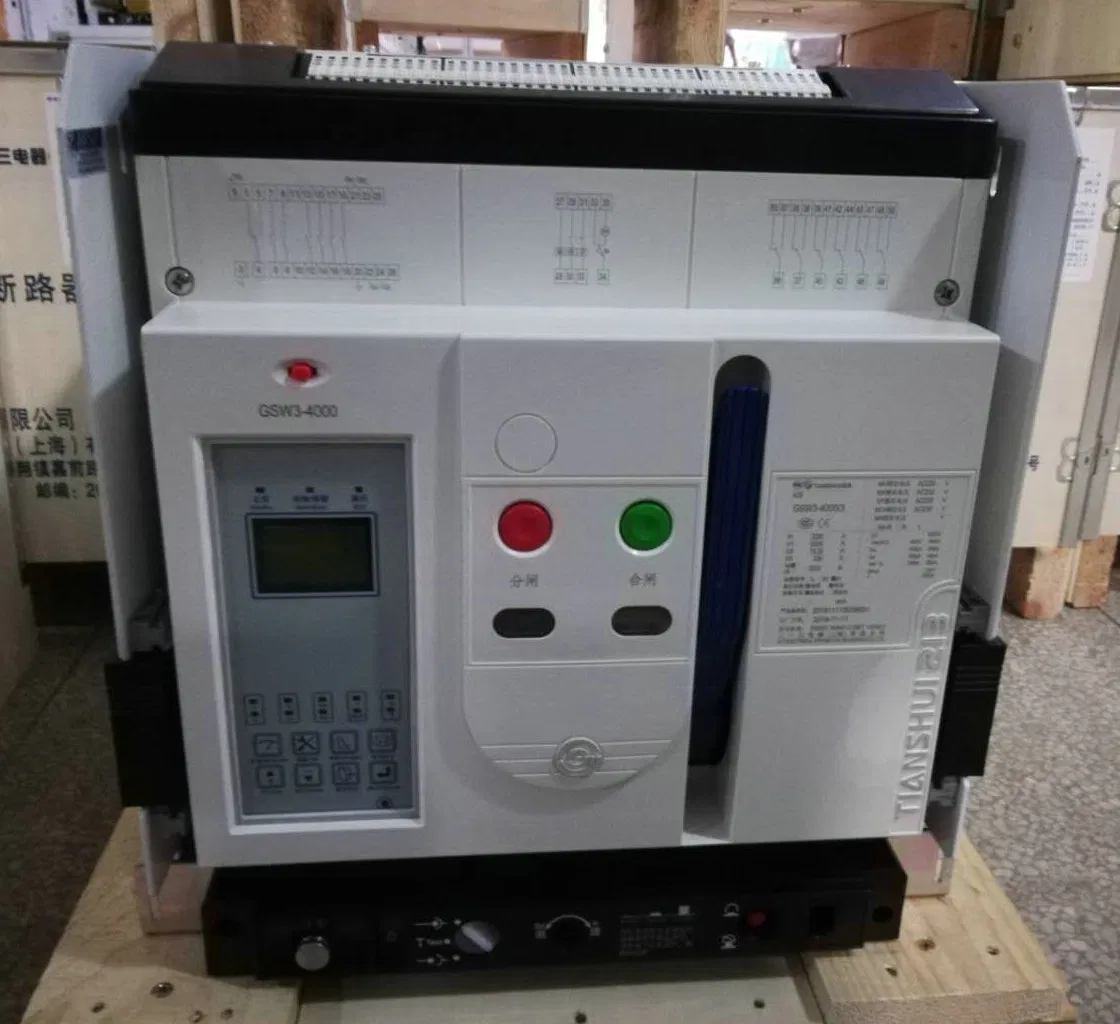

Detailed Photos
GSW3 Intelligent Air Circuit Breaker
GSW3 Intelligent Air Circuit Breaker
GSW3 Intelligent Air Circuit Breaker
GSW3 Intelligent Air Circuit Breaker
GSW3 Intelligent Air Circuit Breaker
GSW3 Intelligent Air Circuit Breaker
FAQ
1. What is the rated voltage range for the GSW3 ACB?
The GSW3 ACB is suitable for distribution networks with rated voltages of 400V and 690V at 50Hz.
2. Is the GSW3 circuit breaker intelligent?
Yes, it features an intelligent controller that supports load monitoring, real-time programming, communication functions, and precise protection.
3. What are the available pole configurations?
The GSW3 series is available in both 3-Pole and 4-Pole configurations to suit different electrical system requirements.
4. What is the operating ambient temperature range?
The device is designed to operate in ambient temperatures ranging from -25ºC to +70ºC.
5. Does it comply with international standards?
Yes, the product is compliant with IEC60947-2 standards and holds CE and CCC certifications.
6. What is the maximum site altitude for installation?
The standard operation for this circuit breaker is rated for altitudes up to 2000 meters.
