Product Description

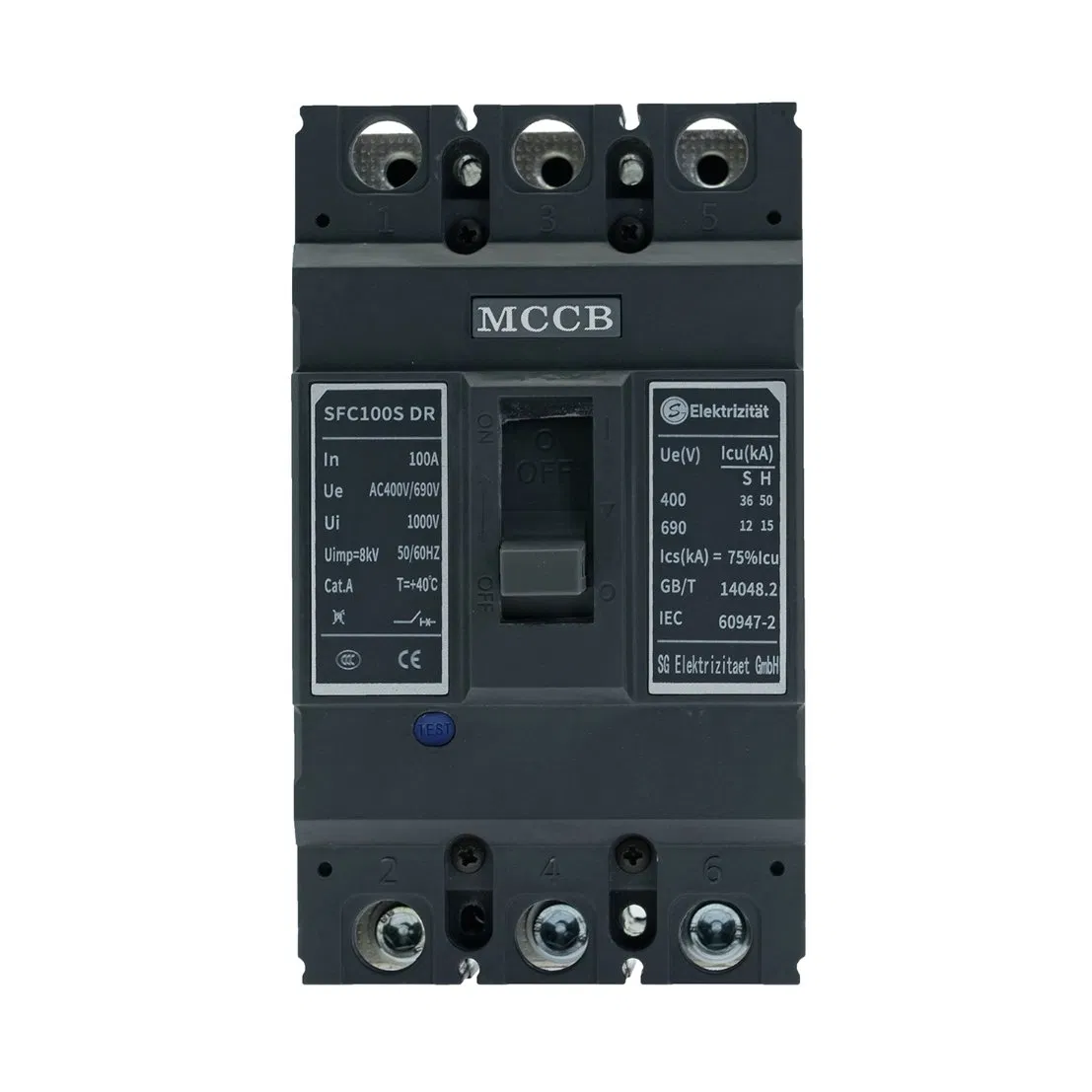

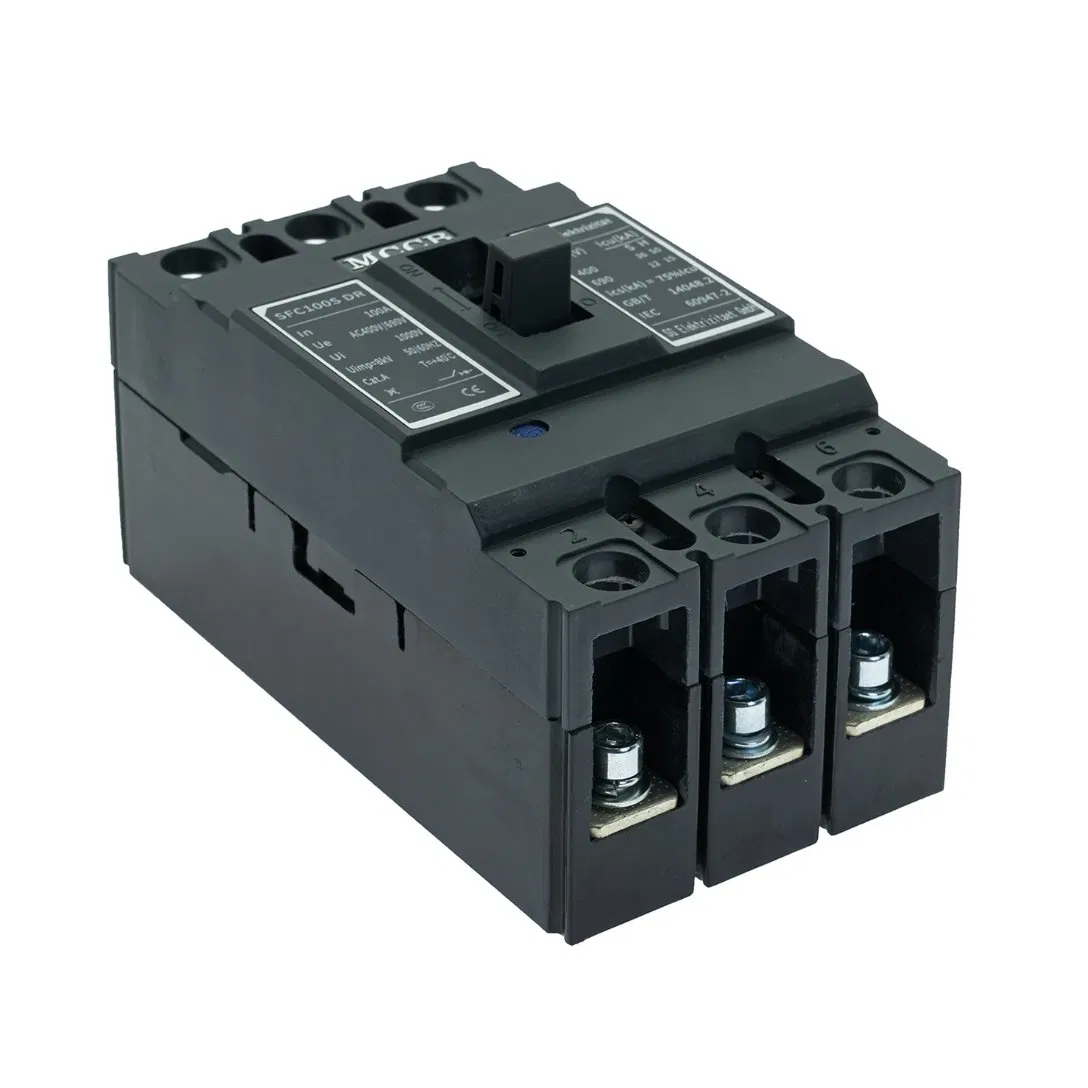

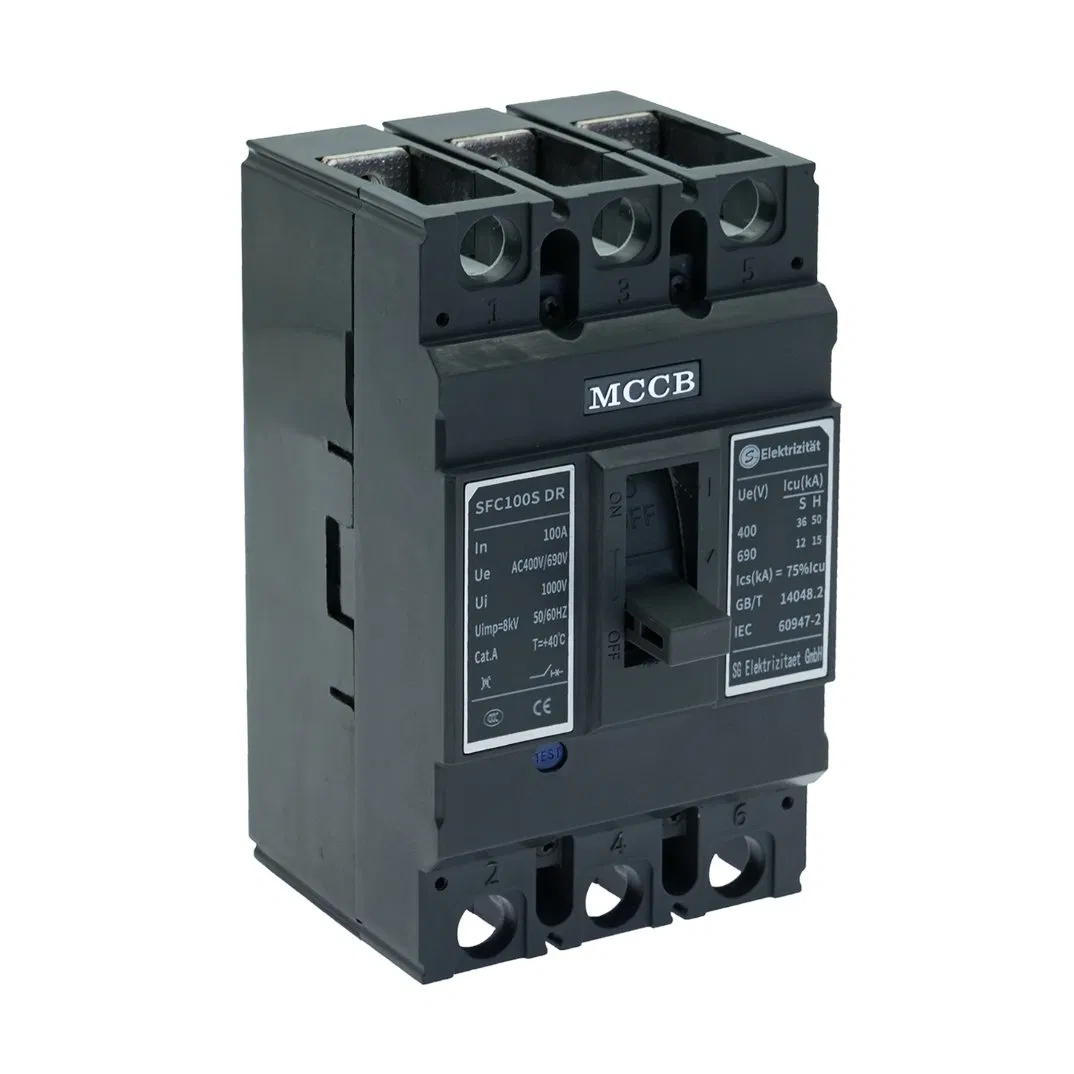

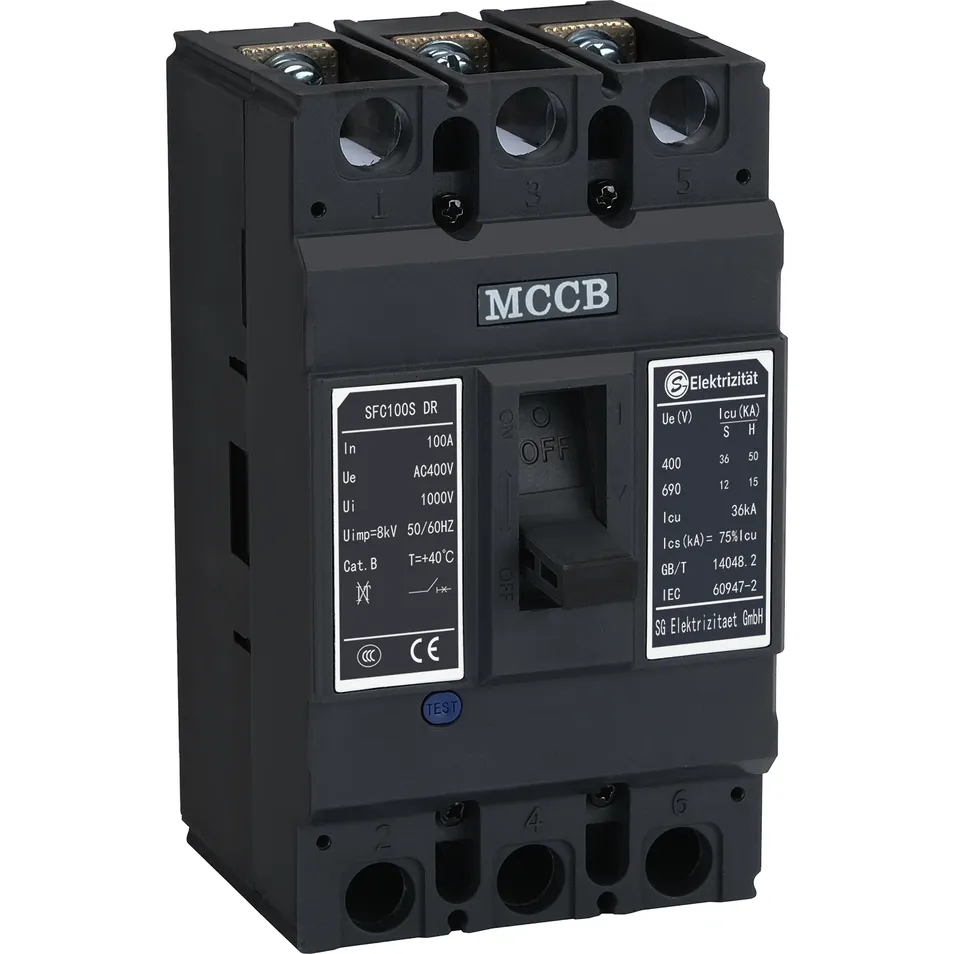

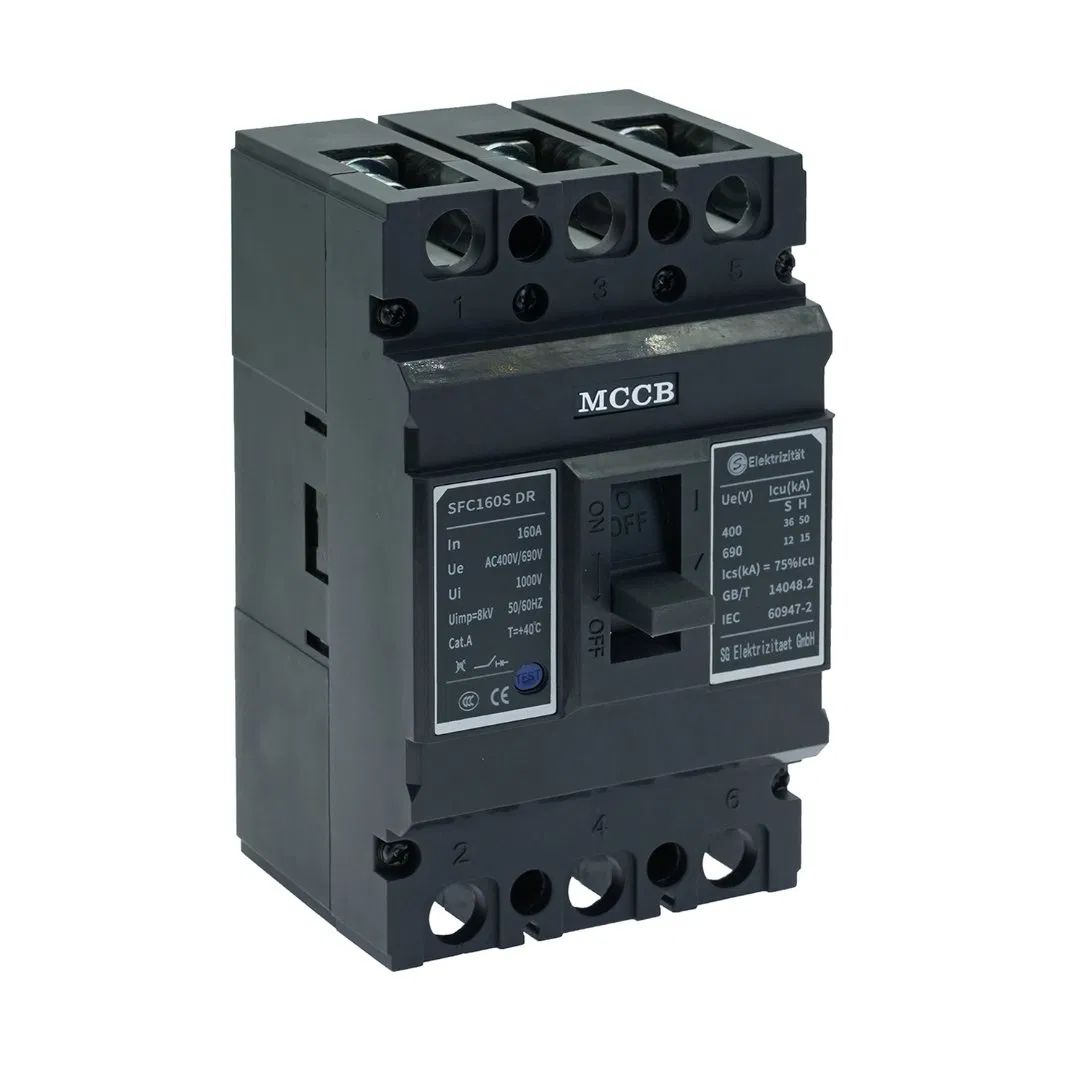

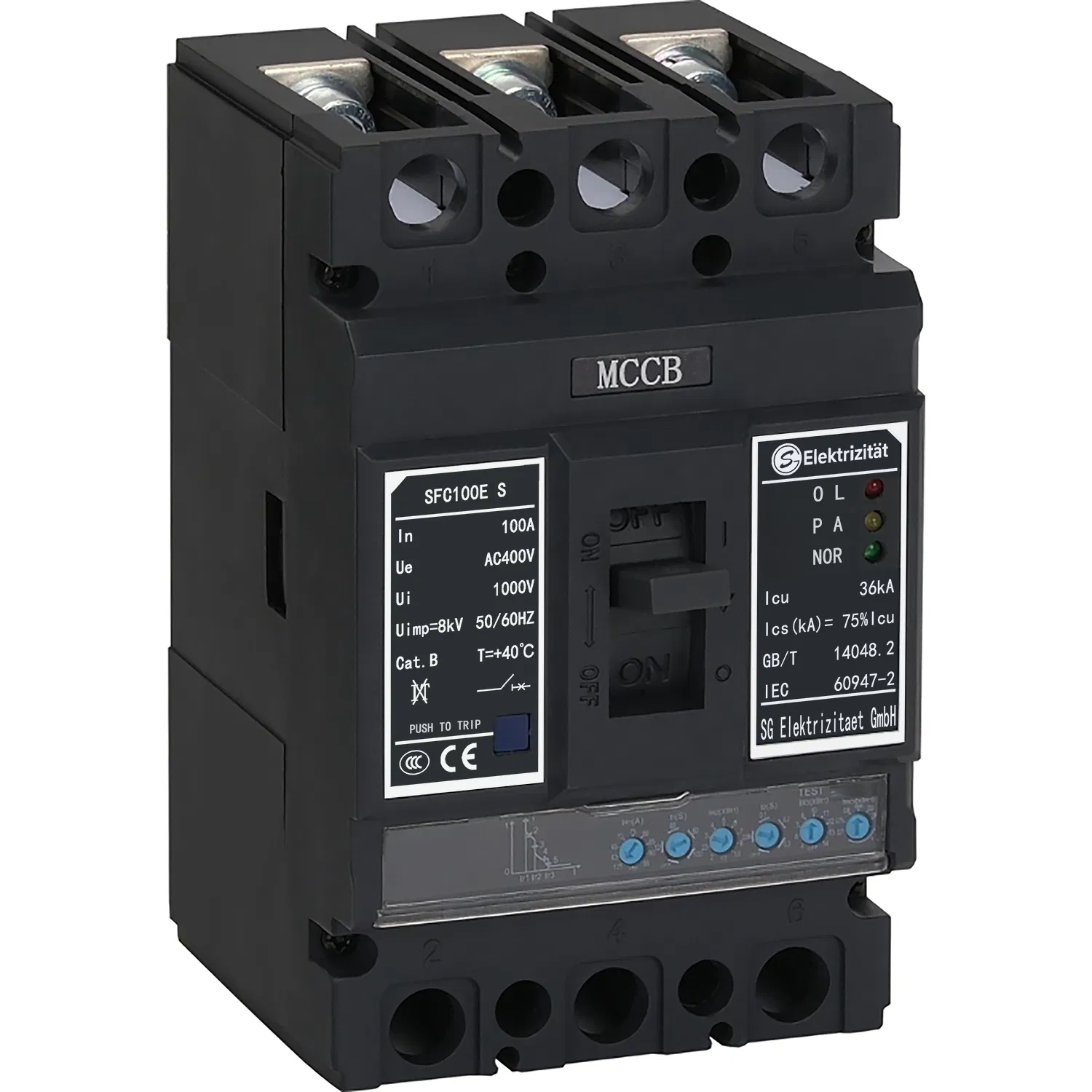

SFC Series Molded Case Circuit Breaker has a rated insulation voltage of 1000 V. It is suitable for circuits with AC 50/60 Hz, rated operating voltage up to 400 V/690 V, and rated operating current up to 800 A, for infrequent circuit switching and motor protection.

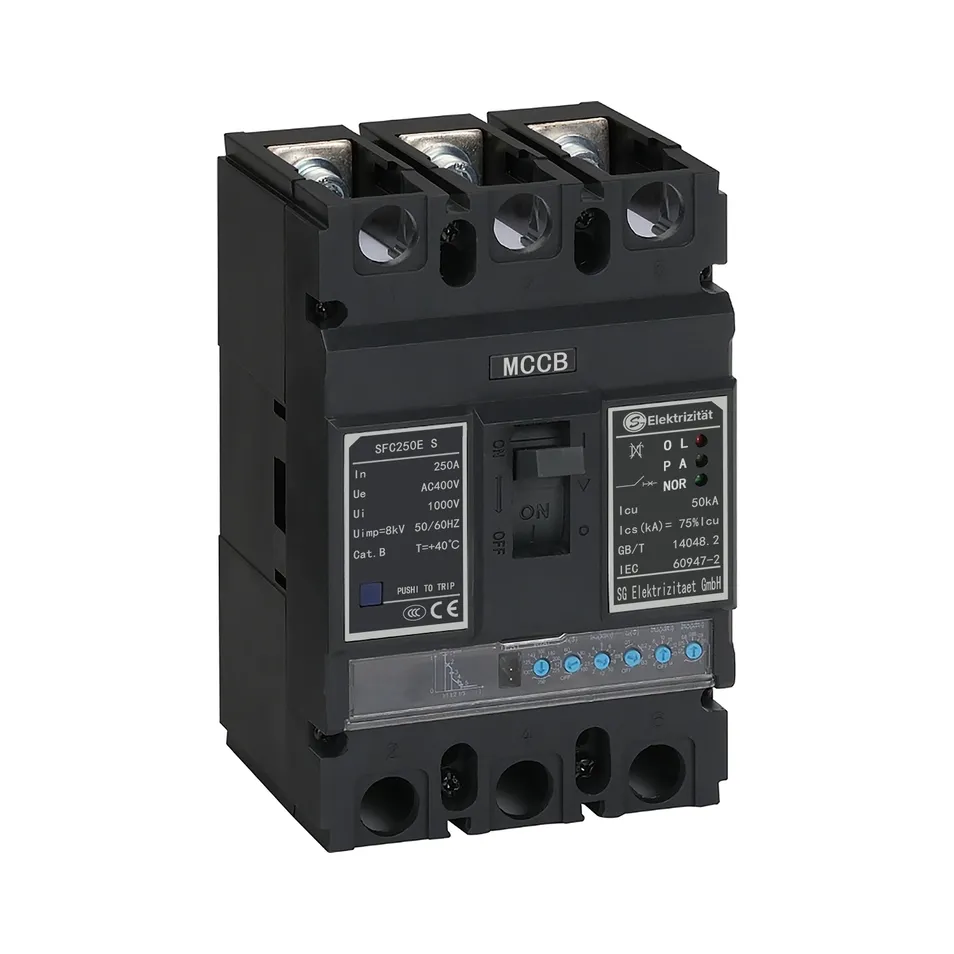

The circuit breaker provides overload, short circuit and undervoltage protection to protect lines and power supply equipment against damage, and is suitable for use as an isolator. Circuit breakers equipped with electronic trip units feature earth fault protection in addition to overload, short circuit and undervoltage protection for the circuit.

Key Features

• Higher performance-to-size ratio, providing users with more space for cable routing.
• Compact structure and exceptional performance.
• Extremely simple installation, operation and maintenance.
• Complete range of accessories, easy to use and highly adaptable.
• Small size, high breaking capacity, short arc distance and vibration resistance.
• Can be installed vertically or horizontally without degrading its technical performance.
