Product Description

Product Overview

Moulded case circuit breaker (Schneider type) is suitable for circuit AC 50/60Hz, rated voltage up to AC 690V, rated operating current to 1250A. It complies with IEC60947-2.

Merged with international latest advanced technology, it is compact, modularized, environment-friendly, with high breaking and zero arc-over capabilities. It can effectively increase the efficiency of power distributing & protect the whole system against harms caused by overload, undervoltage or short circuit. It also can be used as a non-frequent switch for your engine/system.

Type Rated current (A) Rated insulating voltage Number of pole Rated operating voltage Service short circuit breaking capacity Icu (kA) Mechanical life Utilization category
AC380/415V AC380/415V Load Unload
RDM11-100N12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100950V3, 4690V and below252515008500A
RDM11-100H7070
RDM11-100L150150
RDM11-160N16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160353510007000
RDM11-160H7070
RDM11-160L150150
RDM11-250N160, 180, 200, 225, 250353510007000
RDM11-250H7070
RDM11-250L150150
RDM11-400N200, 225, 250, 300, 315, 400454510004000
RDM11-400H7070
RDM11-400L150150
RDM11-630N315, 350, 400, 500, 600, 630454510004000
RDM11-630H7070
RDM11-630L150150
RDM11-1250N630, 700, 800, 1000, 125035037.510004000
RDM11-1600N800, 1000, 1250, 16005037.5

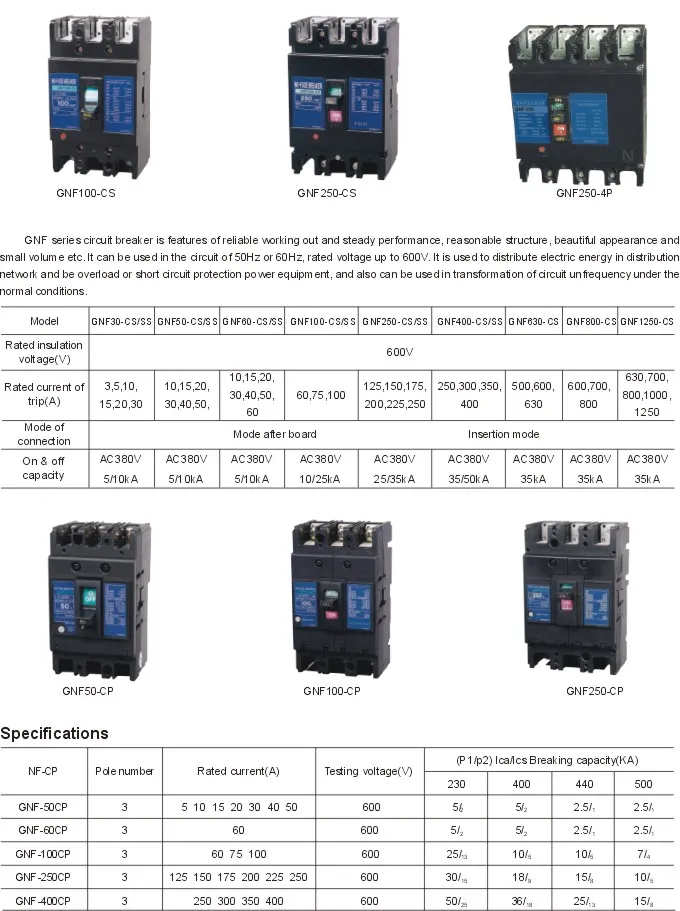

Molded Case Circuit Breaker 1

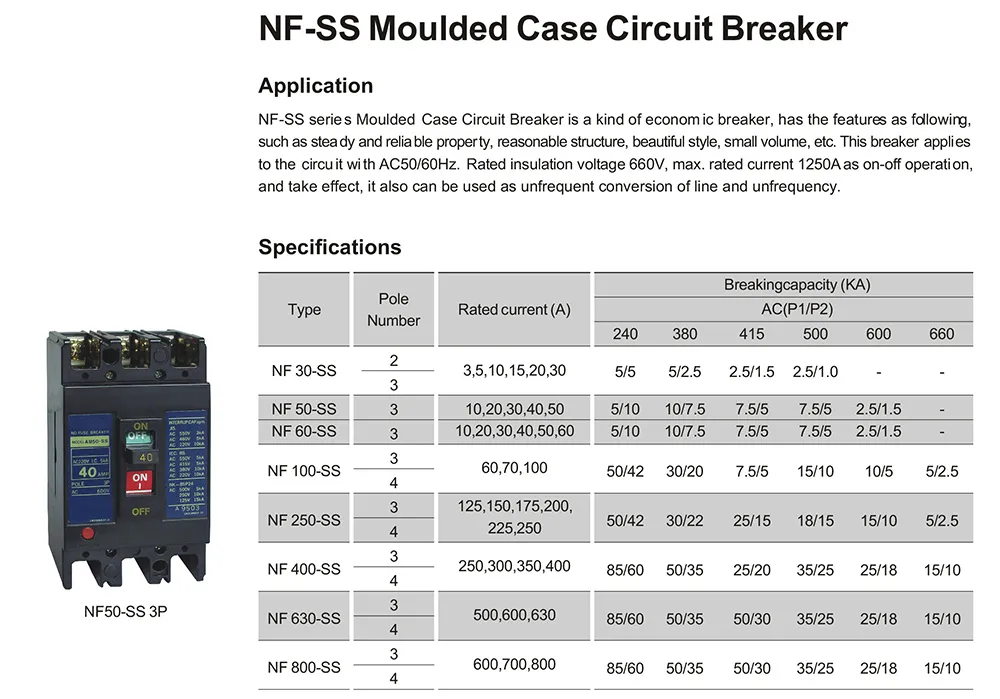

Molded Case Circuit Breaker 2

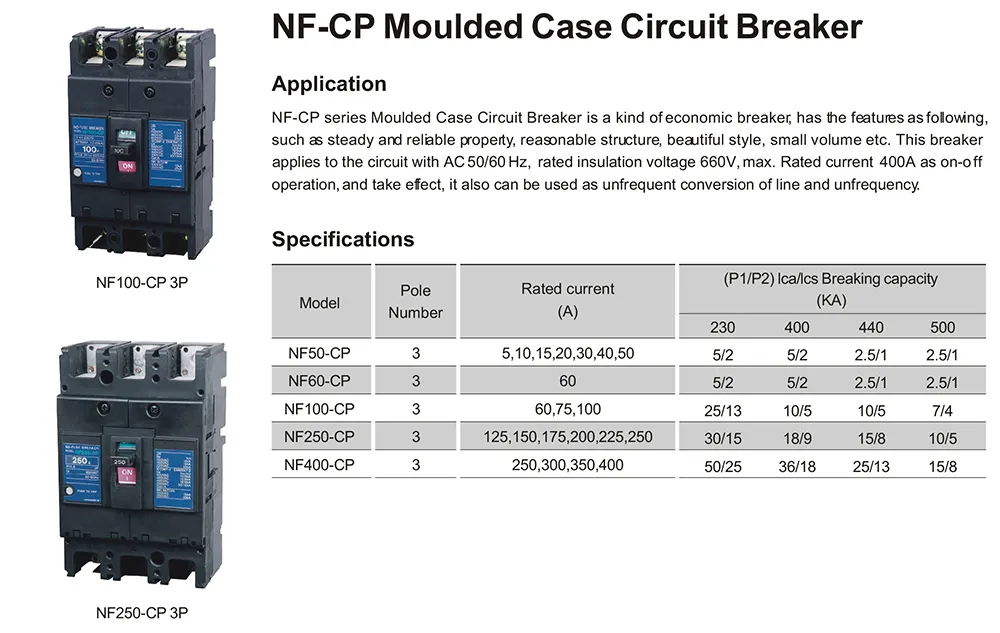

Molded Case Circuit Breaker 3

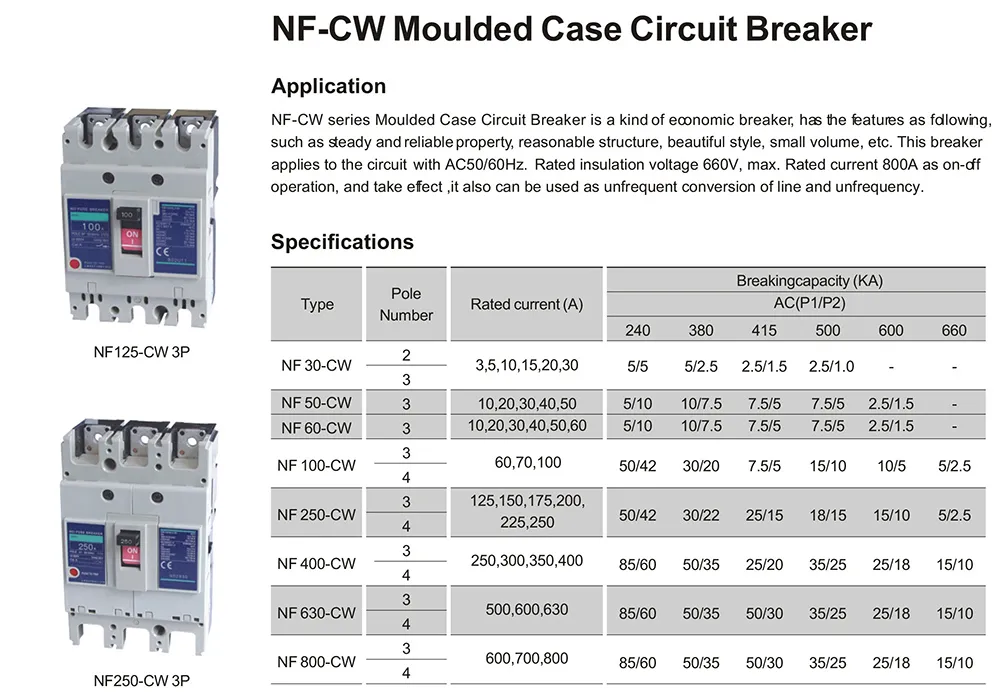

Molded Case Circuit Breaker 4

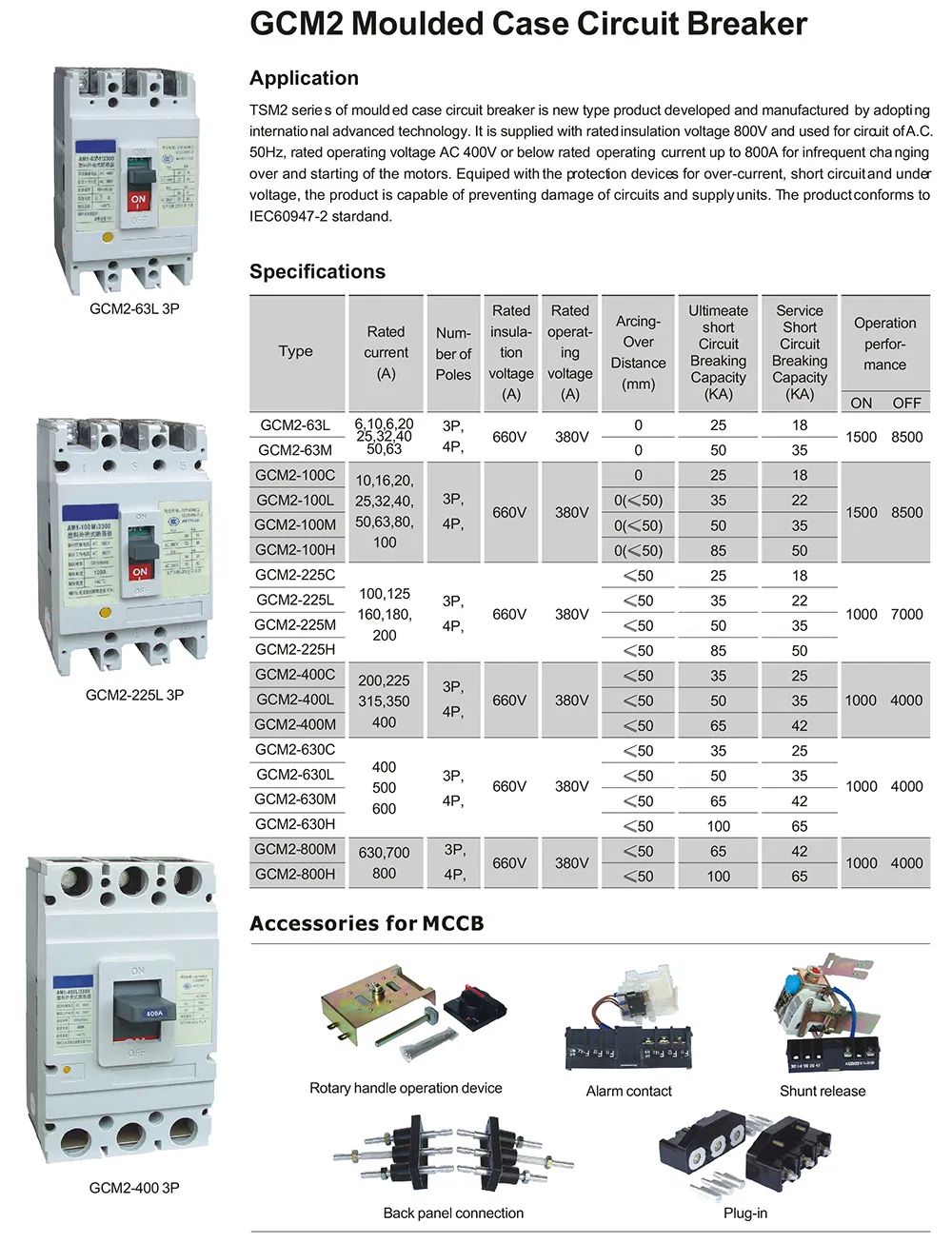

Molded Case Circuit Breaker 5

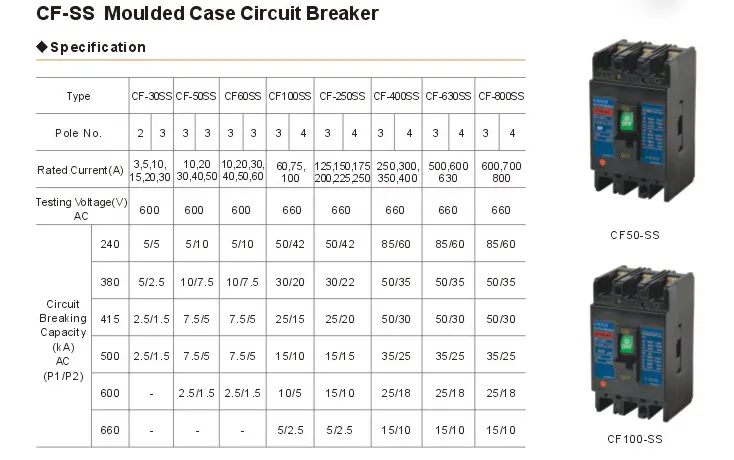

Molded Case Circuit Breaker 6

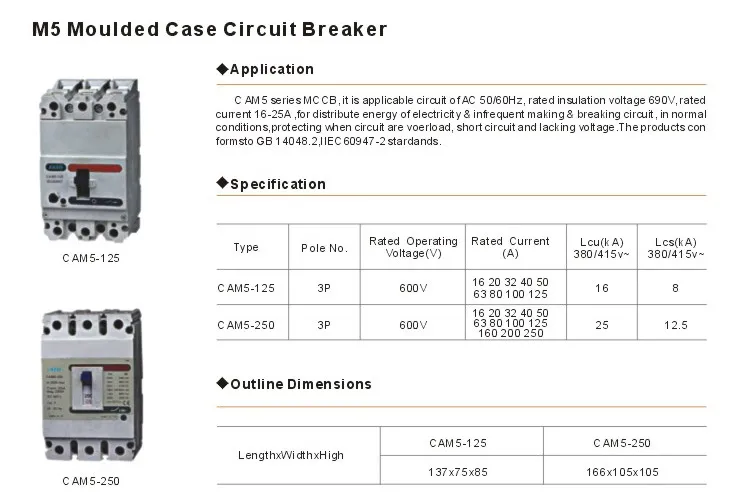

Molded Case Circuit Breaker 7

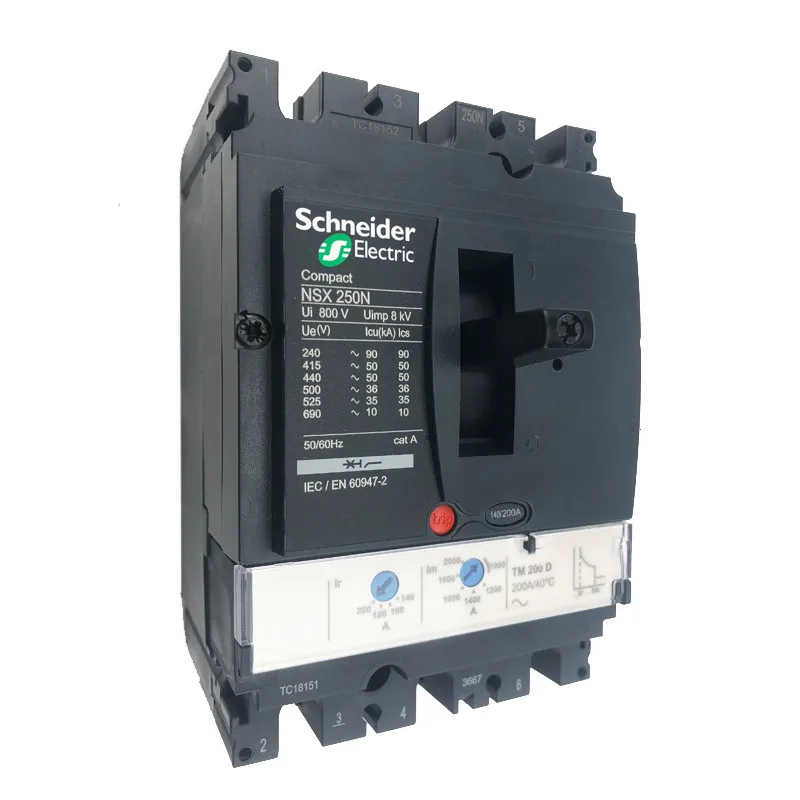

Molded Case Circuit Breaker 8
Molded Case Circuit Breaker 9

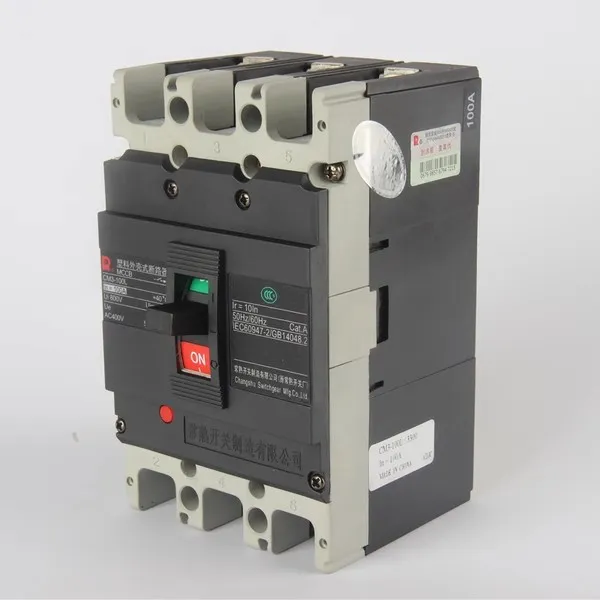

Molded Case Circuit Breaker 10

Frequently Asked Questions

What is the primary function of this MCCB?
The Moulded Case Circuit Breaker is designed to protect electrical systems against overload, undervoltage, and short circuit faults in AC 50/60Hz power distribution environments.
What standards does this circuit breaker comply with?
This product strictly complies with the IEC60947-2 international standard, ensuring high reliability and safety.
Can this device be used as a switch?
Yes, it can be used as a non-frequent switch for your engine or power distribution systems.
What is the rated operating voltage range?
It is suitable for rated voltages up to 690V AC.
What are the main advantages of this model?
It features a compact, modularized design, is environmentally friendly, and offers high breaking and zero arc-over capabilities.
What is the maximum rated current supported?
The rated operating current for this series supports up to 1600A, depending on the specific model type.
