1. The surrounding air temperature is -5°C to +40°C and the average value of 24h does not exceed +35°C.
2. The altitude of the installation site does not exceed 2000m.
3. The relative humidity of the air does not exceed 50% at a maximum temperature of +40°C; a higher relative humidity is possible at lower temperatures, with the average monthly minimum temperature of the wettest month not exceeding +25°C and the average monthly maximum relative humidity of that month not exceeding 90%, taking into account condensation occurring on the product surface due to temperature changes.

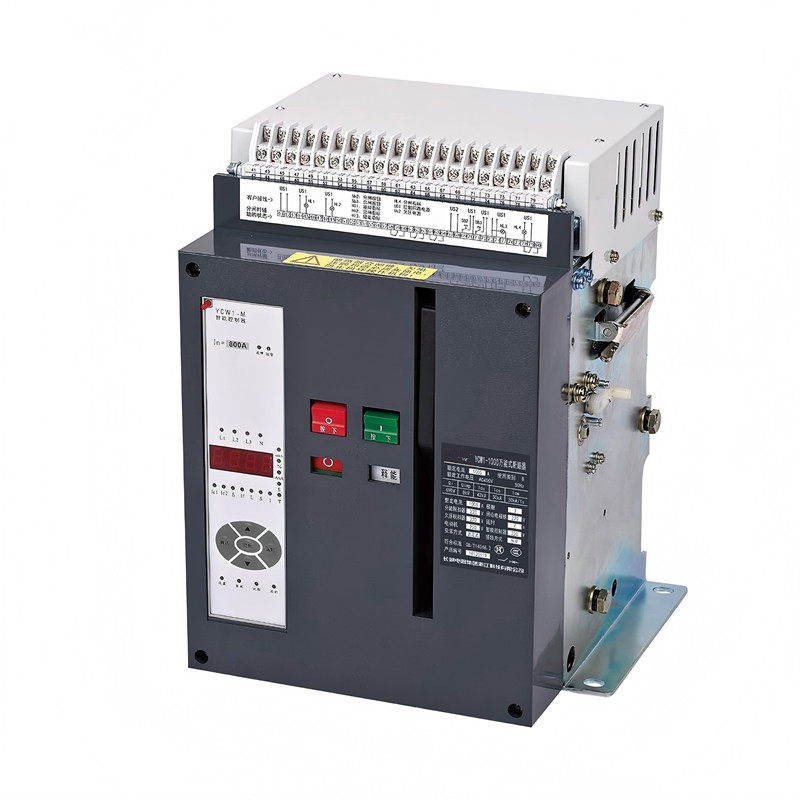

W1 series intelligent universal circuit breakers (hereinafter referred to as circuit breakers) are used in distribution networks with AC 50Hz, rated voltage up to 660V (690V) and below, rated current 200A-6300A, to distribute power and protect lines and power supply equipment from overload, undervoltage, short circuit, single-phase grounding and other faults. The circuit breaker has intelligent protection function and precise selective protection, which can improve the reliability of power supply and avoid unnecessary power outage. At the same time, it has open communication interface and can carry out "four remote" to meet the requirements of control center and automation system.
| Parameter Specification | Details | ||
|---|---|---|---|
| Model | W1-3200 | ||
| Inm(A) | 3200 | ||
| In(A) | 2000, 2500, 2900, 3200 | ||
| Rated limit short circuit breakage | AC400V | 100 | |
| Icu(kA) | AC690V | 80 | |
| Rated operating short circuit breakage | AC400V | 100 | |
| Ics(kA) | AC690V | 80 | |
| Rated short time tolerance | AC400V | 80 | |
| lcw(kA/s) | AC690V | / | |
| Poles(P) | 3P | 4P | |

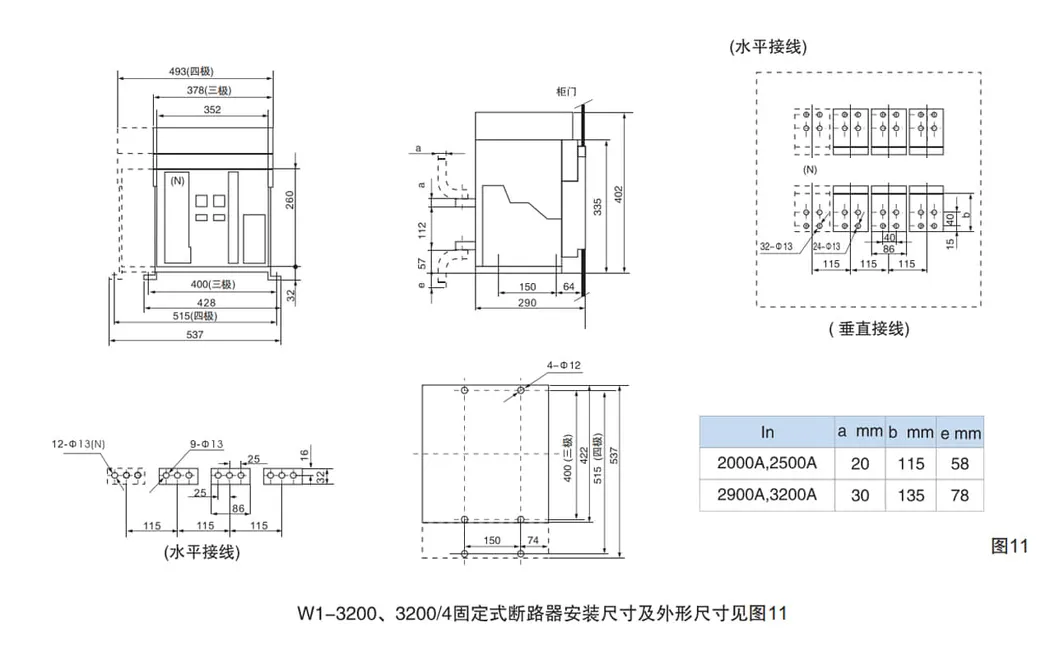

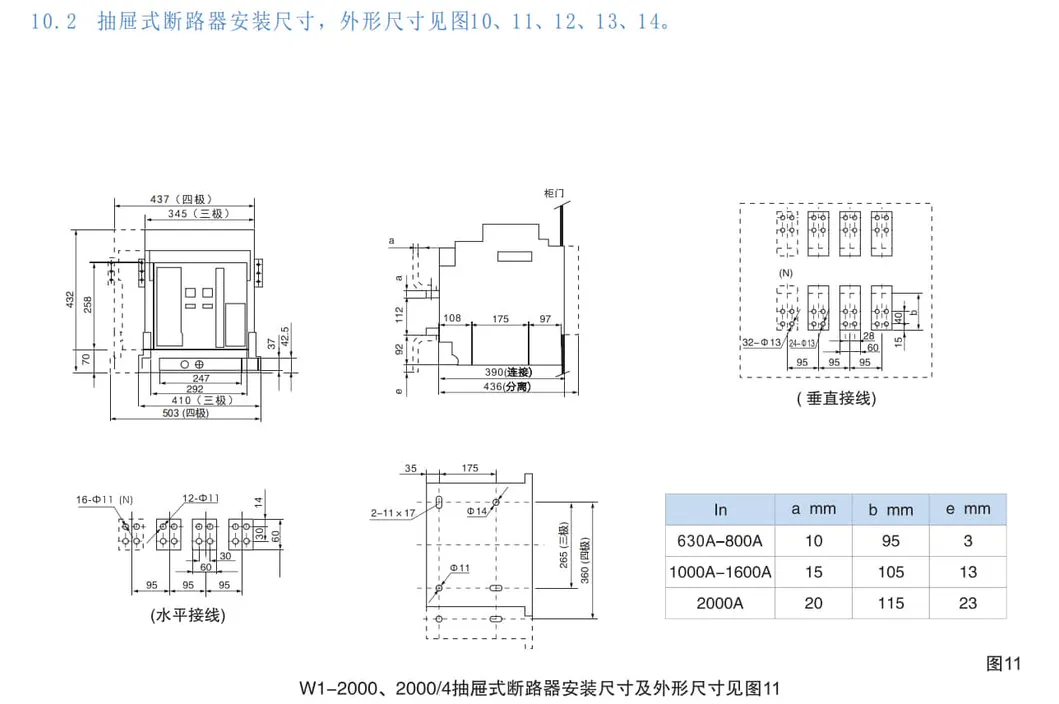

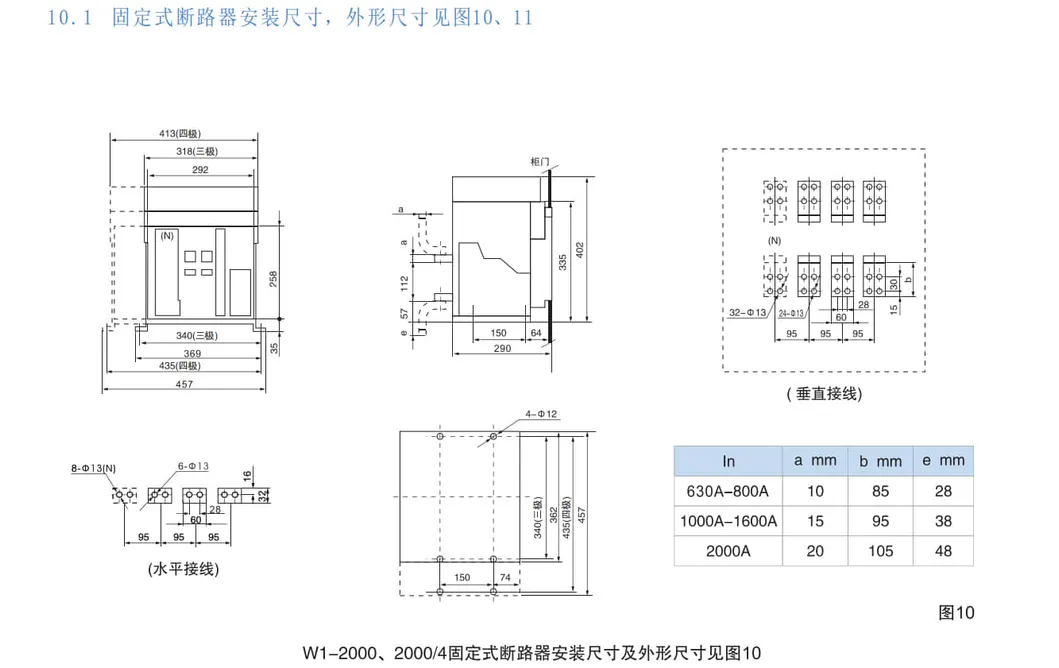

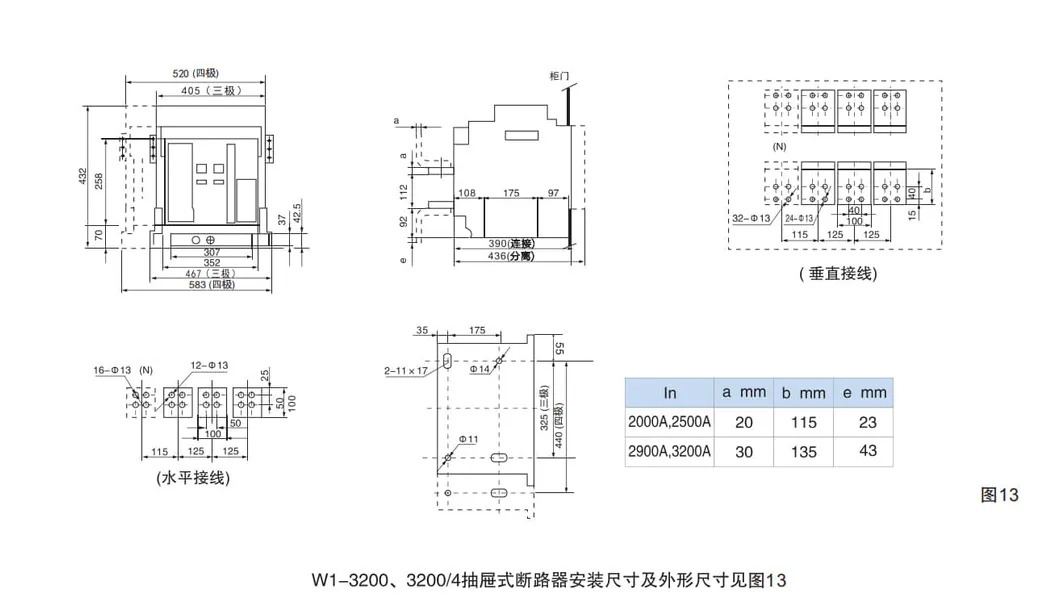

| W(Fixed /Drawer) | 422/435 | 537/550 | |
| L(Fixed /Drawer) | 363/488 | 363/488 | |
| H(Fixed /Drawer) | 402/435 | 402/435 | |
| Ue(V) | AC400/AC690 | ||
| Ui(V) | 1000 | ||
| Uimp(v) | 12000 | ||
| Flying arc distance (mm) | 0 | ||
| Type of use | B | ||
| Mounting method | Drawer type/Fixed type | ||
| Electromagnetic compatibility (EMC) | Environment A | ||
| Isolation suitability | Isolation | ||
The company has strong technical production capabilities and possesses multiple production lines with leading domestic technical levels, as well as surge protectors, lightning current impulse transmitters, transformer calibrators, pressure gauges, PD instruments, etc. Through cooperation with top foreign design institutes, the company introduces world-class equipment, supplemented by imported high-quality PC materials and exquisite manufacturing industry, to create products that are close to users and lead the market. With its strong technical research and development capabilities and humanized management concepts, the company is committed to providing users with high-quality products. The company strictly implements the ISO9001:2000 international quality management system standard and strives to enhance the brand awareness and reputation of high-quality products and services. In the spirit of serving the whole society and consumers, we will continue to provide customers with more perfect products and more considerate services. We warmly welcome people from all walks of life to visit and patronize us. We firmly believe that through unremitting efforts and persistent pursuit, we will continue to make progress with the times.
Can I deliver the goods from other suppliers to your factory? And then load them together?
Sure, we are very willing to help customers obtain the products quickly.
Will you attend the trade fair to showcase your products?
Yes, we participate in 3 to 4 international exhibitions every year, such as the Canton Fair, the Dubai Electricity Exhibition in the Middle East, the Asia Electricity Exhibition, etc. A series of different exhibitions. We look forward to seeing each other at the exhibitions!
How long will it take you to provide us with the design plan?
We have a professional design team. Our models and accessories are all independently developed and produced. We can provide you with ODM services. The general term is 45 to 50 days.
What certificates does your device have?
We have established a complete quality management, supply chain and after-sales service system. We constantly introduce the advanced 6S international management concept and have successively passed ISO9001, ISO14001, OHSAS18001, CQC certification, CE certification, TUV certification, CB certification and Rohs certification.
Is OEM acceptable?
We can provide OEM and ODM services. We have many different specifications and appearances for customers to choose from.
Can your products be installed in cold or hot weather?
The operating environment temperature range of our surge protector is -40ºC to 80ºC. As long as the installation environment you are in does not exceed this range, it can work normally.
