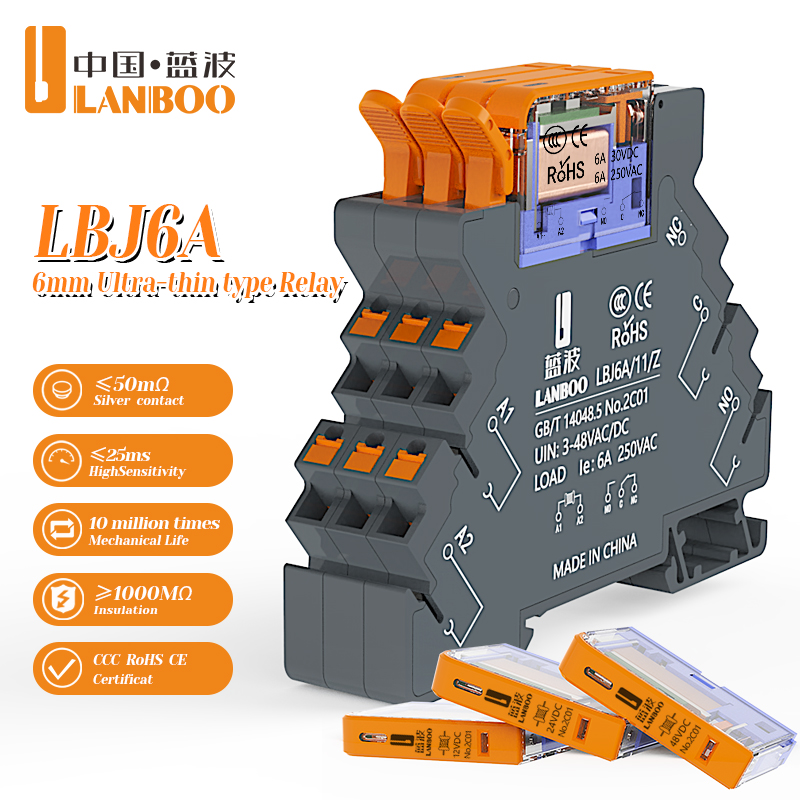

LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
1 / 5
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded
LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded

LANBOO LB-J6A DC12/24V Ultrathin Intermediate Relay 1NO1NC 8A 5-Pin Switch High-Density PCB Sealed Consumer Electronics Embedded

Send Inquiry

Product Description

Product Parameters
Product number LBJ6A
Contact type 1NO1NC
Pin type 5pin
Mode of operation no T-standard type
Coil voltage DC6V, DC12V, DC24V
Resistive load 8A 250VAC, 8A 30VDC
Inductive load 2A 250VAC, 2A 30VDC
Contact resistance <50mΩ
Suction and release time <25ms
Coil power consumption Approximately 0.9W(DC) / Approximately 1.2VA(AC)
Electrical life Under full load (switching frequency: 180000ps/h):
At room temperature, 5A 250V/30VDC (frequency 1s on, 9s off): > 400,000 times
At room temperature, 8A 250V/30VDC (frequency 1s on, 9s off): > 200,000 times
Mechanical life ≥20 million times (switching frequency: 180000ps/h)
Product certified CCC CE ROHS REACH (Customized)

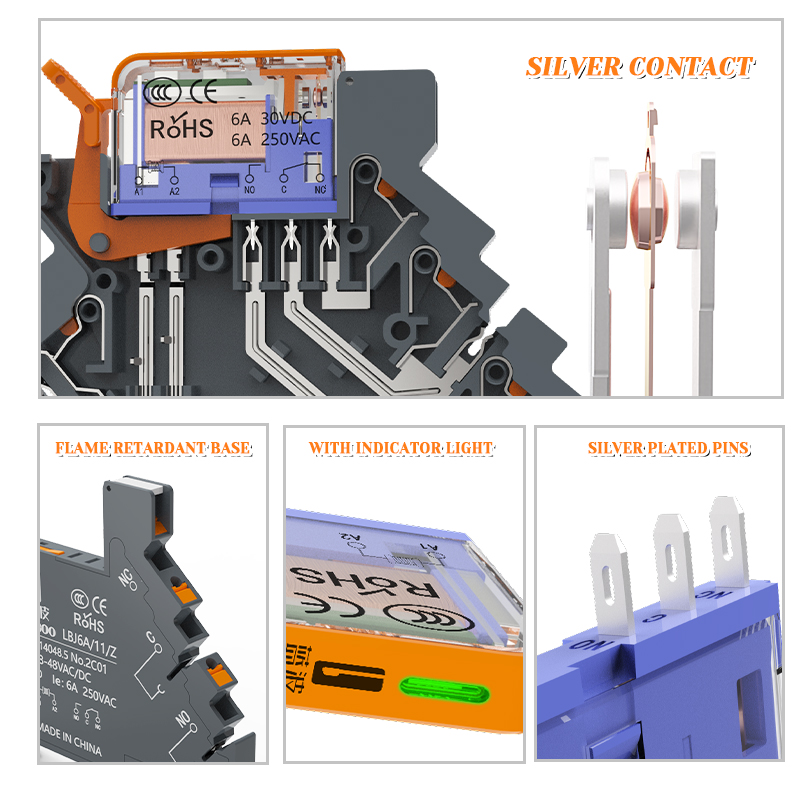

Product Details

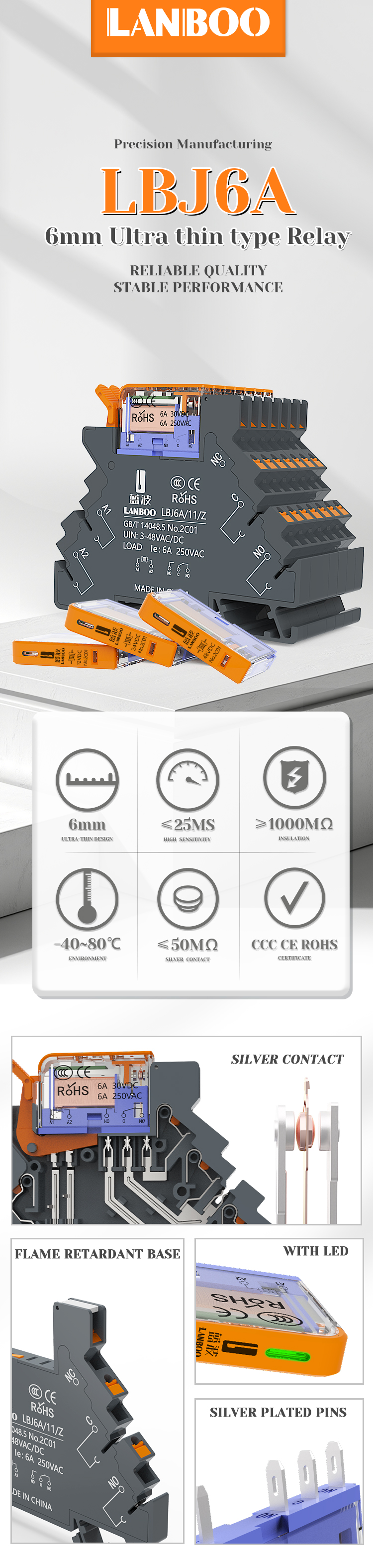

Product Detail 1

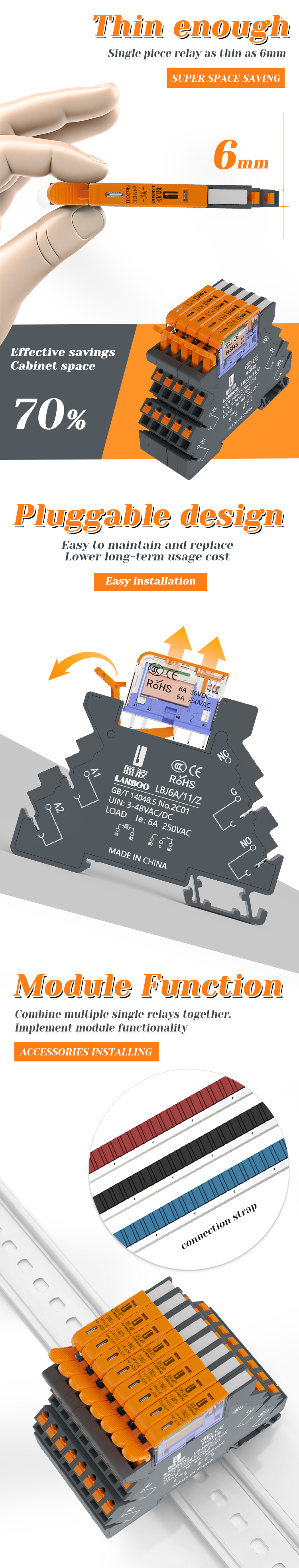

Product Detail 2

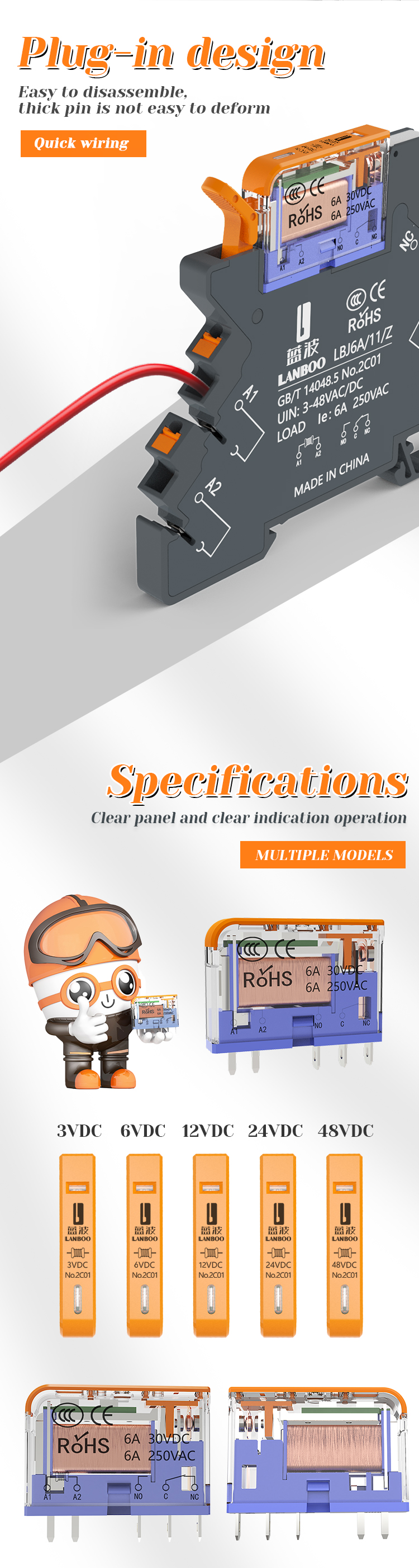

Product Detail 3

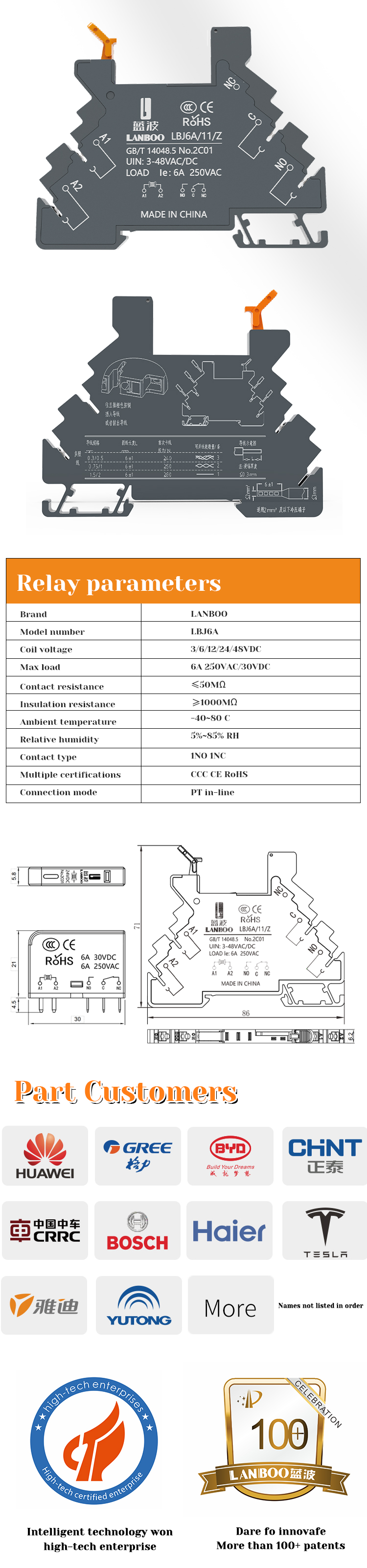

Product Detail 4

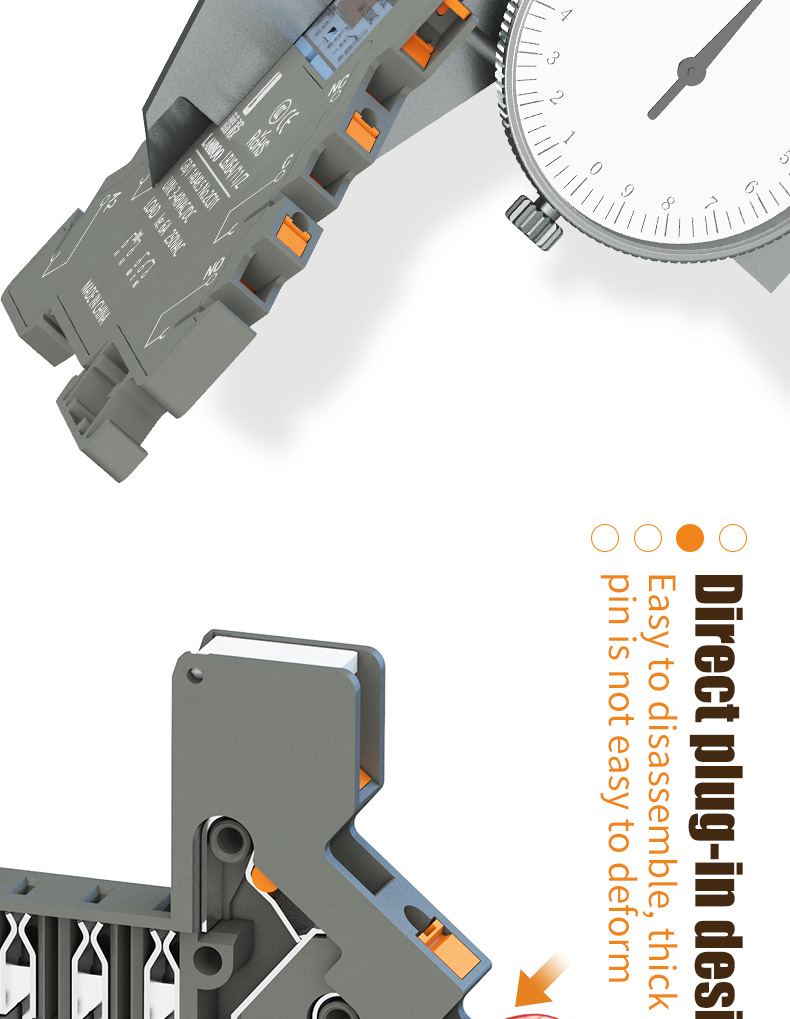

Product Detail 5
Product Detail 6

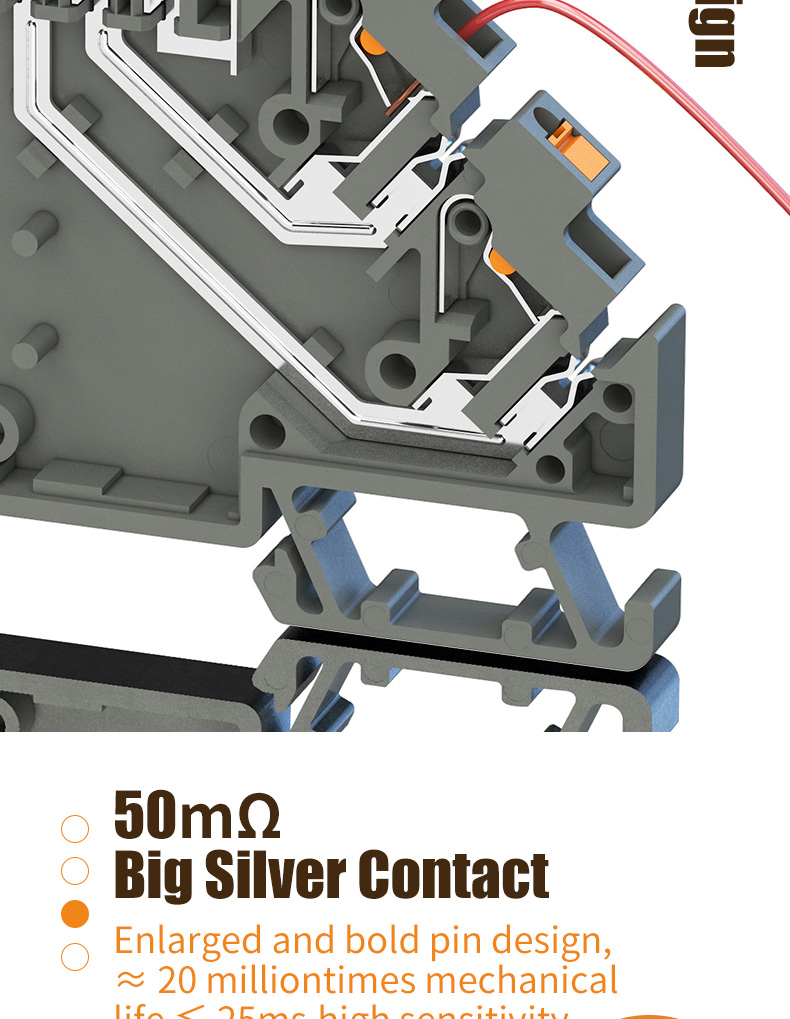

Product Detail 7

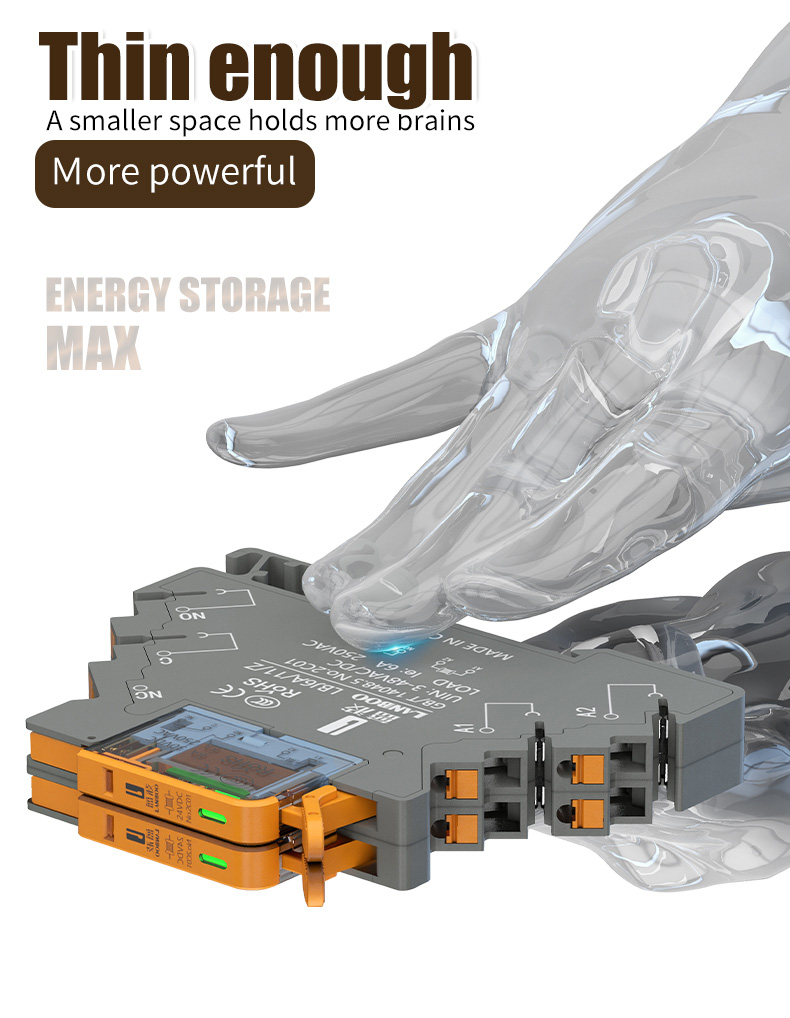

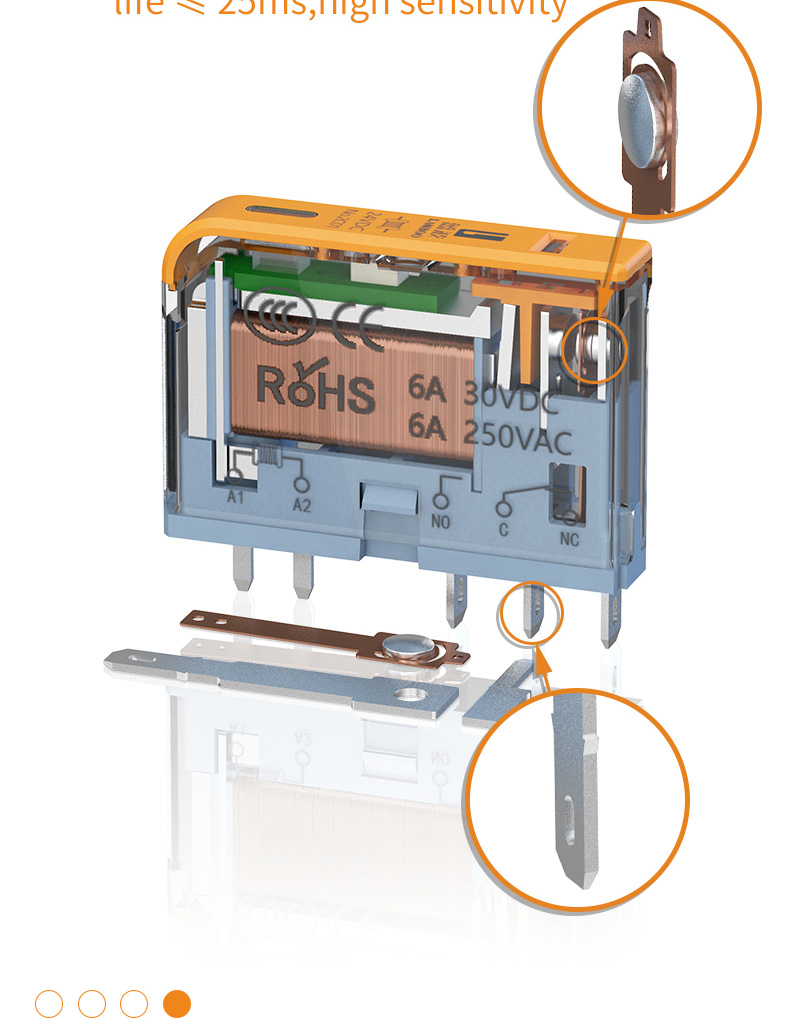

Product Detail 8

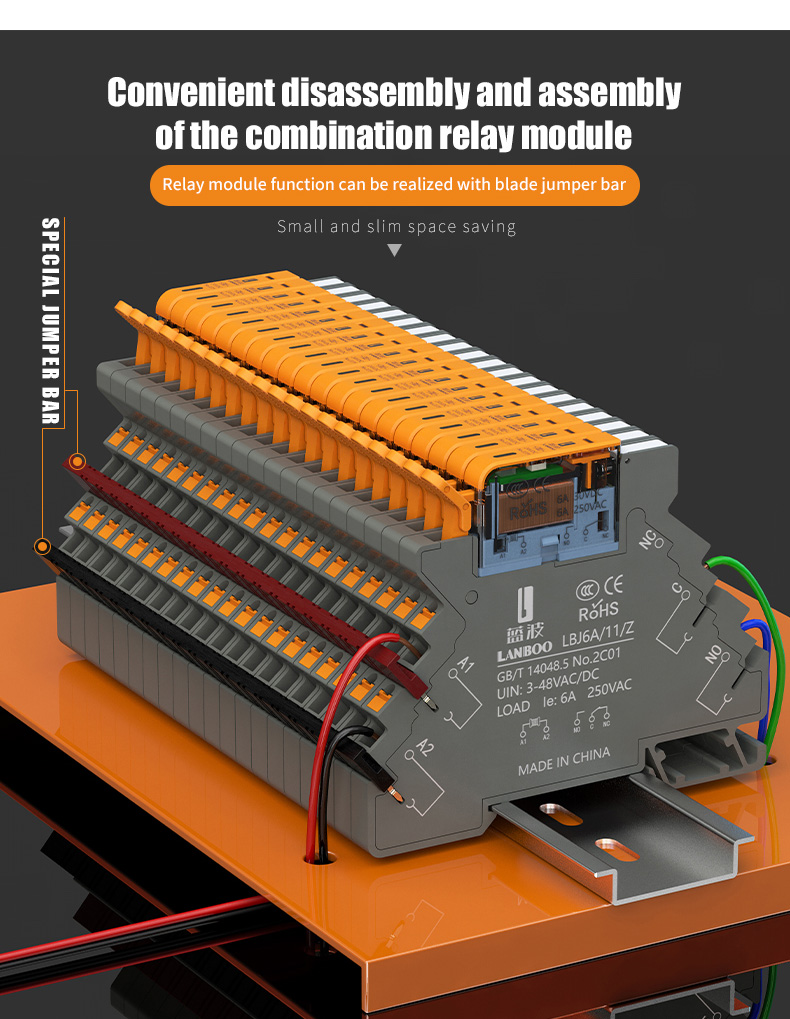

Product Detail 9

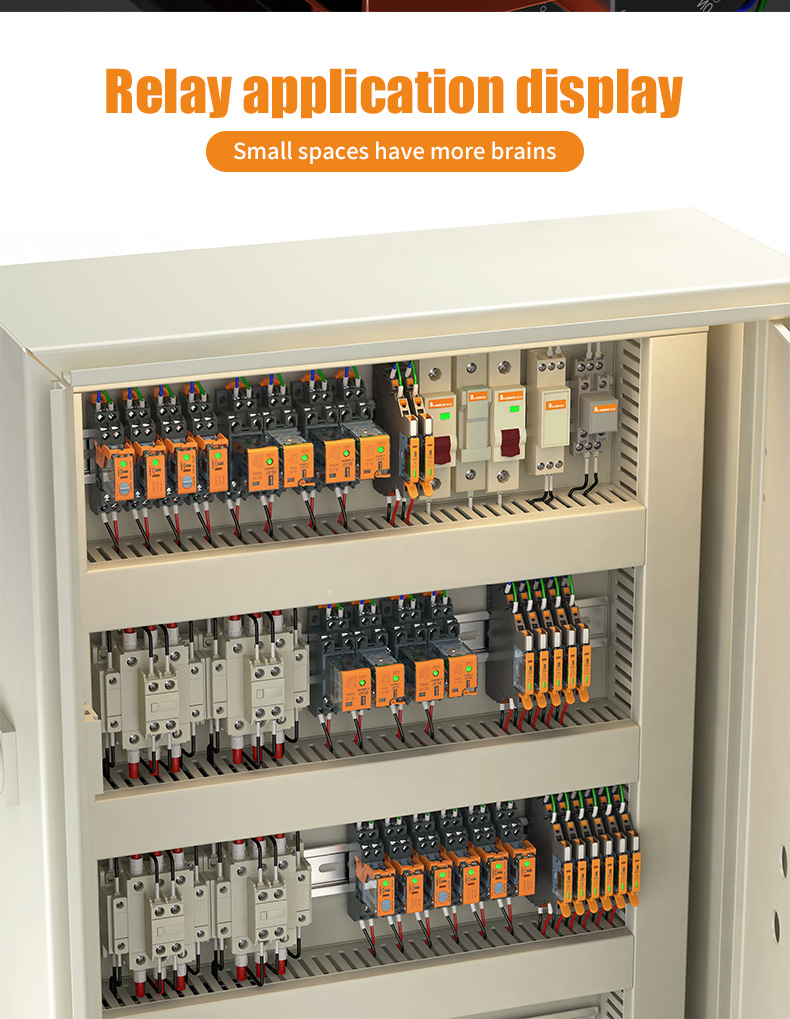

Product Detail 10

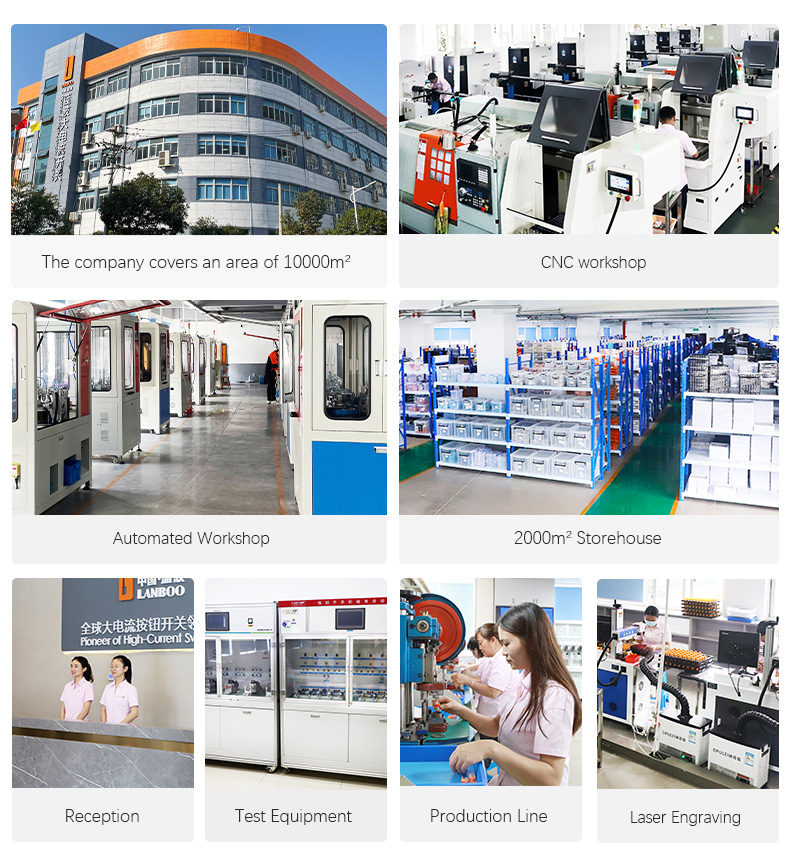

Manufacturing Facilities

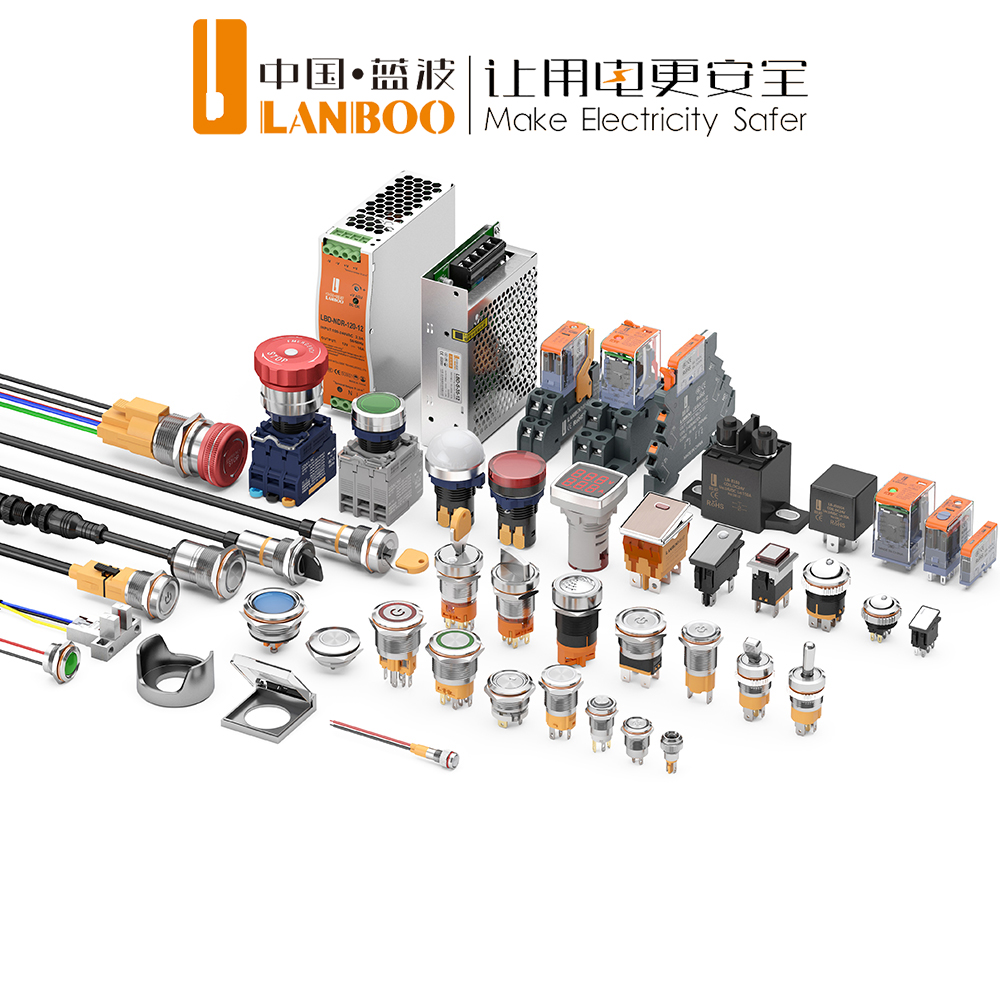

Facility Image 1
Facility Image 2
Facility Image 3
Facility Image 4
Certifications
Certifications
Packing & Delivery
Packing Image 1
Packing Image 2
Frequently Asked Questions (FAQ)
Q: What is the contact structure of the LBJ6A relay?
The LBJ6A relay features a 1NO1NC (1 Normally Open, 1 Normally Closed) contact configuration and uses a 5-pin terminal arrangement.
Q: What are the available coil voltage options for this product?
This relay is available in three standard control coil voltages: DC6V, DC12V, and DC24V.
Q: What are the resistive and inductive load capacities of the LBJ6A?
The rated resistive load is 8A at 250VAC or 30VDC. The inductive load is rated at 2A at 250VAC or 30VDC.
Q: How long is the electrical life expectancy of this relay under full load?
At standard room temperature, the electrical life exceeds 400,000 operations for a 5A 250V/30VDC load, and exceeds 200,000 operations for an 8A 250V/30VDC load (operated at 1s on, 9s off cycles).
Q: What certifications does the LBJ6A relay carry?
The relay complies with CCC, CE, RoHS directives, and REACH certification can be customized based on requirements.
Q: What is the mechanical durability of the relay?
It is designed for a mechanical service life of 20 million operations or more when operated at a switching frequency of up to 180,000 operations per hour.
