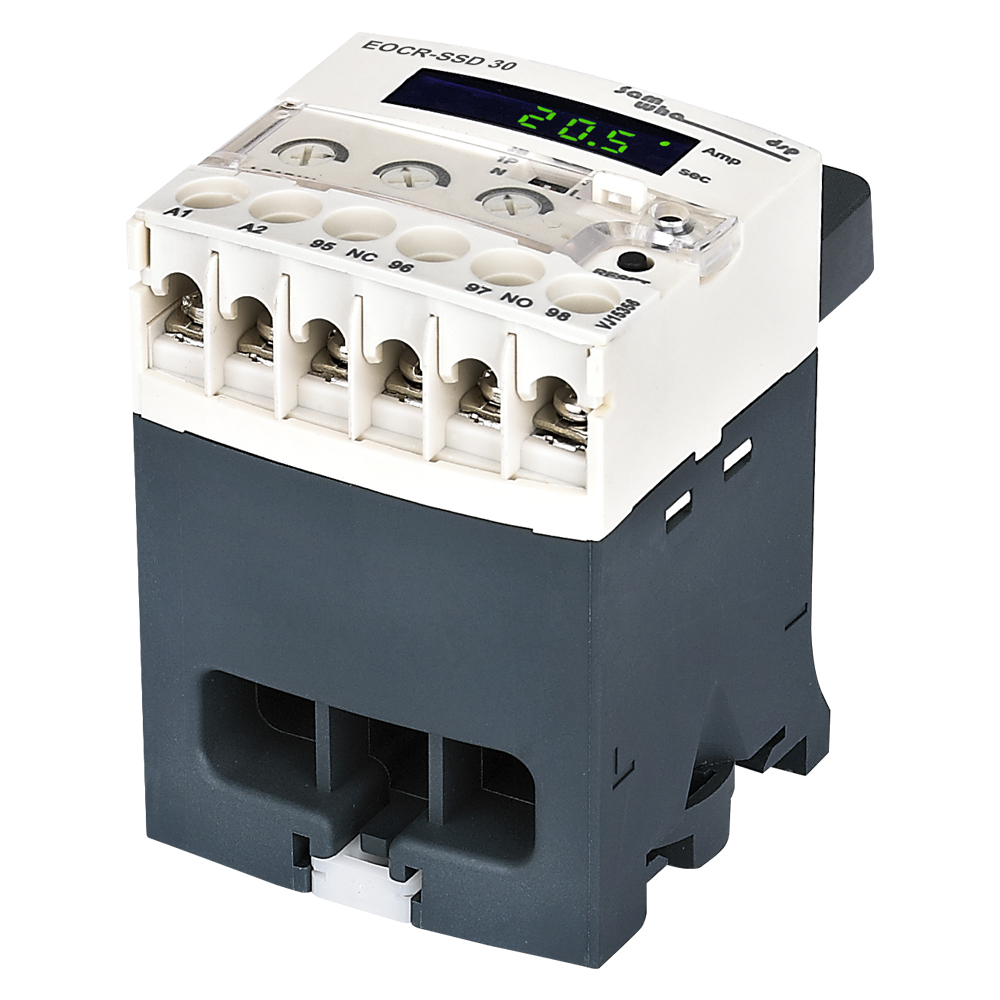

Samwha-dsp EOCR-SSD-30-220 Miniature 3 Phase Digital Control Overload Relay Protection

Send Inquiry

Product Description

🛡️ Product Description

✨ Features

Compact Design
Overload / Phase Loss / Locked Rotor protection

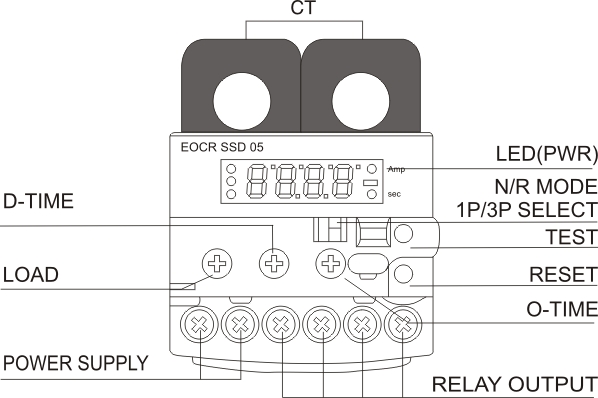

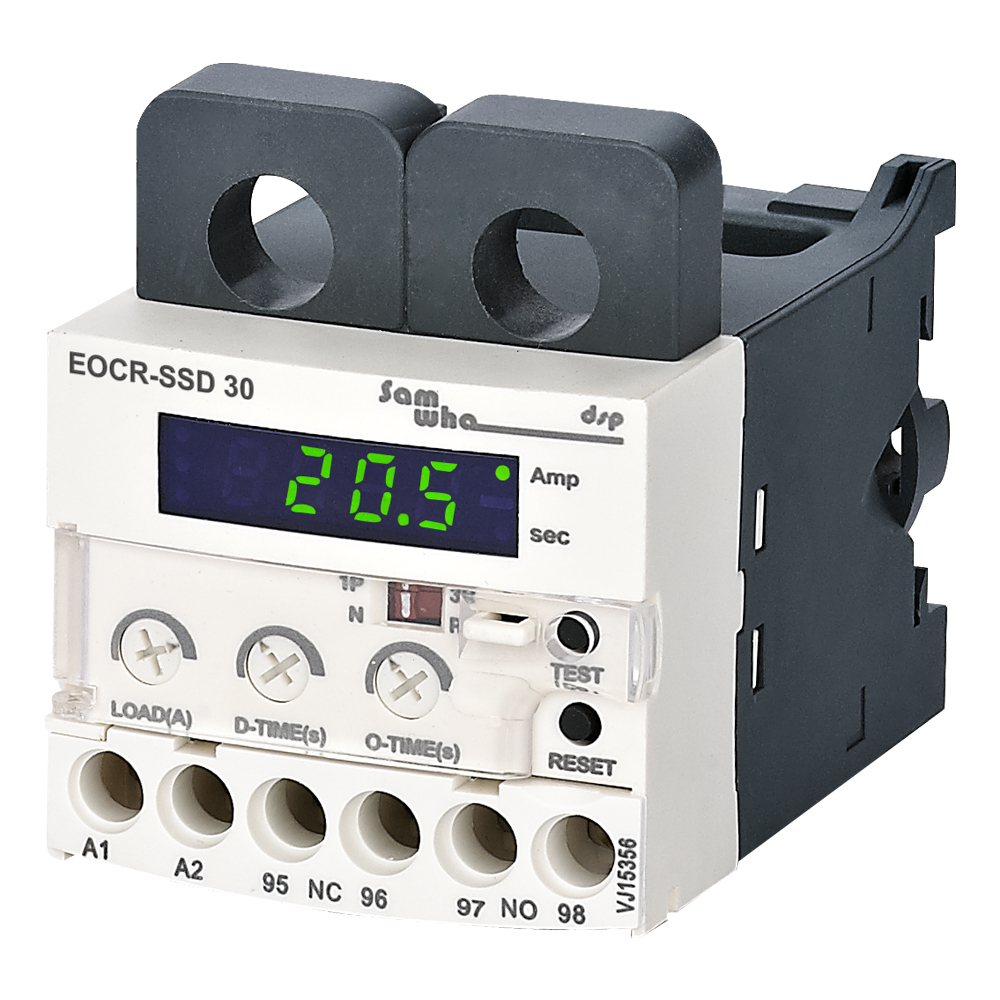

Accurately display the working current (the highest current of L1 and L3) through the front panel LED display
When trip occurs, the cause is displayed on the LED window
Phase loss protection (3 seconds)
Convenient application: Selective use of single-phase (1P) and three-phase (3P) by DIP switch.
Optional contact output [fail-safe (N)/non-fail-safe (R)]: simplify the adjustment of the contact state
Easy installation due to both Din Rail and Panel Mounting

🔧 Used for

Low Voltage Induced Electromotor (600V Level) Protective Relay
Break-Down Watch Current Relay
Alternative Replacement for the Existing Relay

⚙️ Protection Specifications

Protective Item	Operating (Trip) Time
Over-Current	O-TIME
Phase loss	3 sec.
Locked Rotor	After D-time (Operating current > 200% of set current)

📝 Parameter Settings

After the installation is complete, configure the settings as follows:

Set knob: D-TIME (Delay Time)
Set two to three seconds longer than the motor starting time.

Set knob: O-TIME (Over-current run time)
Set less than the motor's endurance time with over-current.

Set knob: Load (Rated Current)
Set over 110% of the motor's rated current or under 120% of its operating current.

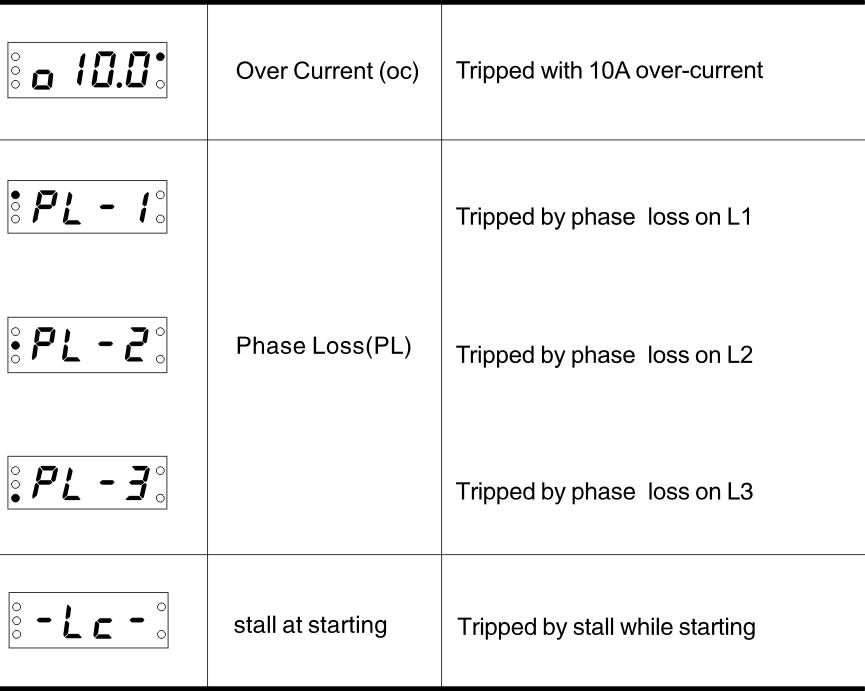

⚠️ Trip Cause Indication

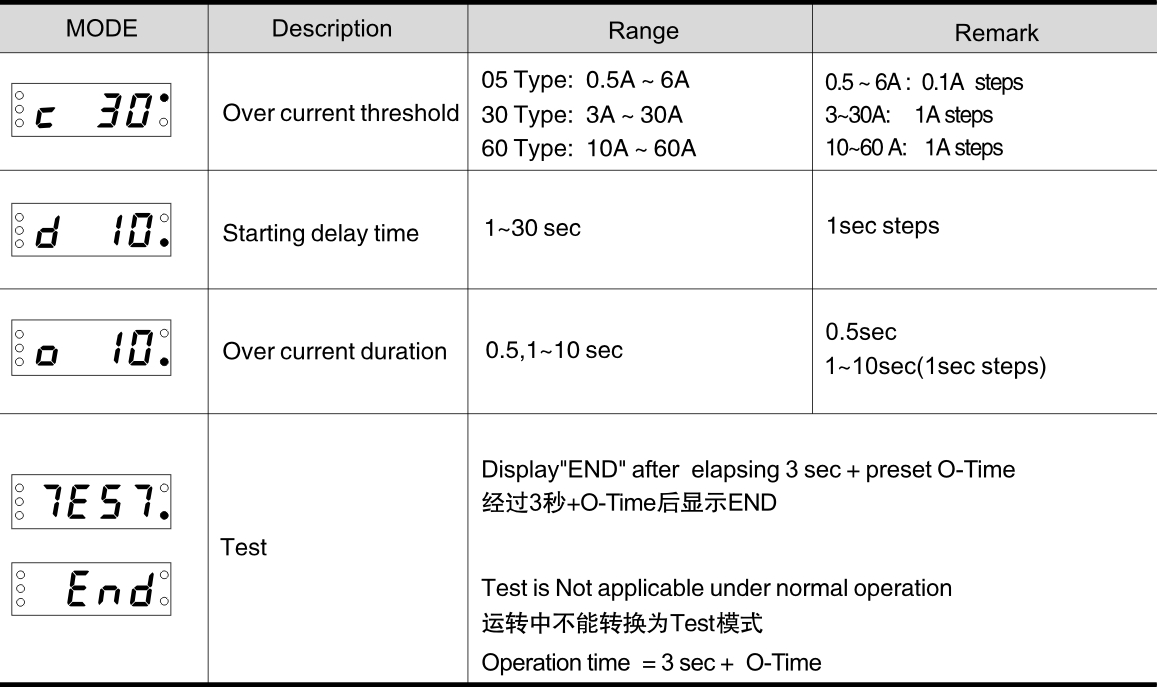

⚙️ Configuration Menu

📊 Specifications

Feature	Specification Details
Current Range	Type 05: 0.5-6A Type 30: 3-30A Type 60: 5-60A Type 120: 10-120A
Operating Voltage (Un)	Type 220: 180-260VAC
Operating Frequency	50/60Hz
Operating Power	< 2W
Operating Temperature	-20℃ to +55℃
Waiting (T)	D-Time 1-30s
Waiting (t)	O-Time 1-10s
Asymmetry Set	% ± 5
Contact	5A 250VAC Resistive Load
Mounting	35mm Din Rail (D) or Panel (P)

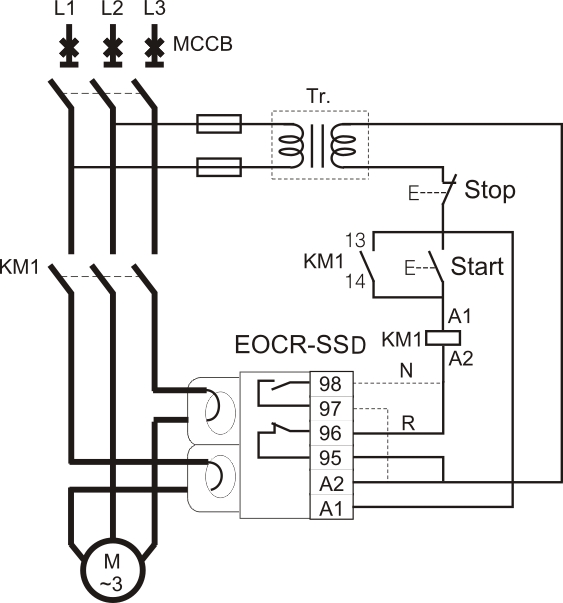

🔌 Connection Diagram

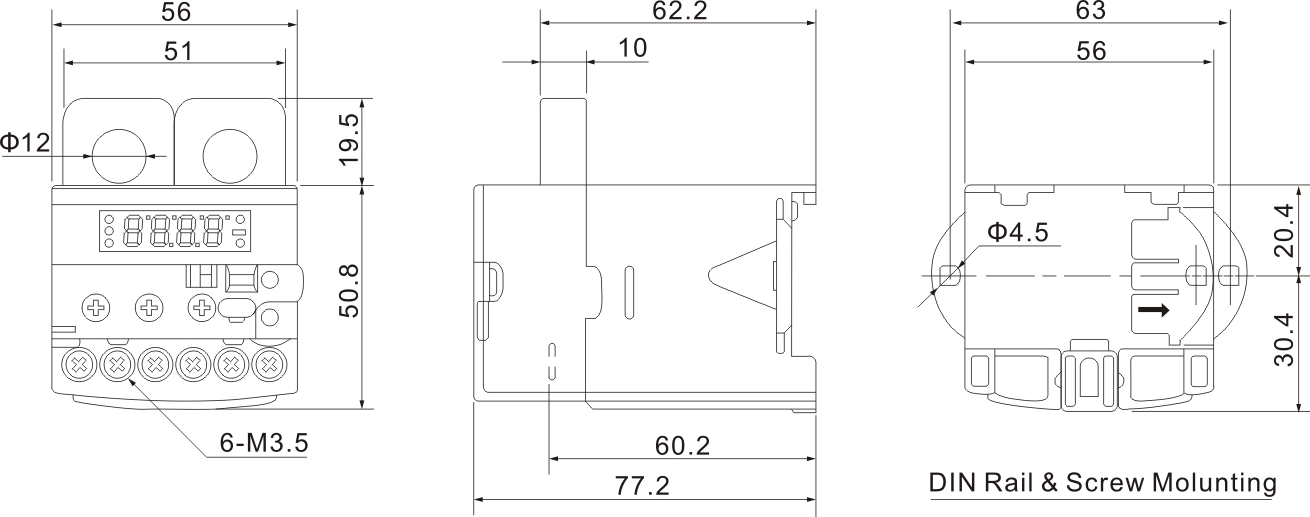

📐 Dimensions

📦 Related Products

📜 Certifications

🚚 Packing and Shipping

🤝 Our Services

1. Exclusive service: A professional Support Team will be in charge of your order
2. Inquiry Service: Data sheet, price, picture, manual and certificate will be provided.
3. OEM & ODM Service: Special design for Mould & Product Function & Packing
4. Shipping Service: A professional Logistics Department is in charge of shipping arrangement.
5. Order Process Tracking Service: Photos of your order will be sent to you to keep track the progress of production, testing, packing and storage
6. Quality Guarantee & After-Sales Service: All the products have 18 months’ Guarantee. If any quality complaint, we will give out solution within 5 days

❓ Frequently Asked Questions (FAQ)

Q1: What protective functions does this relay provide?

A1: It provides complete protection features including Overload, Phase Loss, and Locked Rotor protection to prevent motor damage.

Q2: How do I adjust the D-TIME and O-TIME settings?

A2: The D-TIME (Delay Time) should be set 2 to 3 seconds longer than the motor's startup duration. The O-TIME (Over-current run time) must be configured to be shorter than the motor's maximum endurance time during overload conditions.

Q3: Does the device display diagnostic information when a trip occurs?

A3: Yes, the front panel LED display shows the real-time working current, and when a trip occurs, it clearly displays the cause of the trip in the LED window for troubleshooting.

Q4: Is it compatible with both single-phase and three-phase systems?

A4: Yes, it is highly versatile. You can selectively switch between single-phase (1P) and three-phase (3P) configurations using the built-in DIP switch.

Q5: What are the installation and mounting methods?

A5: The design supports dual mounting options: standard 35mm Din Rail mounting and Panel mounting, ensuring a simple and easy installation process.

Q6: What is the quality guarantee period for the product?

A6: All of our products are covered by an 18-month Quality Guarantee. If any quality issues or complaints arise, a response and solution will be provided within 5 days.
