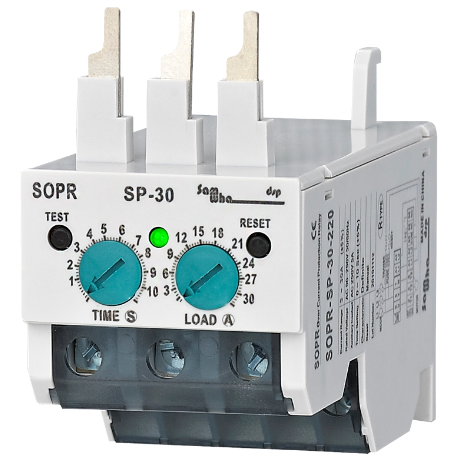

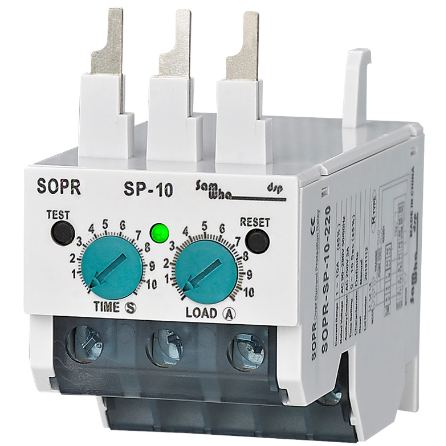

SOPR-SP series Pin type overload and phase loss relays are designed to prevent the failures originated from motor heat.
Time: Set larger than the motor's start current time and less than the motor's endurance time with over-current.
LOAD: Set over 110% of the motor started current or under 120% of its operating current.
| Feature | Details |
|---|---|
| Current Range | Type10: 1-10A / Type30: 3-30A |
| Operating Voltage(Un) | 24VAC/DC, 110VAC, 220VAC, 380VAC |
| Operating Frequency | 50/60Hz |
| Operating Power | <2W |
| Operating Temperature | -20°C to +55°C |
| Waiting (T) | 0.2-10 sec |
| Accuracy | ±10%(Current), ±15%(Time) |
| Contact | 5A 250VAC Resistive Load |
