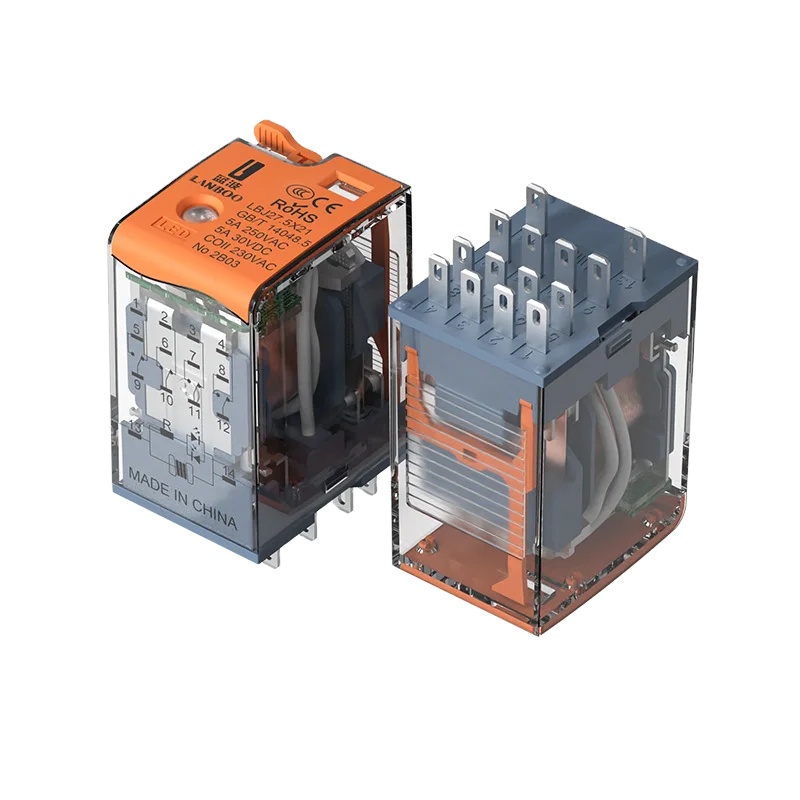

| Product number | LBJ21A |

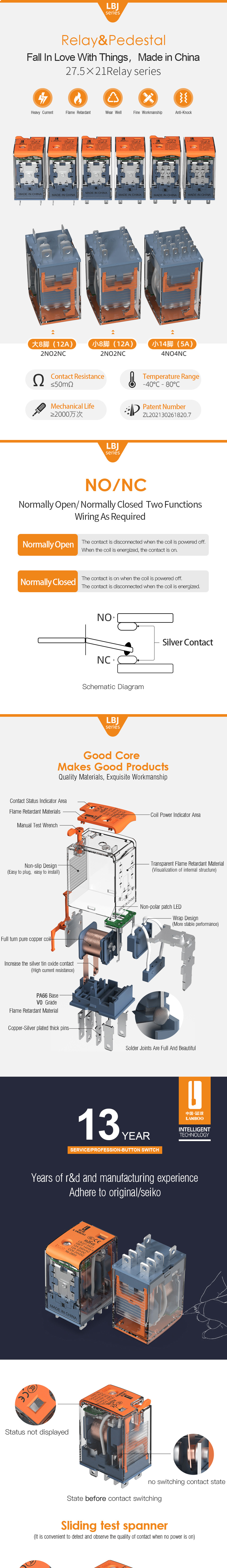

| Contact type | 2NO2NC/4NO4NC |

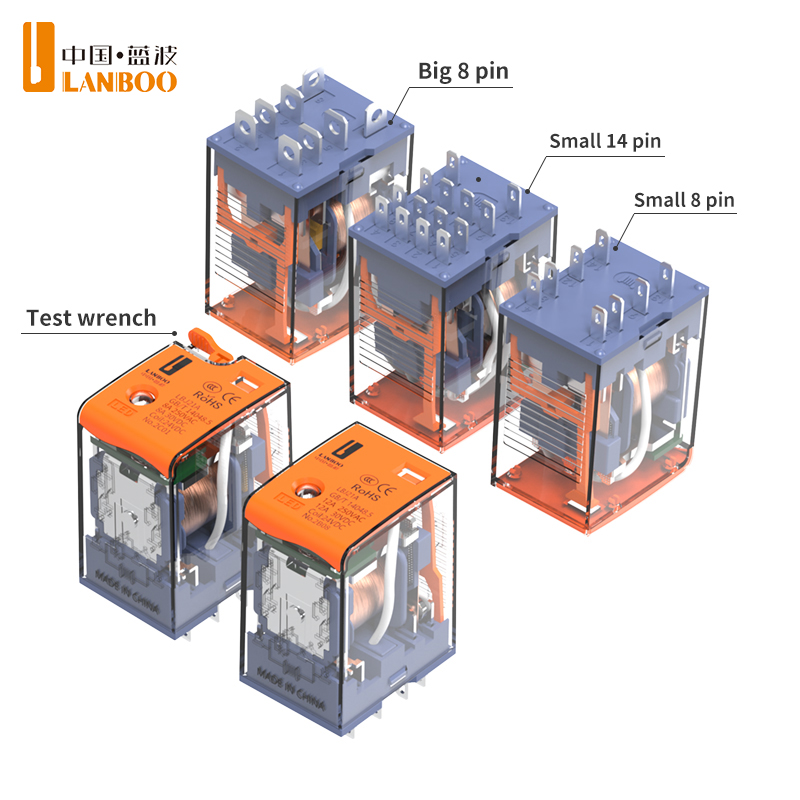

| Pin type | Small 8 pin, Big 8 pin, 14pin |

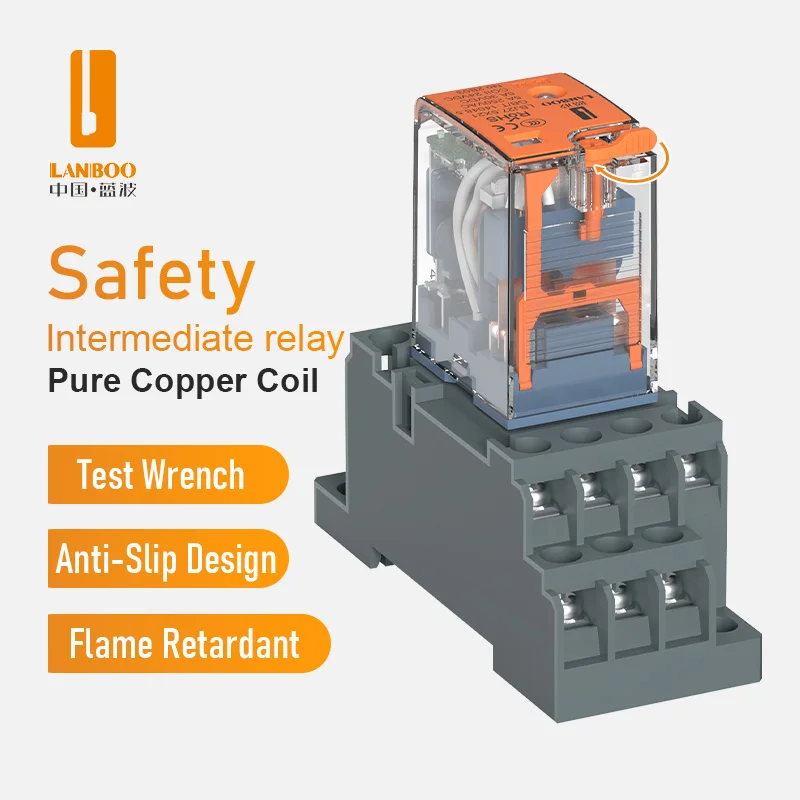

| Mode of operation | T-with test wrench, no T-standard type |

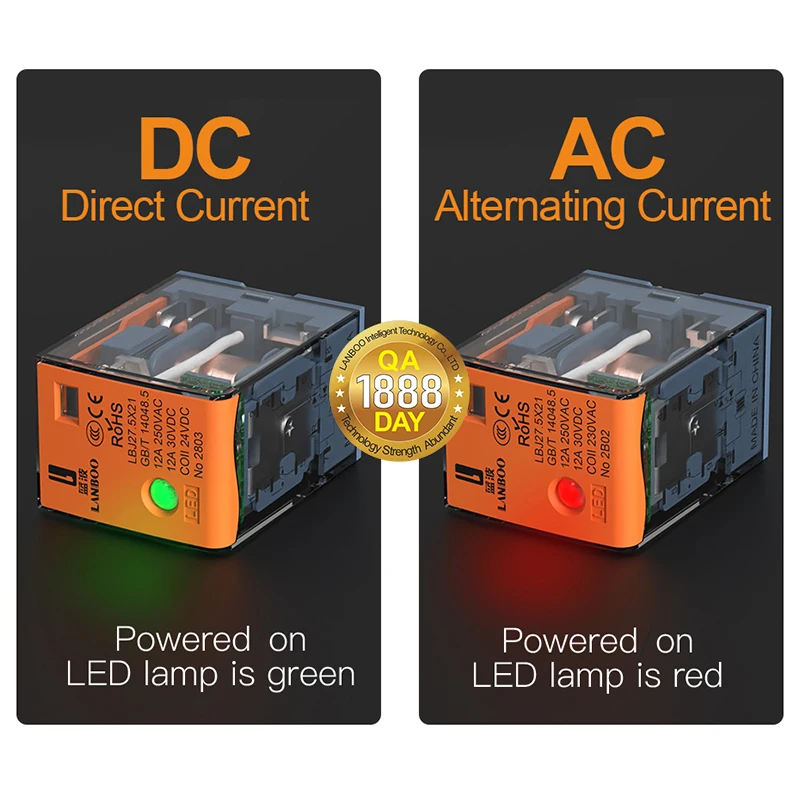

| Coil voltage | DC12V, DC24V, AC220V, other customization: AC/DC6V, AC/DC48V, AC/DC60V, AC/DC110V, AC12V, DC220V |
| Resistive load | 2NO2NC: 12A 250VAC, 12A 30VDC 4NO4NC: 5A 250VAC, 5A 30VDC |
| Inductive load | 2NO2NC: 4A 250VAC, 4A 30VDC 4NO4NC: 1.5A 250VAC, 1.5A 30VDC |
| Contact resistance | <50mΩ |
| Suction and release time | <25ms |
| Coil power consumption | Approximately 0.9W(DC) / Approximately 1.2VA(AC) |
| Electrical life | Under full load (switching frequency: 180000ps/h): At room temperature, 5A250V/30VDC (frequency 1s on, 9s off): >400,000 times At room temperature, 7A250V/30VDC (frequency 1s on, 9s off): >250,000 times At room temperature, 12A250V/30VDC (frequency 1s on, 9s off): >100,000 times |
| Mechanical life | ≥20 million times (switching frequency: 180000ps/h) |
| Product certified | CCC CE ROHS REACH(custom) |
