| Installation method | Guide rail type, device type |
| Protection function | Multiple indicator lights |
| Phase failure | Phase failure, phase sequence, overvoltage and undervoltage |
| Sequence protection | ≤1s |
| Overvoltage protection | AC380V-AC460V adjustable, action time 1.5s-4s adjustable |
| Undervoltage protection | AC300V-AC380V adjustable, action time 2s-9s adjustable |
| Rated control power supply voltage | AC380V, 50Hz |
| Rated insulation voltage | AC415V |
| Enclosure protection class(if applicable) | IP20 |
| Electrostatic discharge immunity test | 8KV (air discharge) |
| Surge immunity test | 1KV (line to line) |

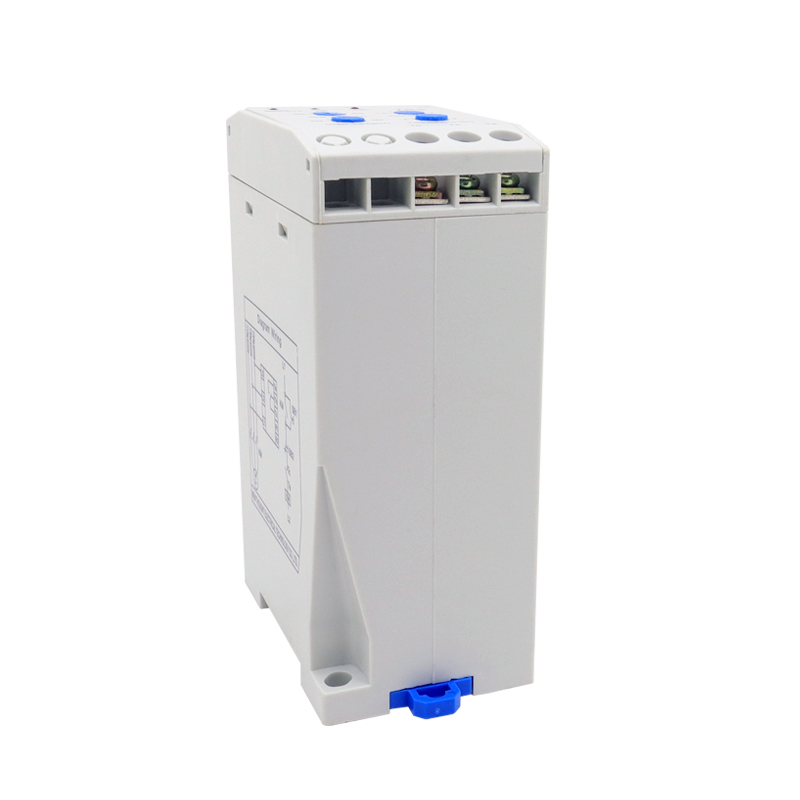

It supports both guide rail type and device type installation methods, providing flexibility for different setup requirements.

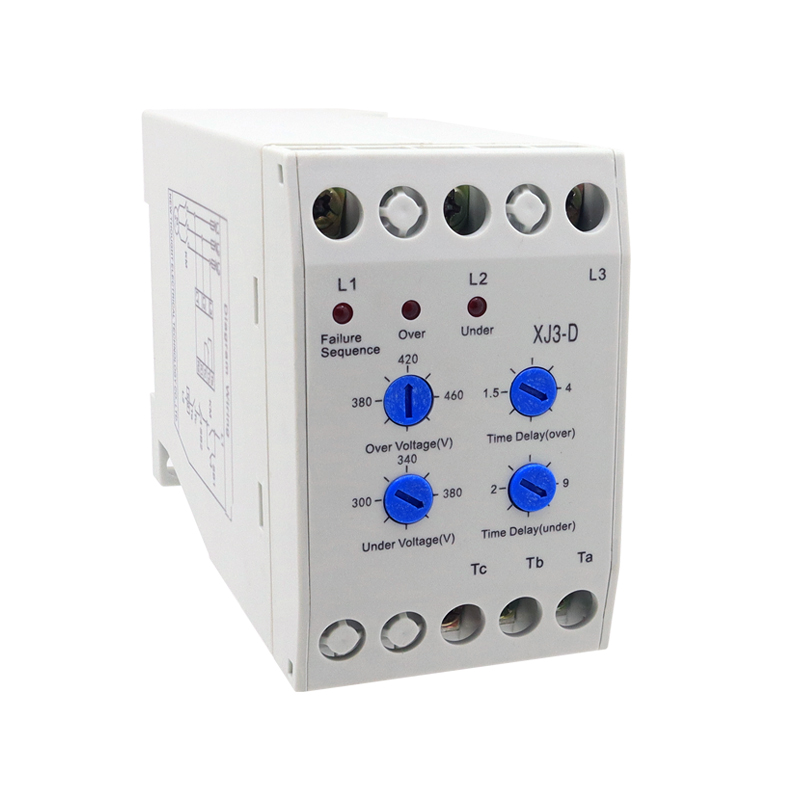

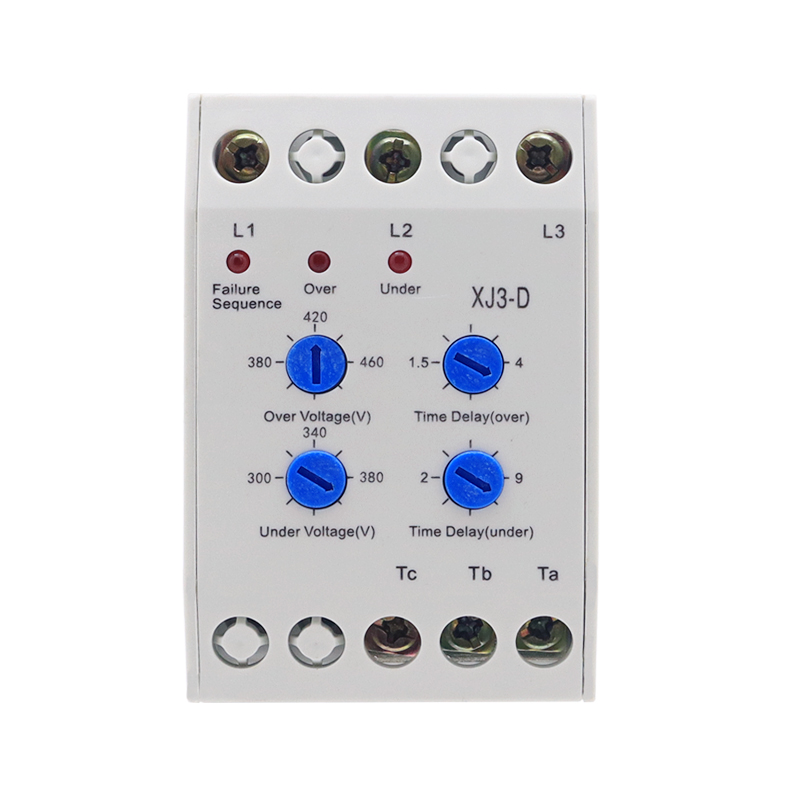

It provides comprehensive protection against phase failure, phase sequence issues, overvoltage, and undervoltage, with multiple indicator lights to display the current protection status.

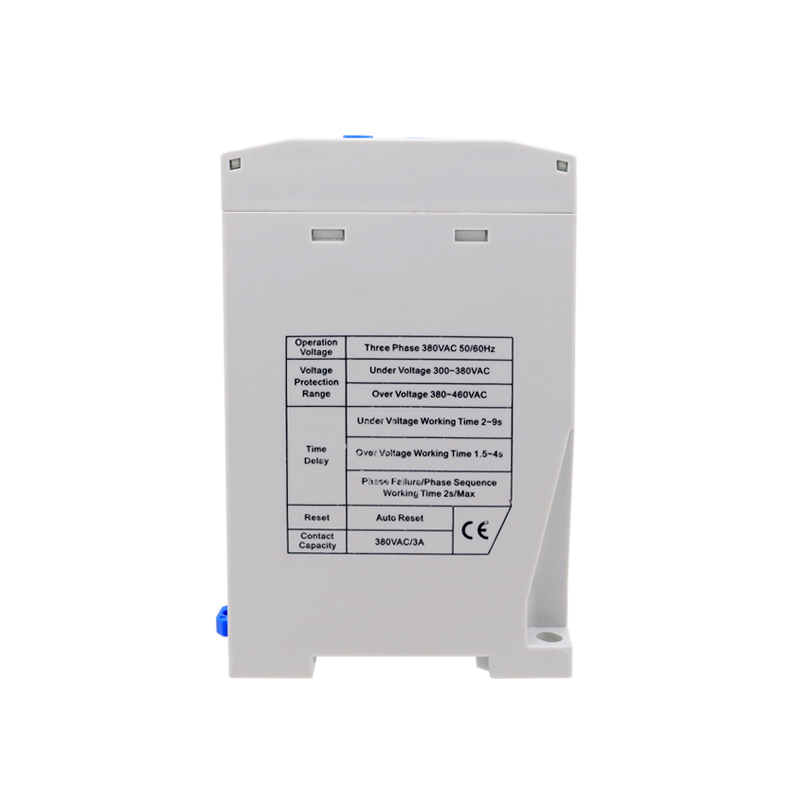

Overvoltage protection is adjustable from AC380V to AC460V with an action time of 1.5s to 4s. Undervoltage protection is adjustable from AC300V to AC380V with an action time of 2s to 9s.
The rated control power supply voltage is AC380V at a frequency of 50Hz, with a rated insulation voltage of AC415V.
The enclosure protection class is IP20. It has passed the electrostatic discharge immunity test at 8KV (air discharge) and the surge immunity test at 1KV (line to line).
The action time for phase sequence protection is extremely fast, triggerable within 1 second (≤1s).
