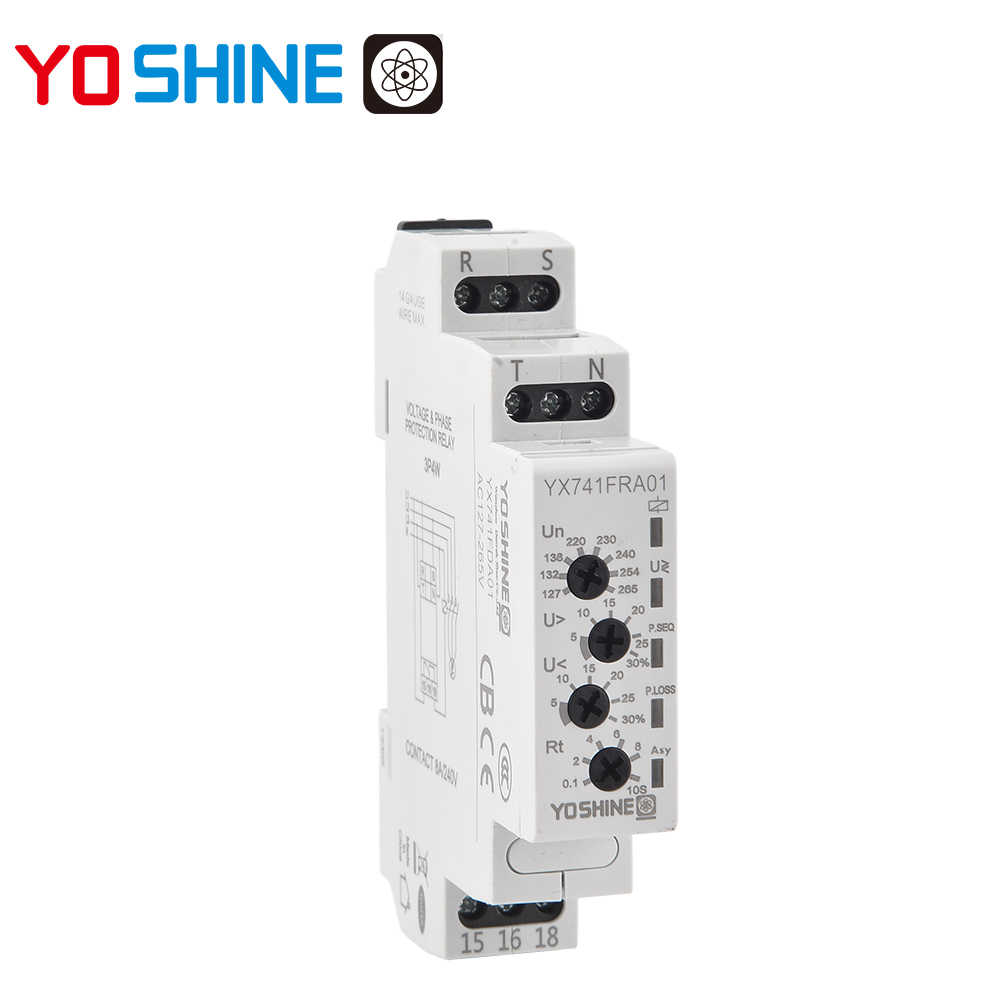

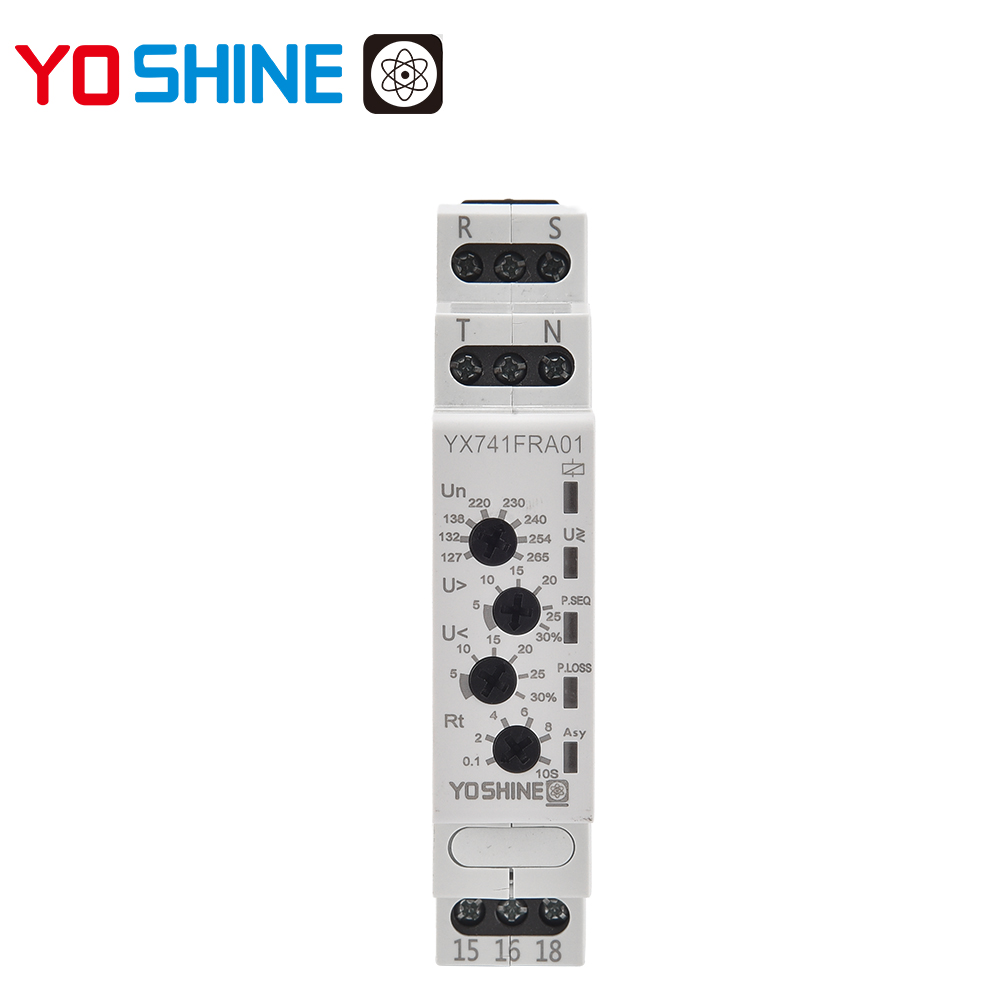

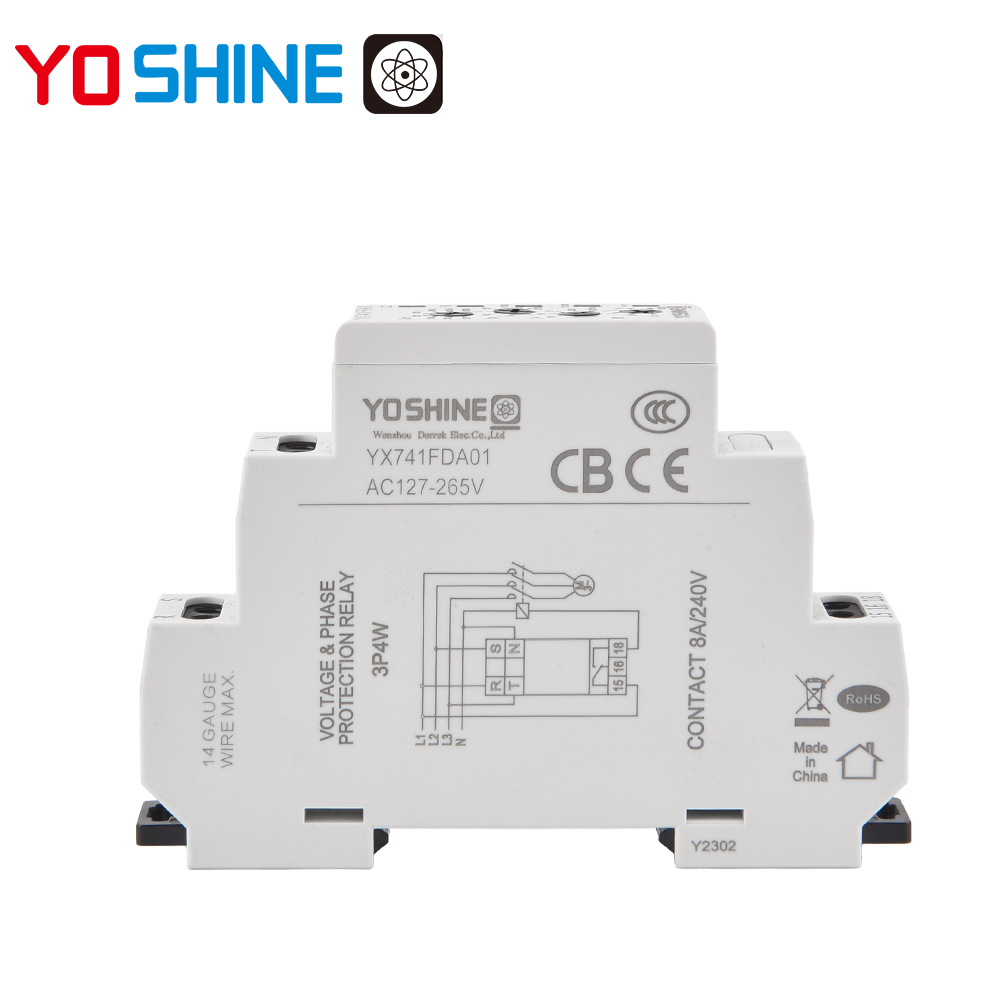

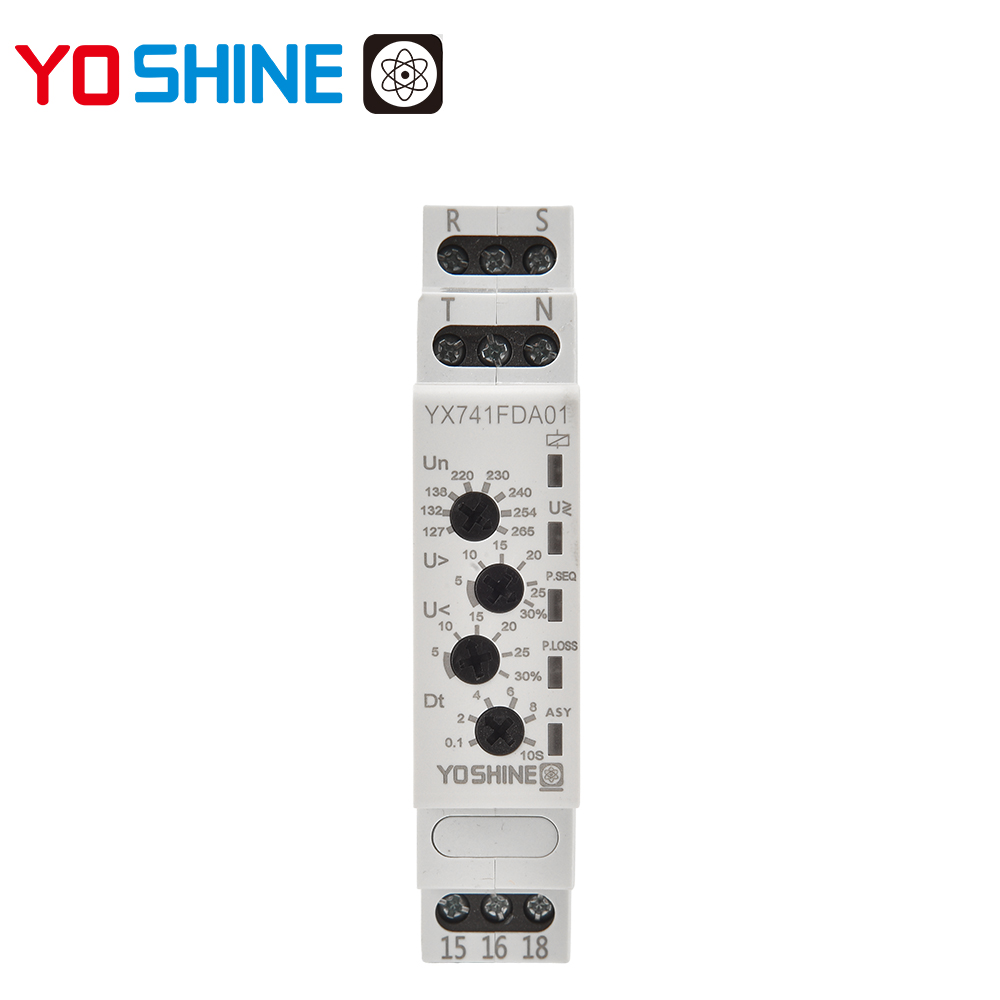

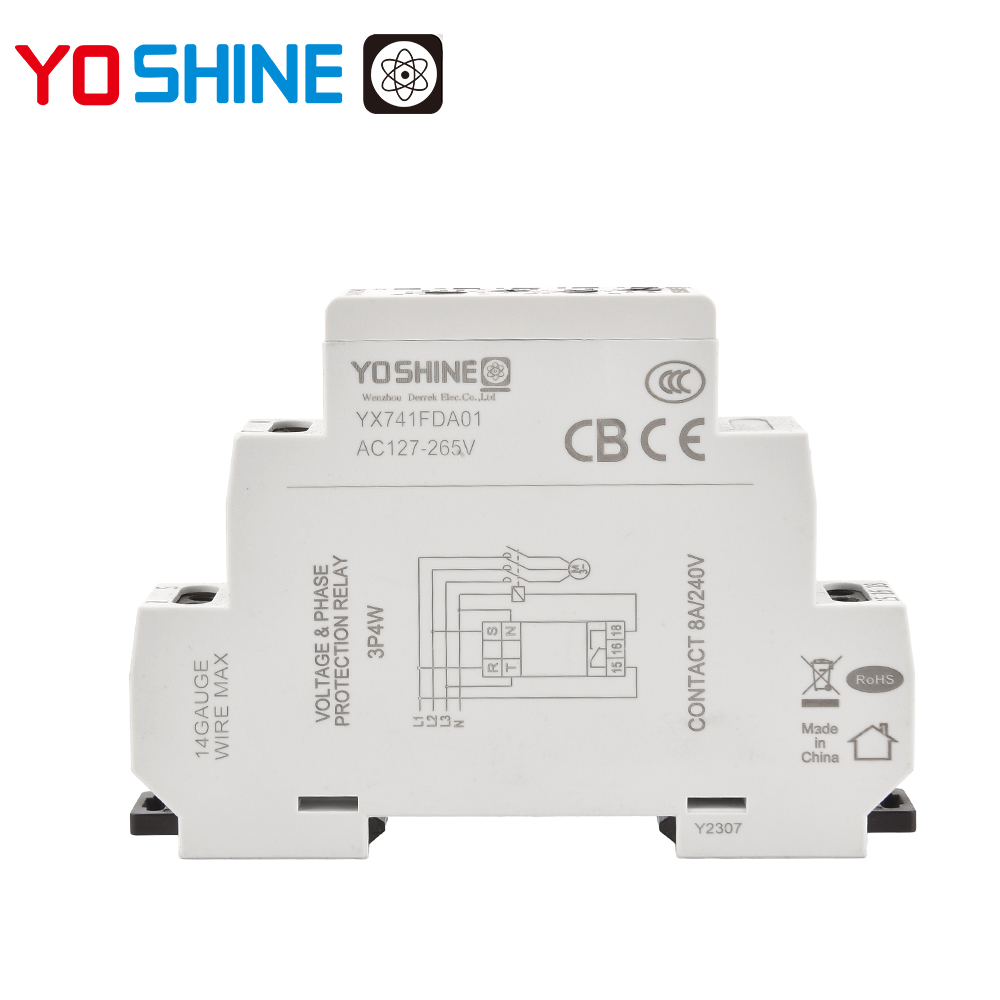

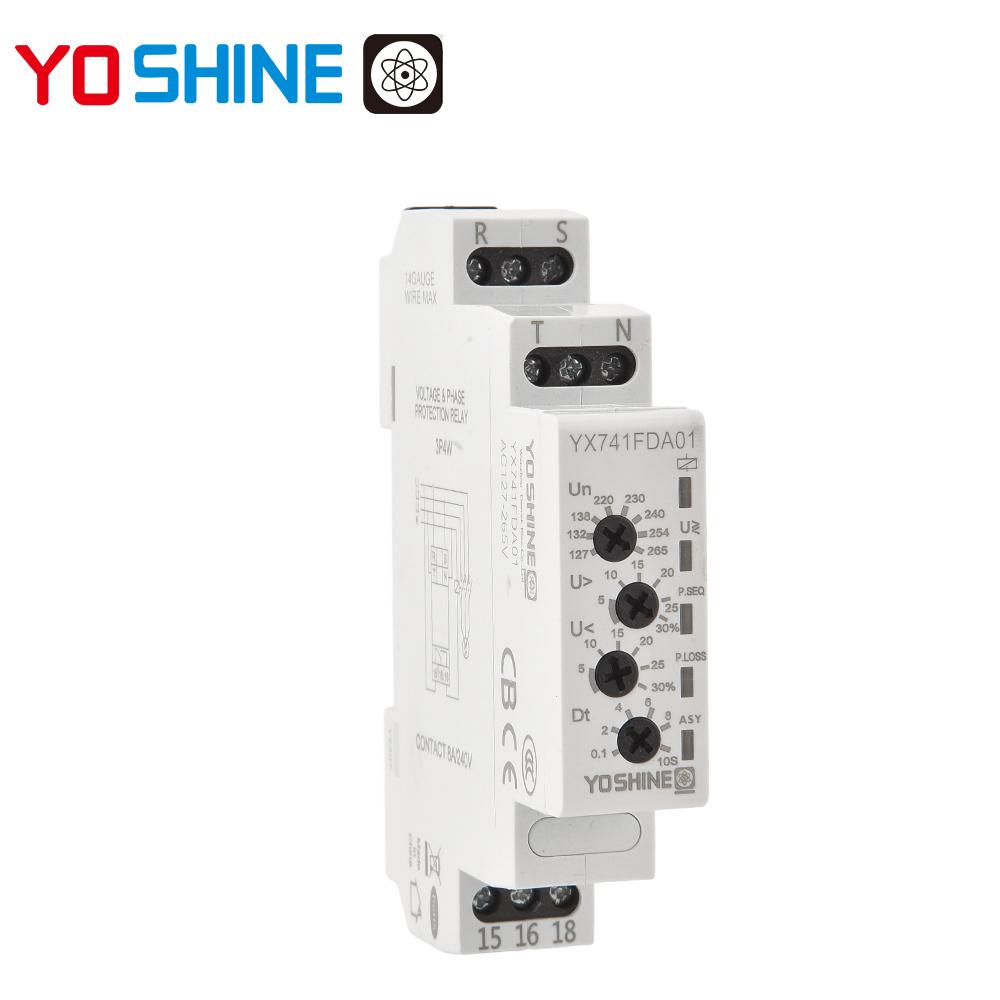

Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
1 / 5
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay
Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay

Yoshine YX741FDA01 SPDT 3P4W Sealed Miniature Phase Failure and Sequence Asymmetrical Voltage Protection Relay

Send Inquiry

Product Description

Product Display Product Details
Monitoring Type3P4W
Output CharacteristicsSPDT
Voltage Range127-265VAC
Frequency50/60Hz
Over Voltage/Under Voltage≤30%
Protection Delay0.1-10S
Recovery Delay3S
Phase Sequence√
Phase Failure√
Asymmetrical Voltage15%
Response Time of Relay0.5S
Contact Rating8A/250VAC
Ambient Temperature-10°C~+55°C
Temperature Error±2% MAX
Frequently Asked Questions
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A: Sample needs 3-9 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application. Secondly, we quote according to your requirements. Thirdly, the customer confirms the samples and places a deposit. Finally, we arrange production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
