UniWave Electric
UniWave Electric
Voltage Controller Relays are designed to avoid the failures of network voltage for the devices which have sensitive working voltage.

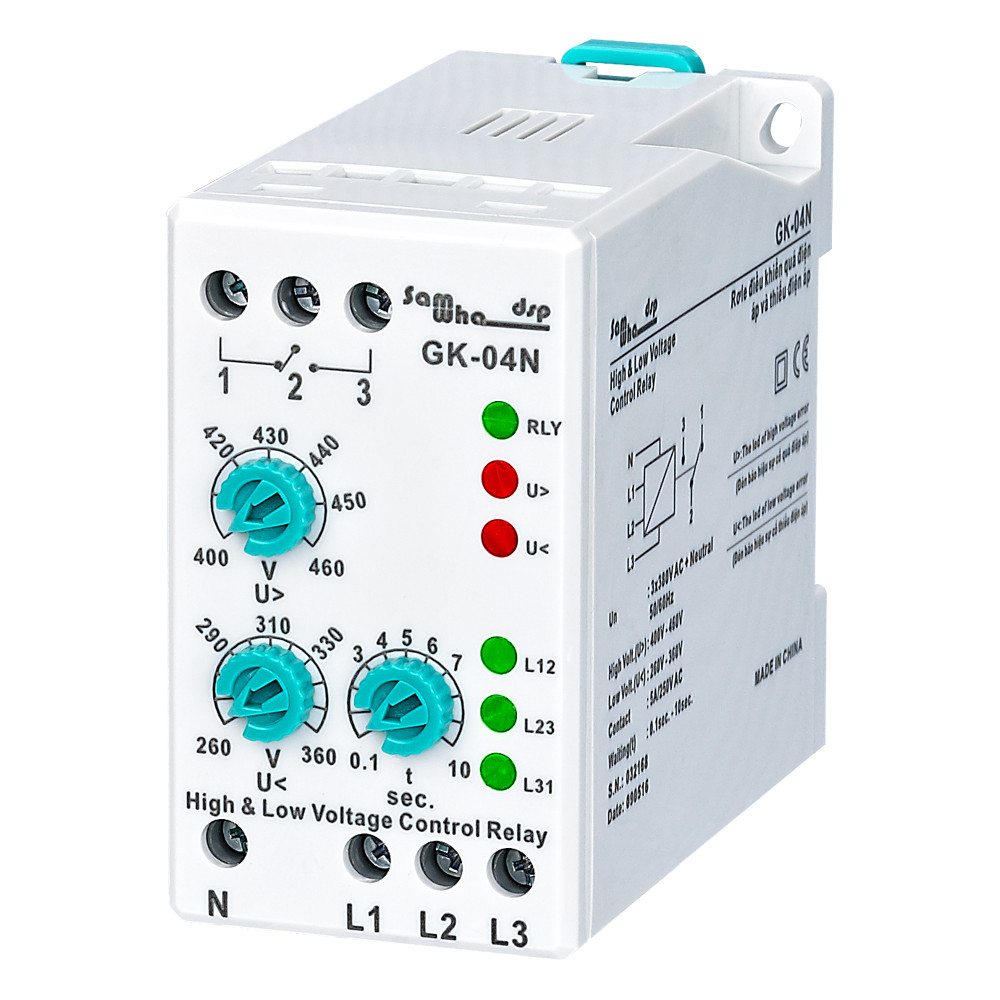

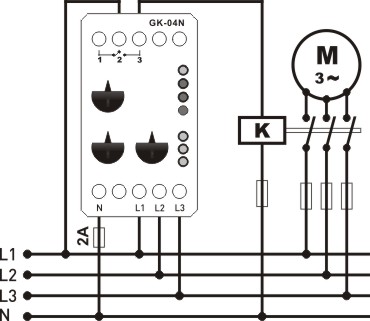

Make the connections according to the diagram. Set the device according to the required electrical charge. When the power is on, if the voltages are same as adjusted, relay led switches on and relay pulls. In this cases contact out is (NO) 3 pole. When the voltage values are abnormal, relay releases and led is switched off after waiting till the set time is up. In this case contact out is (NC) 1. GK-04N type have related led for high and low voltage and Phase failure.
Switch off the device and release from connections. Clean the trunk of device with a swab. Don't use any conductor or chemical might damage the device. Make sure device works after cleaning.
| Technical Specifications | |
|---|---|
| Operating Voltage (Un) | 3 x 380V AC + Neutral |
| Operating Frequency | 50/60 Hz. |
| Operating Power | <6VA |
| Operating Temperature | -20°C ... +55°C |
| High Voltage (U>) | 400V - 460V |
| Low Voltage (U<) | 230V - 360V |
| Waiting (t) | 0,1sec - 10sec. |
| Display | Power led, Relay led, High volt led, Low volt led, Three leds of phase to phase. |
| Contact | 5A 250VAC Resistive Load |
| Cable Diameter | 2,5mm² |
| Weight | Max. 220gr. |

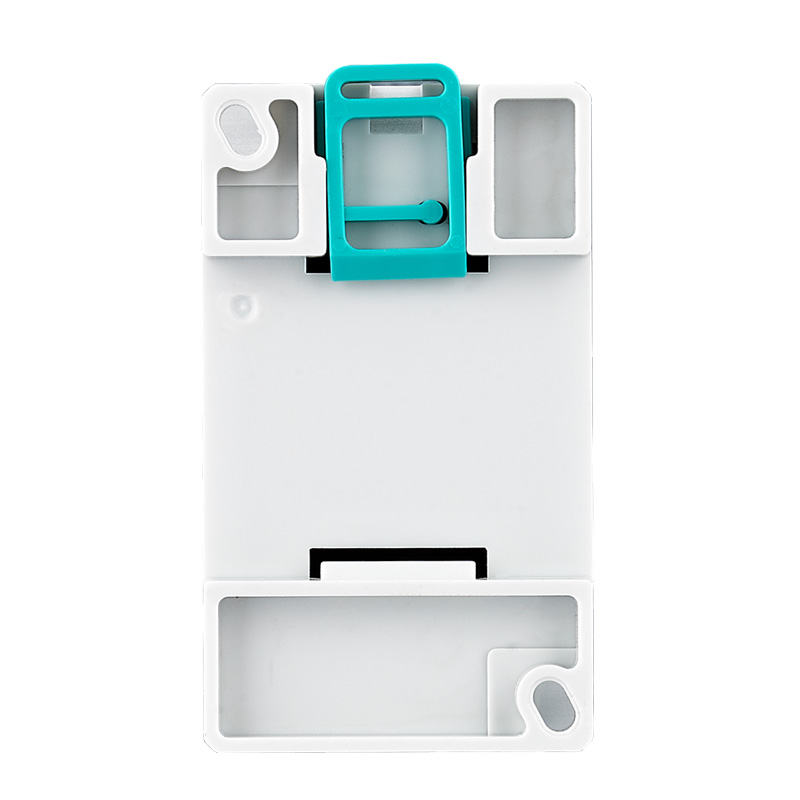

| Mounting | Vertical assembled in the panel or assembled on the din rail |
| Operating Altitude | <2000meter |
