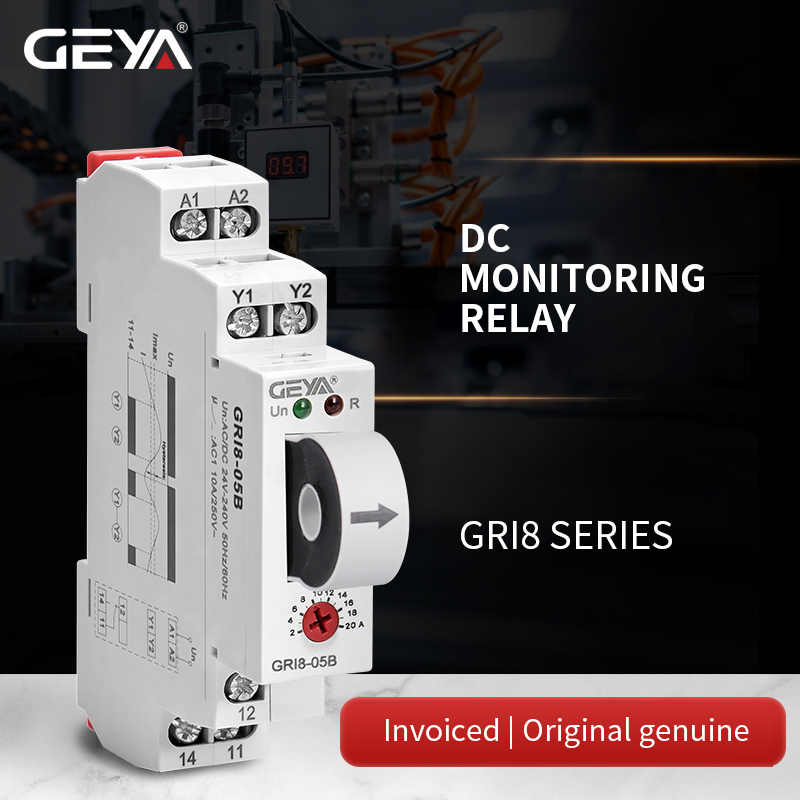

ℹ This link price is only for GRI8-05A AC24-240V

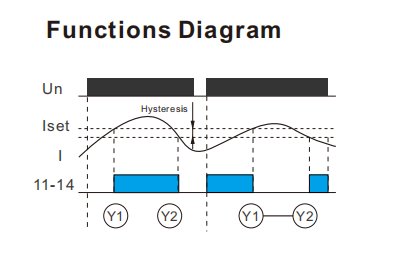

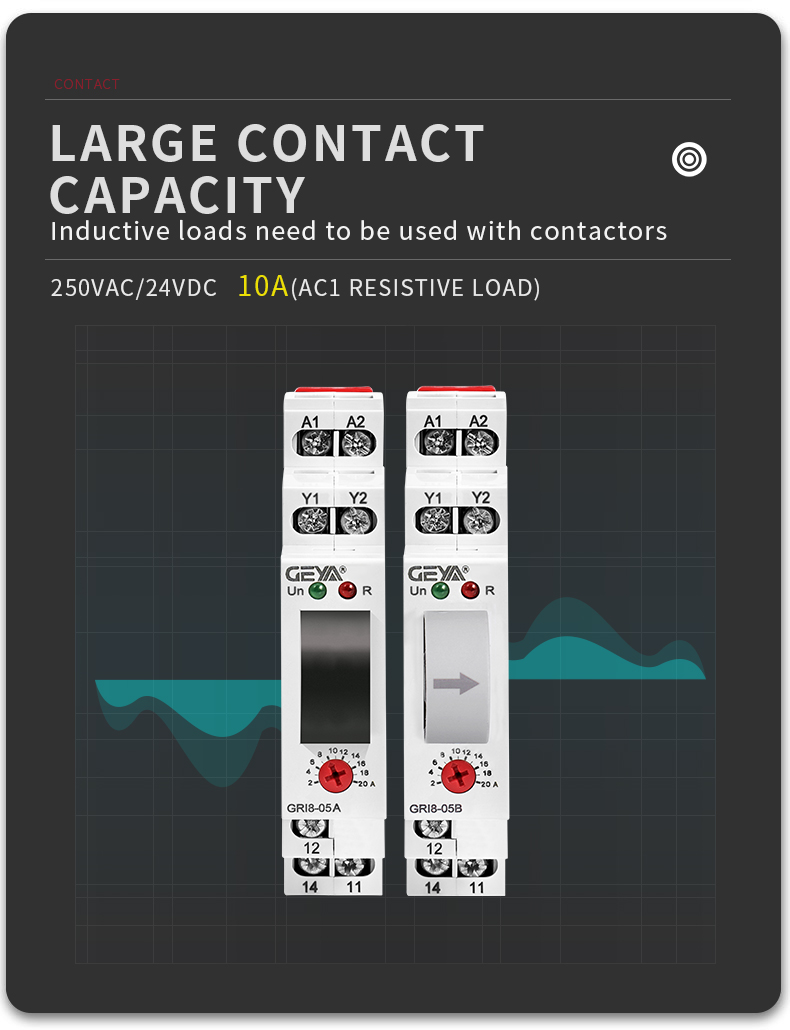

| Technical parameters | GRI8-05A | GRI8-05B |
|---|---|---|
| Function | AC measurement | AC/DC measurement |
| Supply terminals | A1-A2 | |
| Rated supply voltage | AC/DC 24V-240V | |
| Rated supply frequency | 50/60Hz,0 | |
| Burden | max 1.5VA | |
| Supply voltage tolerance | -15%;+10% | |
| Current range | 2A-20A | |
| Current frequency | AC 50Hz | AC 50Hz, DC |
| Current adjustment | potentiometer | |
| Supply indication | green LED | |
| Time delay | ≤0.1s | |
| Setting accuracy | 10% | |
| Hysteresis | 5% | |
| Output | 1×SPDT | |
| Current rating | 10A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Min. breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×10⁷ | |
| Electrical life(AC1) | 1×10⁶ | |
| Operating temperature | -20℃ to +55℃ (-4℉ to 131℉) | |
| Storage temperature | -35℃ to +75℃ (-22℉ to 158℉) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage category | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm²) | 1×2.5mm² or 2x1.5mm² 0.8N·m | |
| Dimensions | 90mmx18mmx64mm | |
| Weight | 62g | |
| Standards | IEC60947-5-1 | |
| Item | Specification | N.W. of product (g) | G.W. of product (g) | Medium box weight (g) | G.W. of 60pcs/CTN (kg) | G.W. of 100pcs/CTN(kg)±50g | G.W. of 200pcs/CTN(kg) |
|---|---|---|---|---|---|---|---|
| GRI8-01/0.5 | AC/DC24-240V | 68.3 | 81.6 | 882 | 5.64 | 9.29 | 18.28 |
| GRI8-01/1 | AC/DC24-240V | 68 | 80.8 | 874 | 5.59 | 9.21 | 18.12 |
| GRI8-01/2 | AC/DC24-240V | 68.4 | 81.5 | 881 | 5.64 | 9.28 | 18.26 |
| GRI8-01/5 | AC/DC24-240V | 70 | 82.4 | 890 | 5.69 | 9.37 | 18.44 |
| GRI8-01/8 | AC/DC24-240V | 68.5 | 81.8 | 884 | 5.65 | 9.31 | 18.32 |
| GRI8-01/16 | AC/DC24-240V | 70 | 82.9 | 895 | 5.72 | 9.42 | 18.54 |
| GRI8-02/0.5 | AC/DC24-240V | 68 | 81.5 | 881 | 5.64 | 9.28 | 18.26 |
| GRI8-02/1 | AC/DC24-240V | 68.5 | 81.9 | 885 | 5.66 | 9.32 | 18.34 |
| GRI8-02/2 | AC/DC24-240V | 68.5 | 81.9 | 885 | 5.66 | 9.32 | 18.34 |
| GRI8-02/5 | AC/DC24-240V | 68.5 | 81.8 | 884 | 5.65 | 9.31 | 18.32 |
| GRI8-02/8 | AC/DC24-240V | 68.3 | 81.9 | 885 | 5.66 | 9.32 | 18.34 |
| GRI8-02/16 | AC/DC24-240V | 68.8 | 82.2 | 888 | 5.68 | 9.35 | 18.40 |
| GRI8-03/0.5 | AC/DC24-240V | 68.8 | 82.0 | 886 | 5.67 | 9.33 | 18.36 |
| GRI8-03/1 | AC/DC24-240V | 69.2 | 82.8 | 894 | 5.71 | 9.41 | 18.52 |
| GRI8-03/2 | AC/DC24-240V | 68.6 | 81.9 | 885 | 5.66 | 9.32 | 18.34 |
| GRI8-03/5 | AC/DC24-240V | 68.5 | 82.0 | 886 | 5.67 | 9.33 | 18.36 |
| GRI8-03/8 | AC/DC24-240V | 69 | 82.5 | 891 | 5.70 | 9.38 | 18.46 |
| GRI8-03/16 | AC/DC24-240V | 69.3 | 82.5 | 891 | 5.70 | 9.38 | 18.46 |
| GRI8-04/0.5 | AC/DC24-240V | 68.4 | 81.9 | 885 | 5.66 | 9.32 | 18.34 |
| GRI8-04/1 | AC/DC24-240V | 68.9 | 82.5 | 891 | 5.70 | 9.38 | 18.46 |
| GRI8-04/2 | AC/DC24-240V | 68.7 | 82.3 | 889 | 5.68 | 9.36 | 18.42 |
| GRI8-04/5 | AC/DC24-240V | 68.6 | 82.2 | 888 | 5.68 | 9.35 | 18.40 |
| GRI8-04/8 | AC/DC24-240V | 68.2 | 81.7 | 883 | 5.65 | 9.30 | 18.30 |
| GRI8-04/16 | AC/DC24-240V | 69 | 82.5 | 891 | 5.70 | 9.38 | 18.46 |
It serves for monitoring heating systems in rail-switches, heating cables, consumption of single-phase motors, and indicates current flow status.

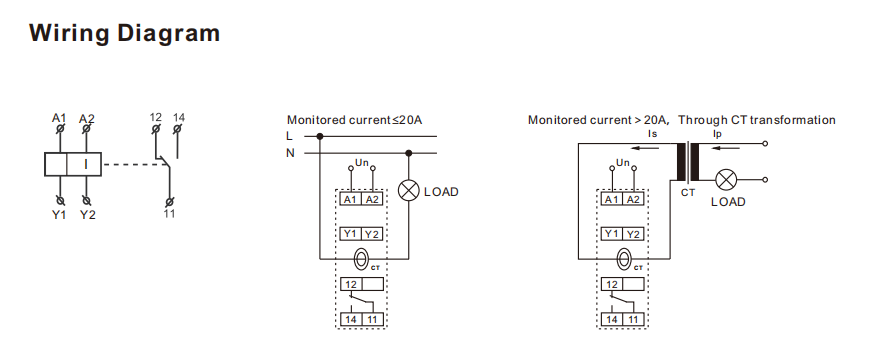

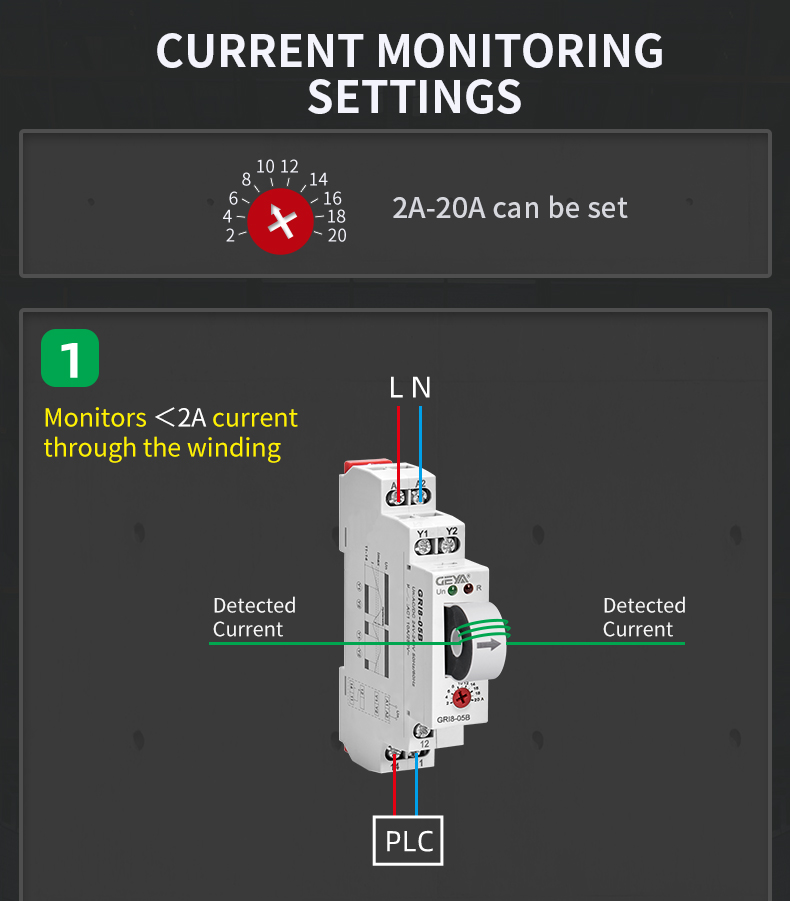

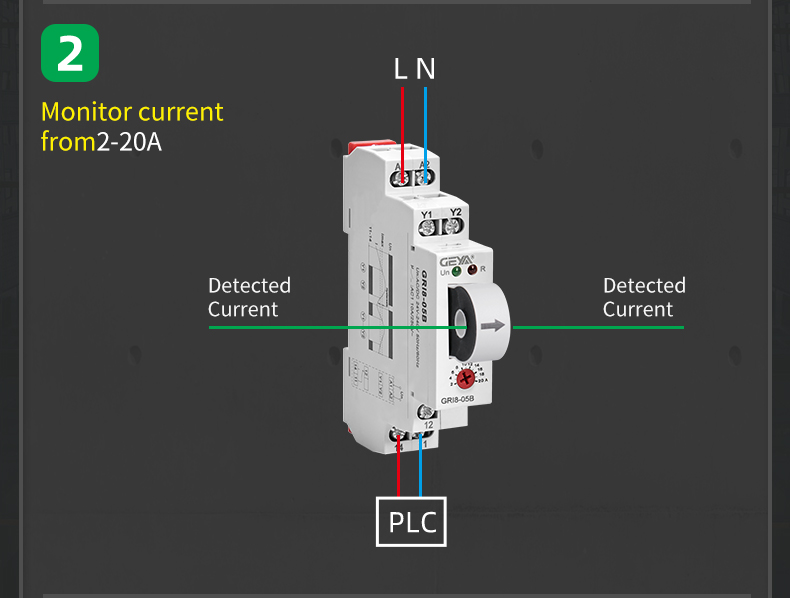

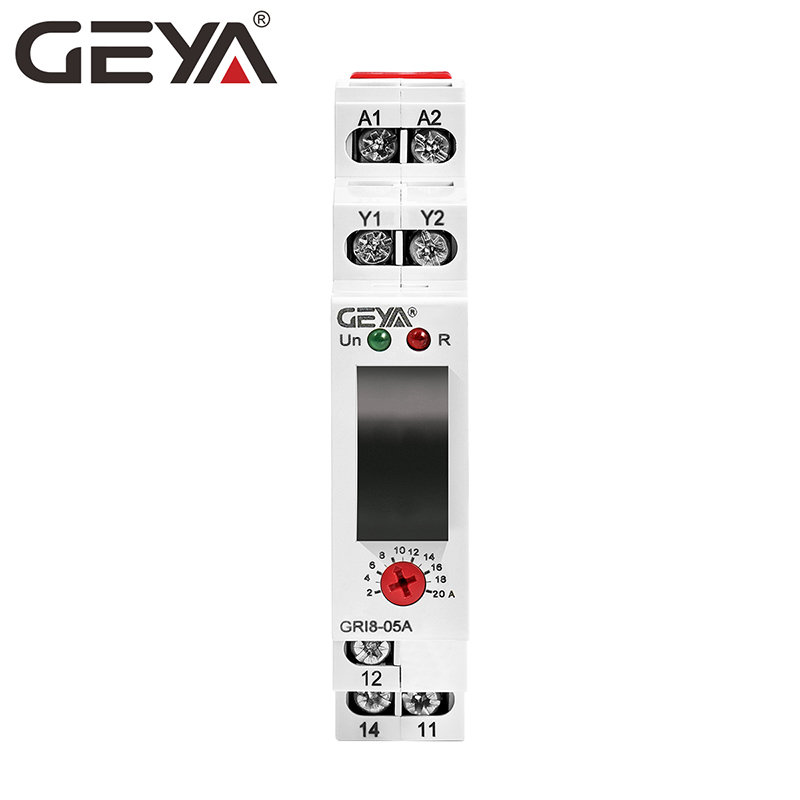

The measurement current range (2A-20A) can be flexibly adjusted using the built-in potentiometer on the front interface.

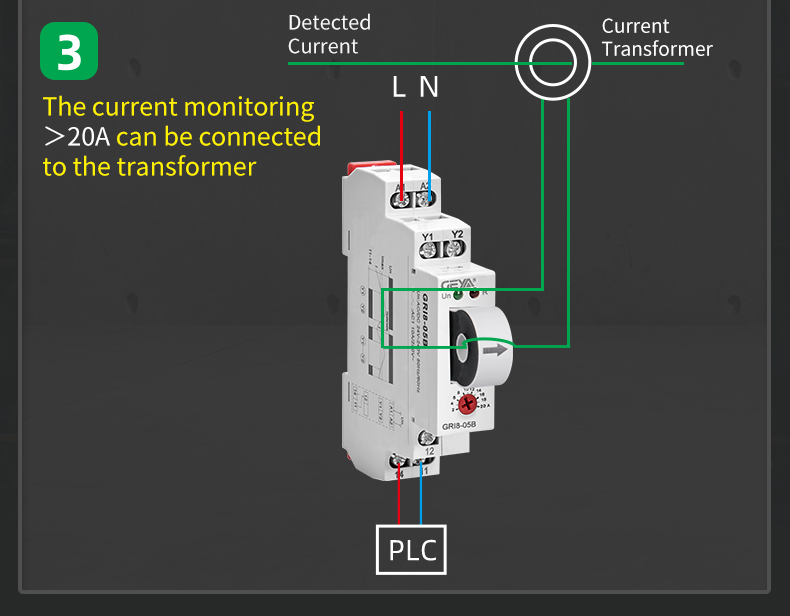

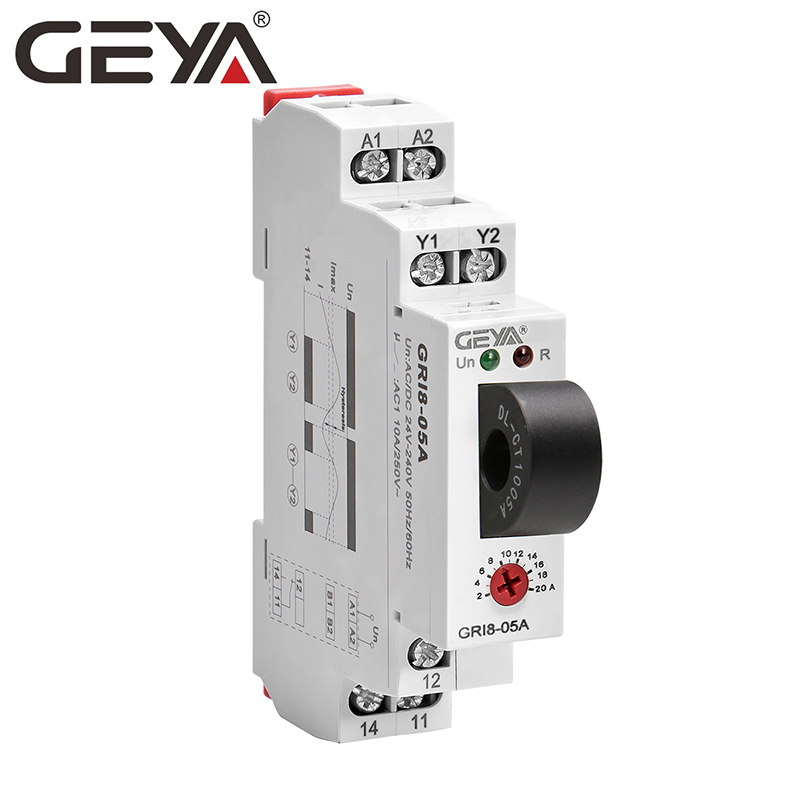

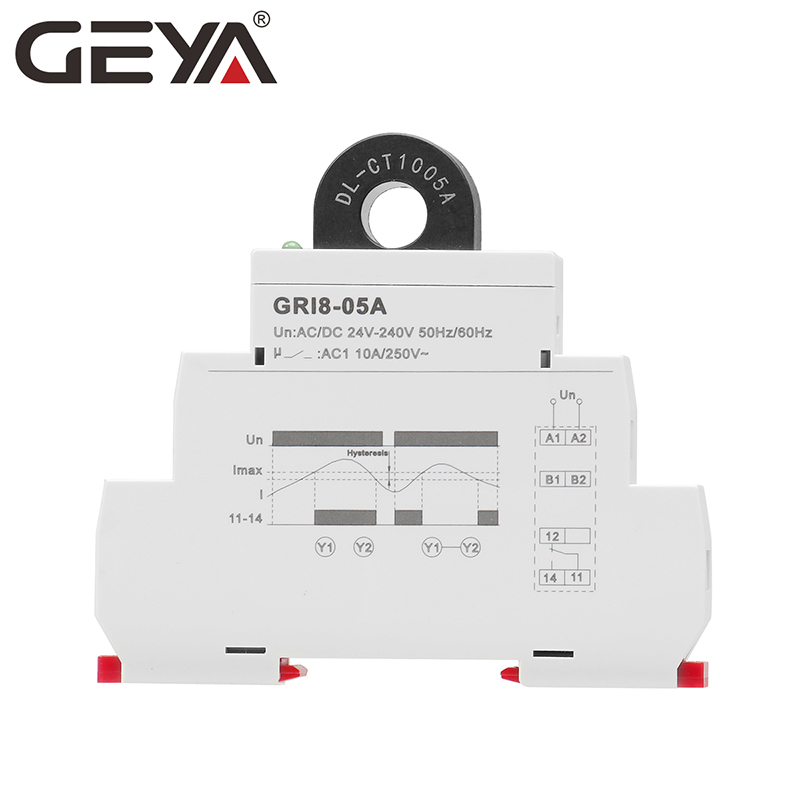

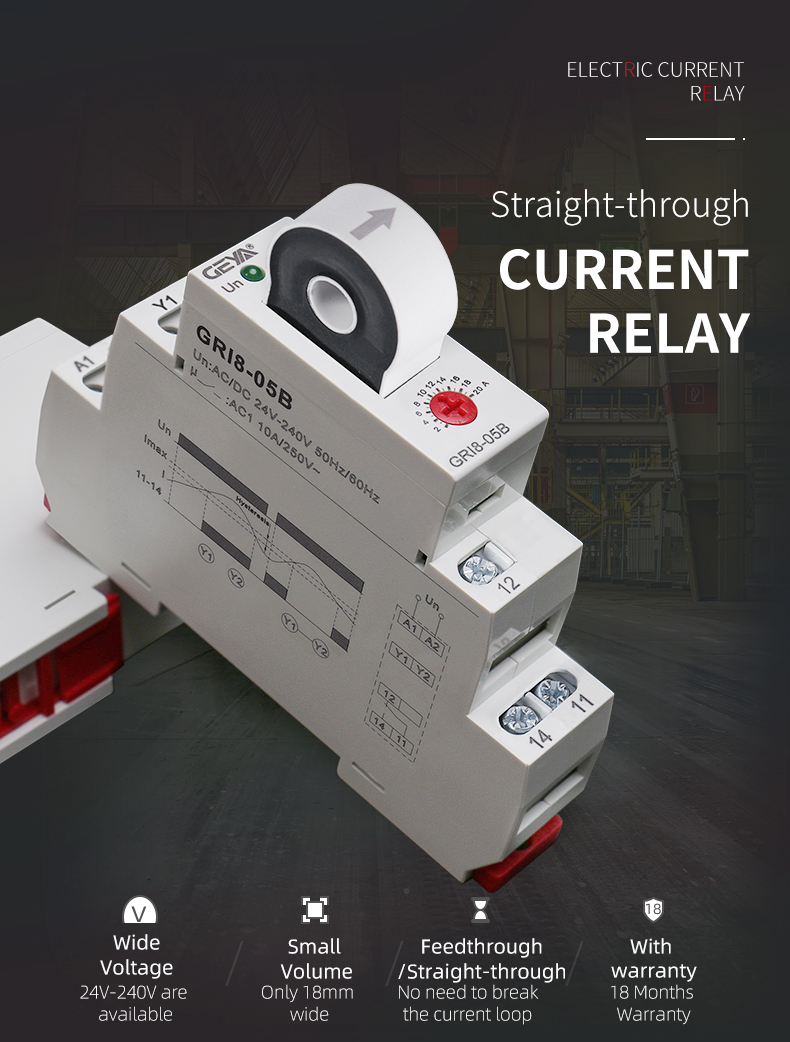

No, it utilizes a through-center design. This through-center installation is highly convenient and does not require you to disconnect the current circuit.
It features a universal voltage range of AC/DC 24V-240V, compatible with a rated supply frequency of 50/60Hz.
The status is indicated by built-in LEDs. A green LED indicates the supply power status, and a red LED indicates the output relay status.
It is designed as a standard 1-MODULE device and supports quick and secure DIN rail mounting (EN/IEC 60715).
