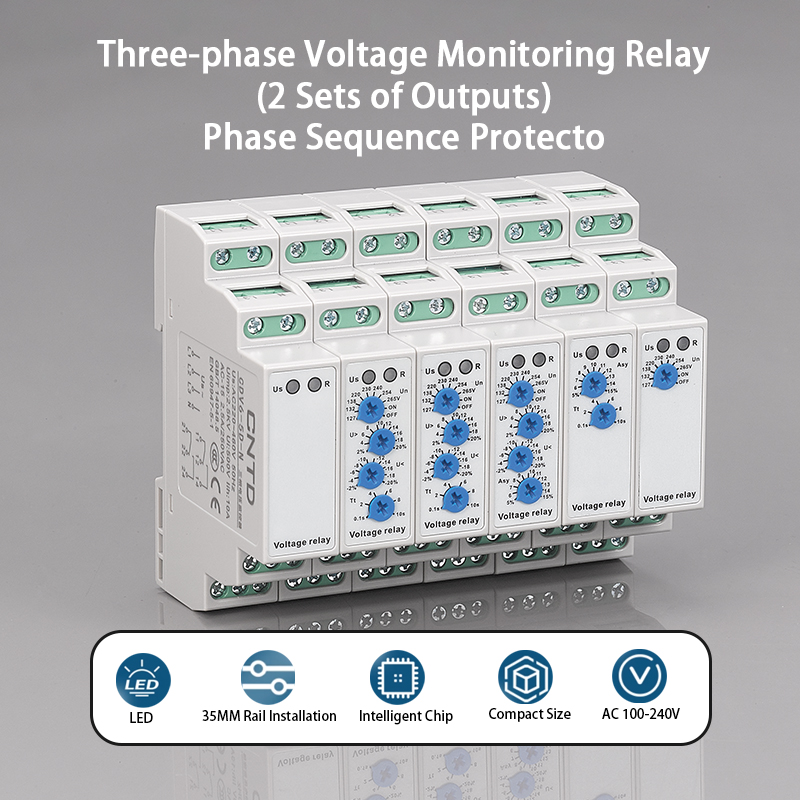

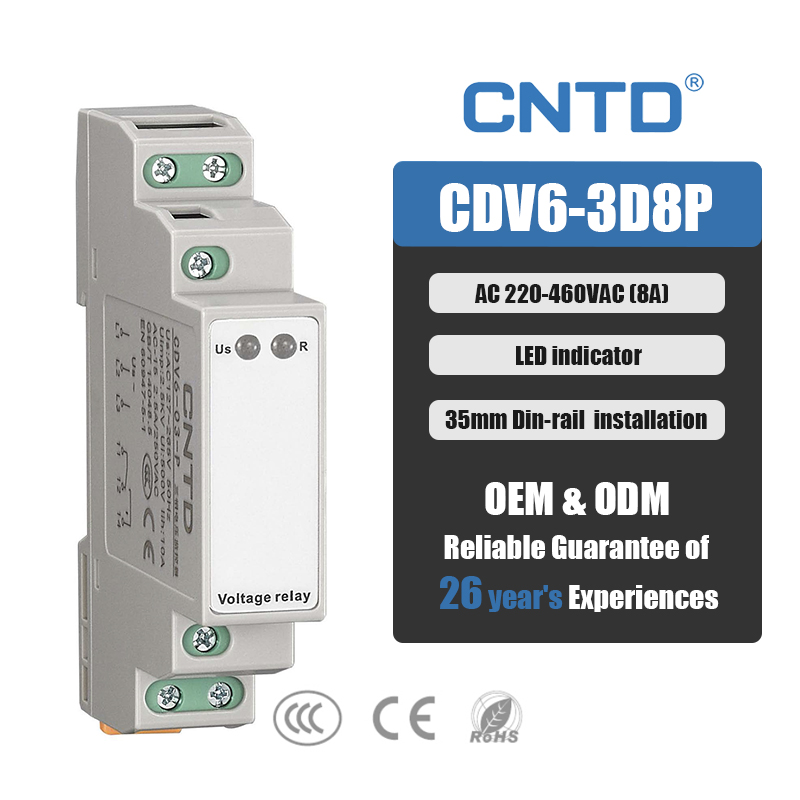

CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
1 / 5
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective
CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective

CNTD CDV6-3D8P 2 Sets Outputs Three-phase Voltage Monitoring Relay Phase Sequence Protector 220-460VAC 8A IP20 Epoxy Protective

Send Inquiry

Product Description

⚙️ Features
  • Monitor its own operating voltage (true RMS measurement), 45Hz~65Hz wide frequency measurement.
  • Two sets of output contacts are used for protection and fault alarm.
  • 8 kinds of rated voltages are adjustable, suitable for voltages in various regions of the world.
  • 3-phase 3-wire and 3-phase 4-wire specifications are optional.
  • The voltage measurement accuracy is <=1%.
  • Anti-harmonic design, optimized for high anti-interference occasions.
  • The working status of the relay is indicated by an LED indicator.
  • Ultra-small size, only 18mm width, 35mm card rail installation.
📋 Overview
  • Used for equipment protection and control (tower cranes, air conditioners, elevators, agricultural equipment, refrigerated trucks).
  • Protect the equipment to prevent accidents caused by reverse operation.
  • Normal/emergency power switch.
  • Prevent phase disconnection of the power load.
Product View 1
Product View 2
📊 Technical Data & Models
ItemDescription
Product nameVoltage monitoring relay (CDV6)
Installation35mm card rail
Protection levelIP20
Operating temperature-20°C ~ +55°C
Weight67g
Dimensions90mm x 18mm x 65mm
📐 Diagrams

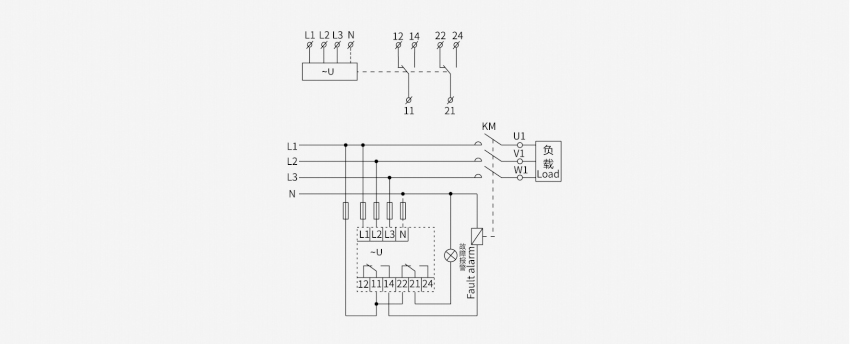

Wiring Diagram

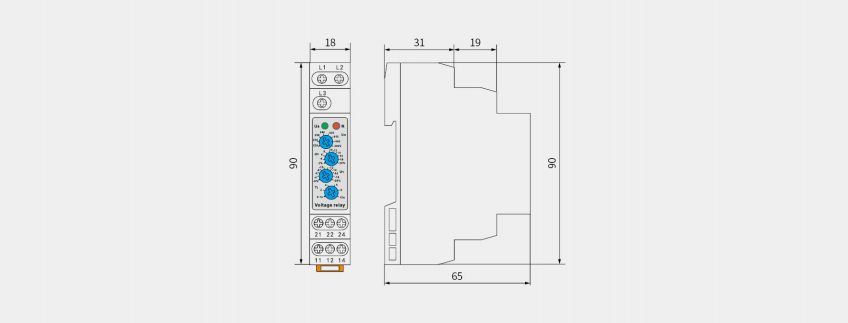

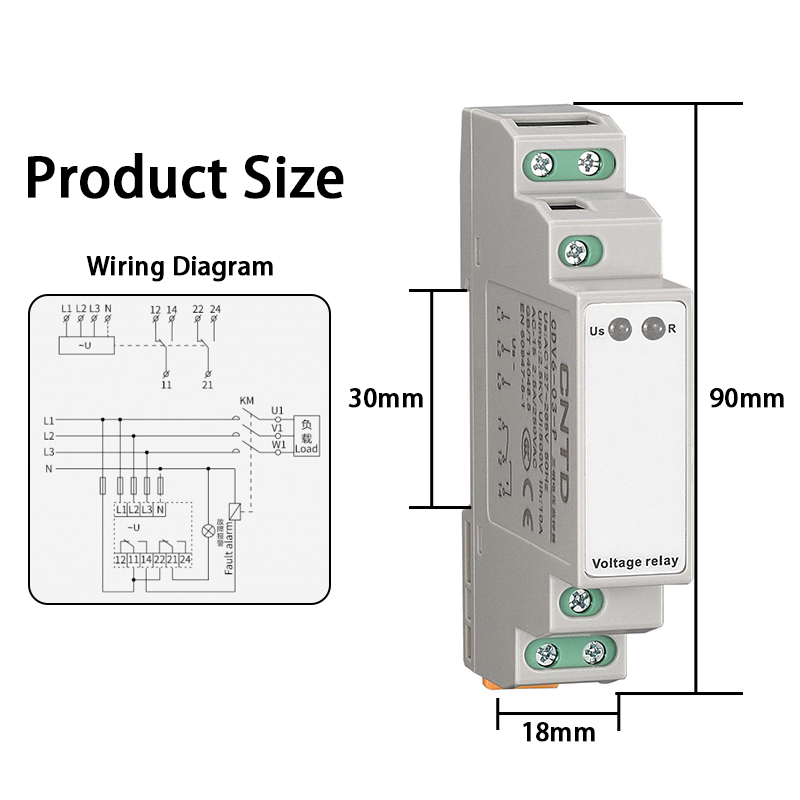

Size Diagram

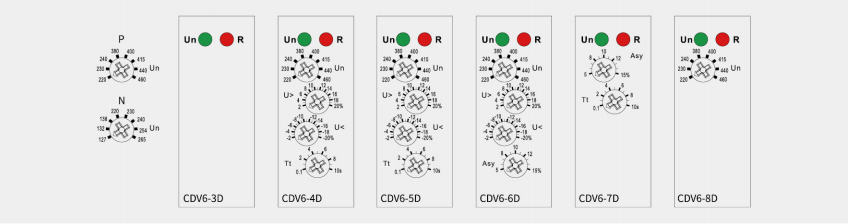

Panel Diagram

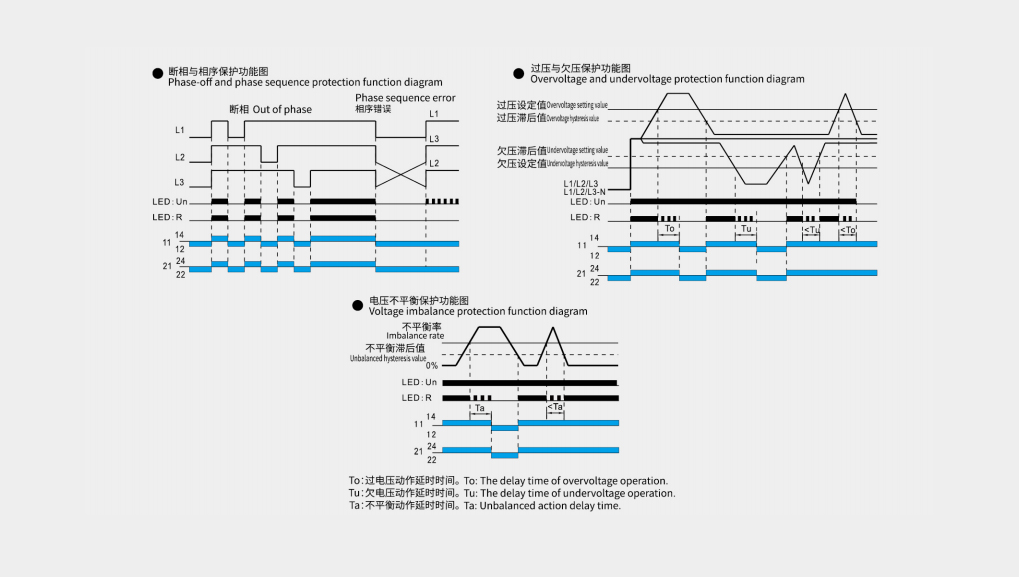

Function Diagram 1
Function Diagram 2
Function Diagram 3
