| No | Item | Code | Description |
|---|---|---|---|
| 1 | Product name | CDV6 | Voltage monitoring relay |
| 2 | Function code | 3, 4, 5, 6, 7, 8 |

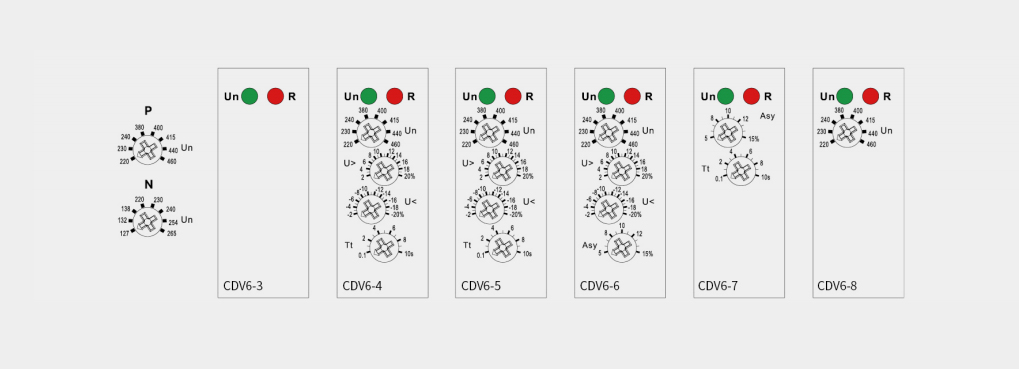

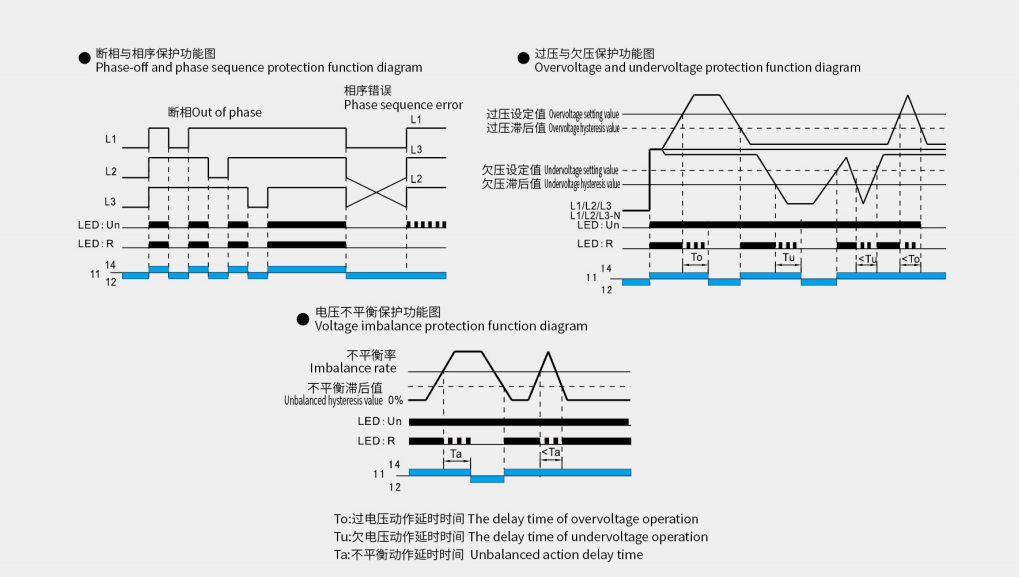

3: Phase sequence protection, Phase-off protection. 4: Over voltage (2%...20%), Under voltage (-2%..20%), Action delay (0.1s...10s), Phase sequence & Phase-off protection. 5: Over voltage (2%..20%), Under voltage (-2%..20%), Voltage imbalance (8%), Action delay (0.1s...10s), Phase sequence & Phase-off protection. 6: Over voltage (2%..20%), Under voltage (-2%..20%), Voltage imbalance (5%..15%), Action delay (2s), Phase sequence & Phase-off protection. 7: Voltage imbalance (5%..15%), Action delay (0.1s...10s), Phase sequence & Phase-off protection. 8: Over voltage (15%), Under voltage (-15%), Voltage imbalance (8%), Action delay (2s), Phase sequence & Phase-off protection. |
| 3 | Output contact | 16 | 16A Output contact 16A |
| 4 | Rated operating voltage | P / N |
P: 220-230-240-380-400-415-440-460VAC (P-P) N: 127-132-138-220-230-240-254-265VAC (P-N) |

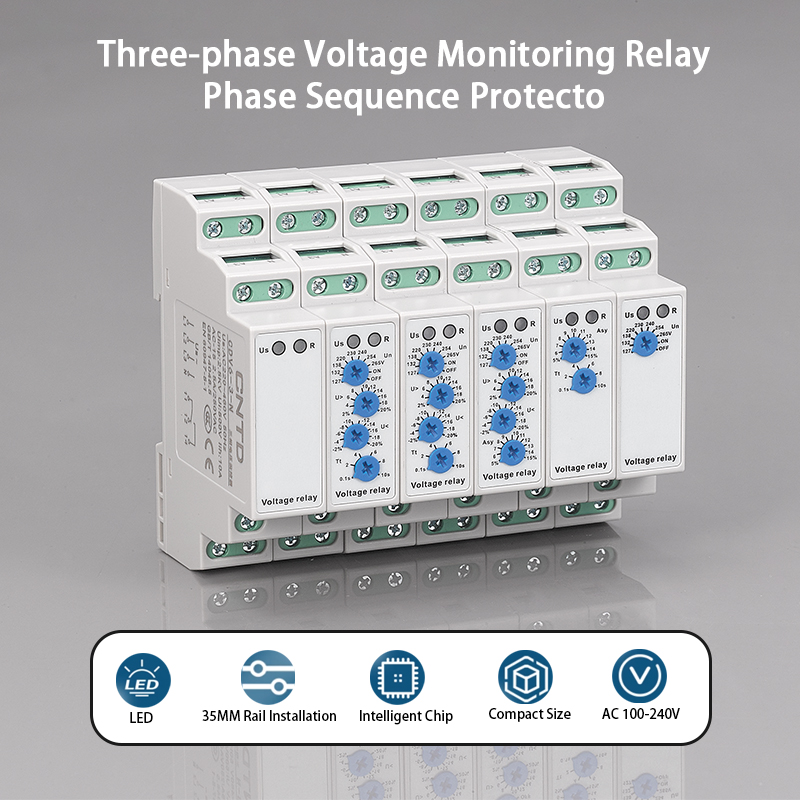

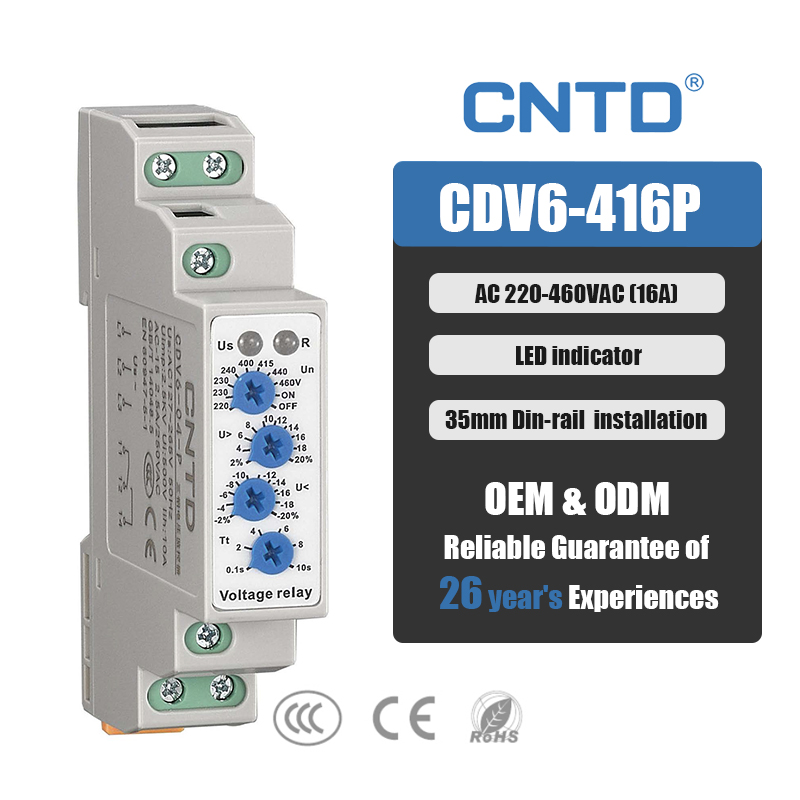

| Product Model | Feature | Output Contact Parameters | Rated Voltage |
|---|---|---|---|
| CDV6-316P | Phase sequence protection | 1 set of output contacts lth: 16A, le: 5A | 220-230-240-380-400-415-440-460VAC(P-P) |
| CDV6-416P | Over voltage, under voltage, phase sequence, power failure protection | ||
| CDV6-516P | Over voltage, undervoltage, voltage imbalance, phase sequence, power failure protection | ||
| CDV6-616P | Over voltage, undervoltage, voltage imbalance, phase sequence, power failure protection | ||
| CDV6-716P | Voltage unbalance, phase sequence, power failure protection | ||
| CDV6-816P | Voltage unbalance, phase sequence, power failure protection | ||
| CDV6-316N | Phase sequence protection | 1 set of output contacts lth: 16A, le: 5A | 127-132-138-220-230-240-254-265VAC(P-N) |
| CDV6-416N | Over voltage, under voltage, phase sequence, power failure protection | ||
| CDV6-516N | Over voltage, undervoltage, voltage imbalance, phase sequence, power failure protection | ||
| CDV6-616N | Over voltage, undervoltage, voltage imbalance, phase sequence, power failure protection | ||
| CDV6-716N | Voltage unbalance, phase sequence, power failure protection | ||
| CDV6-816N | Voltage unbalance, phase sequence, power failure protection |
| Certification Specifications | Specifications | Document |
|---|---|---|
| CCC | GB/T 14048.5 | Please consult the Representative Office |
| CE | EN 60947-5-1 | - |
| Parameter | P (3-phase 3-wire system) | N (3-phase 4-wire system) |
|---|---|---|
| Function | Monitor L-L voltage | Monitor L-N voltage |

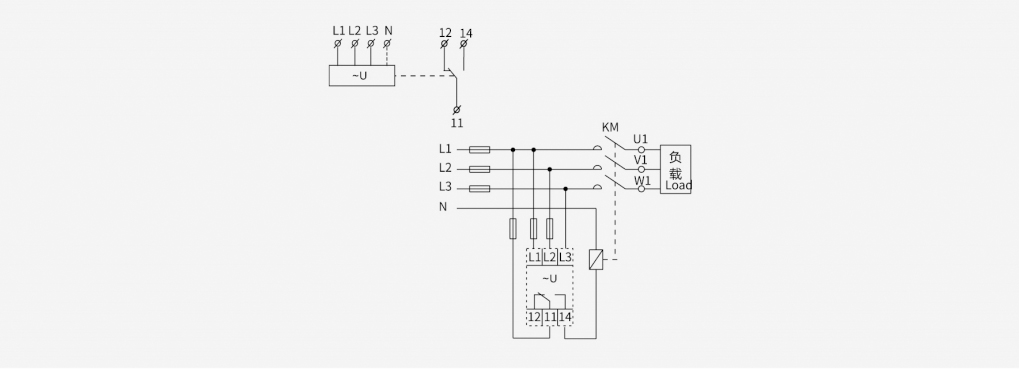

| Monitoring terminal | L1-L2-L3 | L1-L2-L3-N |
| Power supply | L1-L2 | L1-N |
| Rated operating voltage selection | 220-230-240-380-400-415-440-460 (P-P) | 127-132-138-220-230-240-254-265 (P-N) |
| Measuring frequency range | 45Hz-65Hz | |
| Measuring range | 176V-552V | 101V-318V |
| Voltage threshold range | 2%-20% (rated voltage) | |
| Unbalanced value threshold range | 5%-15% | |
| Voltage fixed hysteresis rate | 2% | |
| Power indicator | Green LED | |
| Action delay time | 0.1s-10s (Adjustable) | |
| Voltage measurement error | ≤ 1% | |
| Power-on delay time | 0.5s | |
| Knob setting accuracy | 10% | |
| Reset time | 1s | |
| Temperature fluctuation error | 0.05%/°C, at = 20°C | |
| Output contact parameters | 16A 250VAC/24VDC | |
| Minimum switching power | 500mW | |
| Output relay indication | Red LED | |
| Mechanical life | 1x10^7 | |
| Electrical life (resistive load) | 1x10^5 | |
| Operating ambient temp. | -20°C ~ +55°C | |
| Storage & transport temp. | -35°C ~ +75°C | |
| Installation method | 35mm card rail installation | |
| Protection level | IP20 | |
| Installation location | Arbitrary | |
| Installation altitude | ≤ 2000m | |
| Pollution level | 2 | |
| Wiring ability | 1x2.5mm^2 or 2x1.5mm^2 0.8N·m | |

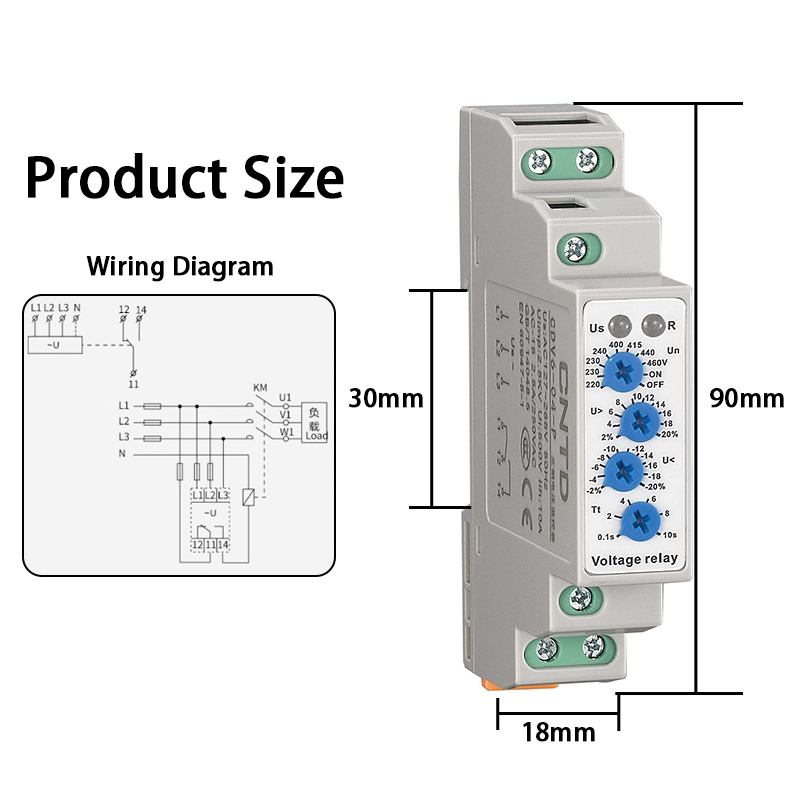

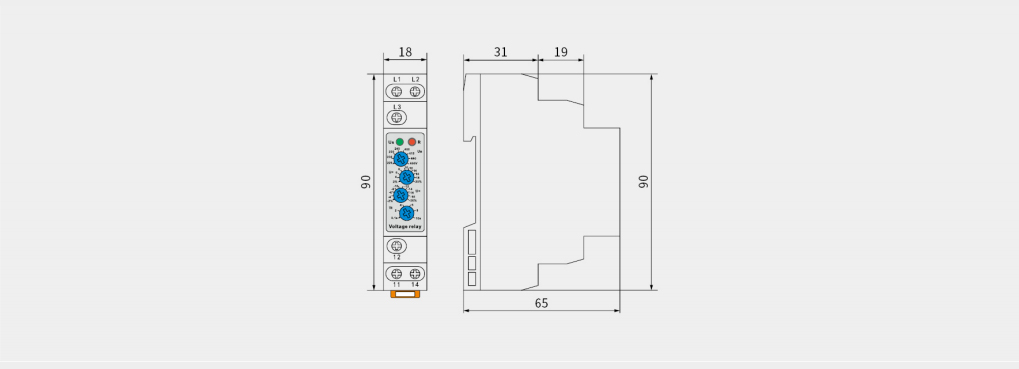

| Dimensions | 90 mm x 18 mm x 65 mm | |
| Weight | 67g | |
