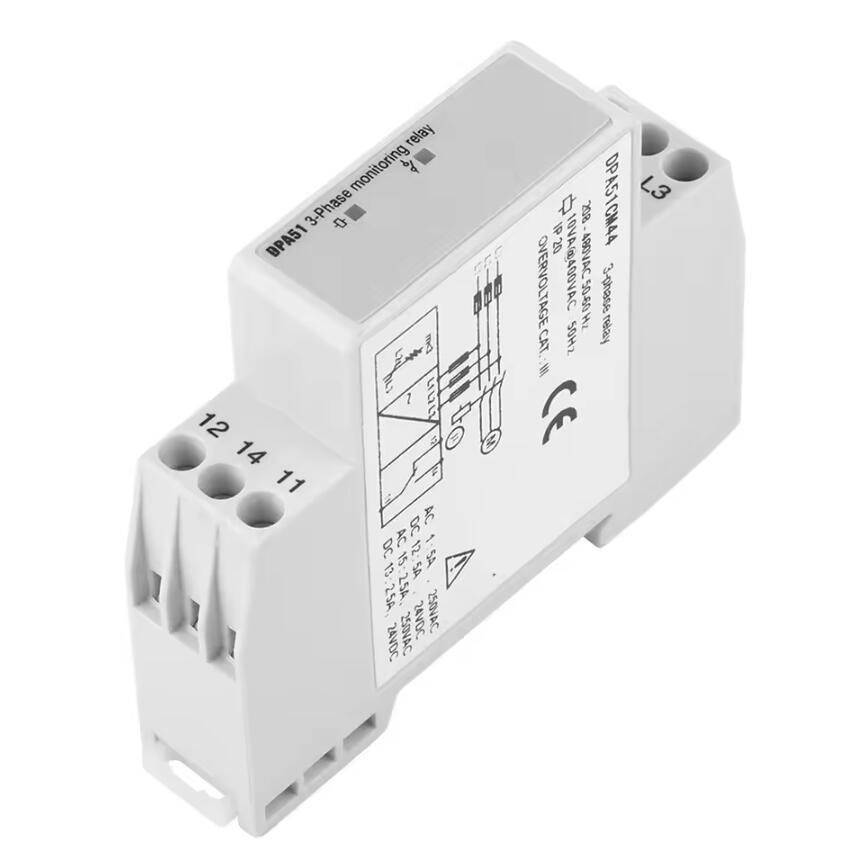

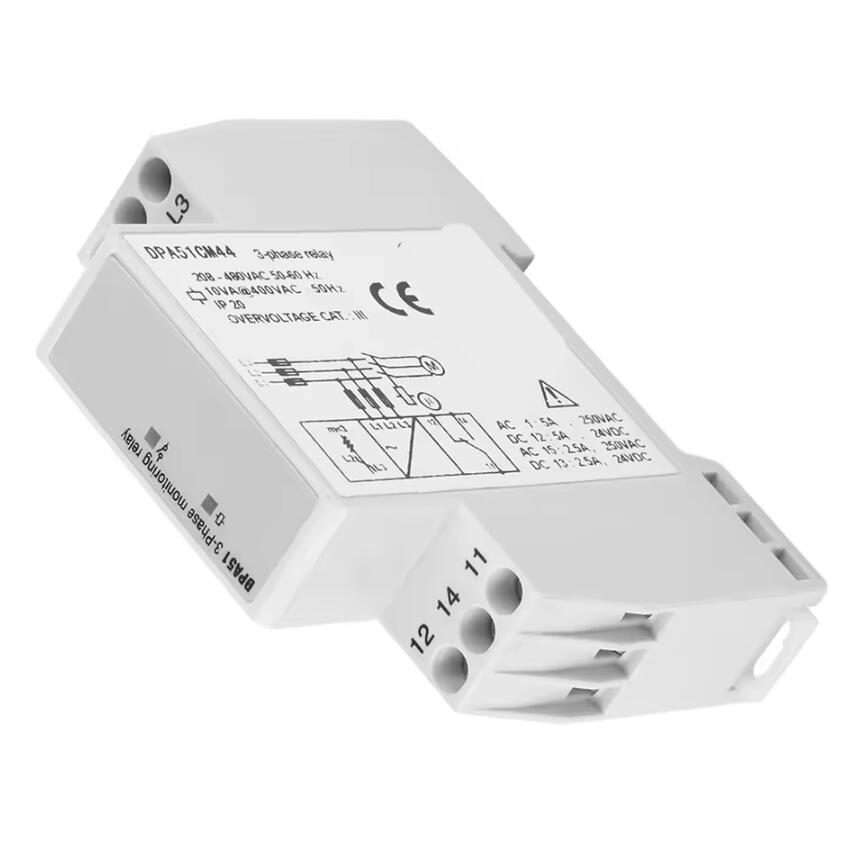

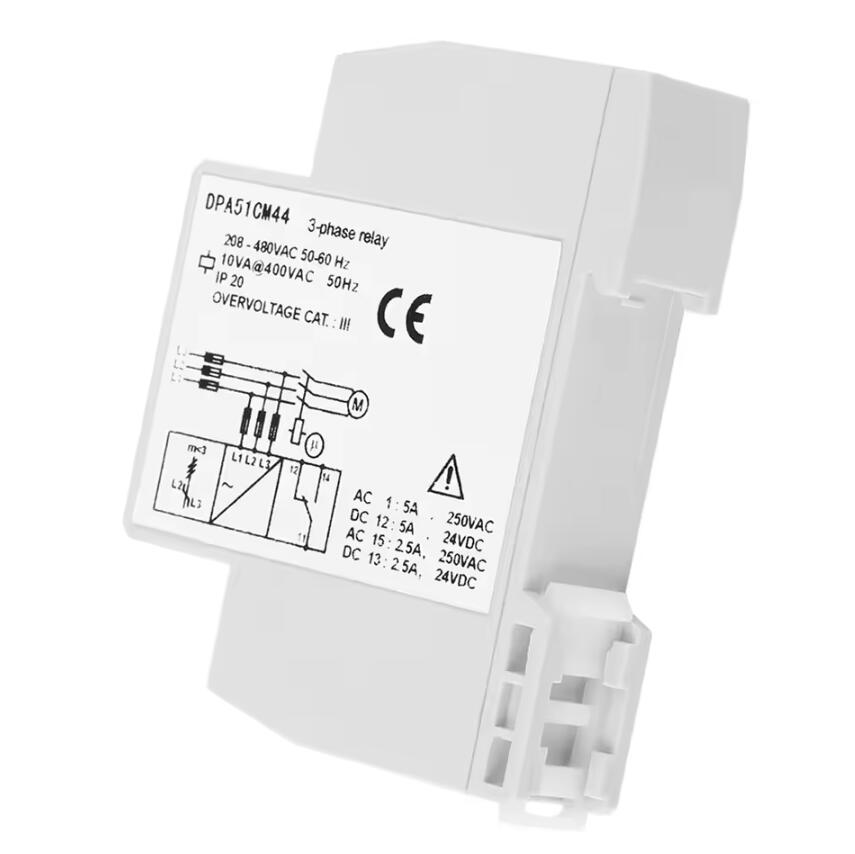

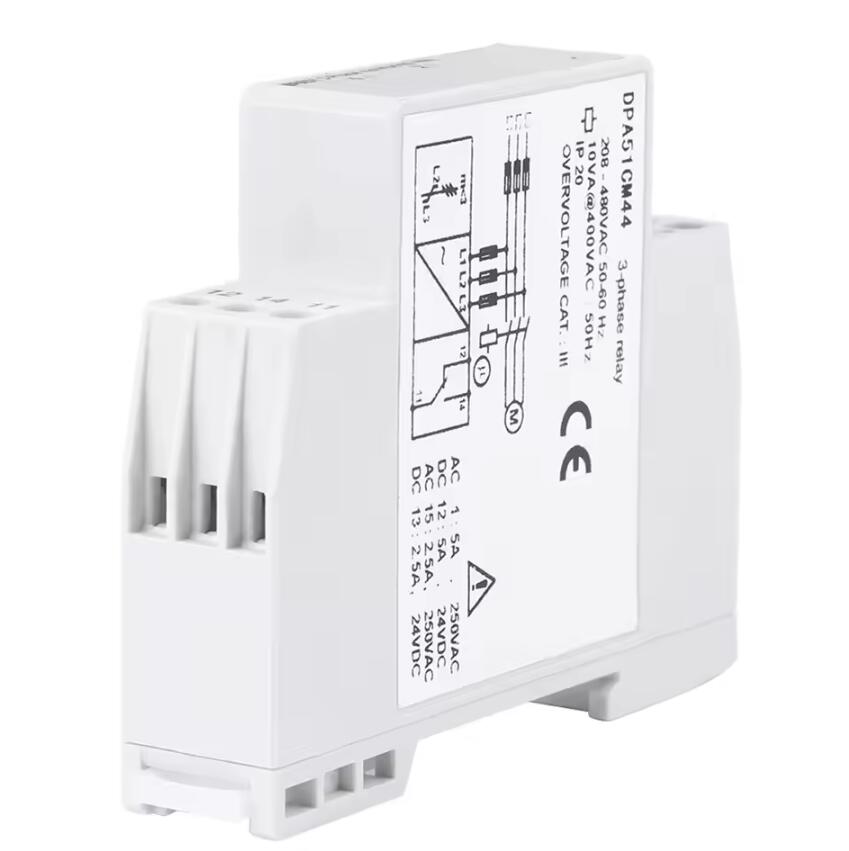

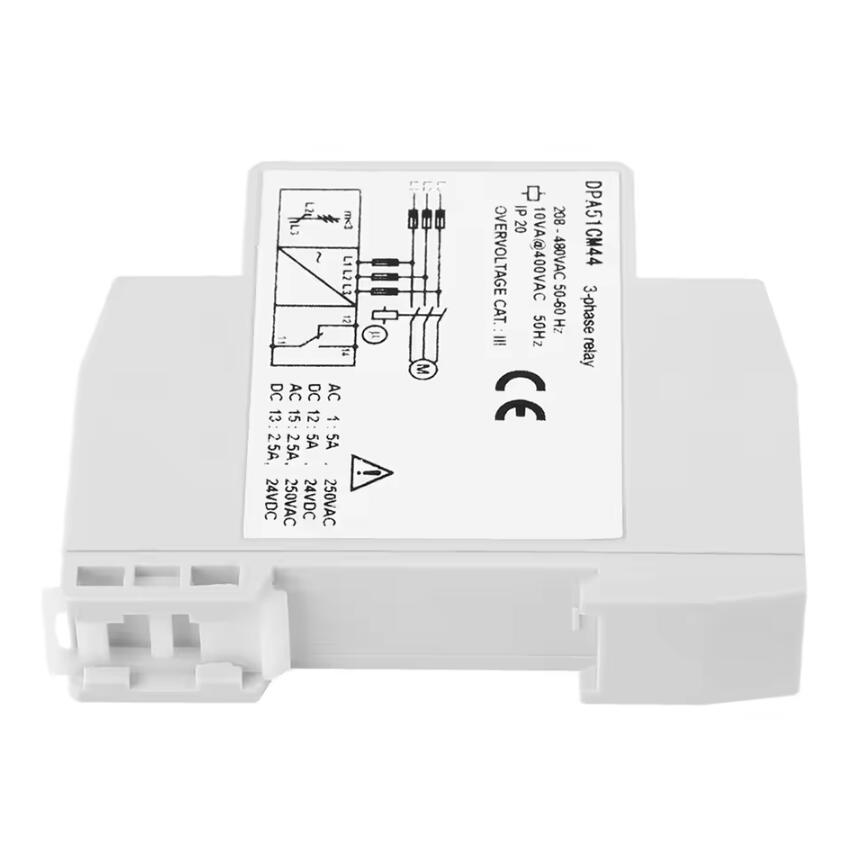

DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
1 / 5
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay

DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay

Send Inquiry

Product Description

DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay

Packaging & Delivery

Packaging Detail: Carton box
Delivery Detail: In stock

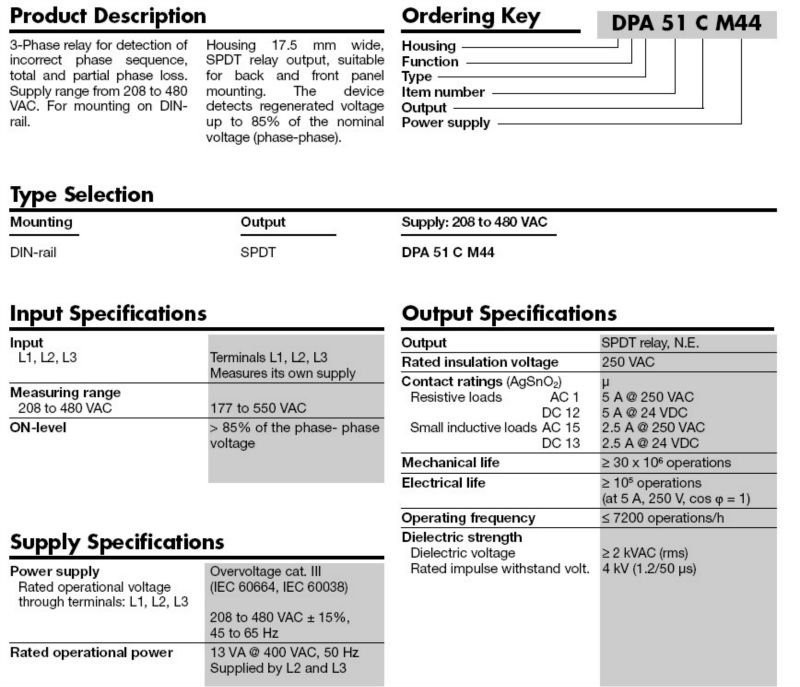

Specifications

Over under voltage relays

  • True RMS 3-Phase, 3-Phase+N, Multi-function
  • Phase loss monitoring relays
  • Detect if all the

Over Under Voltage Relays Voltage And Phase Monitor

  • 3-phase monitoring relay for phase sequence and phase loss
  • Detects when all phases are present and have the correct sequence
  • Measures its own power supply
  • Power supply range: 208 to 480 VAC (±15%)
  • Output: 5 A SPDT relay normally energized
  • For mounting on DIN-rail in accordance with DIN/EN 50 022
  • 17.5 mm DIN-rail housing (DIN 43880)
DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay

Established in 2005. Has variety of goods, such as Relay, Circuit breaker, Switches, Thermocouple, Thermostat, Temperature controller, Switch power supply, AVS, Heat sink, Heater, Distribution box, Junction box and so on. We are manufacturer and have ten years experience in Electrical industry.

DPA51CM44 3P Phase Failure Relay Solid Phase Sequence Monitoring Relay

Our Services

A. Punctual delivery time:

We carry out your order into our well-organized production schedule, ensure your punctual delivery time. Production report before your order packed. Shipping notice and photos sent to you as soon as your order is shipped.

B. After sales service:

We Pay high Attention To Your Feed back after receive the goods. We Provide 12 months warranty after goods arrive. We Promise All Parts Available in lifetime use. We Positively Revert Your Complain Within 48hours.

C. Professional Sales:

We value every Inquiry Sent To Us, Ensure Quick Competitive Offer. We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents. We Are A Sales Team, With All Technical Support From Engineer Team.

Frequently Asked Questions (FAQ)

Q1 What is the main function of the DPA51CM44 phase monitoring relay?

It is a 3-phase monitoring relay designed to detect phase sequence and phase loss, ensuring that all phases are present and operate in the correct order.

Q2 What is the power supply range supported by this relay?

The relay measures its own power supply and operates within a voltage range of 208 to 480 VAC (±15%).

Q3 What are the output parameters and installation requirements?

The relay features a 5 A SPDT normally energized output. It is built in a 17.5 mm housing designed for DIN-rail mounting in accordance with DIN/EN 50 022 (DIN 43880).

Q4 What packaging and delivery methods are available?

The product is packed securely in a carton box and is kept in stock to ensure swift shipment and delivery.

Q5 What kind of warranty and after-sales support do you provide?

We offer a 12-month warranty upon the arrival of goods, assure availability of all parts for lifetime use, and positively address complaints within 48 hours.
