Product Description

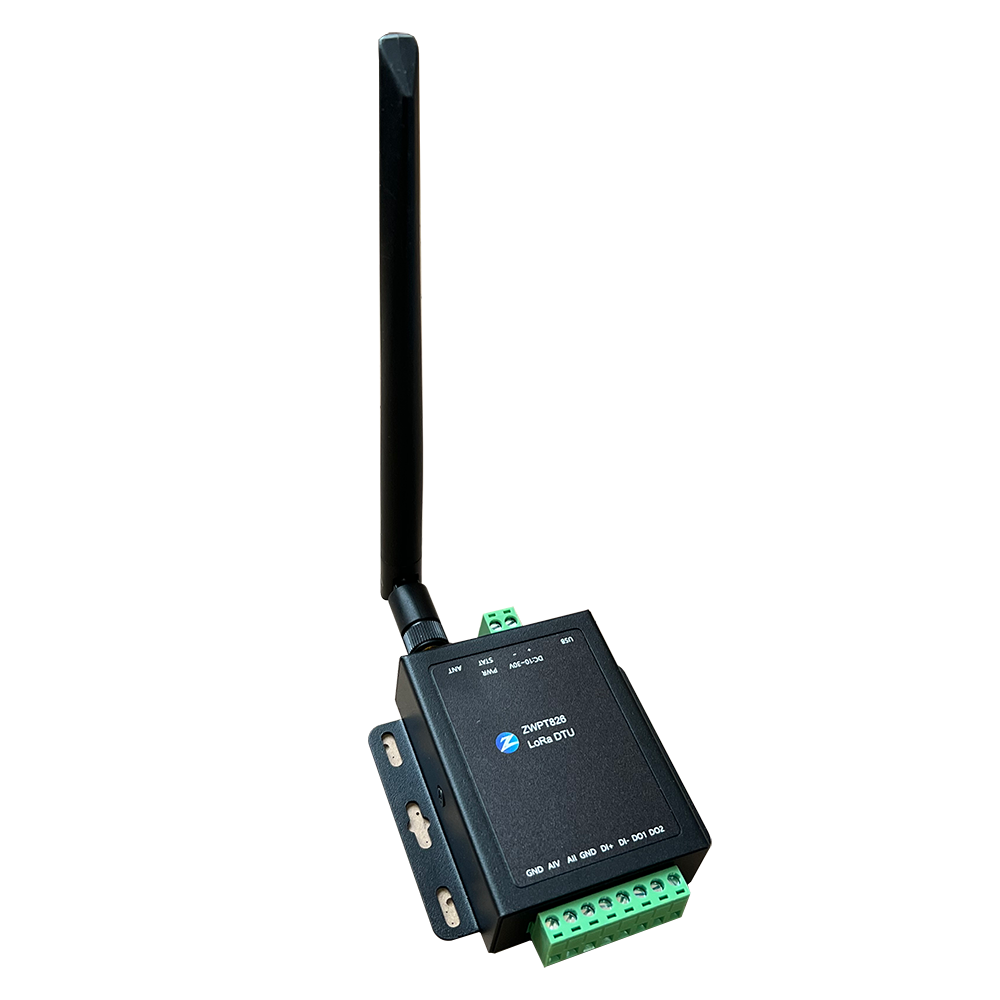

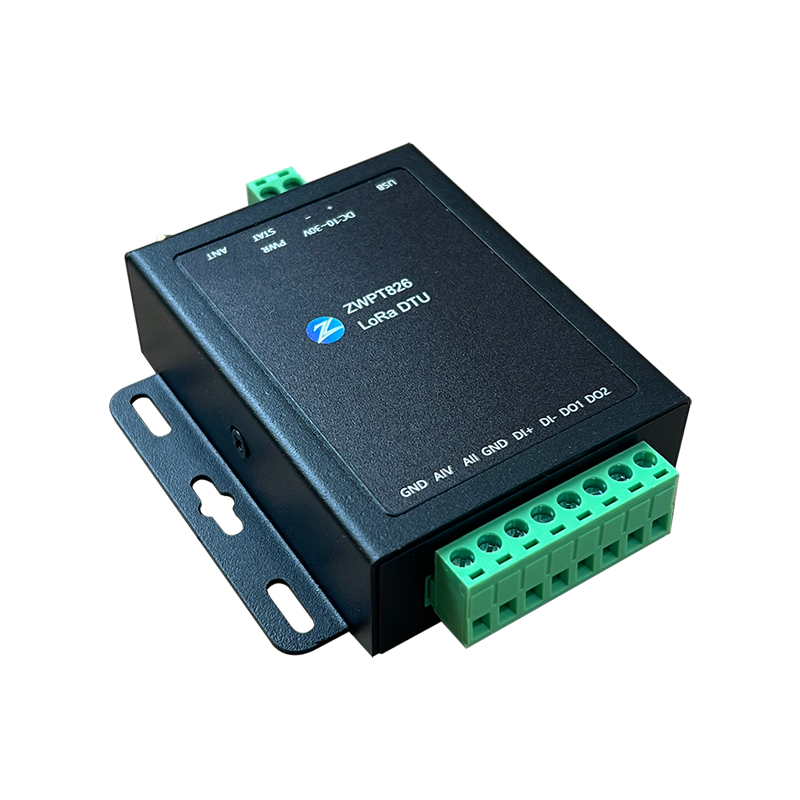

ZWPT826 LoRa Wireless DTU
ZWPT826 LoRa Wireless DTU
The ZWPT826x DTU represents a versatile DTU series. Each model within this lineup offers a distinct combination of input/output (IO) configurations, encompassing analog input (AI), digital input (DI), analog output (AO), digital output (DO), pulse - width modulation (PWM), pulse signal (PULSE), and relay functions. This diverse range of IO options empowers users to precisely choose the most appropriate DTU that aligns with their specific application requirements, ensuring optimal performance and functionality.

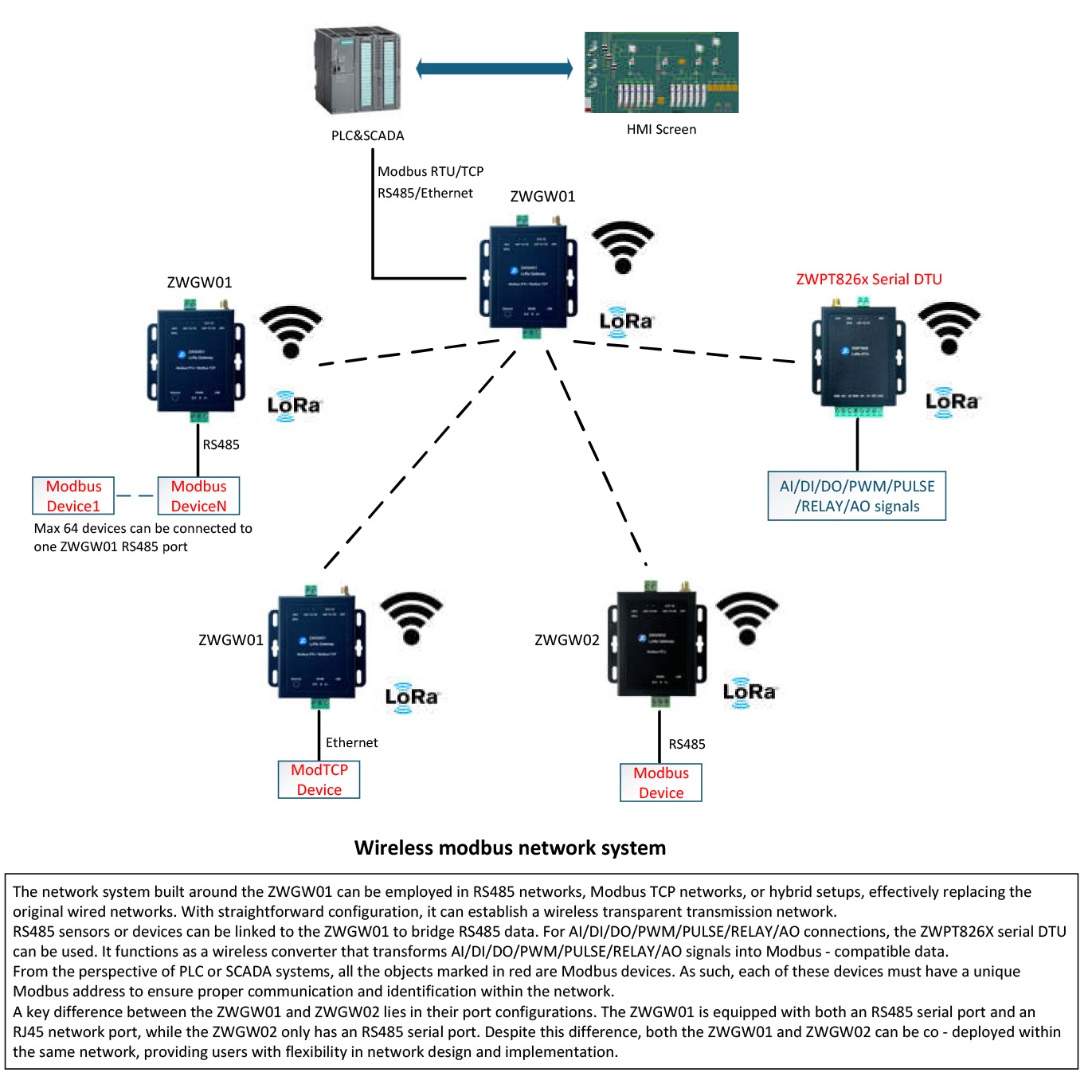

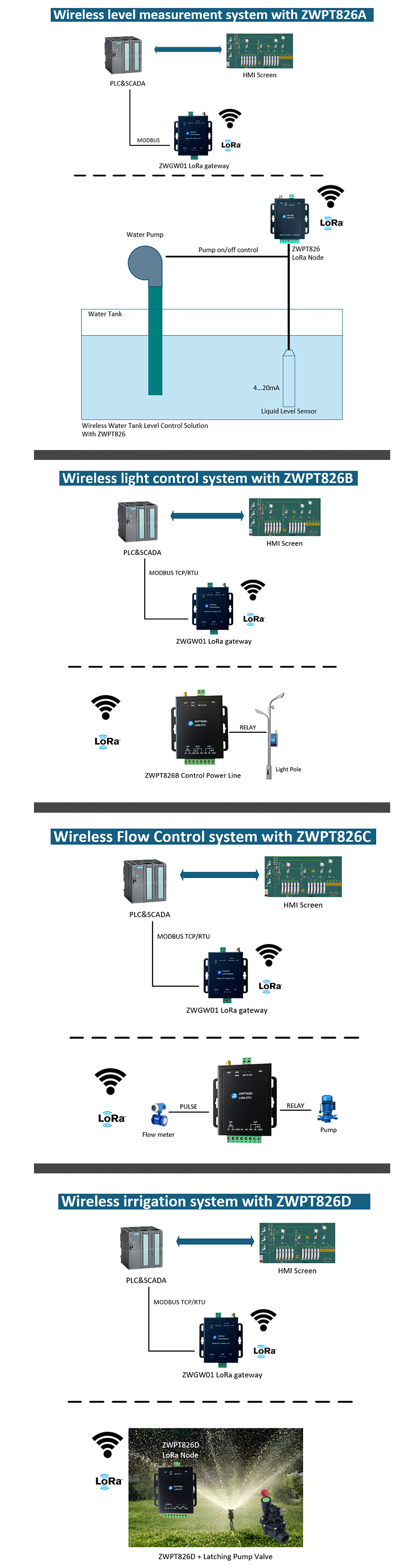

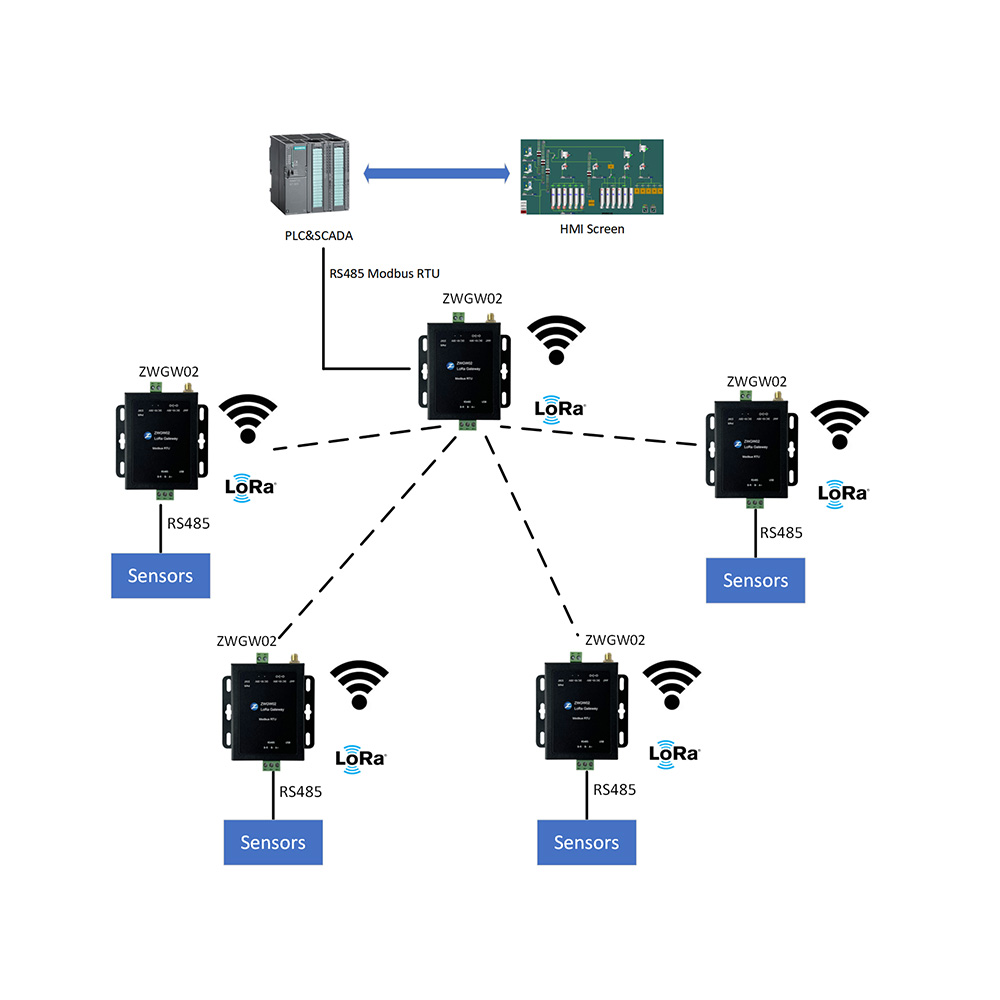

Functioning as a wireless Modbus RTU device, the ZWPT826 collaborates seamlessly with the ZWGW01/ZWGW02 LoRa RS485 transceivers. From the perspective of PLC (Programmable Logic Controller) or SCADA (Supervisory Control and Data Acquisition) systems, the ZWPT826 presents itself as a standard Modbus RTU device with AI/DI/DO/PWM/PULSE/RELAY/AO connections. PLCs and SCADA systems can access the ZWPT826's register table to read/write registers.
ZWPT826 Architecture
  • 10-30VDC powered
  • LoRa compatible
  • Support AI/DI/DO/AO/PWM/PULSE/RELAY signal
  • Heartbeat report and event drive report
  • Supports configuration by USB
  • Low power; long range
  • AES128 encryption support
ZWPT826 Details

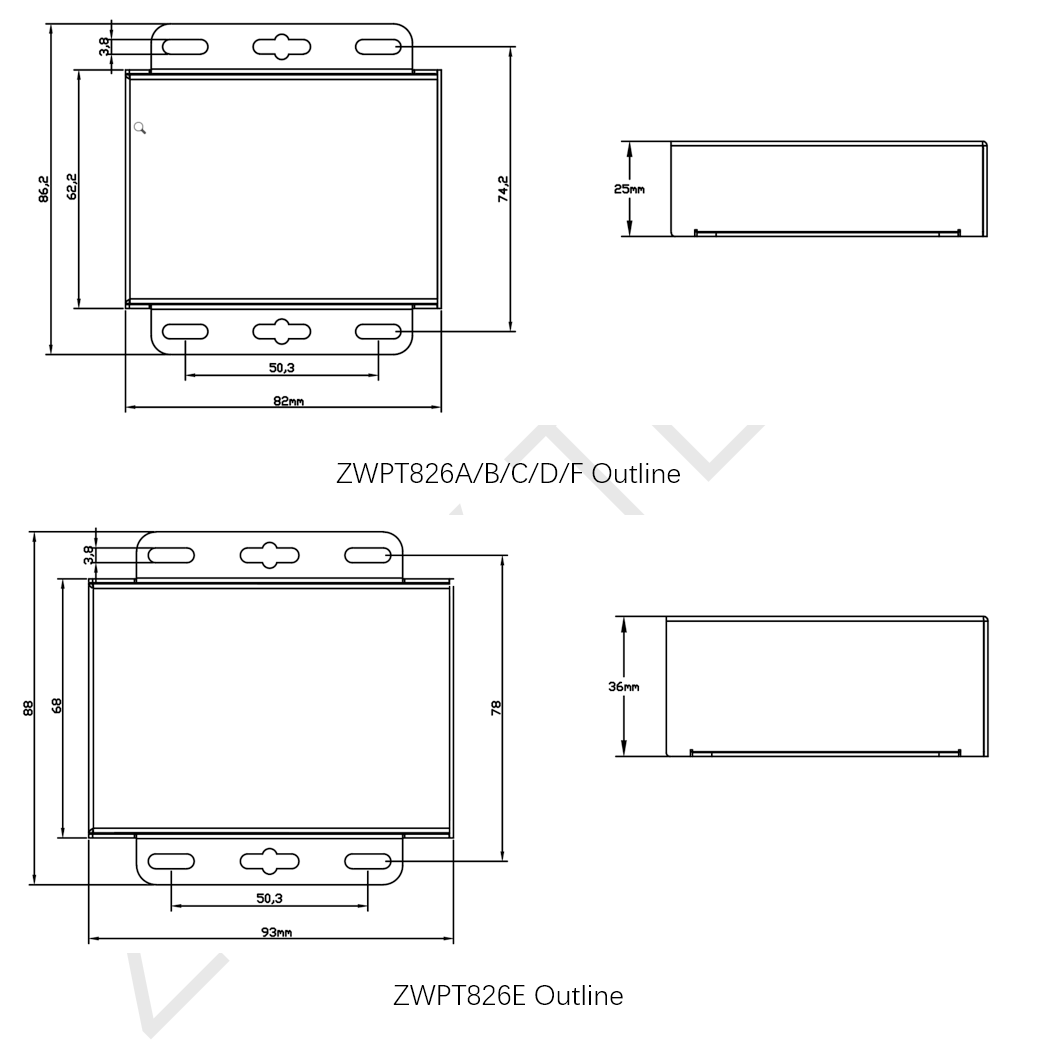

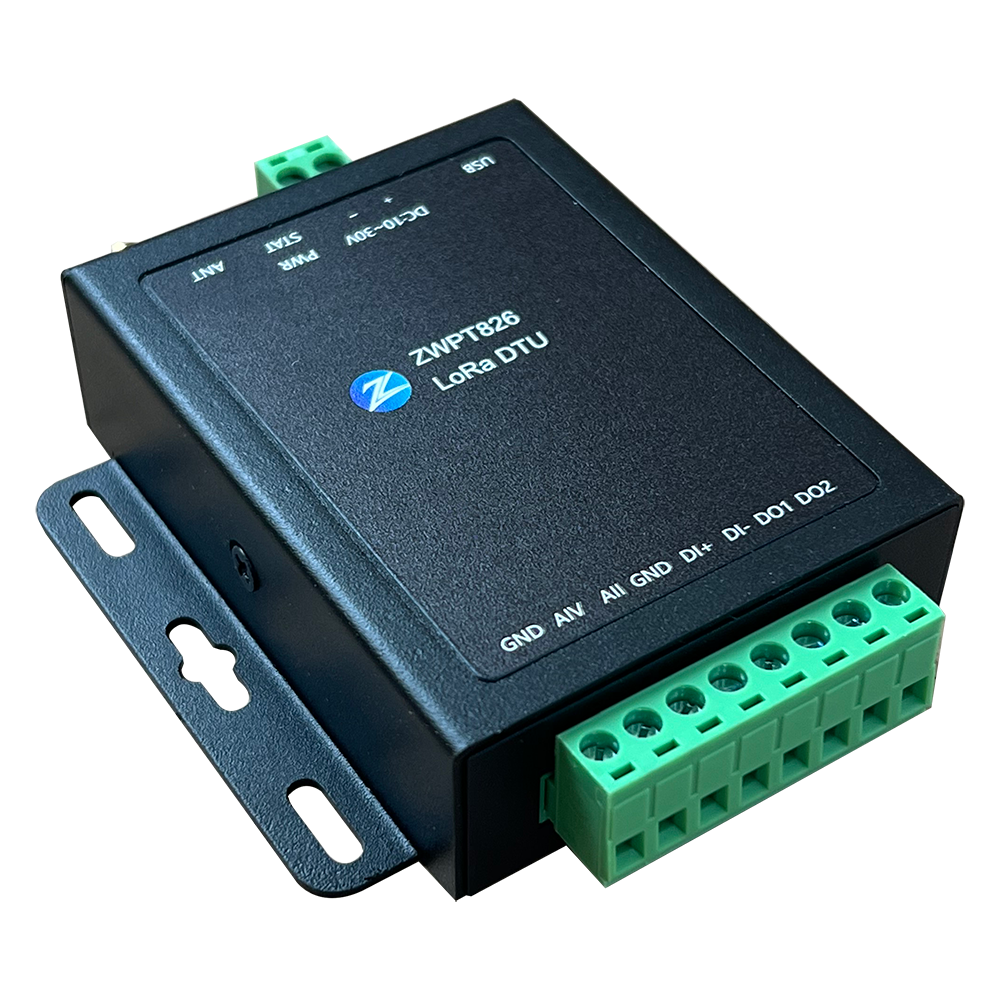

Dimension Info
Mounting Type

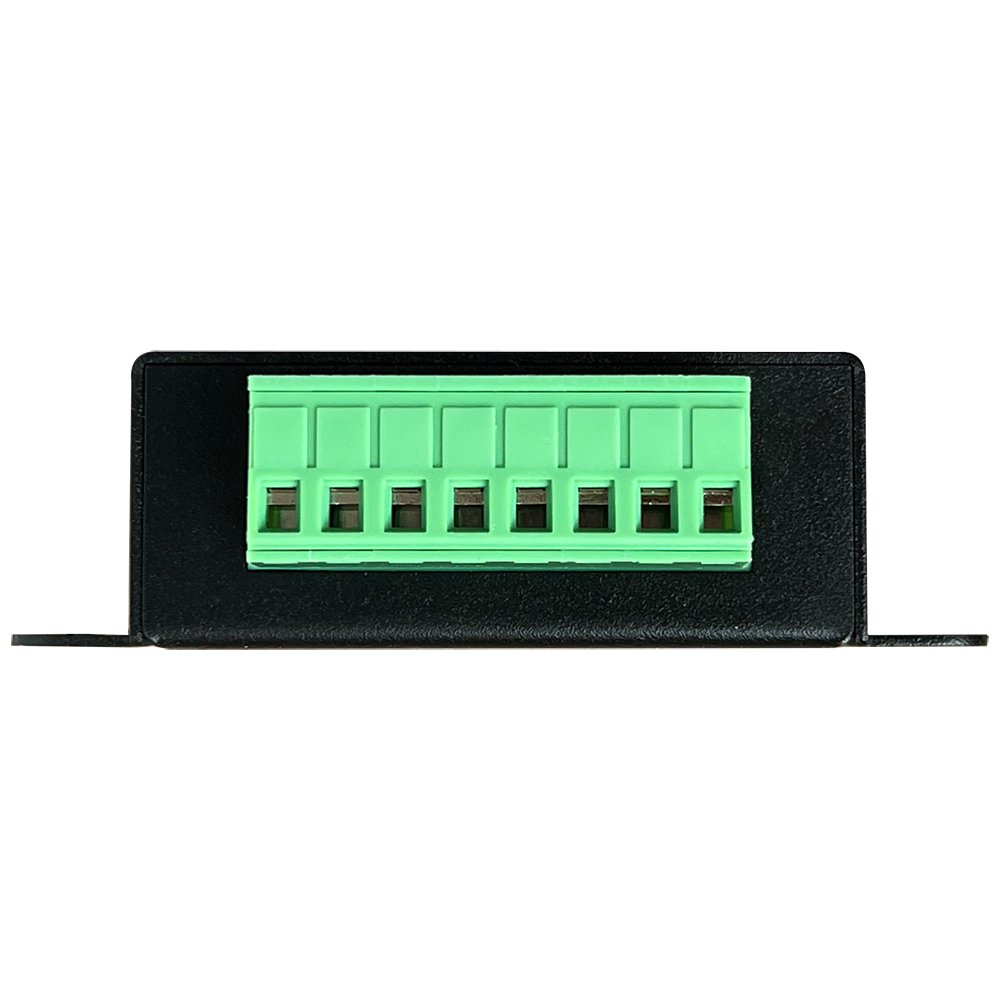

Port Details 1

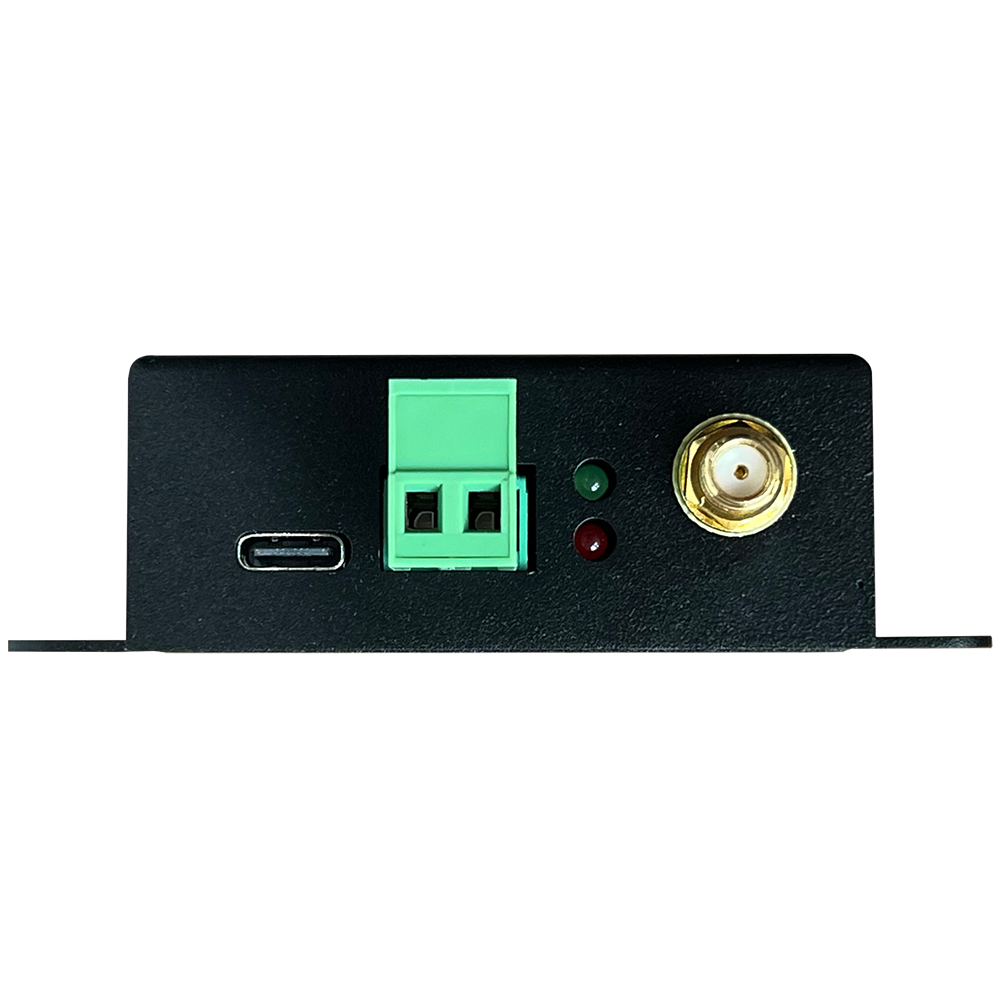

Port Details 2

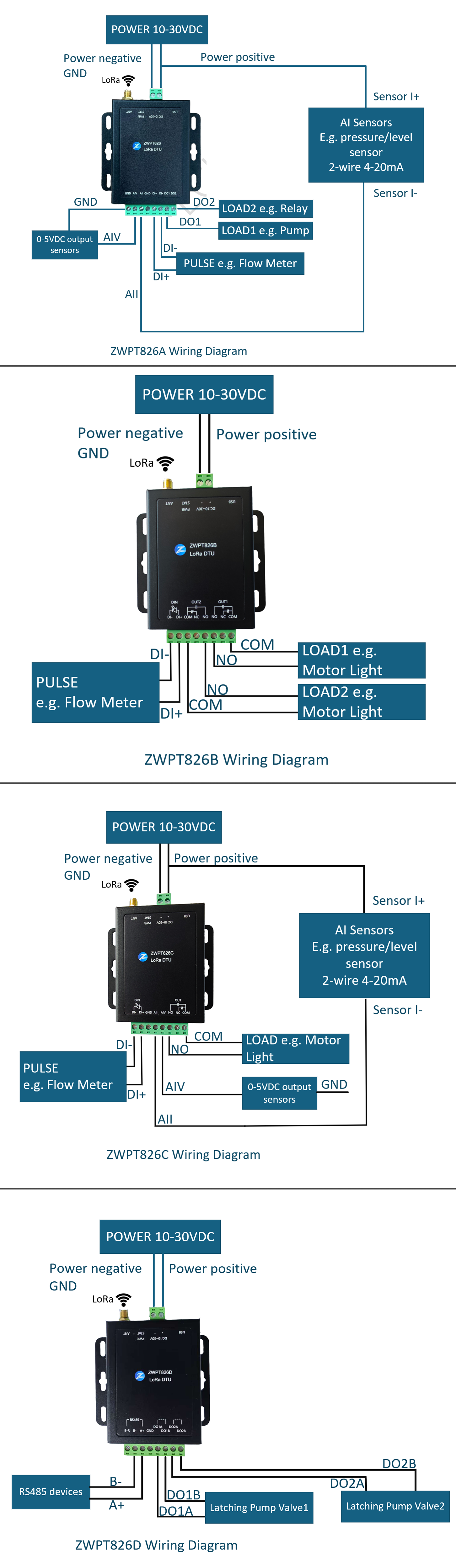

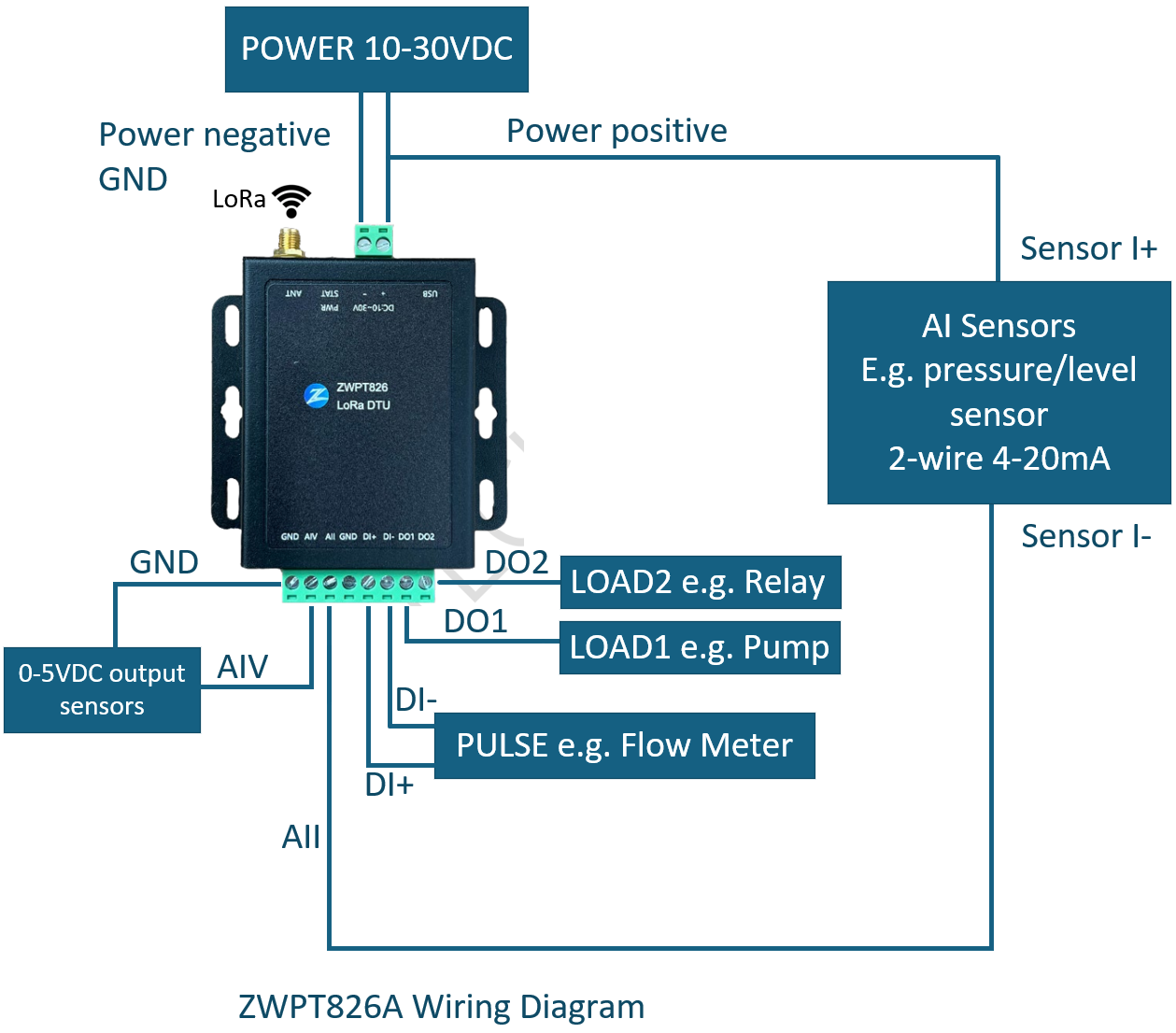

Connection Interface
Configuration Layout
Technical Specifications
Name Content Remark
Frequency bands 433/470/868/915 MHZ
Antenna External rod antenna Magnetic mount antenna optional
Transmit power 20dbm
Transmission distance 1-10KM Sunny weather, visual barrier-free up to 10KM
Power supply 10-30VDC
Maximum current <200mA
Configuration port USB type C
Operating temperature (-40 to +85)℃
Protection IP65
Weight Approx. 200g
Housing material Galvanized steel
AI signal AII:4-20mA AII and AIV signals can only be connected one at a time.
AIV:0-5VDC
DI signal 12-24VDC The DI signal is an opto-isolated input.
DO signal Power positive rail The DO output is a high-side power output
Size 86X82X25 mm
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Two Image Group 1A
Two Image Group 1B
Two Image Group 2A
Two Image Group 2B
Overview Graphics
Two Image Group 3A
Two Image Group 3B
Two Image Group 4A
Two Image Group 4B
Interface Showcase
Diagram Layout
Setup Layout
Group 5A
Group 5B
Production Process 1
Production Process 2
Production Process 3
Production Process 4
Testing Facility 1
Testing Facility 2
Testing Facility 3
Testing Facility 4
Quality Standard Overview
Equipment Setup A
Equipment Setup B
Equipment Setup C
Certificate & Quality A
Certificate & Quality B
Certificate & Quality C
Shipping and Packaging
Frequently Asked Questions
Do you provide custom services?
Yes, our factory supports OEM/ODM services. Users can customize the panel, display content, communication protocol, packaging, etc.
What is your minimum order quantity?
For standardized products, the MOQ is 1 unit.
What is your after-sales service like?
All our products come with a one-year warranty and lifetime free technical support.
What is your delivery cycle time?
Within 10/30/50 days after receiving the advance payment; The specific deadline shall be based on the detailed requirements.
Are you the original manufacturer?
Yes, we are the original manufacturer. All products are independently developed and manufactured by us.
What signals does the ZWPT826 DTU support?
The device supports a comprehensive range of inputs and outputs, including analog input (AI), digital input (DI), analog output (AO), digital output (DO), pulse-width modulation (PWM), pulse signal (PULSE), and relay functions.
