Product Description

Product Description

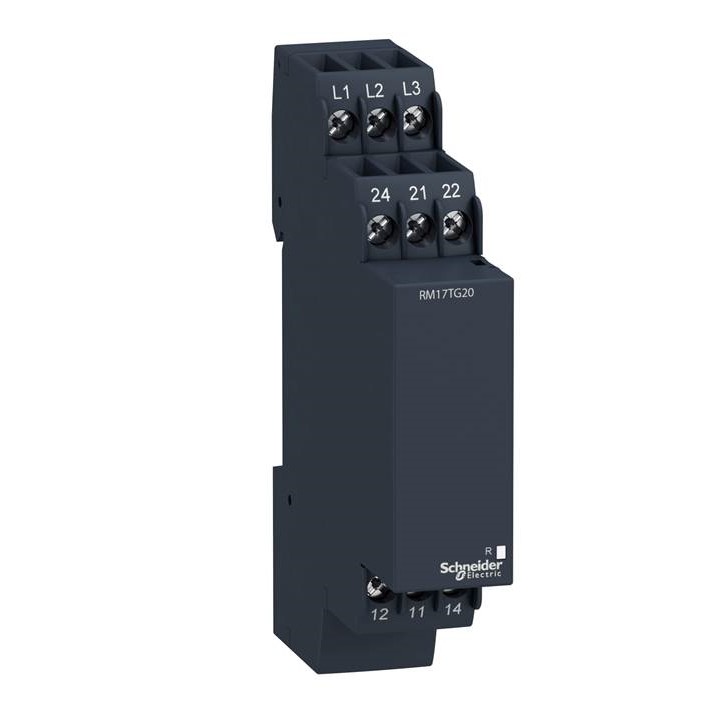

RM17TG20 Phase Control Relay features include:

  • Function: Phase control monitoring.
  • Frequency: 50...60 Hz +/- 10 %.
  • Voltage Range: 183...484 V AC.
  • Output Current: 5 A.
  • Contacts: 2 C/O output contacts.

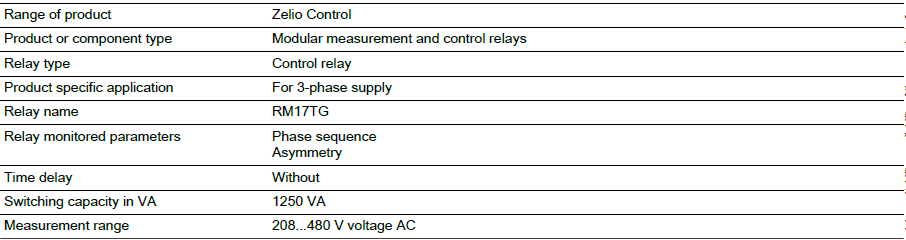

RM17TG20 Relay

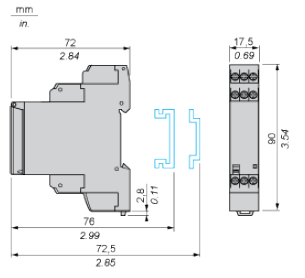

Dimensions & Specifications

Height90 mm
Width17.5 mm
Depth72 mm
Product weight0.13 kg
Dimensions

Packing & Delivery

Packing

In Stock Components

Stock
Component 1 Component 2 Component 3

Our Service

Service

FAQ

1. What is the main function of the RM17TG20?
The RM17TG20 is a phase control relay designed to monitor phase sequences and detect phase loss in electrical networks.
2. What is the rated voltage range for this device?
This relay operates within a voltage range of 183 to 484 V AC.
3. Is the RM17TG20 compatible with 50Hz and 60Hz networks?
Yes, it is designed to operate on both 50Hz and 60Hz networks with a tolerance of +/- 10%.
4. What are the output contact configurations?
The device features 2 C/O (Changeover) output contacts, providing versatility for control and alarm applications.
5. What is the physical size of the unit?
The unit is compact, with dimensions of 90mm (Height), 17.5mm (Width), and 72mm (Depth).
6. How much does the RM17TG20 weigh?
The total weight of the product is approximately 0.13 kg.
