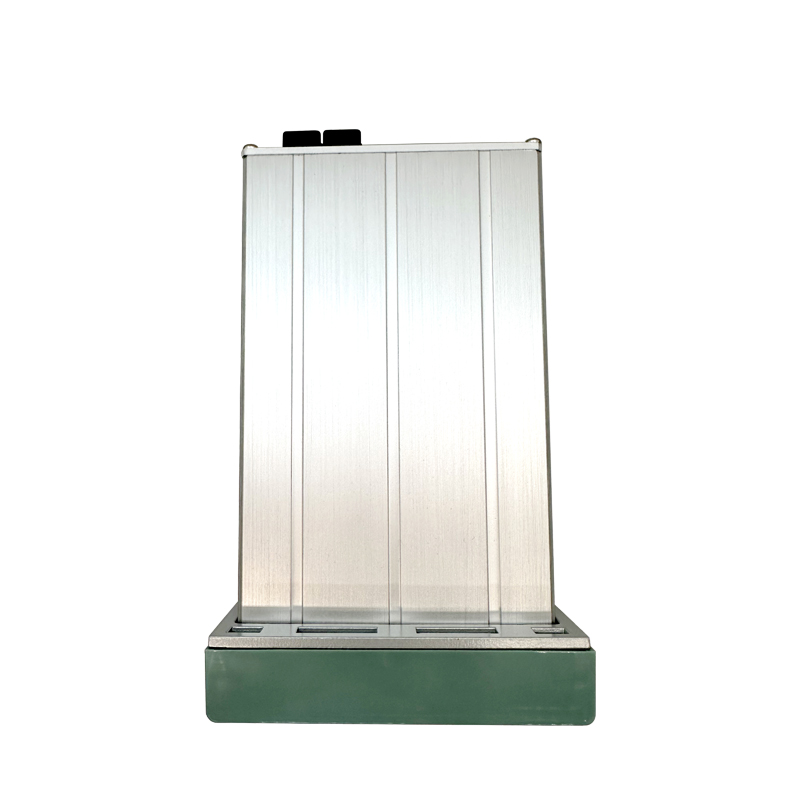

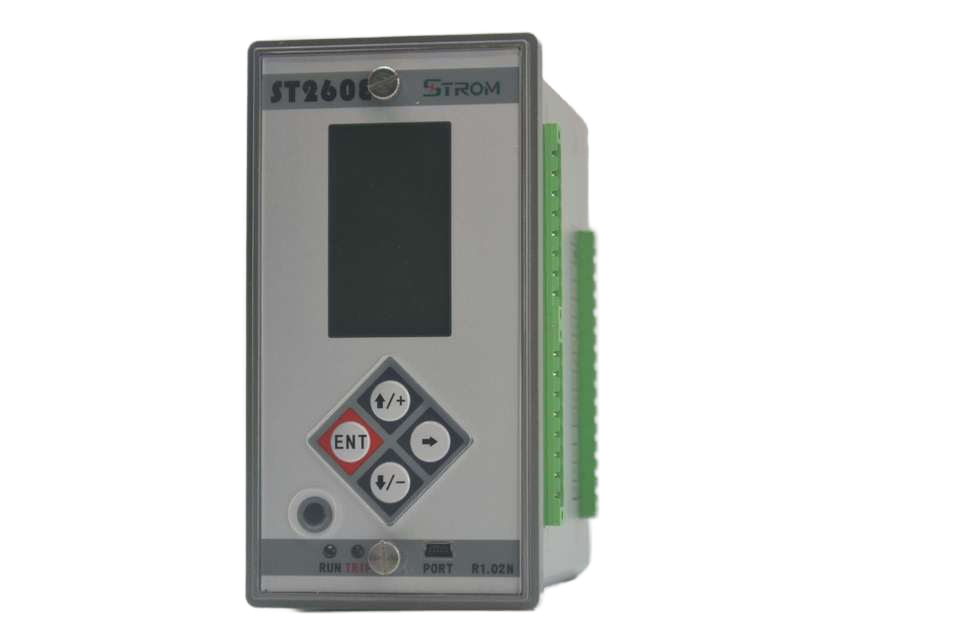

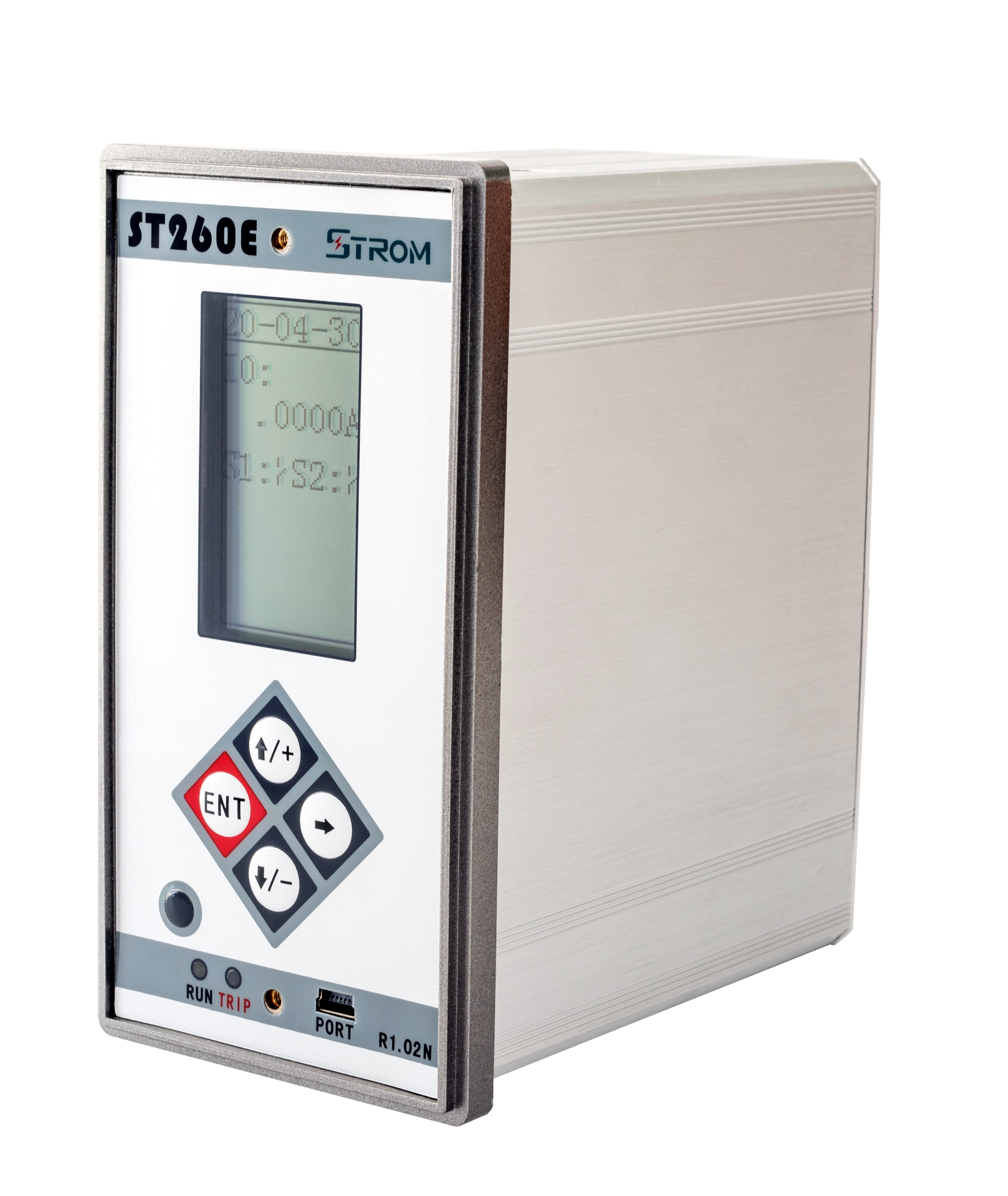

Device adopts high-integrated, internal bus wire of chip processor which deals with signal coming from CT, and control relay-output via digital logic calculation. It adopts sealed case, maintenance–free design and anti-interference performance, which are suitable for ring-grid net cubicle with bad running ambient and compact mounting position.

• Rated data: AC current: 5A or 1A (general)
• Frequency: 50Hz / 60Hz
• Power: DC48V, ±20% or DC24V, ±20%
• Self-powered: Acquiring power from phase CT
• Overload capability: Long term running up to 10 A
• Power consumption: Supply circuit ≤ 5W; AC input circuit ≤ 0.5VA
• Measurement scope: Phase current: 0.05A ~ 100A; Earth current: 0.01A ~ 20A
• Protection action time: Over current/earth protection ≤ 35ms
• Output contact: Continuous bearing AC220V, 10A

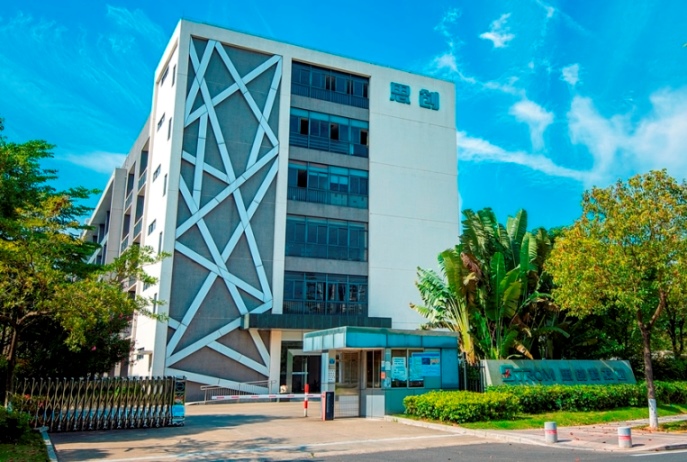

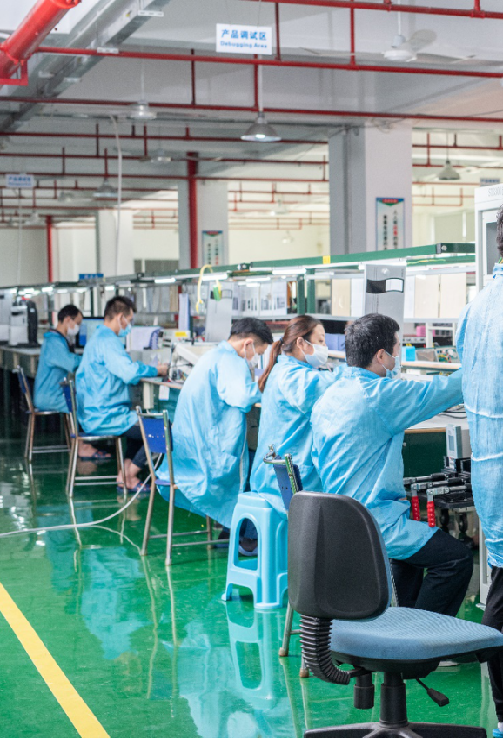

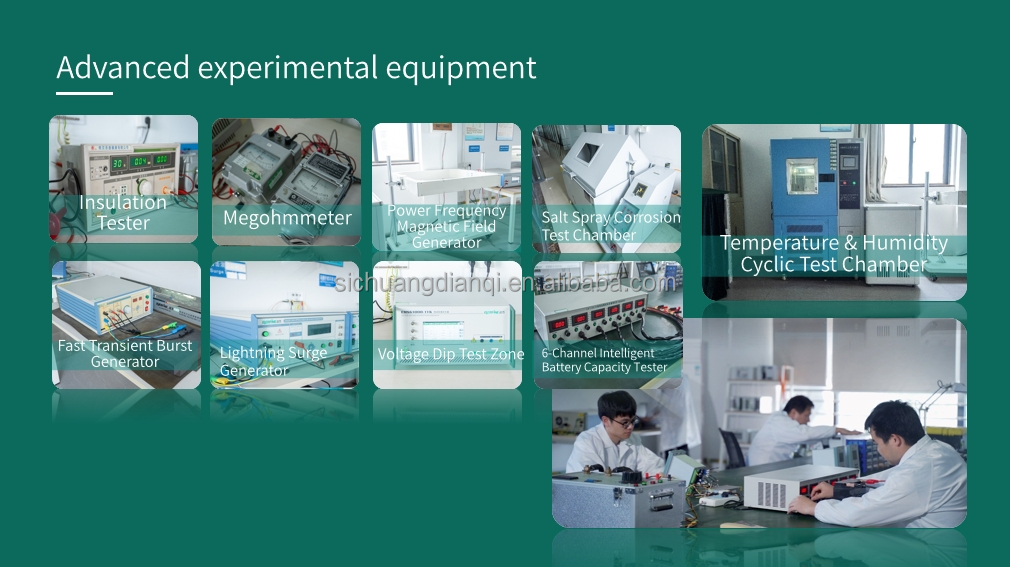

With over 15,000 square meters of researching and producing industrial park, our facility focuses on professional design and manufacturing of electrical power relays, distribution network automation terminals, and monitoring meters. We maintain a strict quality guarantee system and perfect management system to ensure high-quality products and outstanding service.
